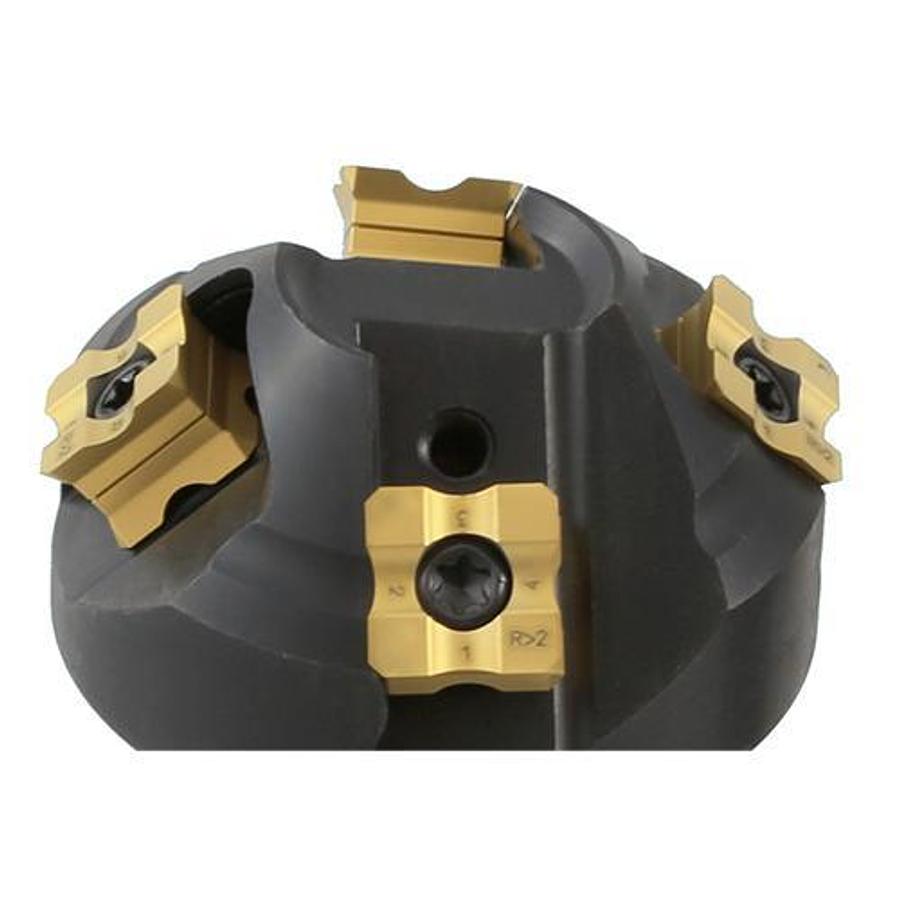

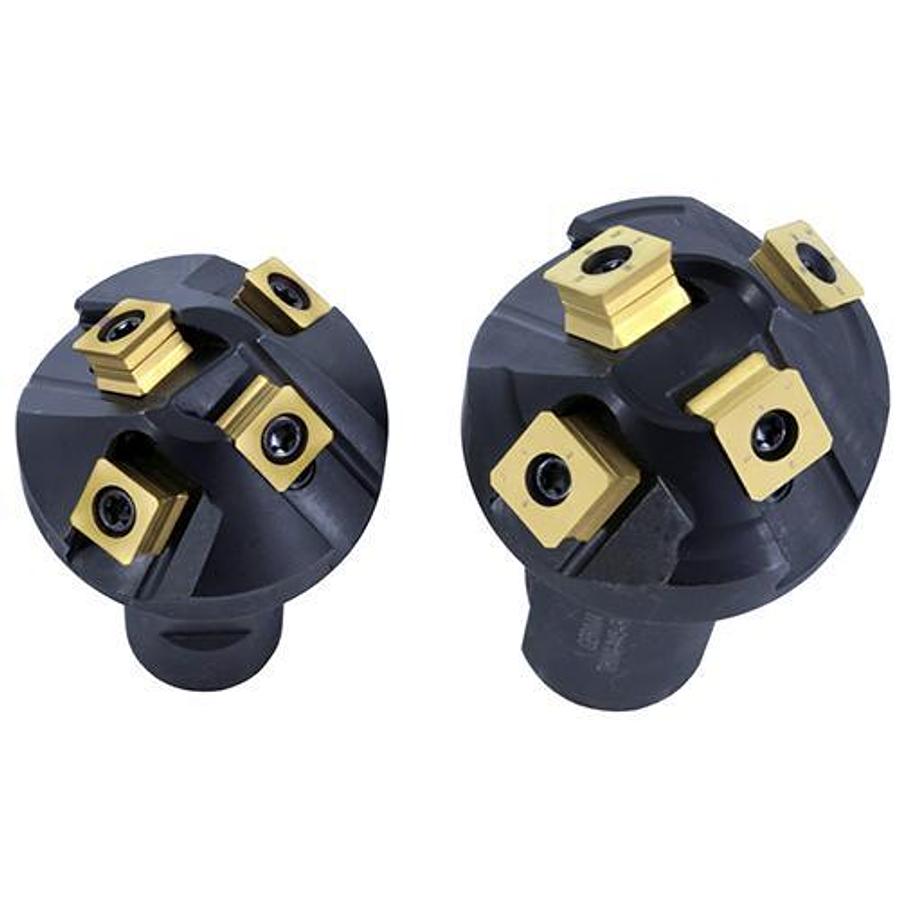

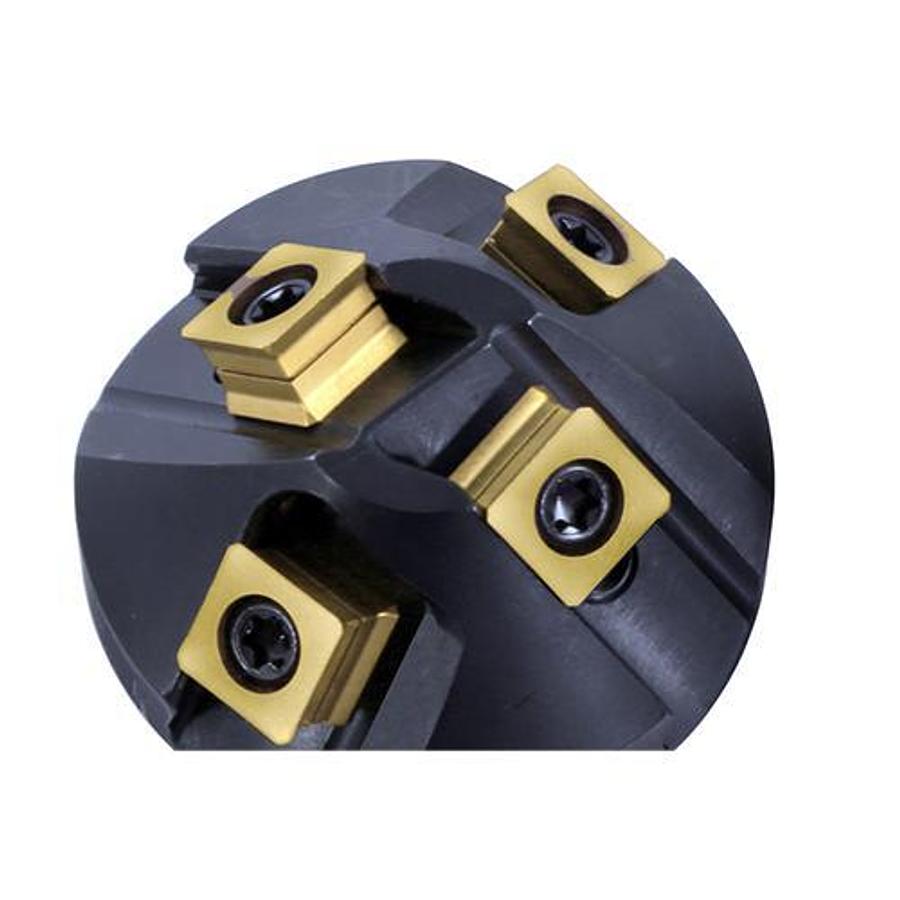

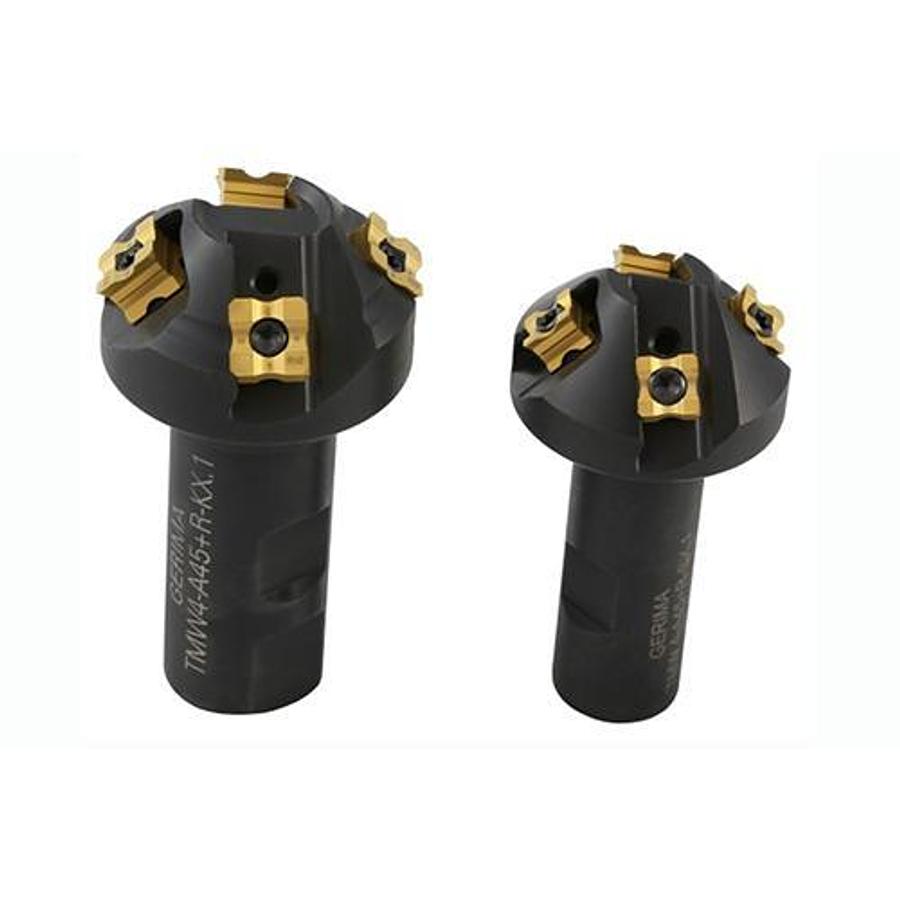

High-Speed CNC Bevel & Radius Milling Cutters – Gerima TMW Series

Description

The Gerima TMW Series is engineered for high-performance machining, specifically optimized for CNC applications and high-speed milling operations. Unlike standard cutters, the TMW series offers exceptional versatility, capable of producing both precision bevels and small radii using a single tool body design tailored for stability and speed.

One of the standout features of the TMW series is its cost-efficiency. The system utilizes indexable inserts with 8 usable cutting edges, significantly reducing tooling costs per part. From visual edge finishing to complex weld preparation, the TMW delivers consistent quality across various materials, including steel, stainless steel, and even challenging materials like Carbon Fiber (CFRP).

Key Features & Specifications:

CNC Optimized: Designed for high stability and vibration dampening in CNC machining centers.

Economical Inserts: Utilizes inserts with 8 cutting edges (flutes), maximizing tool life and reducing replacement costs.

Versatile Geometry:

Bevel Angles: Available from 10° to 80°.

Bevel Width: Capable of widths from 0.2mm to 16mm.

Radius Range: Precise rounding from R1.2mm to R6mm.

Material Versatility: Excellent performance on metals and specialized composites like Carbon Fiber.

Application: Ideal for visual bevels, functional edges, and deburring complex contours.

Equip your CNC machines with the Gerima TMW Series for a perfect balance of high-speed performance and operational economy.

Specifications

Condition

New
