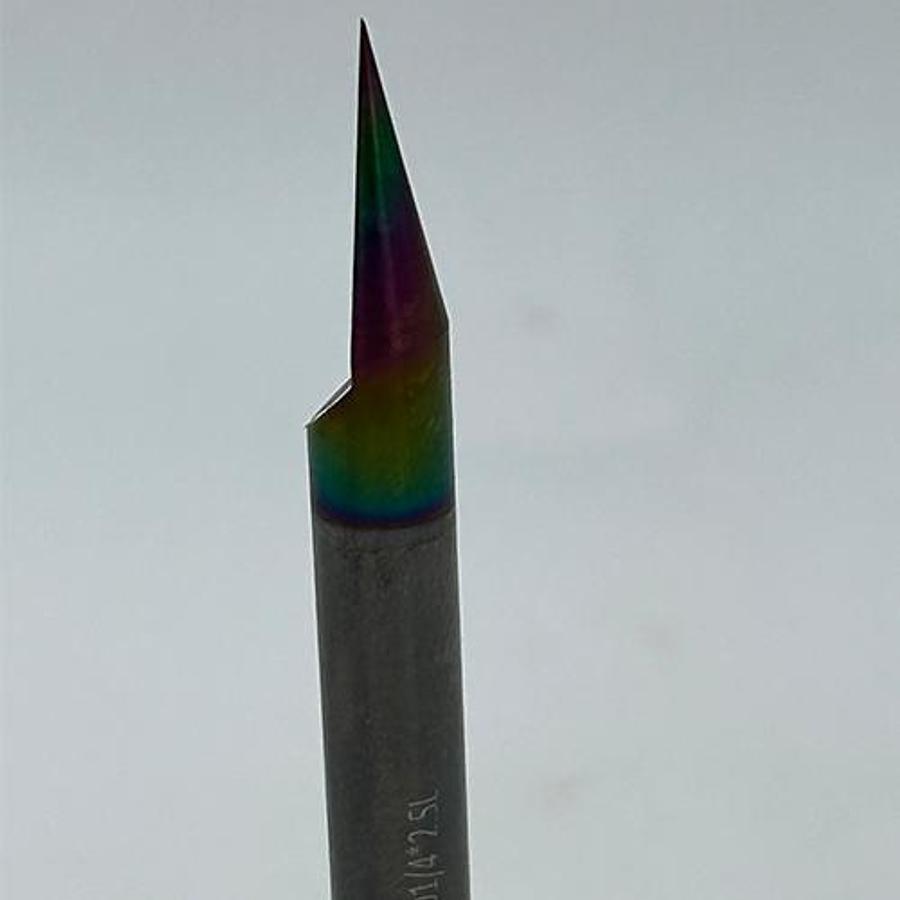

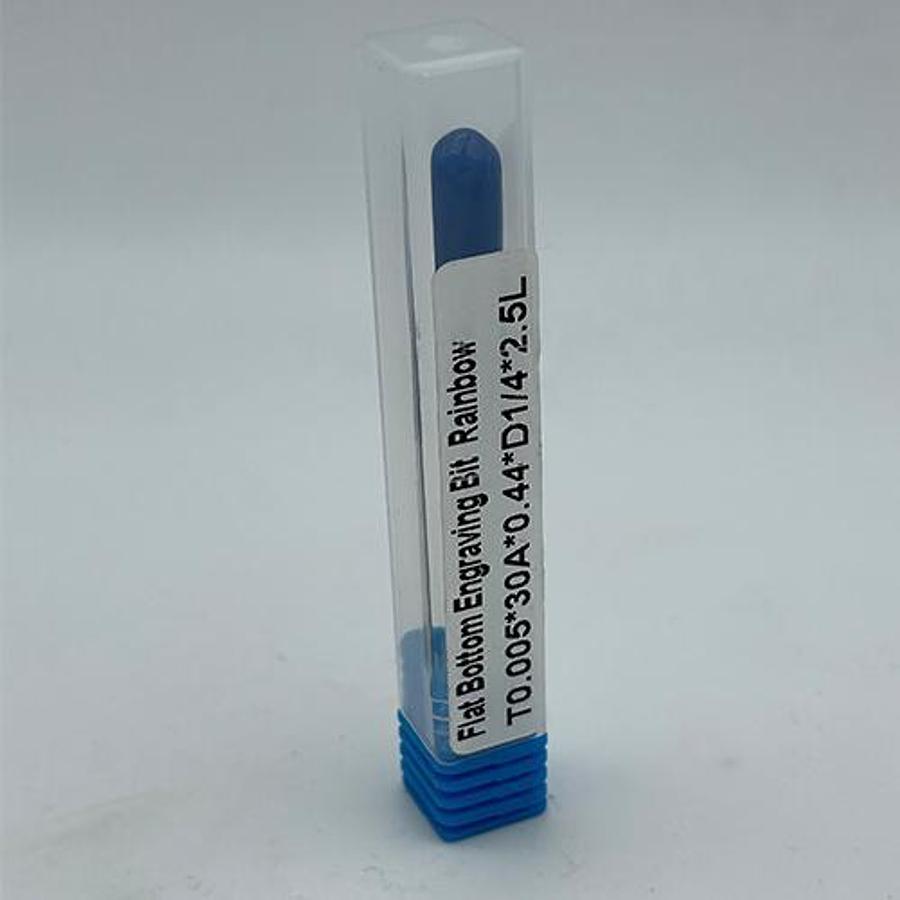

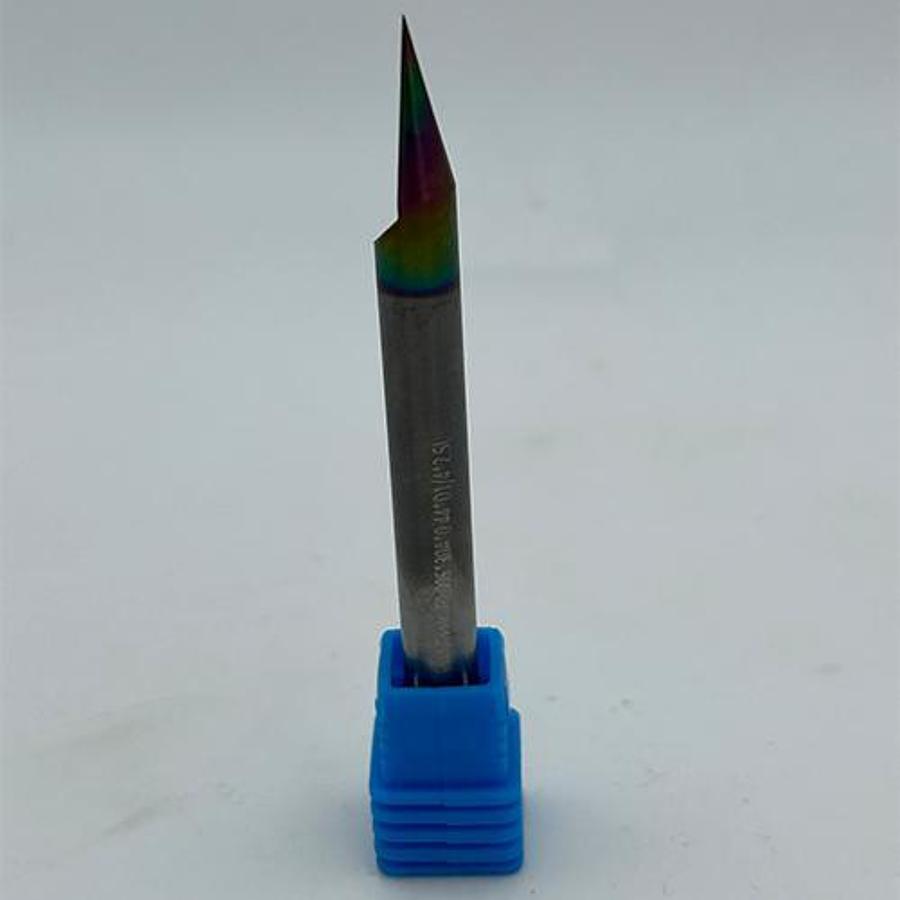

Solid Carbide Flat Bottom Engraving Bit – Rainbow Coated (T0.005 Tip, 30° Angle)

Solid Carbide Flat Bottom Engraving Bit – Rainbow Coated (T0.005 Tip, 30° Angle)

C$20 (CAD)

Was: $30.00
or
Call +1 437 475 2301

Description

Rainbow PVD Coated Engraving Cutter for Ultra-Fine Detail and V-Carving in Plastics, Metals, and Composites in Canada.

The Snail Tools Flat Bottom Engraving Bit is a high-precision tool engineered for producing exceptionally fine detail and crisp, clean lines in 2D and 3D engraving and V-carving applications. The ultra-fine T0.005 inch tip width combined with a 30 degree}$ included angle allows for intricate detail and sharp internal corners. The specialized Rainbow PVD Coating provides superior hardness and lubricity, drastically extending tool life and enabling higher speeds while preventing heat buildup when engraving materials like acrylic, aluminum, brass, wood, and composites. The robust 1/4 inch shank ensures maximum rigidity and minimal run out for flawless results.

Key Features & Micro-Detail Engraving

  • Tip Precision: T0.005 inch Flat Tip – Designed for the highest level of detail, perfect for creating micro-text, fine lines, and intricate artwork.
  • Coating: Rainbow PVD Coating – Provides extreme lubricity and heat resistance, dramatically extending life, especially in abrasive or sticky materials like aluminum.
  • Geometry: 30 Degree Angle – Ideal for V-carving text, signage, and fine lines with adjustable depth, while the flat tip ensures true flat-bottom surfaces.
  • Dimensions: Robust 1/4 inch Shank Diameter (d) for stability, with a 2.5 inch Overall Length (L) for standard clearance.
  • Application: Essential for high-resolution CNC engraving, jewelry making, electronic enclosures, and precise decorative work.

    • Technical Specifications

    Ready to elevate your routing precision? Invest in the robust stability and superior chip management of Snail Tools today.

    Show All

    Specifications

    ConditionNew
    DetailMeasurement (Imperial) Measurement (Metric Approx.)
    GeometryFlat Bottom Engraving V-Carving Bit
    Tip Width (T)0.005 inch 0.127 mm
    Included Angle (A)30 30
    Shank Diameter (d)1/4 inch 6.35 mm
    Working Length (B)0.44 inch 11.18 mm
    Overall Length (L)2.5 inches 63.5 mm
    Material / CoatingSolid Carbide / Rainbow PVD WC / Enhanced
