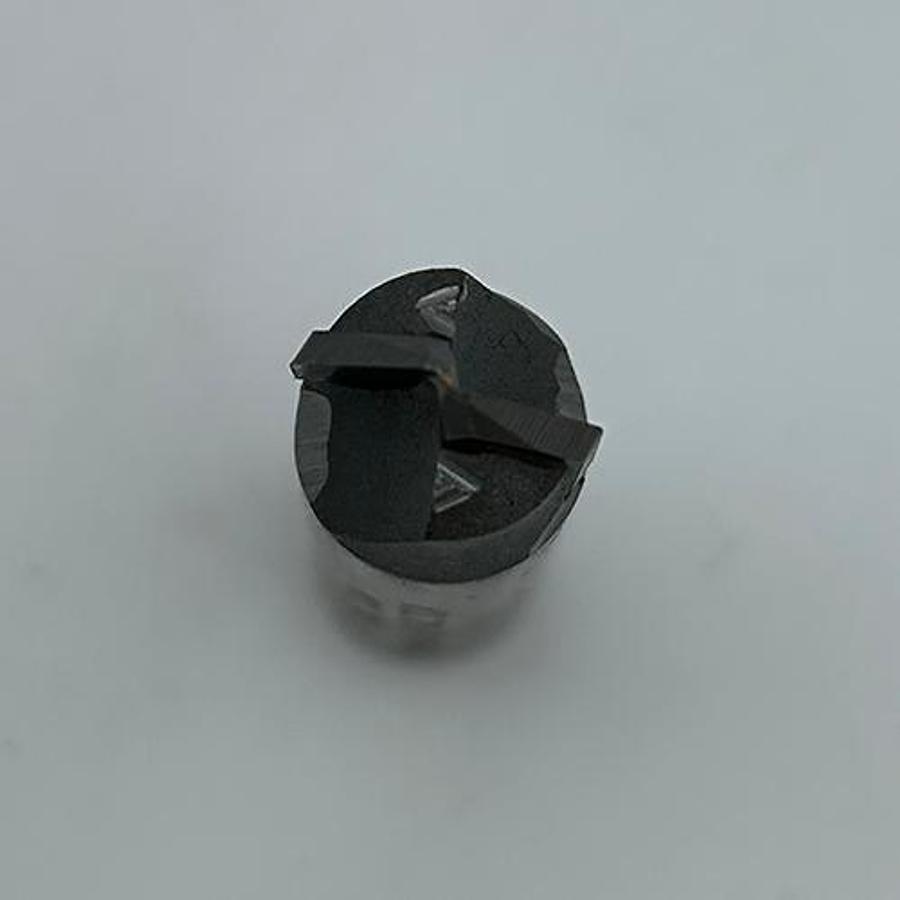

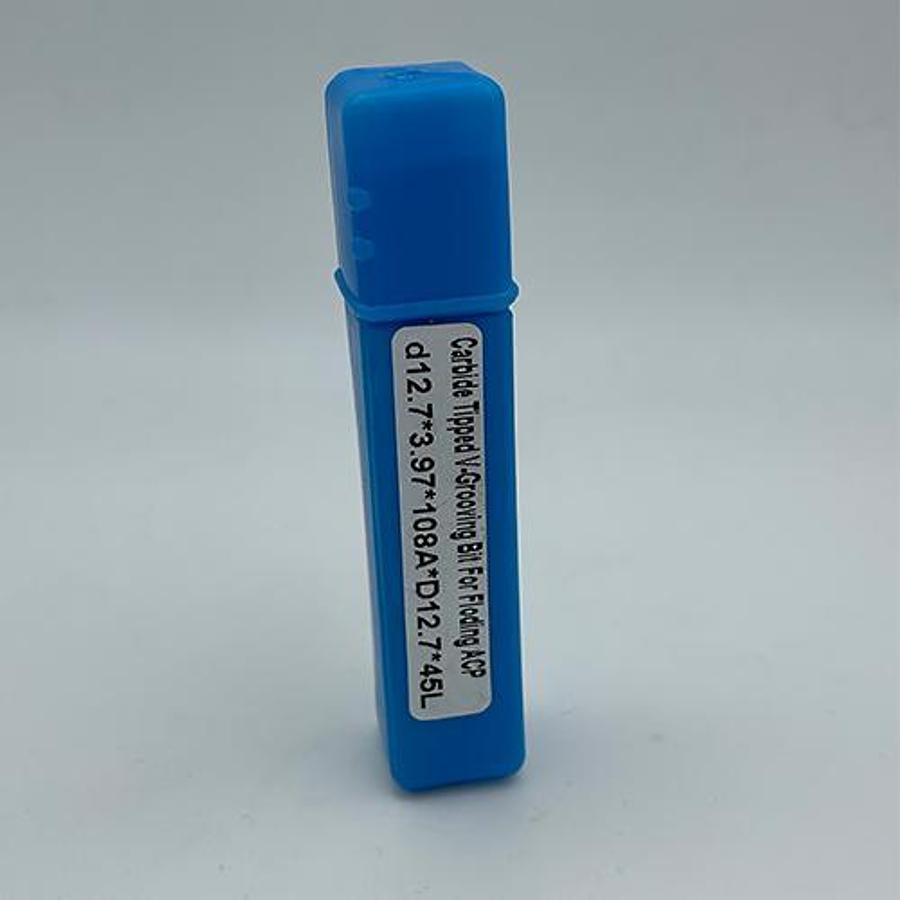

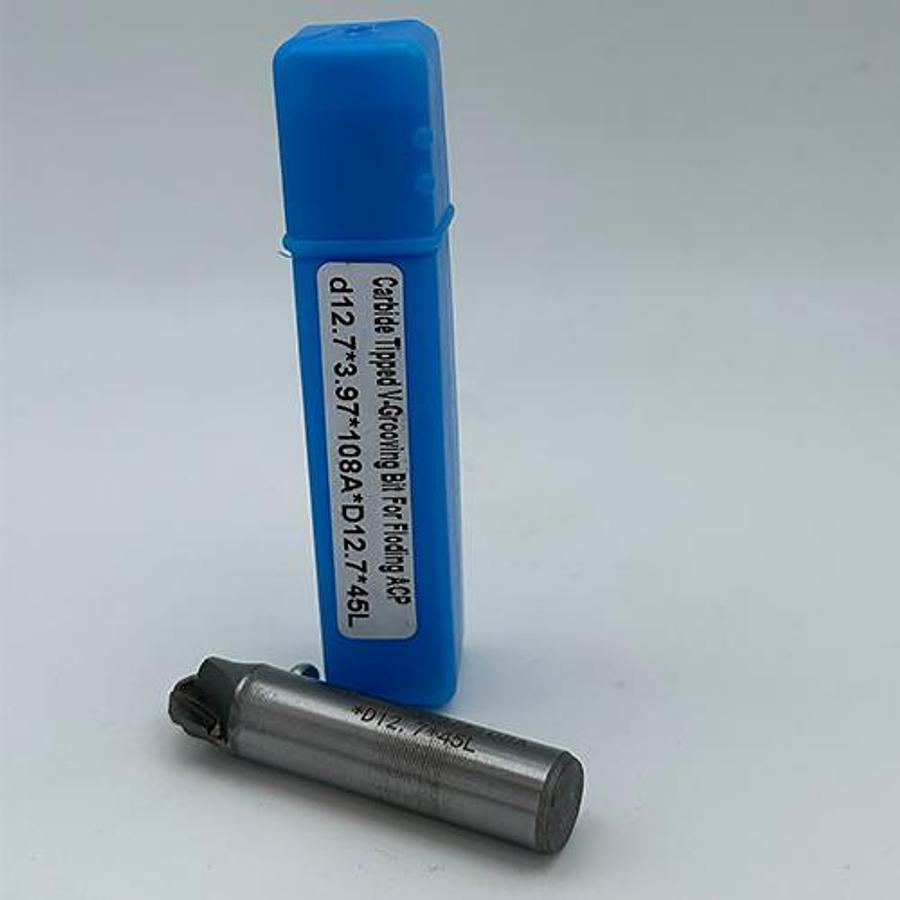

Snail Tools Carbide Tipped V-Grooving Bit (12.7 mm, 108 Degree Angle) 📐

Snail Tools Carbide Tipped V-Grooving Bit (12.7 mm, 108 Degree Angle) 📐

or
Call +1 437 475 2301

Description

Specialized V-Cutter for Clean and Precise Folding Grooves in Aluminum Composite Panels (ACP/ACM) in Canada.

The Snail Tools Carbide Tipped V-Grooving Bit is specifically engineered for creating the necessary grooves to allow Aluminum Composite Panels (ACP or ACM) to be bent and folded cleanly, most commonly for producing 90-degree corners. The specialized 108 degree angle is optimized to remove the aluminum skin and polyethylene core cleanly, leaving the opposing aluminum skin intact for folding.1 Featuring durable Carbide Tipped cutting edges, this bit offers a cost-effective and highly reliable solution for long production runs on your CNC router. The robust 12.7 mm shank ensures maximum stability and minimal vibration during high-speed routing of cladding materials.

Key Features & ACP Folding Performance

  • Application: Folding ACP/ACM Panels – Designed for grooving the inner surface of composite panels to prepare for structural folding.
  • Angle: 108 Degree Angle – The optimal geometry for precise material removal, resulting in clean, strong 90-degree folds.
  • Material: Carbide Tipped – Delivers long-lasting performance and superior edge retention when routing abrasive aluminum and plastic composites.2
  • Stability: Features a 12.7 mm (1/2 inch) Shank Diameter for use in heavy-duty router and CNC spindles.
  • Cut Specifications: The large 12.7 mm Cutting Diameter and precision-set cutting height ensure quick, consistent material removal.

    • Technical Specifications

    Ready to elevate your ACP fabrication precision? Invest in the robust stability and superior folding quality of Snail Tools today.

    Show All

    Specifications

    ConditionNew
    DetailSpecification Application Suitability
    Tool TypeV-Grooving Bit (Folding) ACP, ACM, Composites
    Cutting MaterialCarbide Tipped (CT) High Wear Resistance
    Angle (A)108 degrees 90-Degree Folding
    Cutting Diameter (D)12.7 mm Heavy-Duty Routing
    Shank Diameter (d)12.7 mm Maximum Rigidity
    Overall Length (L)45 mm Standard ACP Tooling
