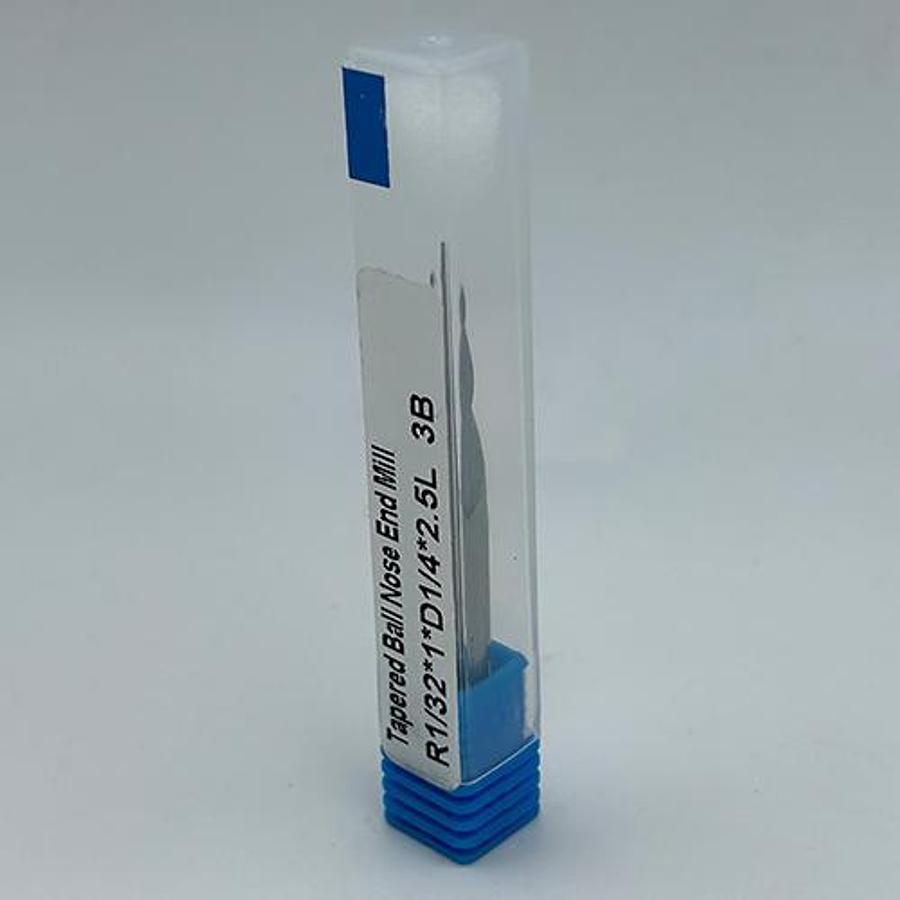

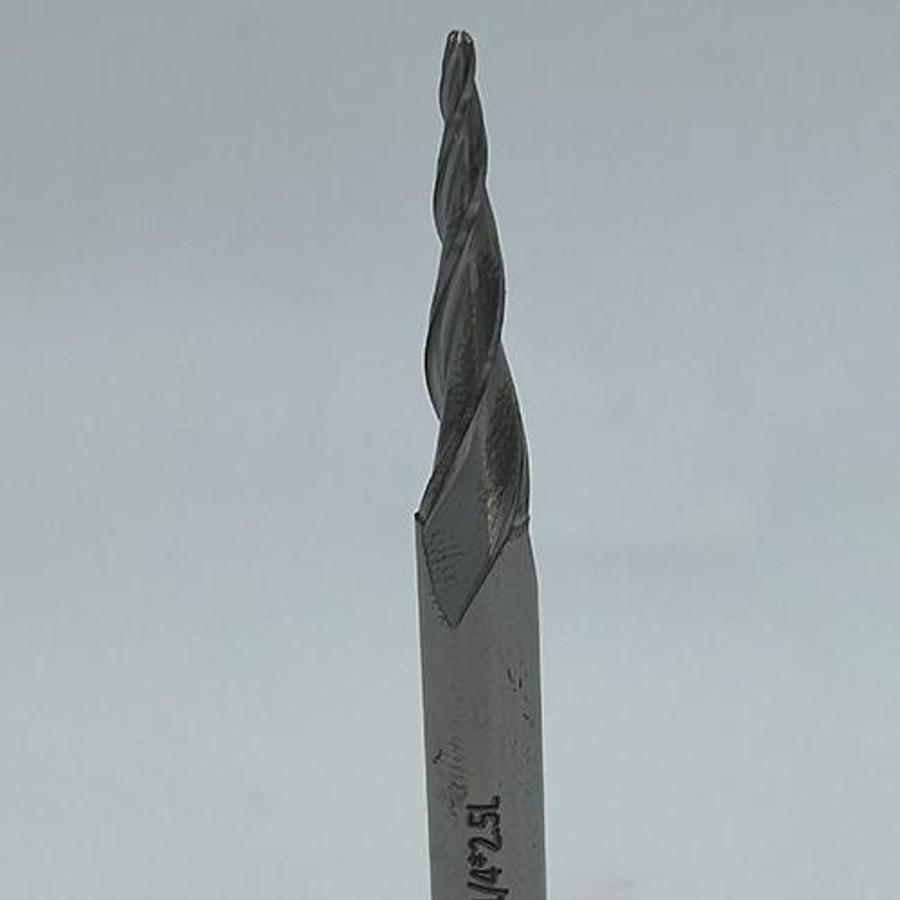

Solid Carbide 3 Flute Tapered Ball Nose End Mill (R1/32, 1/4″ Shank, 2.5″ Long)

Solid Carbide 3 Flute Tapered Ball Nose End Mill (R1/32, 1/4″ Shank, 2.5″ Long)

or
Call +1 437 475 2301

Description

Micro-Radius Tapered Ball Nose Cutter for Ultra-Fine 3D Finishing and Detail Work in Molds and Dies in Canada.

The Snail Tools Solid Carbide 3 Flute Tapered Ball Nose End Mill is a highly specialized tool engineered for ultra-fine finishing and high-accuracy 3D contouring. The geometry features a tiny R1/32 inch radius tip, ideal for capturing intricate details and achieving a pristine surface finish on complex surfaces. The unique tapered body, supported by a robust 1/4 inch shank, provides exceptional rigidity and minimizes tool deflection over the entire 1 inch cutting depth. The three-flute design ensures a superior finish and stability at high feed rates. This cutter is built from premium Solid Carbide for high-precision milling in materials including hardened steels, mold steels, and specialized tooling alloys.

Key Features & Micro-Precision Contouring

  • Geometry: Tapered Ball Nose (R1/32) – Ideal for detailed 3D finishing and creating complex contoured surfaces with ultra-fine resolution. The final tip diameter is 1/16 inch.
  • Flutes: 3 Flutes (Triple Flute) – Provides superior stability, better control, and a finer finish compared to 2-flute cutters in finishing applications.
  • Design: Extreme Rigidity – The tapered body and 1/4 inch stabilized shank drastically reduce vibration and deflection, allowing for precise, high-speed finishing even at a long 1 inch depth of cut.
  • Application: Essential for high-tolerance mold and die making, detailed cavity finishing, and micro-machining of complex geometry.

    • Technical Specifications

    Ready to elevate your routing precision? Invest in the robust stability and superior chip management of Snail Tools today.

    Show All

    Specifications

    ConditionNew
    DetailMeasurement (Imperial) Measurement (Metric Approx.)
    GeometryTapered Ball Nose 3D Contour Cutter
    Tip Radius (R)1/32 inch 0.794 mm
    Tip Diameter (D)1/16 inch 1.5875 mm
    Shank Diameter (d)1/4 inch 6.35 mm
    Length of Cut (B)1 inch 25.4 mm
    Overall Length (L)2.5 inches 63.5 mm
    Material GradeSolid Carbide WC
