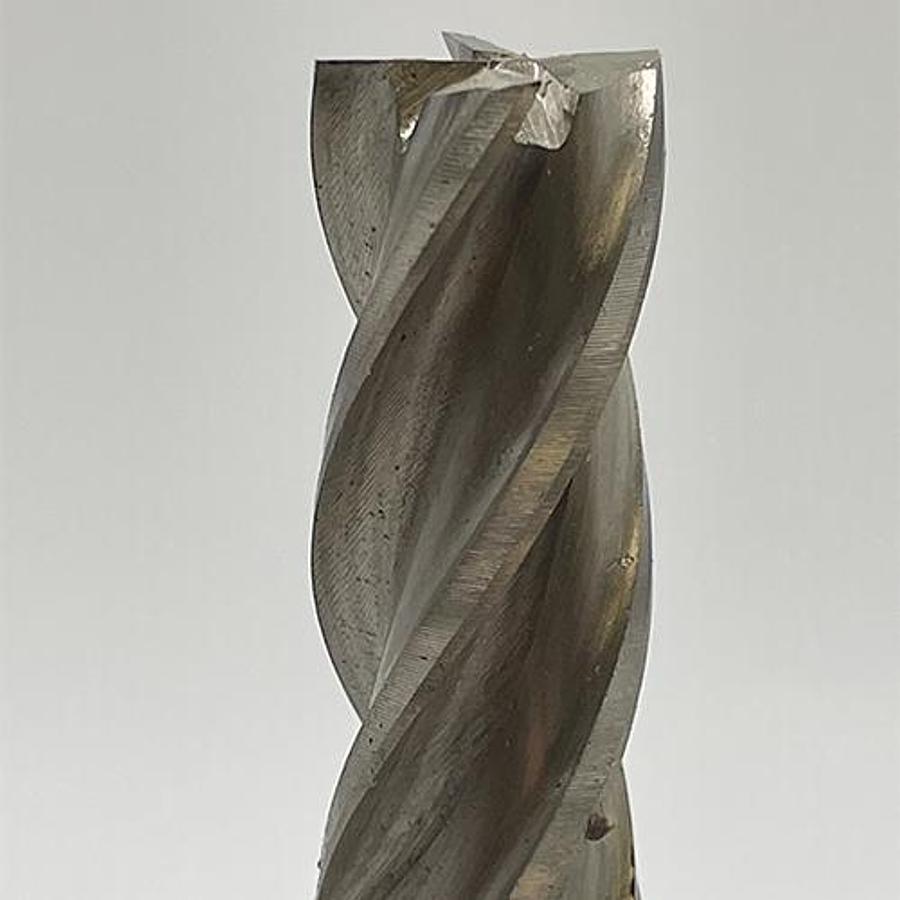

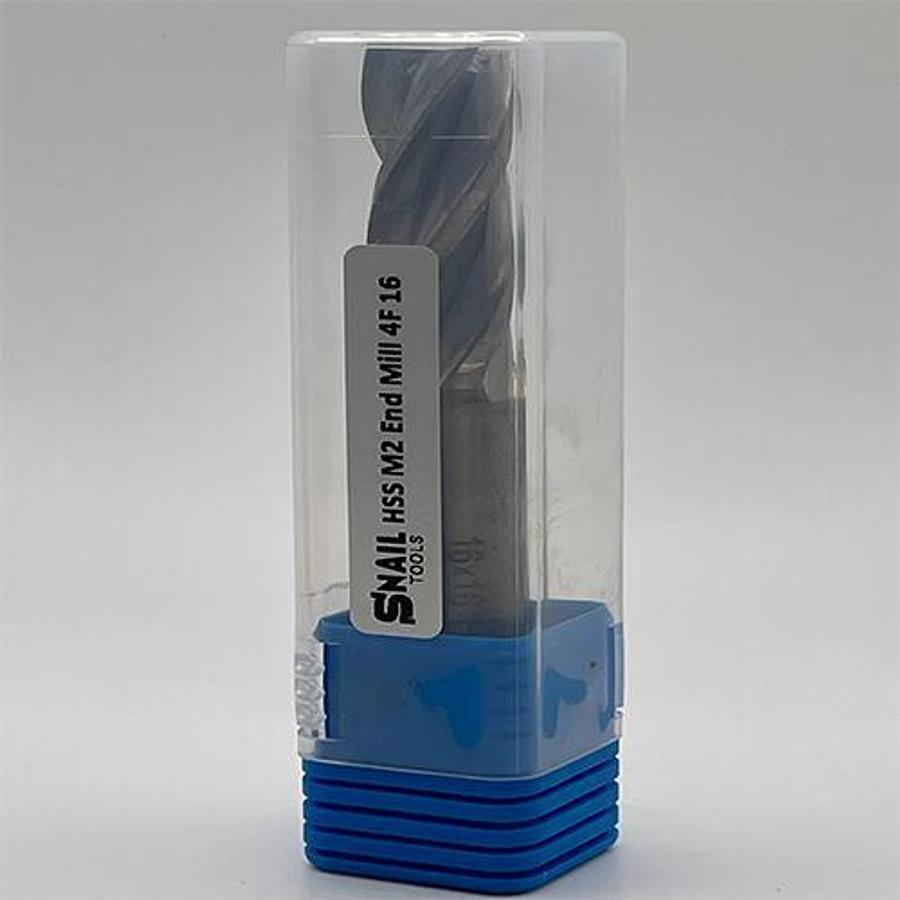

Snail Tools HSS M2 Four Flute End Mill (16.0mm Dia)

Snail Tools HSS M2 Four Flute End Mill (16.0mm Dia)

C$43 (CAD)

Was: $53.00
or
Call +1 437 475 2301

Description

Standard HSS M2 End Mill (16.0mm Dia) for General Purpose Milling and Heavy Finishing of Steel and Ferrous Materials in Canada.

The Snail Tools HSS M2 Four Flute End Mill (16.0mm Dia) is a robust, large-diameter, general-purpose cutting tool widely used for demanding milling and finishing operations in both conventional and CNC applications. The HSS M2 material provides an excellent balance of wear resistance, toughness, and economy, making it ideal for substantial material removal in job shops. The four-flute design ensures maximum rigidity and high cutting edge engagement, resulting in a stable process and a high-quality surface finish when machining materials like mild steel, carbon steel, and cast iron across Ontario and the GTA.

Key Features & General Machining

  • Design: 4 Flutes (Quad Flute) – Offers maximum tool rigidity and excellent stability, which is essential for producing a smooth surface finish in peripheral milling and heavy finishing passes.
  • Material: HSS M2 (High-Speed Steel, Molybdenum Grade) – A versatile and cost-effective material known for maintaining its sharpness and structural integrity during standard machining operations.
  • Diameter: 16.0 mm Cut Diameter (D) – A large standard size suitable for high metal removal rates during slotting, profiling, and shoulder milling.
  • Application: Ideal for conventional milling machines and CNC milling centers used for finishing, contouring, and general material removal on standard ferrous metals.

    • Technical Specifications

    Trust Snail Tools for economical, reliable performance in your general-purpose steel machining needs.

    Show All

    Specifications

    ConditionNew
    DetailMeasurement (Metric) Measurement (Imperial Approx.)
    Flutes4 Quad Flute
    Cut Diameter (D)16.0 mm 5/8 inches
    Material GradeHSS M2 Molybdenum High-Speed Steel
    Overall Length (L)(Please specify if known, e.g., 92 mm) –
    Shank Diameter (d)(Please specify if known, e.g., 16.0 mm) –
    Code(Please provide a product code if available, e.g., 130) –
