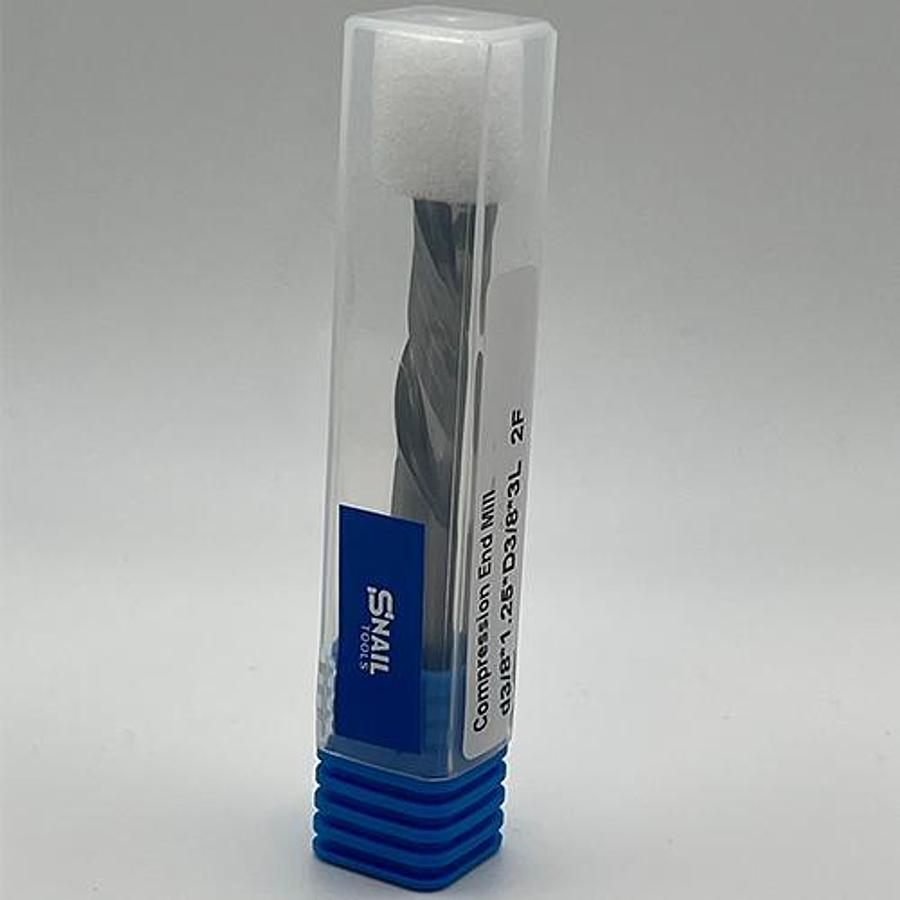

Snail Tools Carbide Compression End Mill (3/8″ Dia, 1.25″ Cut, 2 Flute)

Description

Standard Carbide Compression Cutter (3/8 Inch) for High-Speed, Chip-Free Machining of Double-Sided Panels in Canada.

The Snail Tools 2 Flute Compression End Mill is a highly specialized tool designed for simultaneous upward and downward chip evacuation. This unique compression geometry ensures absolutely clean, chip-free top and bottom edges when routing materials like double-sided laminates (melamine, HPL), composite panels, and engineered wood. With solid carbide construction, this cutter provides exceptional performance, longevity, and stability for high-volume CNC routing applications across Ontario and the GTA.

Key Features & Optimized Performance

Design: 2 Flutes (Double Flute) Compression Geometry – Features upward shear on the tip and downward shear near the shank, forcing chips towards the center of the cut and preventing chipping on both sides of laminated panels.

Material: Solid Carbide (WC) – Provides extreme hardness and heat resistance, maintaining a sharp edge far longer than HSS in abrasive composite and laminate materials.

Dimensions: Features matching 3/8 inch Cut Diameter (D) and 3/8 inch Shank Diameter (d) for maximum rigidity. The 1.25 inch Length of Cut (B) is ideal for thicker panels, such as 1 inch or 32 mm stock.

Application: Essential for high-speed routing and nested-based manufacturing in the cabinetry, furniture, and sign-making industries.

Technical Specifications

Trust Snail Tools to deliver the chip-free edges and speed required for superior nested-based manufacturing in your professional projects.

Specifications

Condition	New
Detail	Measurement (Imperial) Measurement (Metric Approx.)
Flutes	2 Double Flute
Shank Diameter (d)	3/8 inch 9.525 mm
Cut Diameter (D)	3/8 inch 9.525 mm
Length of Cut (B)	1.25 inches 31.75 mm
Overall Length (L)	3 inches 76.2 mm
Material Grade	Solid Carbide WC
Code	(Please provide a product code if available, e.g., 124)
