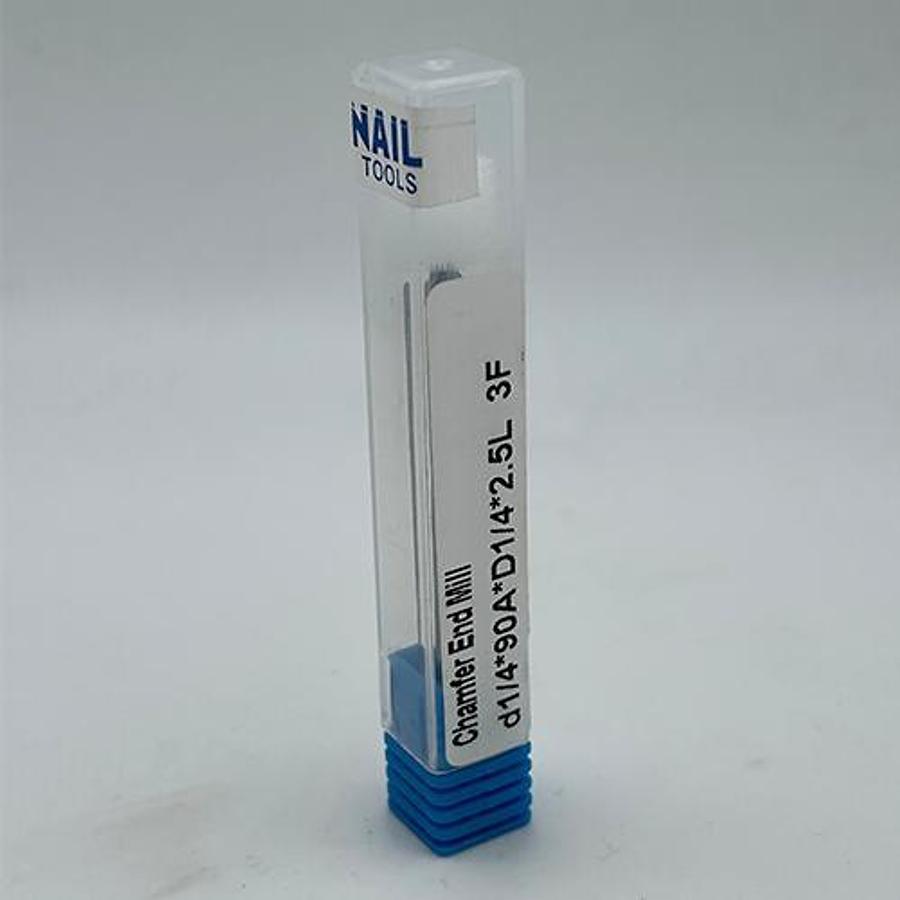

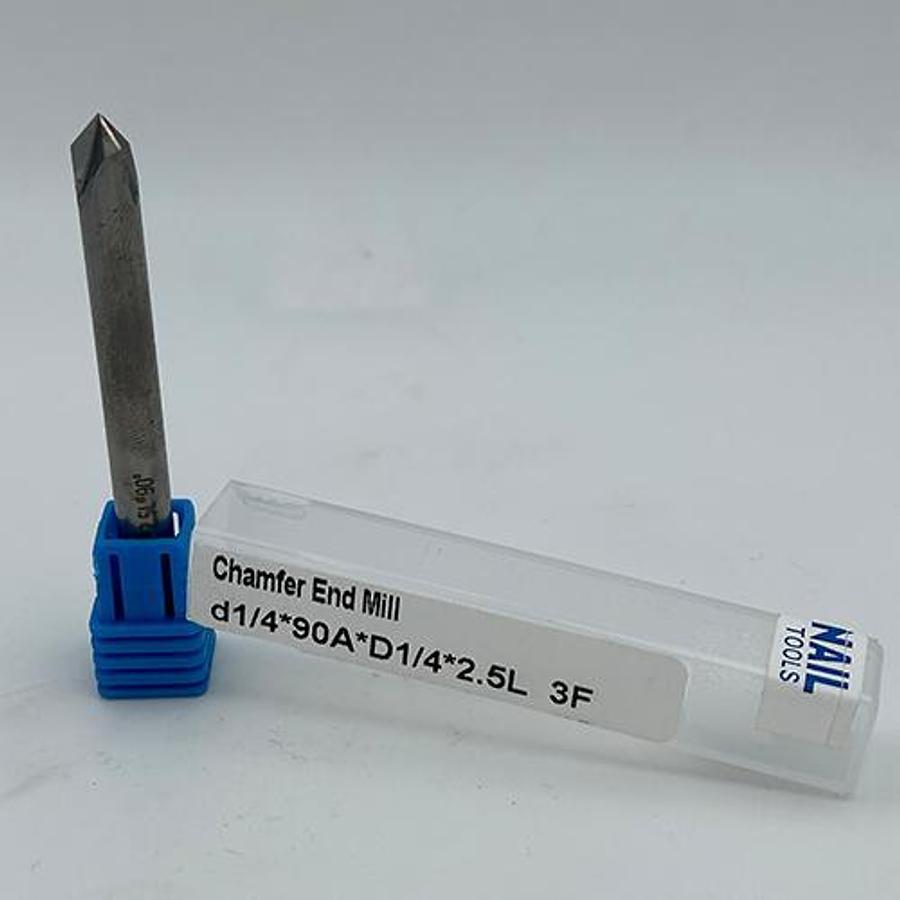

Snail Tools HSS Co Three Flute Chamfer End Mill (1/4″ Dia, 90° Angle)

Description

Precision Cobalt 3 Flute Chamfer Cutter (1/4 Inch) for Deburring and Beveling Tough Materials in Canada.

The Snail Tools HSS Co 3 Flute Chamfer End Mill is specifically designed for creating precise $90^\circ$ chamfers, bevels, and deburring edges on various workpieces, particularly those made from demanding materials like steel, stainless steel, and cast iron. The three-flute design provides exceptional rigidity and stability, reducing tool deflection and ensuring a high-quality surface finish on the chamfered edge. This cutter’s robust design is ideal for high-precision CNC applications across Ontario and the GTA.

Key Features & Precision Beveling

Design: 3 Flutes (Triple Flute) – Offers maximum tool rigidity and smooth chip flow in the chamfering application, leading to a superior finish and extended tool life.

Geometry: 90 Full Angle

Material: HSS Co (High-Speed Steel with Cobalt) alloy construction ensures superior hardness and heat resistance, maintaining sharpness even when machining tough metals.

Dimensions: Features matching 1/4inch Cut Diameter (D) and 1/4inch Shank Diameter (d), providing high concentricity and fitting standard 1/4 inch collets.

Technical Specifications

Trust Snail Tools to deliver the precision and stability required for high-quality chamfering and deburring in your professional projects.

Specifications

Condition	New
Detail	Measurement (Imperial) Measurement (Metric Approx.)
Flutes	3 Triple Flute
Shank Diameter (d)	1/4inch 6.35mm
Cut Diameter (D)	1/4 inch 6.35mm
Full Angle	90 90
Overall Length (L)	2.5 inches 63.5mm
Material Grade	HSS Co (Cobalt)
Code	(Please provide a product code if available, e.g., 121)
