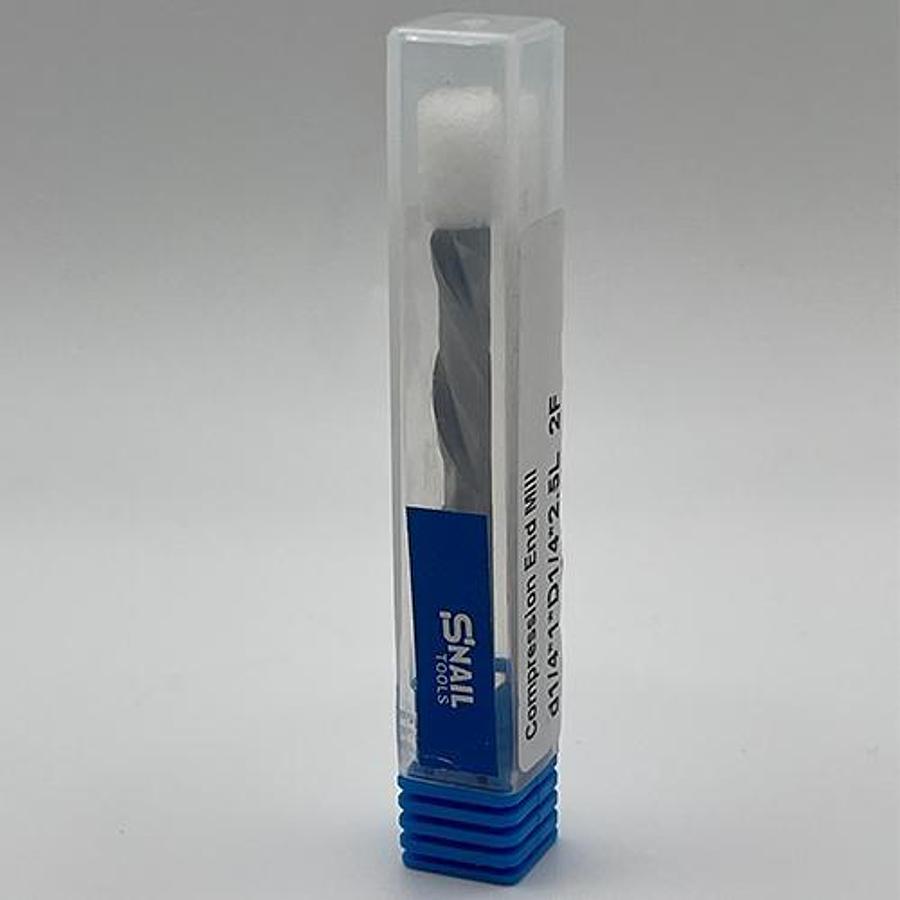

Snail Tools Carbide Compression End Mill (1/4″ Dia, 1″ Cut, 2 Flute)

Description

Fine Diameter Carbide Compression Cutter (1/4 Inch) for High-Speed, Chip-Free Machining of Double-Sided Laminates in Canada.

The Snail Tools Compression End Mill is a highly specialized, fine-diameter tool designed for simultaneous upward and downward chip evacuation. This unique design ensures absolutely clean, chip-free top and bottom edges when routing materials like double-sided laminates (melamine, HPL), thin plywood, and particleboard. Made from solid carbide, this cutter provides exceptional performance, longevity, and stability for high-precision CNC routing applications across Ontario and the GTA.

Key Features & Optimized Performance

Design: 2 Flute (Double Flute) Compression Geometry – Features upward shear on the tip and downward shear near the shank, forcing chips towards the center of the cut and preventing chipping on both sides of laminated panels.

Material: Solid Carbide (WC) – Provides extreme hardness and heat resistance, maintaining a sharp edge far longer than HSS in abrasive composite and laminate materials.1

Dimensions: Features matching 1/4 inch Cut Diameter (D) and 1/4 inch Shank Diameter (d) for maximum rigidity in small-scale routing. The 1 inch Length of Cut (B) is suitable for up to 1 inch thick panels.

Application: Essential for high-speed routing and nested-based manufacturing, particularly for intricate details and thinner panels in the cabinetry, furniture, and sign-making industries.

Technical Specifications

Trust Snail Tools to deliver the chip-free edges and speed required for superior nested-based manufacturing in your professional projects.

Specifications

Condition	New
Detail	Measurement (Imperial) Measurement (Metric Approx.)
Flutes	2 Double Flute
Shank Diameter (d)	1/4 inch 6.35 mm
Cut Diameter (D)	1/4 inch 6.35 mm
Length of Cut (B)	1 inch 25.4 mm
Overall Length (L)	2.5 inches 63.5 mm
Material Grade	Solid Carbide WC
Code	(Please provide a product code if available, e.g., 123)
