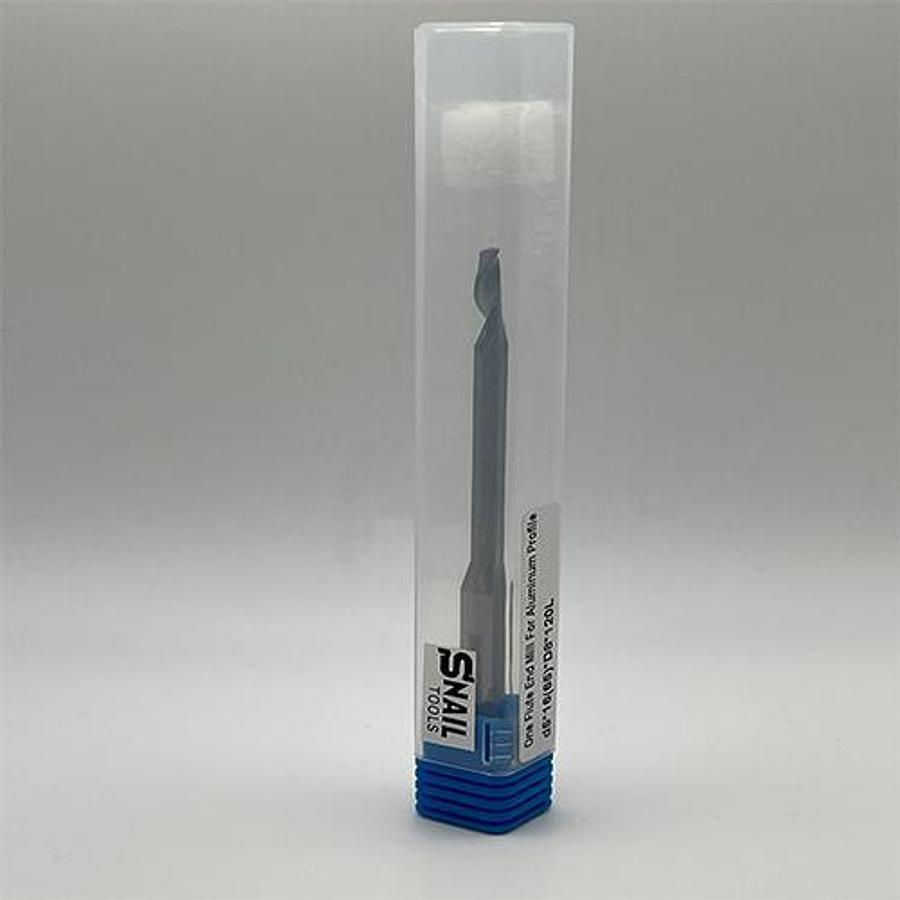

Snail Tools Solid Carbide Single Flute End Mill (5 Dia, 8 Shank, 120mm L)

Snail Tools Solid Carbide Single Flute End Mill (5 Dia, 8 Shank, 120mm L)

C$58 (CAD)

Was: $70.00
or
Call +1 437 475 2301

Description

Extra-Long Reach, Stabilized Single Flute Cutter for High-Speed Aluminum Profile Machining in Canada.

The Snail Tools Single Flute End Mill is a highly specialized, extra-long tool engineered specifically for machining aluminum profiles and deep-pocket milling. The design utilizes a robust 8 mm shank to support the finer 5 mm cutting diameter, offering crucial rigidity and stability over the extended 120 mm length. The single-flute geometry is essential for maximum chip evacuation, preventing chip re-welding and ensuring a clean, burr-free finish when routing and milling aluminum, brass, and other soft metals. Constructed from Solid Carbide, this cutter provides exceptional stability for high-speed CNC applications across Ontario and the GTA.

Key Features & Aluminum Profile Machining

  • Stabilized Shank: Features a robust 8 mm Shank Diameter (d) supporting the fine 5 mm Cut Diameter (D), maximizing rigidity and minimizing vibration over the extreme length (120 mm).
  • Extra Long Reach: The 120 mm Overall Length is specifically designed for accessing deep features and machining large aluminum profiles and extruded shapes.
  • Design: 1 Flute (Single Flute) – Optimized for maximum chip volume and high feed rates, ensuring rapid, efficient evacuation of sticky aluminum chips without clogging.
  • Application: Essential tool for window and door frame manufacturing, architectural panel processing, and any deep profiling in non-ferrous metals requiring a long, stable tool.

    • Technical Specifications

    Trust Snail Tools to deliver the rigidity and chip management required for superior long-reach aluminum machining.

    Show All

    Specifications

    ConditionNew
    DetailMeasurement (Metric) Measurement (Imperial Approx.)
    Flutes1 Single Flute
    Cut Diameter (D)5 mm 0.197 inches
    Shank Diameter (d)8 mm 5/16 inches
    Length of Cut (B)16 mm 0.63 inches
    Overall Length (L)120 mm 4.72 inches
    Material GradeSolid Carbide WC
    Code(Please provide a product code if available, e.g., 147) –
