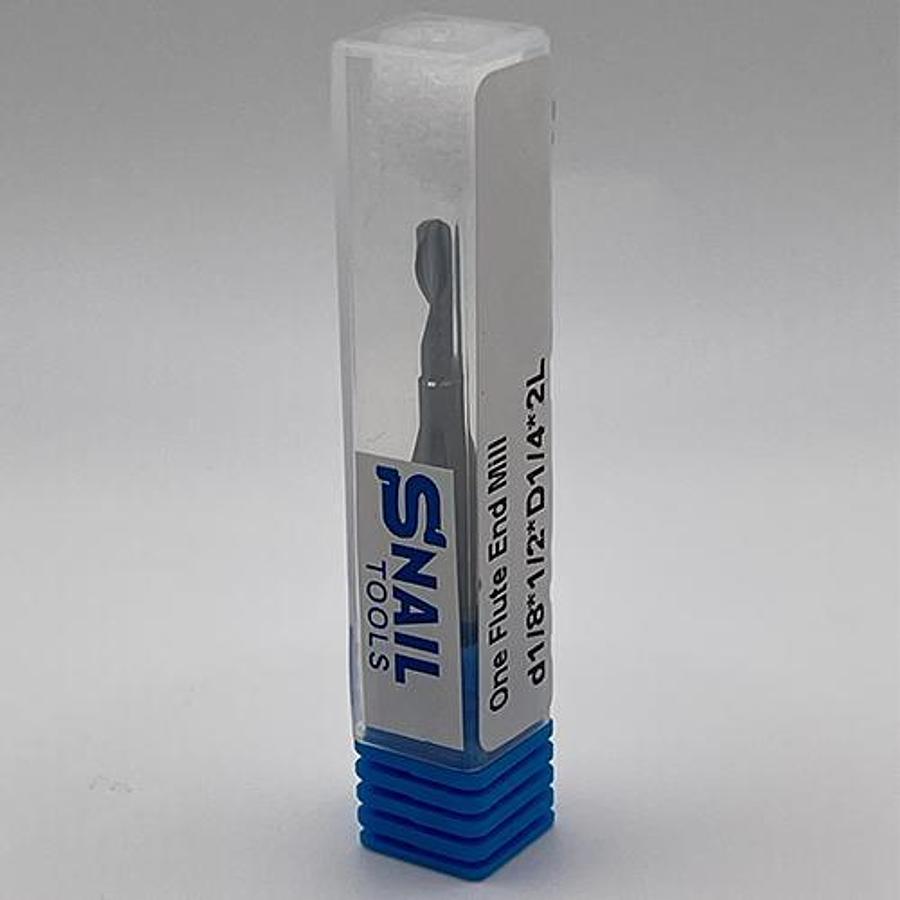

Snail Tools Solid Carbide Single Flute End Mill (1/8″ Cut, 1/4″ Shank)

Description

Stabilized Single Flute Cutter (1/8 Inch) for High-Speed Precision in Aluminum and Plastics in Canada.

The Snail Tools Single Flute End Mill is a specialized precision tool designed for maximum rigidity and superior chip evacuation when performing intricate cuts in soft, non-ferrous materials. The design features a large 1/4 inch shank supporting a fine 1/8 inch cutting diameter, which drastically minimizes vibration and deflection. This stability is crucial for high-speed machining of materials like aluminum, plastics (HDPE, Delrin), and thin composites. The single flute ensures optimal chip removal, preventing re-welding and heat buildup in high-speed CNC routing applications across Ontario and the GTA.

Key Features & Precision High-Speed Performance

Stabilized Shank: Features a robust 1/4 inch Shank Diameter (d) supporting the fine 1/8 inch Cut Diameter (D), maximizing rigidity and reducing tool deflection for high-precision work.

Design: 1 Flute (Single Flute) – Optimized for maximum chip volume and high feed rates, ensuring rapid, efficient evacuation of soft, stringy chips without clogging.

Material: Solid Carbide (WC) – Provides the necessary extreme rigidity and sharpness to maintain tight tolerances and a smooth finish, even during aggressive high-speed machining (HSM).

Application: Ideal for detailed profiling, engraving, and high-speed cutting of non-ferrous metals and plastics where cutter rigidity and chip management are critical.

Technical Specifications

Trust Snail Tools to deliver the superior precision and rigidity required for detailed high-speed machining.

Specifications

Condition	New
Detail	Measurement (Imperial) Measurement (Metric Approx.)
Flutes	1 Single Flute
Cut Diameter (D)	1/8 inch 3.175 mm
Shank Diameter (d)	1/4 inch 6.35 mm
Length of Cut (B)	1/2 inch 12.7 mm
Overall Length (L)	2 inches 50.8 mm
Material Grade	Solid Carbide WC
Code	(Please provide a product code if available, e.g., 144) –
