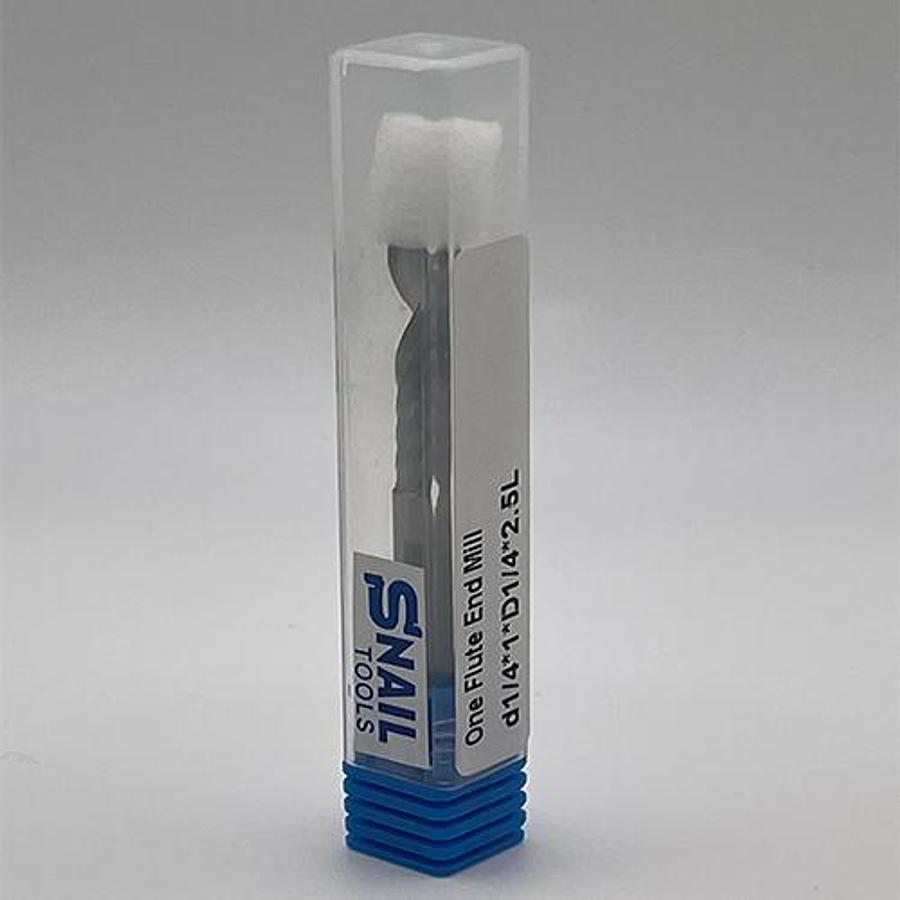

Snail Tools Solid Carbide Single Flute End Mill (1/4″ Dia, 1″ Cut)

Description

High-Speed Single Flute Cutter (1/4 Inch) for Aluminum, Plastics, and Composites in Canada.

The Snail Tools Single Flute End Mill is a highly specialized tool engineered for maximum chip evacuation and high feed rates, particularly in soft, non-ferrous materials. The design features a large flute valley that efficiently prevents chip re-welding and heat buildup, which is crucial when machining materials like aluminum, plastics (acrylic, HDPE), wood composites, and soft alloys. Constructed from Solid Carbide for superior rigidity and wear resistance, this cutter provides exceptional performance for high-speed CNC routing and milling applications across Ontario and the GTA.

Key Features & High-Speed Performance

Design: 1 Flute (Single Flute) – Optimized for extremely high feed rates and chip load, ensuring rapid, efficient evacuation of soft, stringy chips. This minimizes thermal damage and material clogging.

Material: Solid Carbide (WC) – Provides the necessary rigidity and sharpness to maintain tight tolerances and a smooth finish, even during aggressive high-speed machining (HSM).

Dimensions: Features matching 1/4 inch Cut Diameter (D) and 1/4 inch Shank Diameter (d). The 1 inch Length of Cut (B) is ideal for standard panel thicknesses.

Application: Essential for high-speed machining of materials where heat generation and chip clogging are the primary issues, such such as aluminum and various plastics.

Technical Specifications

Trust Snail Tools to deliver the chip-free performance and speed required for machining soft materials.

Specifications

Condition	New
Detail	Measurement (Imperial) Measurement (Metric Approx.)
Flutes	1 Single Flute
Shank Diameter (d)	1/4 inch 6.35 mm
Cut Diameter (D)	1/4 inch 6.35 mm
Length of Cut (B)	1 inch 25.4 mm
Overall Length (L)	2.5 inches 63.5 mm
Material Grade	Solid Carbide WC
Code	(Please provide a product code if available, e.g., 143) –
