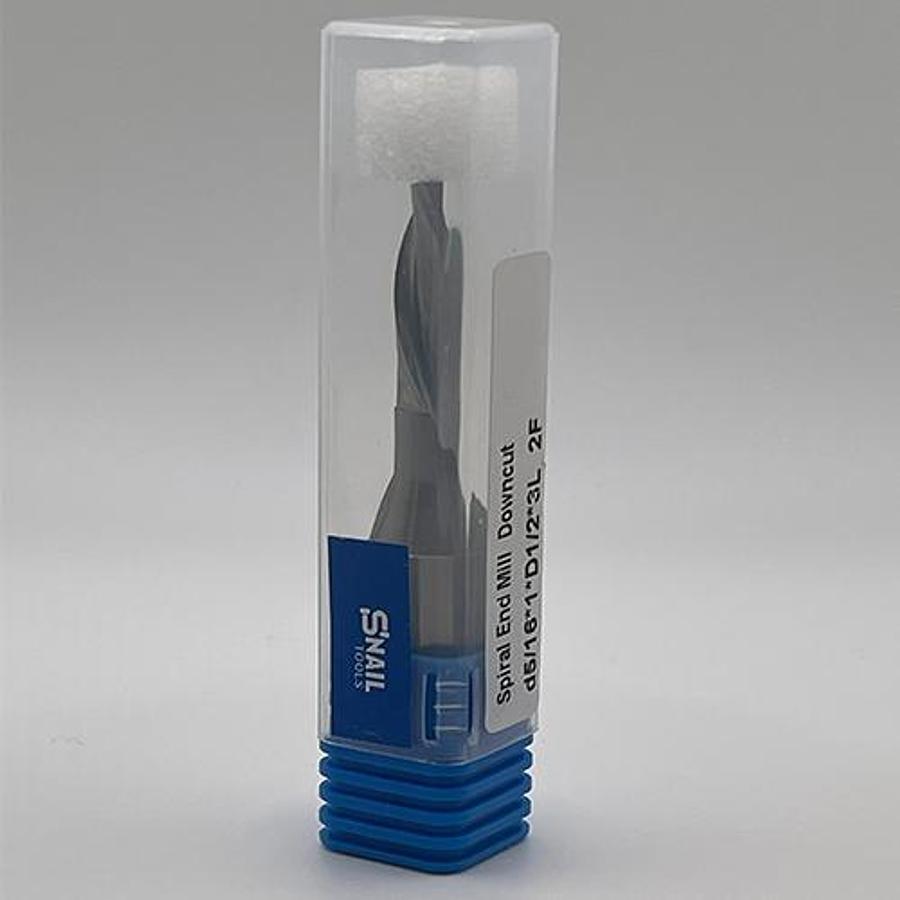

Snail Tools Solid Carbide 2 Flute Downcut Spiral End Mill (5/16″ Cut, 1/2″ Shank)

Snail Tools Solid Carbide 2 Flute Downcut Spiral End Mill (5/16″ Cut, 1/2″ Shank)

C$32 (CAD)

Was: $35.00
or
Call +1 437 475 2301

Description

Stabilized Double Flute Downcut Router Bit for Chip-Free Top Edges in Laminates and Wood Composites in Canada.

The Snail Tools Solid Carbide Downcut Spiral End Mill is a specialized, high-performance routing tool engineered to provide a perfectly clean, chip-free finish on the top surface of the workpiece. The downcut spiral geometry pushes chips and fibers downward, effectively preventing tear-out and chipping on the entry side—a critical requirement when machining delicate materials like laminates, veneers, melamine, and high-quality plywood. This cutter features a robust, stabilized 1/2 inch shank supporting the fine 5/16 inch cutting diameter, which maximizes rigidity and minimizes deflection for superior edge quality and reduced chatter. Constructed from Solid Carbide, this tool is essential for high-quality CNC routing applications across Ontario and the GTA.

Key Features & Downcut Advantage

  • Spiral Type: Downcut (Push Down) – Ideal for creating extremely clean top edges by forcing the material downward, pressing surface layers firmly against the core.1
  • Flutes: 2 Flutes (Double Flute) – Provides effective chip clearance for the downcut action while maintaining tool rigidity and balance.
  • Stabilized Shank: Features a robust 1/2 inch Shank Diameter (d) supporting the 5/16 inch Cut Diameter (D), maximizing stability and precision, particularly during deep cuts.
  • Material: Solid Carbide (WC) – Offers necessary edge hardness and extreme durability for long life in abrasive wood composites and high-density materials.
  • Application: Essential for cabinetry and nested-based manufacturing where a flawless top surface finish is non-negotiable.

    • Technical Specifications

    Ready to elevate your routing precision? Invest in the robust stability and superior chip management of Snail Tools today.

    Show All

    Specifications

    ConditionNew
    DetailMeasurement (Imperial) Measurement (Metric Approx.)
    Spiral TypeDowncut Chip Push Down
    Flutes2 Double Flute
    Cut Diameter (D)5/16 inch 7.94 mm
    Shank Diameter (d)1/2 inch 12.7 mm
    Length of Cut (B – Assumed)1 inch 25.4 mm
    Overall Length (L – Assumed)3 inches 76.2 mm
    Material GradeSolid Carbide WC
    Code(Please provide a product code if available, e.g., 161) –
