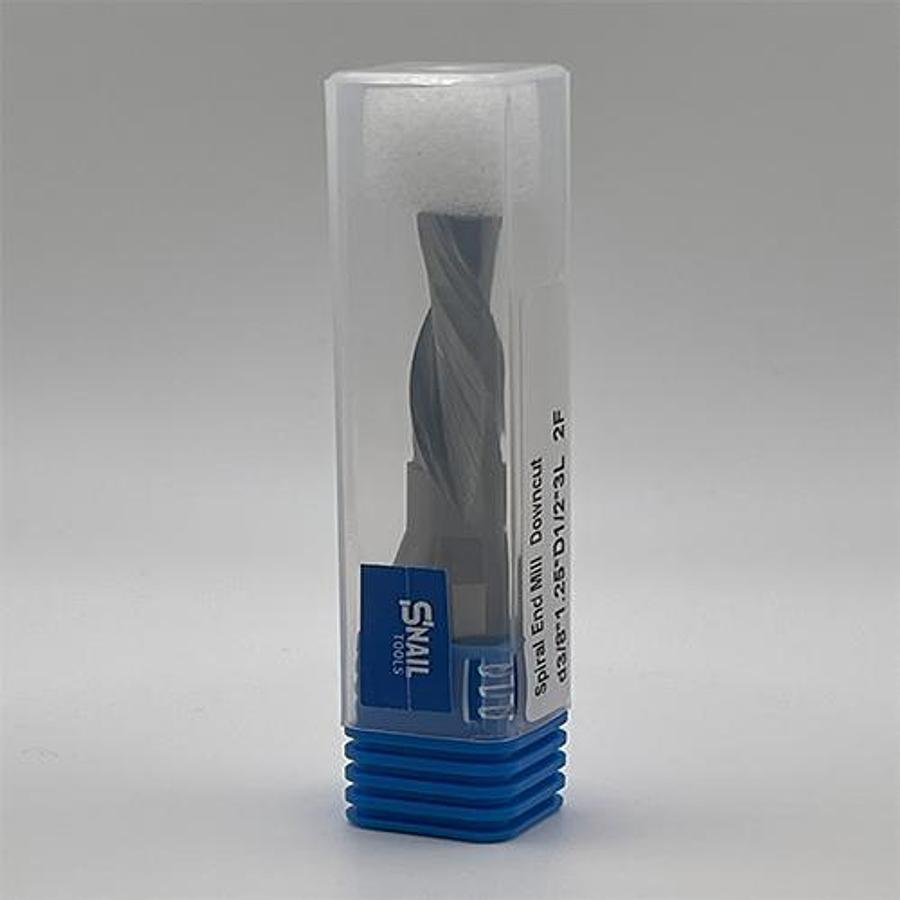

Snail Tools Solid Carbide 2 Flute Downcut Spiral End Mill (3/8″ Cut, 1/2″ Shank)

Snail Tools Solid Carbide 2 Flute Downcut Spiral End Mill (3/8″ Cut, 1/2″ Shank)

C$36 (CAD)

Was: $42.00
or
Call +1 437 475 2301

Description

Stabilized Downcut Router Bit for Chip-Free Top Edges in Thick Laminates and Wood Composites in Canada.

The Snail Tools Downcut Spiral End Mill is a specialized routing tool engineered to provide a perfectly clean, chip-free finish on the top surface of the workpiece. The downcut spiral geometry pushes chips and fibers downward, effectively preventing tear-out and chipping on the entry side of the material, which is critical when working with laminates, veneers, melamine, and plywood. This cutter features a stabilized 1/2 inch shank supporting the 3/8 inch cutting diameter, ensuring maximum rigidity, reduced chatter, and exceptional stability for deep cuts. Constructed from Solid Carbide, this tool is essential for high-quality, deep CNC routing applications across Ontario and the GTA.

Key Features & Downcut Advantage

  • Spiral Type: Downcut (Push Down) – Ideal for creating extremely clean top edges by forcing the material downward, pressing surface layers firmly against the core, preventing tear-out.
  • Stabilized Shank: Features a robust 1/2 inch Shank Diameter (d) supporting the 3/8 inch Cut Diameter (D), maximizing rigidity and stability for precision cutting, even with the deep 1.25-inch cut length.
  • Length of Cut: The 1.25 inch Length of Cut (B) is generous, allowing for single-pass cutting of thick materials and nesting applications.
  • Material: Solid Carbide (WC) – Provides the necessary edge hardness and durability for long life in abrasive wood composites and high-density materials.

    • Technical Specifications

    Trust Snail Tools to deliver the chip-free top edges and stability required for high-quality, deep panel processing.

    Show All

    Specifications

    ConditionNew
    DetailMeasurement (Imperial) Measurement (Metric Approx.)
    Spiral TypeDowncut Chip Push Down
    Flutes (Assumed)2 Double Flute
    Cut Diameter (D)3/8 inch 9.525 mm
    Shank Diameter (d)1/2 inch 12.7 mm
    Length of Cut (B)1.25 inches 31.75 mm
    Overall Length (L)3 inches 76.2 mm
    Material GradeSolid Carbide WC
    Code(Please provide a product code if available, e.g., 157) –
