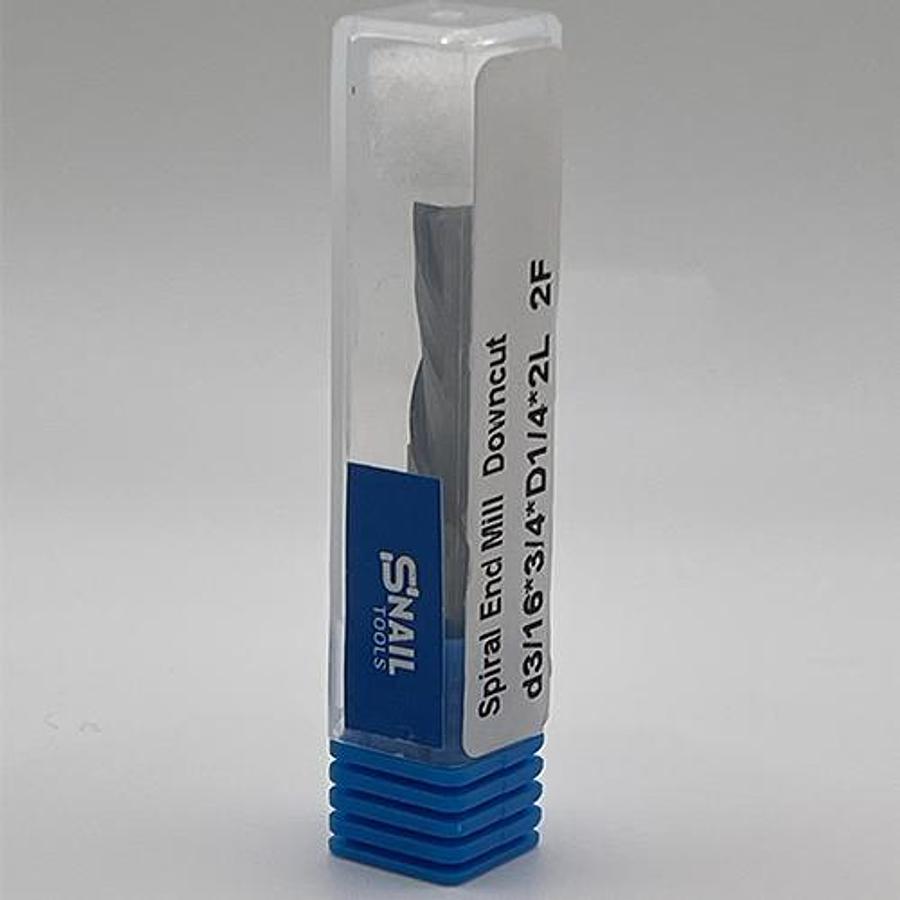

Snail Tools Solid Carbide 2 Flute Downcut Spiral End Mill (3/16″ Cut, 1/4″ Shank)

Snail Tools Solid Carbide 2 Flute Downcut Spiral End Mill (3/16″ Cut, 1/4″ Shank)

C$38 (CAD)

Was: $44.00
or
Call +1 437 475 2301

Description

Stabilized Precision Downcut Router Bit for Chip-Free Top Edges in Laminates and Fine Composites in Canada.

The Snail Tools Downcut Spiral End Mill is a specialized, fine-diameter routing tool engineered to provide a perfectly clean, chip-free finish on the top surface of the workpiece. The downcut spiral geometry pushes chips and fibers downward, effectively preventing tear-out and chipping on the entry side of the material, which is critical for precision work. This cutter features a stabilized 1/4 inch shank supporting the finer 3/16 inch cutting diameter, which drastically minimizes vibration and deflection for high-precision routing on materials like laminates, veneers, melamine, and thin plywood. Constructed from Solid Carbide, this tool is essential for intricate CNC routing applications across Ontario and the GTA.

Key Features & Precision Downcut Advantage

  • Spiral Type: Downcut (Push Down) – Ideal for creating extremely clean top edges by forcing the material downward, pressing surface layers firmly against the core.
  • Stabilized Shank: Features a robust 1/4 inch Shank Diameter (d) supporting the 3/16 inch Cut Diameter (D), maximizing rigidity and reducing deflection during detailed, high-speed routing.
  • Length of Cut: The generous 3/4 inch Length of Cut (B) allows for deep slotting or single-pass cutting through thick panels, given the small diameter.
  • Material: Solid Carbide (WC) – Provides the necessary edge hardness and durability for long life in abrasive wood composites and high-density materials.

    • Technical Specifications

    Trust Snail Tools to deliver the chip-free top edges and stability required for high-quality precision routing.

    Show All

    Specifications

    ConditionNew
    DetailMeasurement (Imperial) Measurement (Metric Approx.)
    Spiral TypeDowncut Chip Push Down
    Flutes (Assumed)2 Double Flute
    Cut Diameter (D)3/16 inch 4.76 mm
    Shank Diameter (d)1/4 inch 6.35 mm
    Length of Cut (B)3/4 inch 19.05 mm
    Overall Length (L)2 inches 50.8 mm
    Material GradeSolid Carbide WC
    Code(Please provide a product code if available, e.g., 158) –
