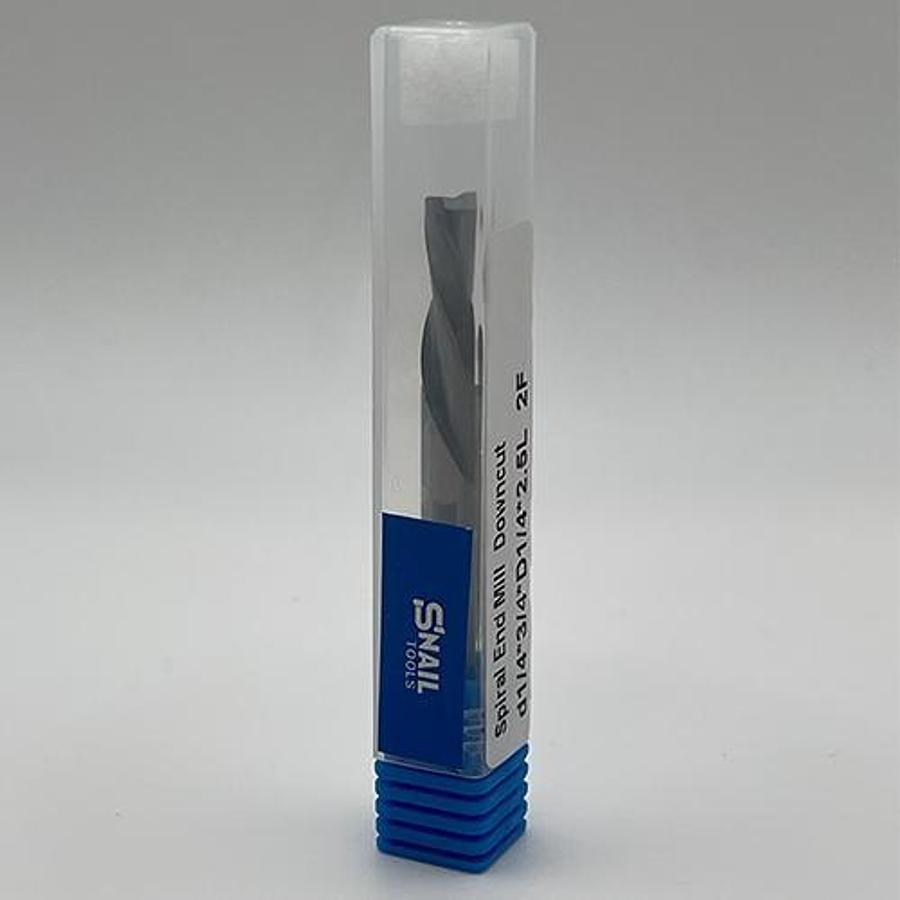

Snail Tools Solid Carbide 2 Flute Downcut Spiral End Mill (1/4″ Dia, 2.5″ Long)

Description

Standard Downcut Router Bit for Chip-Free Top Edges in Laminates and Wood Composites in Canada.

The Snail Tools Downcut Spiral End Mill is a specialized routing tool engineered to provide a perfectly clean, chip-free finish on the top surface of the workpiece. The downcut spiral geometry pushes chips and fibers downward, effectively preventing tear-out and chipping on the entry side of the material. This action is critical when routing materials like laminates, veneers, melamine, and plywood. The robust 1/4 inch diameter provides high rigidity for precise routing. Constructed from Solid Carbide, this tool is essential for high-quality CNC routing applications across Ontario and the GTA.

Key Features & Downcut Advantage

Spiral Type: Downcut (Push Down) – Ideal for creating extremely clean top edges by forcing the material downward, pressing surface veneers and laminates firmly against the core, preventing tear-out.

Diameter: Features matching 1/4 inch Cut Diameter (D) and 1/4 inch Shank Diameter (d) for standard size and maximum stability.

Material: Solid Carbide (WC) – Provides the necessary edge hardness and durability for long life in abrasive wood composites and high-density materials.

Application: Essential for furniture, cabinetry, and sign making where a flawless top surface finish is required, particularly when cutting through laminated panels.

Technical Specifications

Trust Snail Tools to deliver the chip-free top edges and stability required for high-quality panel processing.

Specifications

Condition	New
Detail	Measurement (Imperial) Measurement (Metric Approx.)
Spiral Type	Downcut Chip Push Down
Flutes (Assumed)	2 Double Flute
Cut Diameter (D)	1/4 inch 6.35 mm
Shank Diameter (d)	1/4 inch 6.35 mm
Length of Cut (B – Assumed)	3/4 inch (0.75″) 19.05 mm
Overall Length (L)	2.5 inches 63.5 mm
Material Grade	Solid Carbide WC
Code	(Please provide a product code if available, e.g., 155) –
