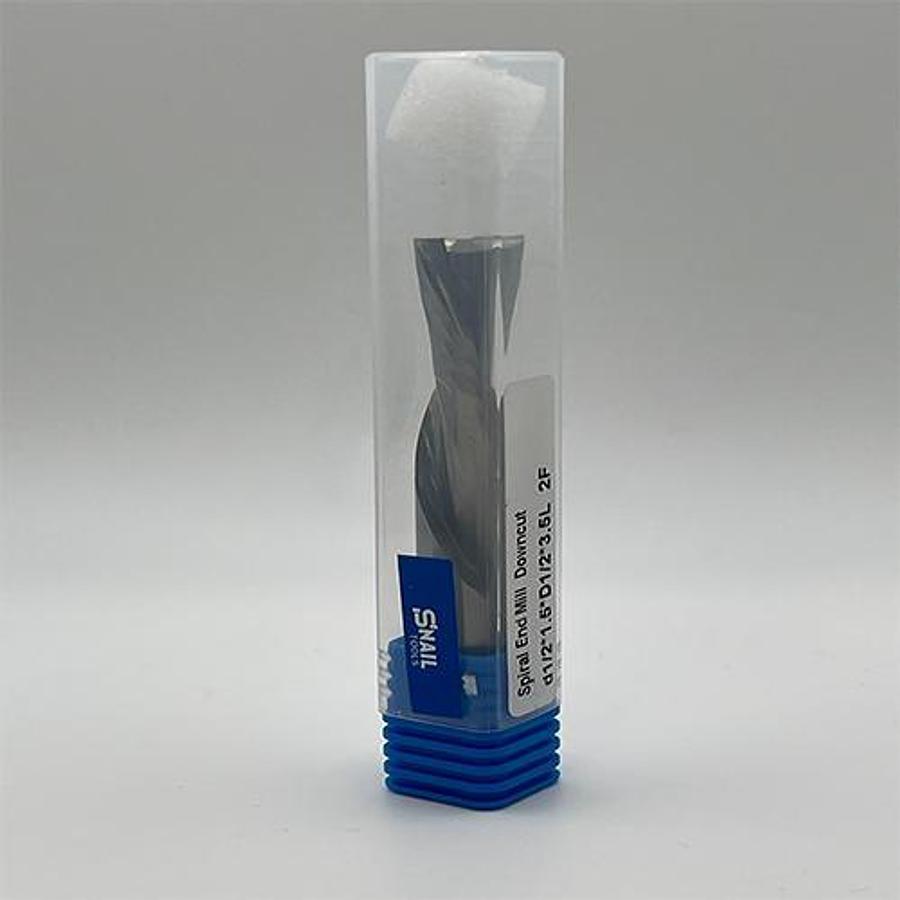

Snail Tools Solid Carbide 2 Flute Downcut Spiral End Mill (1/2″ Dia, 1.5″ Cut L)

Snail Tools Solid Carbide 2 Flute Downcut Spiral End Mill (1/2″ Dia, 1.5″ Cut L)

C$34 (CAD)

Was: $38.00
or
Call +1 437 475 2301

Description

Large Diameter Downcut Router Bit for Chip-Free Top Edges in Thick Panels and Laminates in Canada.

The Snail Tools Solid Carbide Downcut Spiral End Mill is a specialized, large-diameter routing tool engineered for demanding applications that require a perfectly clean, chip-free finish on the top surface of the workpiece. The downcut spiral geometry pushes chips and fibers downward, effectively preventing tear-out and chipping on the entry side—a critical requirement when machining materials like laminates, veneers, melamine, thick MDF, and plywood. The robust 1/2 inch diameter and generous 1.5 inch cut length provide maximum stability and strength for heavy material removal. Constructed from Solid Carbide, this tool is essential for high-volume CNC routing applications across Ontario and the GTA.

Key Features & Downcut Advantage

  • Spiral Type: Downcut (Push Down) – Ideal for creating extremely clean top edges by forcing the material downward, pressing surface layers firmly against the core, which prevents surface tear-out.
  • Flutes: 2 Flutes (Double Flute) – Provides efficient chip clearance for the downcut action while maintaining tool rigidity and balance necessary for the large diameter.
  • Cut Capacity: The generous 1.5 inch Length of Cut (B) is ideal for single-pass routing of standard $1\text{ inch}$ (or thicker) panels, maximizing production efficiency.
  • Material: Solid Carbide (WC) – Offers necessary edge hardness and extreme durability for long life in abrasive wood composites and high-density materials.

    • Technical Specifications

    Ready to elevate your routing precision? Invest in the robust stability and superior chip management of Snail Tools today.

    Show All

    Specifications

    ConditionNew
    DetailMeasurement (Imperial) Measurement (Metric Approx.)
    Spiral TypeDowncut Chip Push Down
    Flutes2 Double Flute
    Cut Diameter (D)1/2 inch 12.7 mm
    Shank Diameter (d)1/2 inch 12.7 mm
    Length of Cut (B)1.5 inches 38.1 mm
    Overall Length (L – Assumed)3.5 inches 88.9 mm
    Material GradeSolid Carbide WC
    Code(Please provide a product code if available, e.g., 162) –
