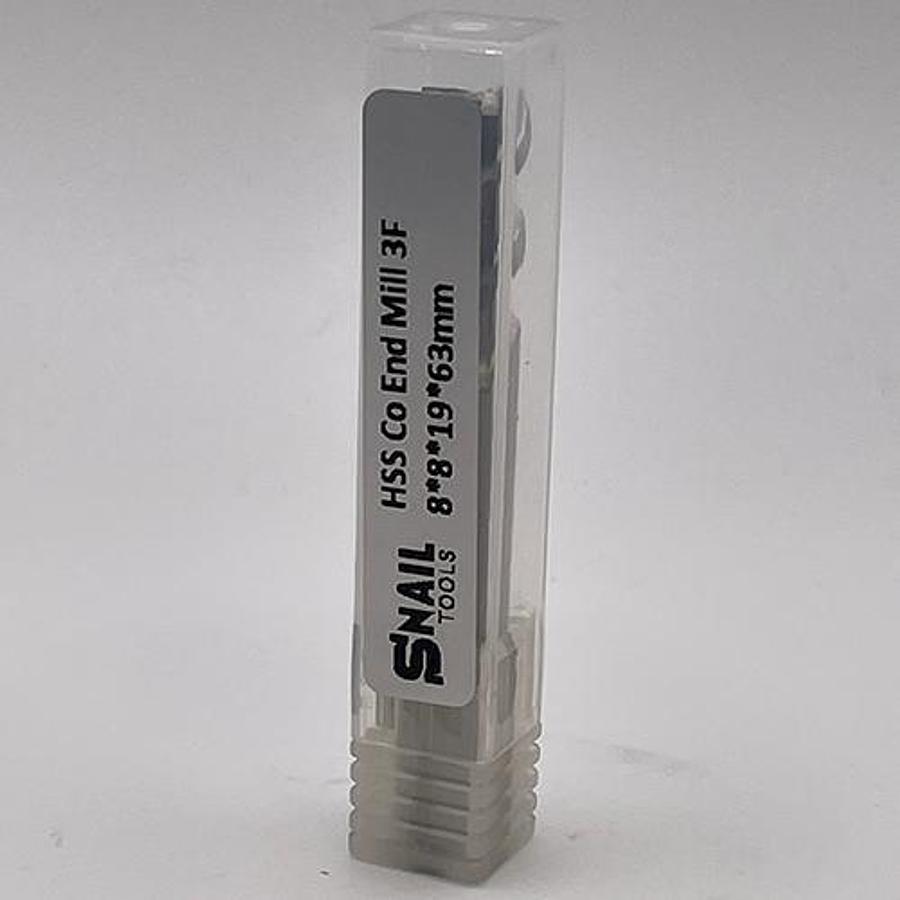

Snail Tools HSS Co Three Flute End Mill (8 x 8 x 19 x 63MM)

Snail Tools HSS Co Three Flute End Mill (8 x 8 x 19 x 63MM)

or
Call +1 437 475 2301

Description

General Purpose Cobalt End Mill (8mm Dia, 19mm Cut Length) for Enhanced Rigidity and Finishing in Harder Metals in Canada.

The Snail Tools HSS Co Three Flute End Mill (8 x 8 x 19 x 63MM) is a standard 8mm diameter, high-rigidity tool designed for balanced strength and chip capacity while providing a finer finish across a wide range of materials, including steel, stainless steel, cast iron, and general alloys. The three-flute design offers significantly increased stability, reduces deflection, and delivers a smoother surface finish, while the cobalt infusion ensures superior heat resistance for demanding applications across Ontario and the GTA.

Key Features & Precision Finishing

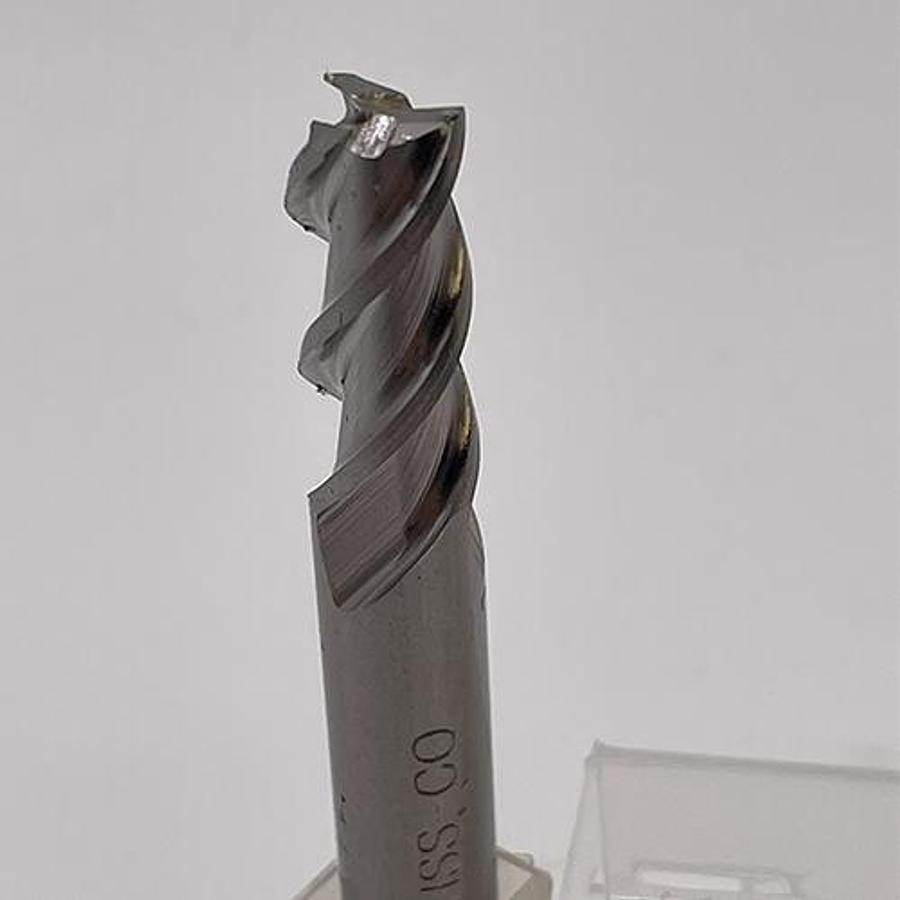

  • Design: 3 Flutes (Triple Flute) – Offers enhanced stability and rigidity, resulting in better control, reduced vibration, and a smoother surface finish, which is crucial for harder materials and finishing passes.1
  • Material: HSS Co (High-Speed Steel with Cobalt) alloy construction ensures superior hardness, allowing the cutter to maintain its sharp edge and structural integrity during high-temperature machining.
  • Dimensions: Features matching 8 mm Shank Diameter (d) and 8 mm Cut Diameter (D). The 19 mm Length of Cut (B) provides ample depth for common milling and finishing tasks.
  • Application: Ideal for general slotting, profiling, and plunging operations where rigidity, heat resistance, and a high-quality surface finish are desired, especially in ferrous metals.

    • Technical Specifications

    Trust Snail Tools to deliver the precision, stability, and superior finish required for demanding machining of ferrous and non-ferrous materials in your professional projects.

    Show All

    Specifications

    ConditionNew
    DetailMeasurement Equivalent
    Flutes3 Triple Flute
    Shank Diameter (d)8 mm 5/16 inch approx.
    Cut Diameter (D)8 mm 5/16 inch approx.
    Length of Cut (B)19 mm 0.75 inches approx.
    Overall Length (L)63 mm 2.48 inches approx.
    Material GradeHSS Co (Cobalt)
    Code(Please provide a product code if available, e.g., 106)
