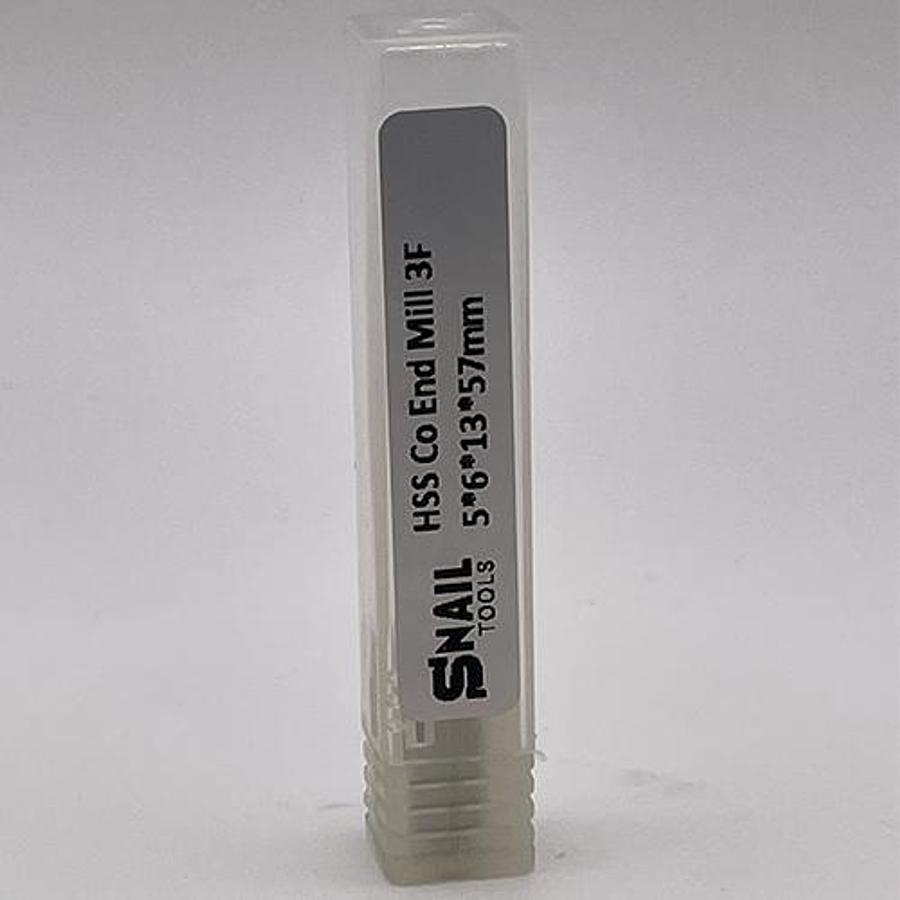

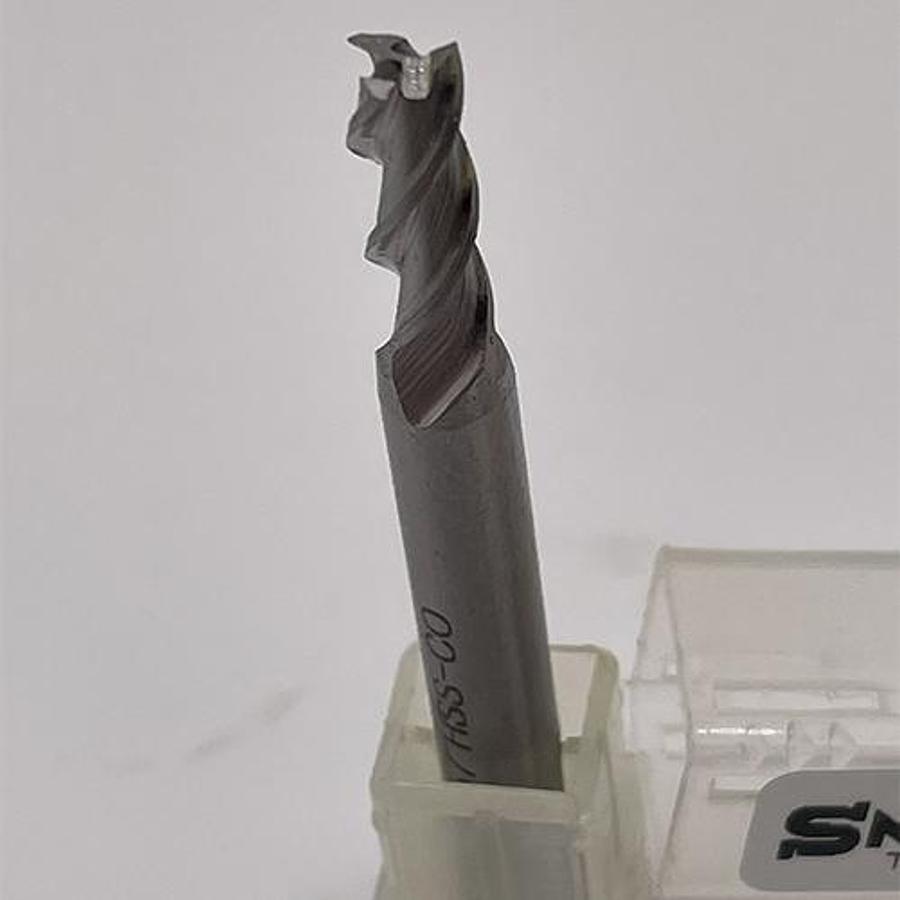

Snail Tools HSS Co Three Flute End Mill (5 x 6 x 13 x 57MM)

Description

Precision Cobalt End Mill (5mm Dia, 13mm Cut Length) for Enhanced Rigidity and Finishing in Harder Metals in Canada.

The Snail Tools HSS Co Three Flute End Mill (5 x 6 x 13 x 57MM) is a medium-fine diameter, high-rigidity tool designed for precision milling and finishing, particularly in steel, stainless steel, and tougher alloys. The three-flute design provides significantly increased stability, reduces deflection, and delivers a finer surface finish compared to two-flute cutters. This cutter features a cobalt infusion for superior heat resistance, making it ideal for demanding CNC finishing applications across Ontario and the GTA.

Key Features & Precision Finishing

Design: 3 Flutes (Triple Flute) – Offers enhanced stability and rigidity, providing better control and producing a smoother surface finish, especially crucial for harder materials and delicate components.

Material: HSS Co (High-Speed Steel with Cobalt) alloy construction ensures superior hardness, allowing the cutter to maintain its sharp edge and structural integrity during machining of tougher metals.1

Stabilized Shank: Features a slightly larger 6 mm Shank Diameter (d) than the cutting diameter, providing enhanced stability and rigidity for the 5 mm Cut Diameter (D), which minimizes deflection and improves accuracy.

Application: Ideal for fine profiling, finish slotting, and plunging operations where a high-quality surface finish and rigidity are paramount in ferrous metals.

Technical Specifications

Trust Snail Tools to deliver the precision, stability, and superior finish required for demanding machining of ferrous and non-ferrous materials in your professional projects.

Specifications

Condition	New
Detail	Measurement Equivalent
Flutes	3 Triple Flute
Shank Diameter (d)	6 mm 0.236 inches approx.
Cut Diameter (D)	5 mm 0.197 inches approx.
Length of Cut (B)	13 mm 0.51 inches approx.
Overall Length (L)	57 mm 2.24 inches approx.
Material Grade	HSS Co (Cobalt)
Code	(Please provide a product code if available, e.g., 105)
