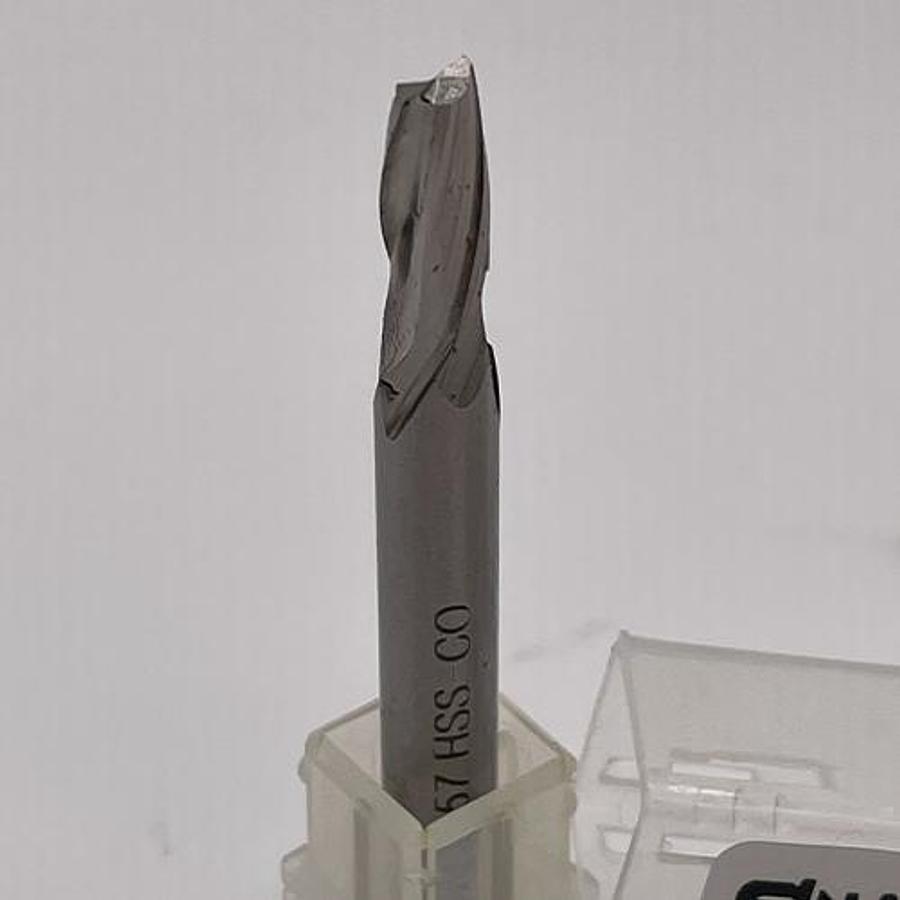

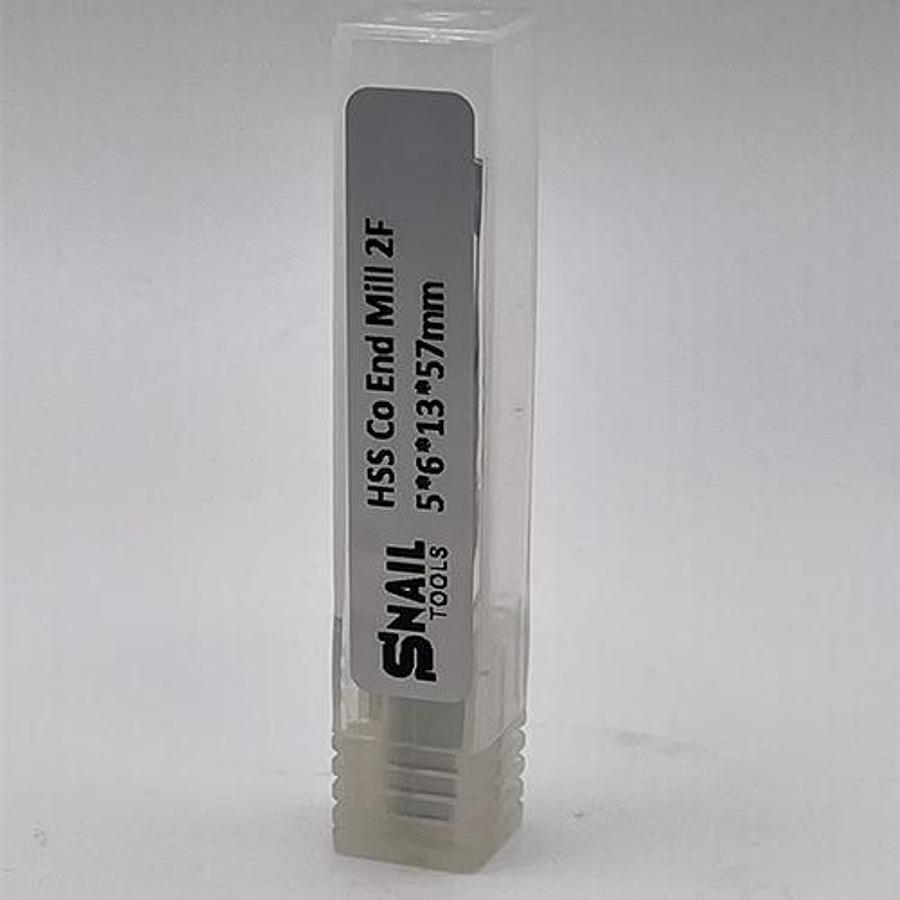

Snail Tools HSS Co Two Flute End Mill (5 x 6 x 13 x 57MM)

Description

Precision Cobalt End Mill (5mm Dia, 13mm Cut Length) for Versatile Machining of Harder Metals in Canada.

The Snail Tools HSS Co Two Flute End Mill (5 x 6 x 13 x 57MM) is a medium-fine diameter, high-performance tool designed for precision milling and slotting in a wider range of materials, including steel, stainless steel, cast iron, and tougher alloys, as well as general-purpose materials. The two-flute design offers enhanced tool rigidity and stability, while the cobalt infusion ensures superior heat resistance for demanding applications across Ontario and the GTA.

Key Features & Precision Machining

Design: 2 Flutes (Double Flute) – Offers increased tool strength and stability compared to single-flute cutters, making it ideal for general-purpose machining and harder materials where chip clearance is less critical than stability.

Material: HSS Co (High-Speed Steel with Cobalt) alloy construction ensures superior hardness, allowing the cutter to maintain its sharp edge and structural integrity during machining of tougher metals.

Stabilized Shank: Features a slightly larger 6 mm Shank Diameter (d) than the cutting diameter, providing enhanced stability and rigidity for the 5 mm Cut Diameter (D), which minimizes deflection and improves accuracy.

Application: Ideal for slotting, profiling, and plunging operations where rigidity and heat resistance are paramount, especially in ferrous metals.

Technical Specifications

Trust Snail Tools to deliver the precision, stability, and heat resistance required for superior machining of both ferrous and non-ferrous materials in your professional projects.

Specifications

Condition	New
Detail	Measurement Equivalent
Flutes	2 Double Flute
Shank Diameter (d)	6 mm 0.236 inches approx.
Cut Diameter (D)	5 mm 0.197 inches approx.
Length of Cut (B)	13 mm 0.51 inches approx.
Overall Length (L)	57 mm 2.24 inches approx.
Material Grade	HSS Co (Cobalt)
Code	(Please provide a product code if available, e.g., 095)
