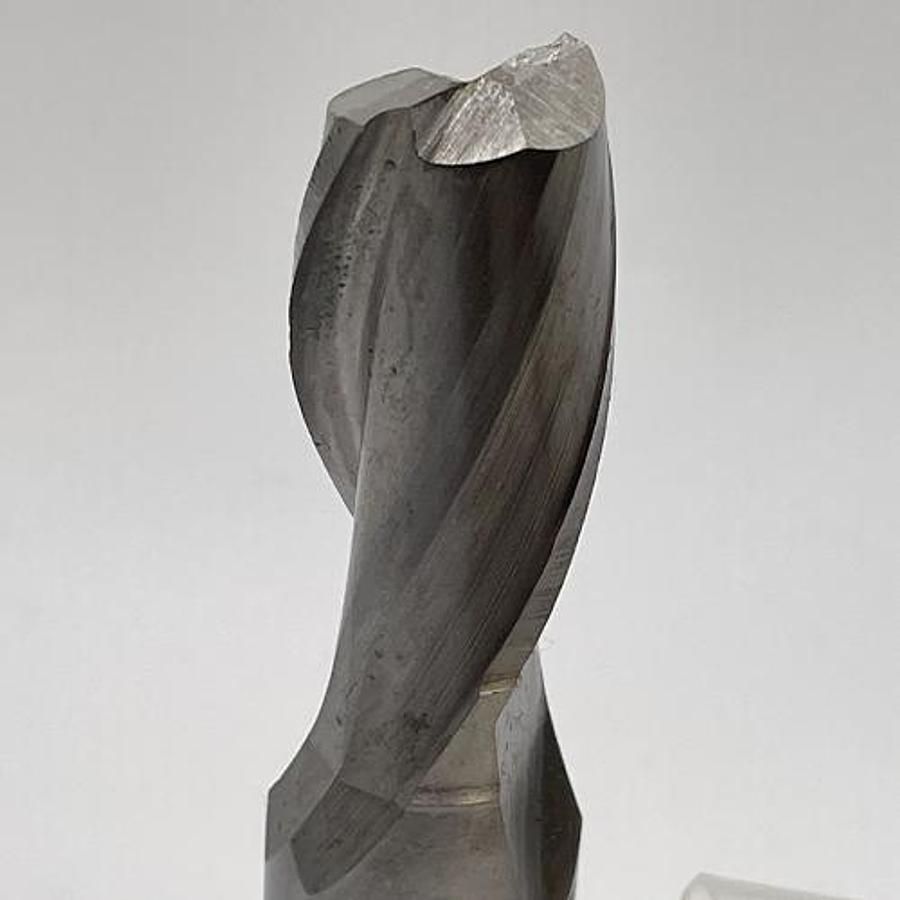

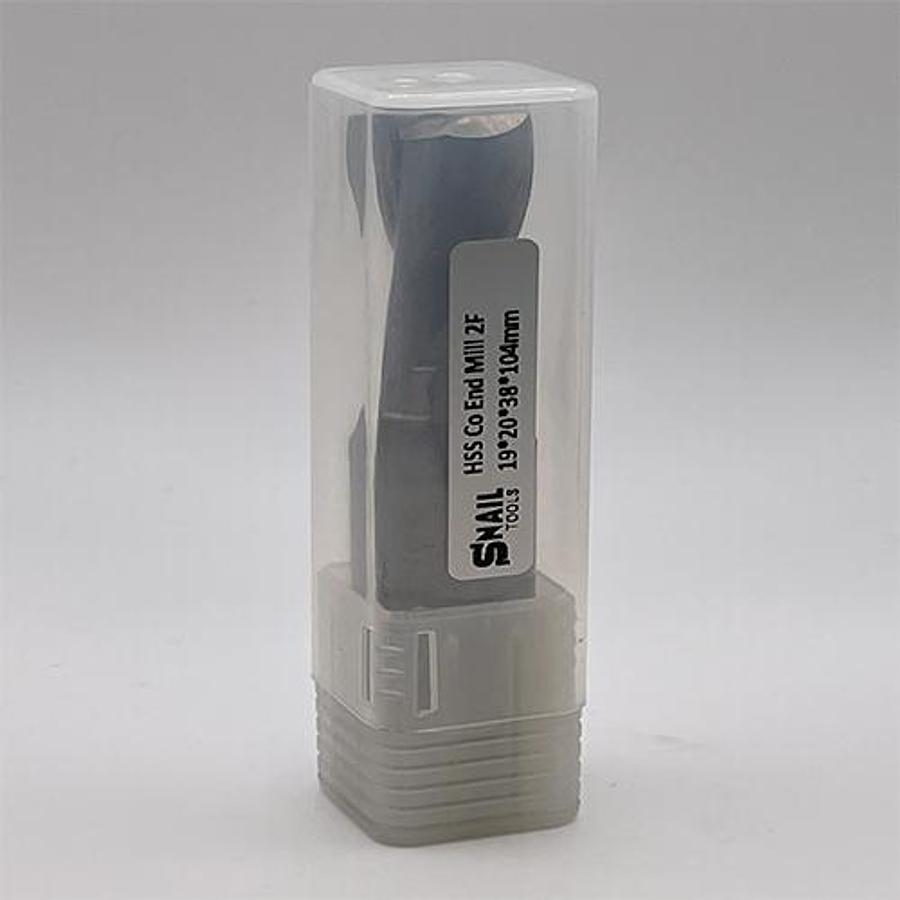

Snail Tools HSS Co Two Flute End Mill (19 x 20 x 38 x 104MM)

Description

Reduced Shank Cobalt End Mill (19mm Dia, 38mm Cut Length) for Extreme Heavy-Duty Machining of Harder Metals in Canada.

The Snail Tools HSS Co Two Flute End Mill (19 x 20 x 38 x 104MM) is a specialized, large-diameter tool designed to provide a large 19 mm cutting diameter while utilizing a standard 20 mm tool holder (reduced shank concept, where the shank is slightly larger than the cut). This cutter is built for extreme material removal across a wide range of tough materials, including structural steel, difficult alloys, and high-tensile cast iron. The cobalt infusion ensures superior heat resistance, making it essential for demanding industrial applications across Ontario and the GTA.

Key Features & Industrial Machining

Design: 2 Flutes (Double Flute) – Offers increased tool strength and stability, crucial for heavy slotting and plunging operations in industrial materials where high torque and stability are paramount.

Material: HSS Co (High-Speed Steel with Cobalt) alloy construction ensures superior hardness, allowing the cutter to maintain its sharp edge and structural integrity during high-temperature and heavy-load machining.

Reduced Shank Concept: Features a 19 mm Cut Diameter (D) and a 20 mm Shank Diameter (d). The 38 mm Length of Cut (B) provides substantial depth for industrial material removal.

Application: Ideal for production slotting, heavy profiling, and roughing operations, offering maximum strength and heat resistance in challenging ferrous materials.

Technical Specifications

Trust Snail Tools to deliver the maximum cutting capacity, stability, and heat resistance required for superior machining of tough materials in your most demanding industrial projects.

Specifications

Condition	New
Detail	Measurement Equivalent
Flutes	2 Double Flute
Shank Diameter (d)	20 mm 0.787 inches approx.
Cut Diameter (D)	19 mm 0.748 inches approx.
Length of Cut (B)	38 mm 1.50 inches approx.
Overall Length (L)	104 mm 4.09 inches approx.
Material Grade	HSS Co (Cobalt)
Code	(Please provide a product code if available, e.g., 102)
