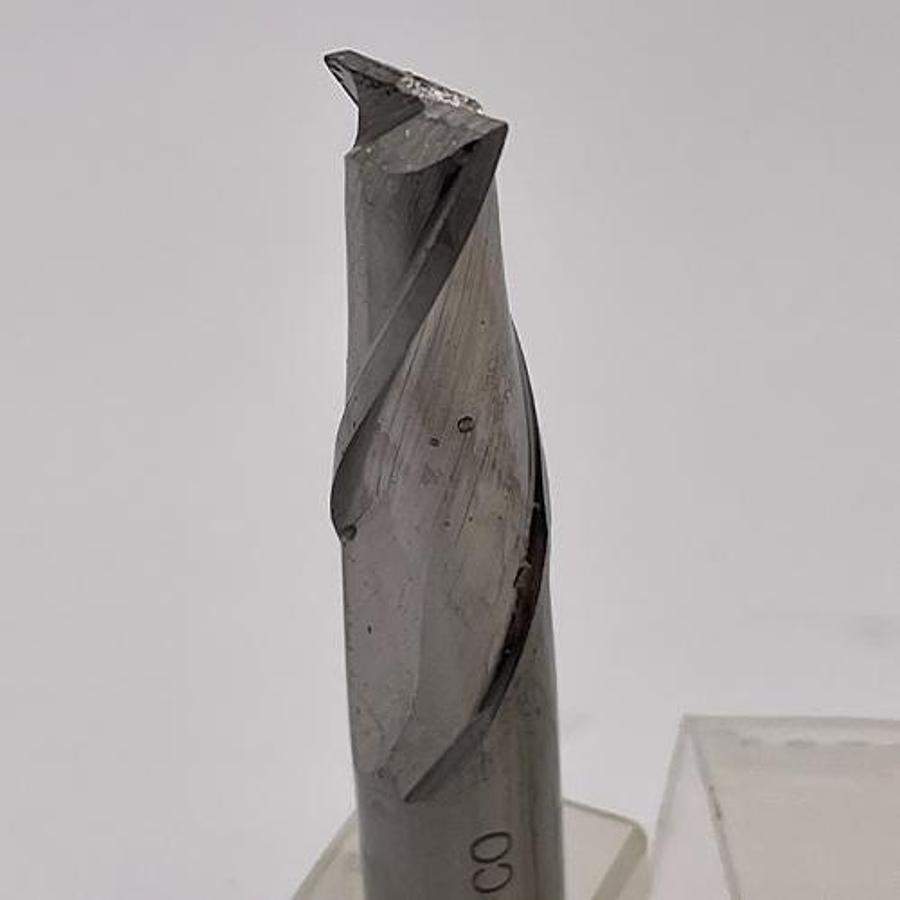

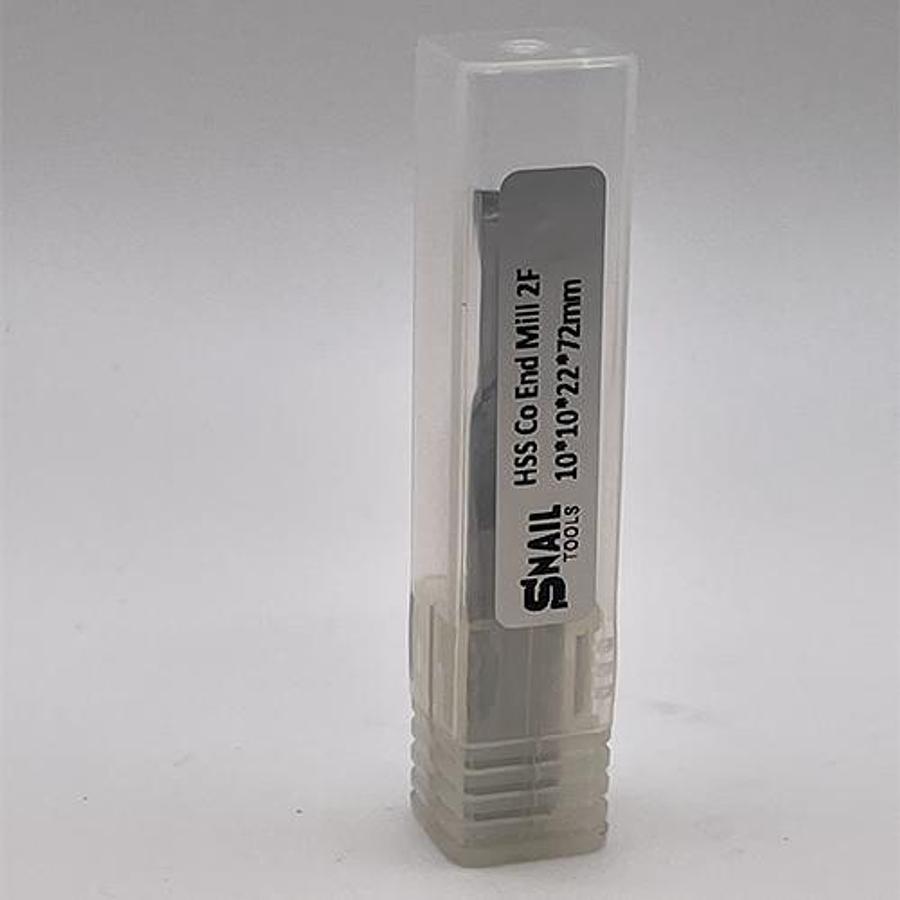

Snail Tools HSS Co Two Flute End Mill (10 x 10 x 22 x 72MM)

Description

Standard Cobalt End Mill (10mm Dia, 22mm Cut Length) for Versatile Machining of Harder Metals in Canada.

The Snail Tools HSS Co Two Flute End Mill (10 x 10 x 22 x 72MM) is a standard $10\text{mm}$ diameter, high-performance tool designed for balanced strength and chip capacity across a wide range of materials, including steel, stainless steel, cast iron, and general alloys. The two-flute design offers enhanced tool rigidity and stability, while the cobalt infusion ensures superior heat resistance, making it an essential cutter for demanding conventional and CNC applications across Ontario and the GTA.

Key Features & Precision Machining

Design: 2 Flutes (Double Flute) – Offers increased tool strength and stability, making it ideal for general-purpose milling, slotting, and plunging operations in tougher materials where stability is critical.

Material: HSS Co (High-Speed Steel with Cobalt) alloy construction ensures superior hardness, allowing the cutter to maintain its sharp edge and structural integrity during high-temperature machining.

Dimensions: Features matching 10 mm Shank Diameter (d) and 10 mm Cut Diameter (D). The 22 mm Length of Cut (B) provides ample depth for common milling tasks.

Application: Ideal for general slotting, profiling, and plunging operations where rigidity and heat resistance are paramount, especially in ferrous metals.

Technical Specifications

Trust Snail Tools to deliver the precision, stability, and heat resistance required for superior machining of both ferrous and non-ferrous materials in your professional projects.

Specifications

Condition	New
Detail	Measurement Equivalent
Flutes	2 Double Flute
Shank Diameter (d)	10 mm 3/8 inch approx.
Cut Diameter (D)	10 mm 3/8 inch approx.
Length of Cut (B)	22 mm 0.87 inches approx.
Overall Length (L)	72 mm 2.83 inches approx.
Material Grade	HSS Co (Cobalt)
Code	(Please provide a product code if available, e.g., 097)
