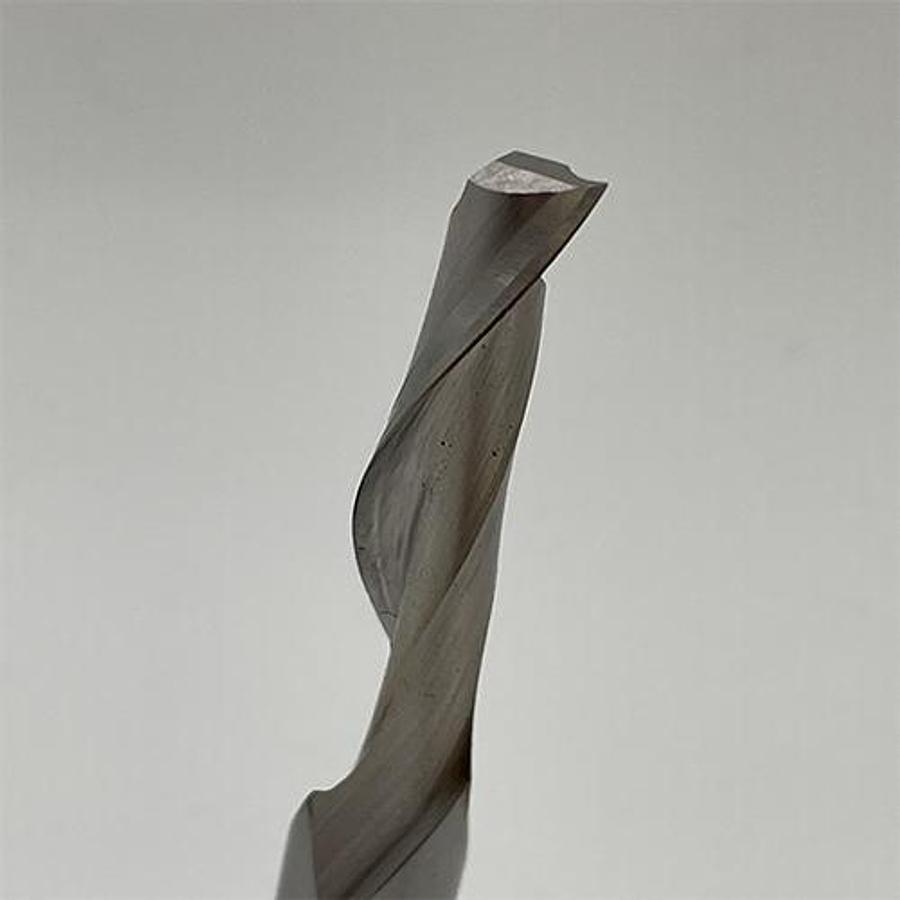

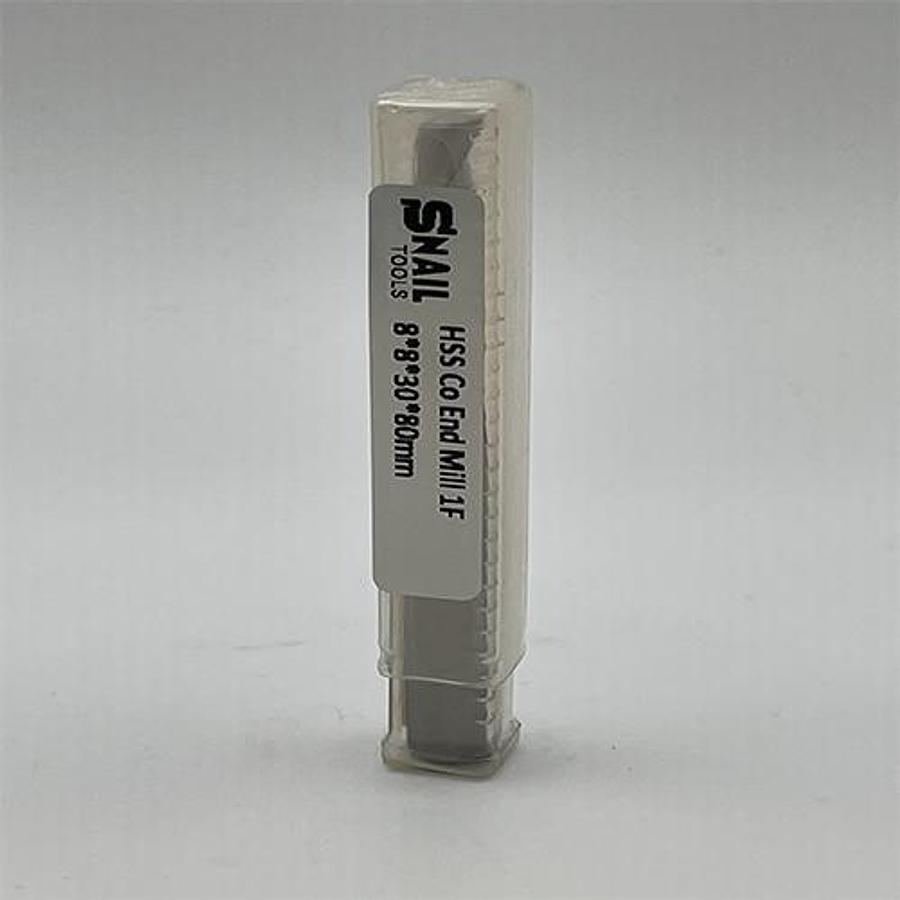

Snail Tools HSS Co Single Flute End Mill (8 x 8 x 30 x 80MM)

Description

Extended Cut Precision Cobalt End Mill (8mm Dia, 30mm Cut Length) for High-Speed Machining of Aluminum and Non-Ferrous Metals in Canada.

The Snail Tools HSS Co Single Flute End Mill (8 x 8 x 30 x 80MM) is a specialized tool designed for efficient, high-speed material removal, particularly in aluminum, brass, and plastics, featuring an extended cutting length for deeper applications. The single flute design allows for maximum chip clearance and evacuation, crucial for preventing material adhesion and ensuring a smooth finish. This cutter provides stable performance in demanding CNC applications across Ontario and the GTA.

Key Features & Optimized Performance

Design: 1 Flute (Single Flute) – Provides the largest chip valley, essential for high feed rates and fast evacuation of soft materials, minimizing material sticking and friction.

Material: HSS Co (High-Speed Steel with Cobalt) alloy construction ensures superior hardness, allowing the cutter to maintain its sharp edge and structural integrity during high-speed machining.

Balanced Dimensions: Features matching 8 mm Shank Diameter (d) and 8 mm Cut Diameter (D). The 30 mm Length of Cut (B) allows for reliable deep slotting and profiling operations.

Application: Ideal for profiling, deep slotting, and routing in non-ferrous metals and plastics, delivering an exceptionally clean surface finish.

Technical Specifications

Trust Snail Tools to deliver the speed, precision, and extended cut capability required for superior machining of non-ferrous materials in your professional projects.

Specifications

Condition	New
Detail	Measurement Equivalent
Flutes	1 Single Flute
Shank Diameter (d)	8 mm 5/16 inch approx.
Cut Diameter (D)	8 mm 5/16 inch approx.
Length of Cut (B)	30 mm 1.18 inches approx.
Overall Length (L)	80 mm 3.15 inches approx.
Material Grade	HSS Co (Cobalt)
Code	(Please provide a product code if available, e.g., 093)
