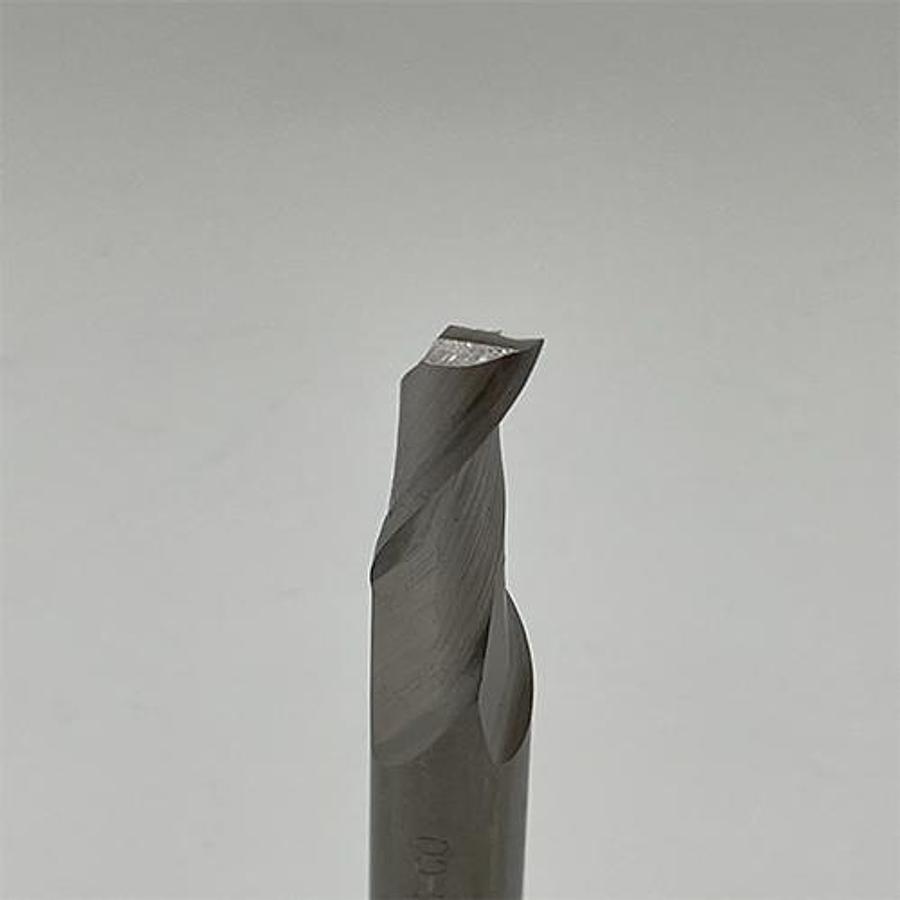

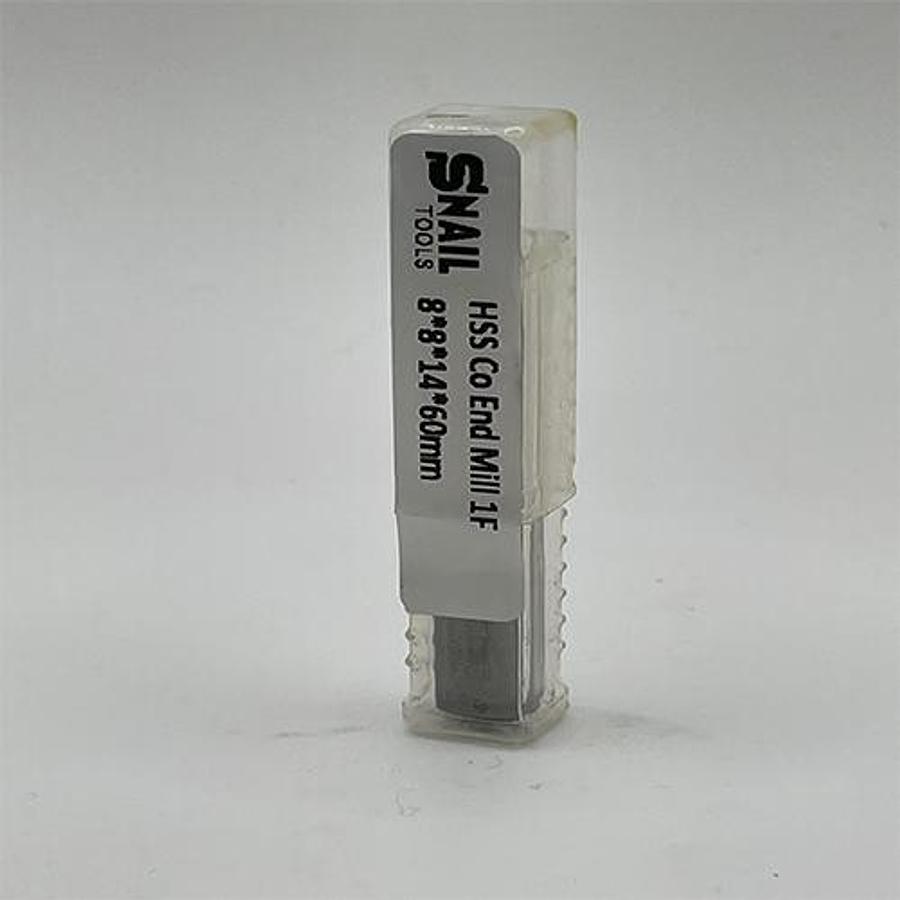

Snail Tools HSS Co Single Flute End Mill (8 x 8 x 14 x 60MM)

Description

Precision Cobalt End Mill (8mm Dia, 14mm Cut Length) for High-Speed Machining of Aluminum and Non-Ferrous Metals in Canada.

The Snail Tools HSS Co Single Flute End Mill (8 x 8 x 14 x 60MM) is a specialized tool designed for highly efficient, high-speed material removal, particularly in aluminum, brass, and plastics. The single flute design allows for maximum chip clearance and evacuation, crucial for preventing re-cutting and heat buildup. This cutter provides smooth, professional results in demanding CNC applications across Ontario and the GTA.

Key Features & Optimized Performance

Design: 1 Flute (Single Flute) – Provides the largest chip valley, essential for high feed rates and fast evacuation of soft materials, minimizing material sticking and friction.

Material: HSS Co (High-Speed Steel with Cobalt) alloy construction ensures superior hardness, allowing the cutter to maintain its sharp edge and structural integrity during high-speed machining.

Balanced Dimensions: Features matching 8 mm Shank Diameter (d) and 8 mm Cut Diameter (D). The shorter 14 mm Length of Cut (B) provides high rigidity, making it ideal for shallow slotting, profiling, and finishing passes.

Application: Ideal for profiling, shallow slotting, and routing in non-ferrous metals and plastics, delivering an exceptionally clean surface finish.

Technical Specifications

Trust Snail Tools to deliver the speed, precision, and chip evacuation efficiency required for superior machining of non-ferrous materials in your professional projects.

Specifications

Condition	New
Detail	Measurement Equivalent
Flutes	1 Single Flute
Shank Diameter (d)	8 mm 5/16 inch approx.
Cut Diameter (D)	8 mm 5/16 inch approx.
Length of Cut (B)	14 mm 0.55 inches approx.
Overall Length (L)	60 mm 2.36 inches approx.
Material Grade	HSS Co (Cobalt)
Code	(Please provide a product code if available, e.g., 092)
