Snail Tools HSS Co Single Flute End Mill (8 x 8 x (18 x 45) x 100MM)

Snail Tools HSS Co Single Flute End Mill (8 x 8 x (18 x 45) x 100MM)

or
Call +1 437 475 2301

Description

Stepped Precision Cobalt End Mill (8mm Dia, 18mm to 45mm Cut) for High-Speed Machining of Aluminum and Non-Ferrous Metals in Canada.

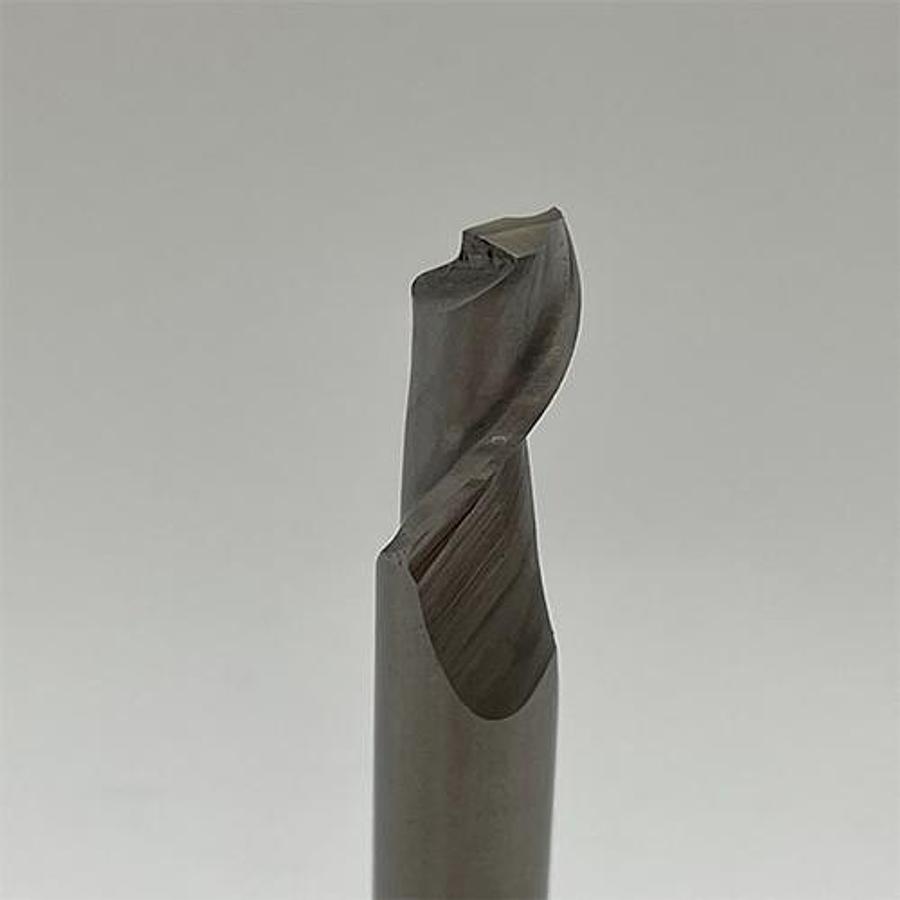

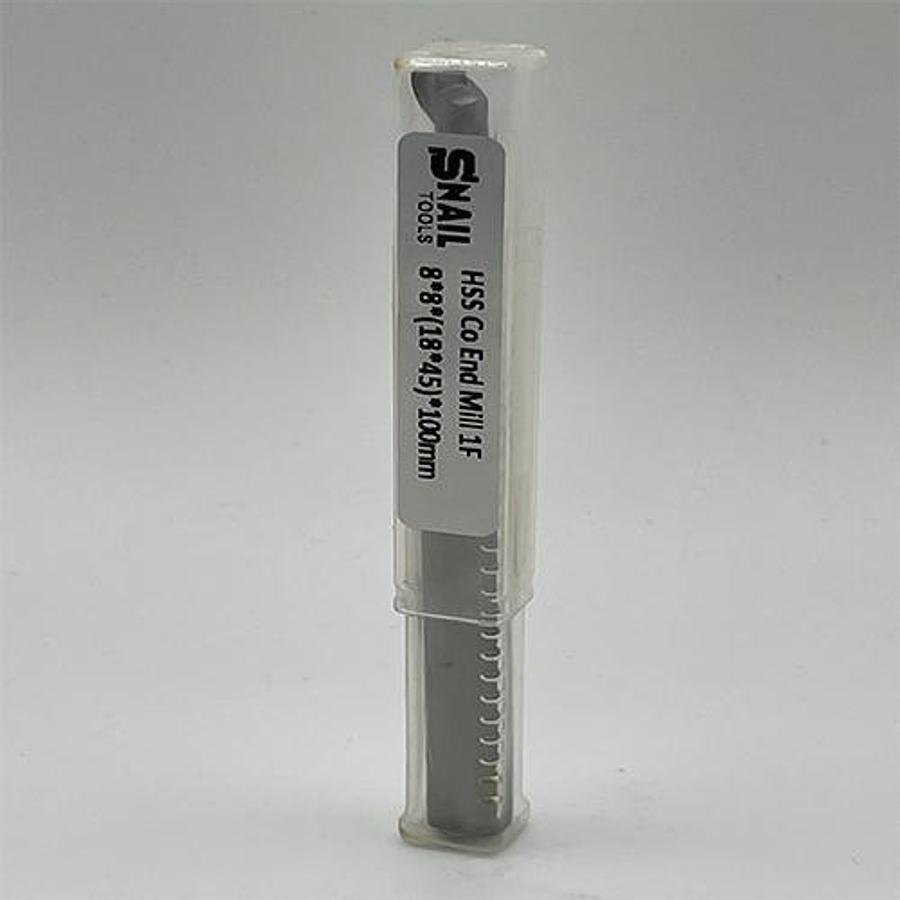

The Snail Tools HSS Co Single Flute End Mill (8 x 8 x (18 x 45) x 100MM) is a specialized tool featuring a stepped or variable length of cut design, intended for highly efficient, high-speed material removal, particularly in aluminum, brass, and plastics. The single flute design allows for maximum chip clearance and evacuation, crucial for preventing material adhesion and ensuring a smooth finish. This cutter provides superior rigidity during intricate and deep CNC applications across Ontario and the GTA.

Key Features & Optimized Performance

  • Design: 1 Flute (Single Flute) – Provides the largest chip valley, essential for very high feed rates and fast evacuation of soft materials, minimizing material sticking and friction.
  • Material: HSS Co (High-Speed Steel with Cobalt) alloy construction ensures superior hardness, allowing the cutter to maintain its sharp edge and structural integrity during high-speed machining.
  • Variable/Stepped Cut Length: The 18x45MM notation suggests a cutting length that extends from a minimum of 18mm up to a total of 45mm (Length of Cut, B), optimized for different depths, contouring, or specific progressive milling geometry.
  • Balanced Dimensions: Features matching 8 mm Shank Diameter (d) and 8 mm Cut Diameter (D), offering a balance of stability and clearance for deeper, continuous cuts.
  • Application: Ideal for profiling, intricate slotting, and deep routing in non-ferrous metals and plastics, delivering an exceptionally clean surface finish.

    • Technical Specifications

    Trust Snail Tools to deliver the speed, precision, and depth capability required for superior machining of non-ferrous materials in your professional projects.

    Show All

    Specifications

    ConditionNew
    DetailMeasurement Equivalent
    Flutes1 Single Flute
    Shank Diameter (d)8 mm 5/16 inch approx.
    Cut Diameter (D)8 mm 5/16 inch approx.
    Length of Cut (B)18 mm to 45 mm Variable Cut Length
    Overall Length (L)100 mm 4 inches approx.
    Material GradeHSS Co (Cobalt)
    Code(Please provide a product code if available, e.g., 091)
