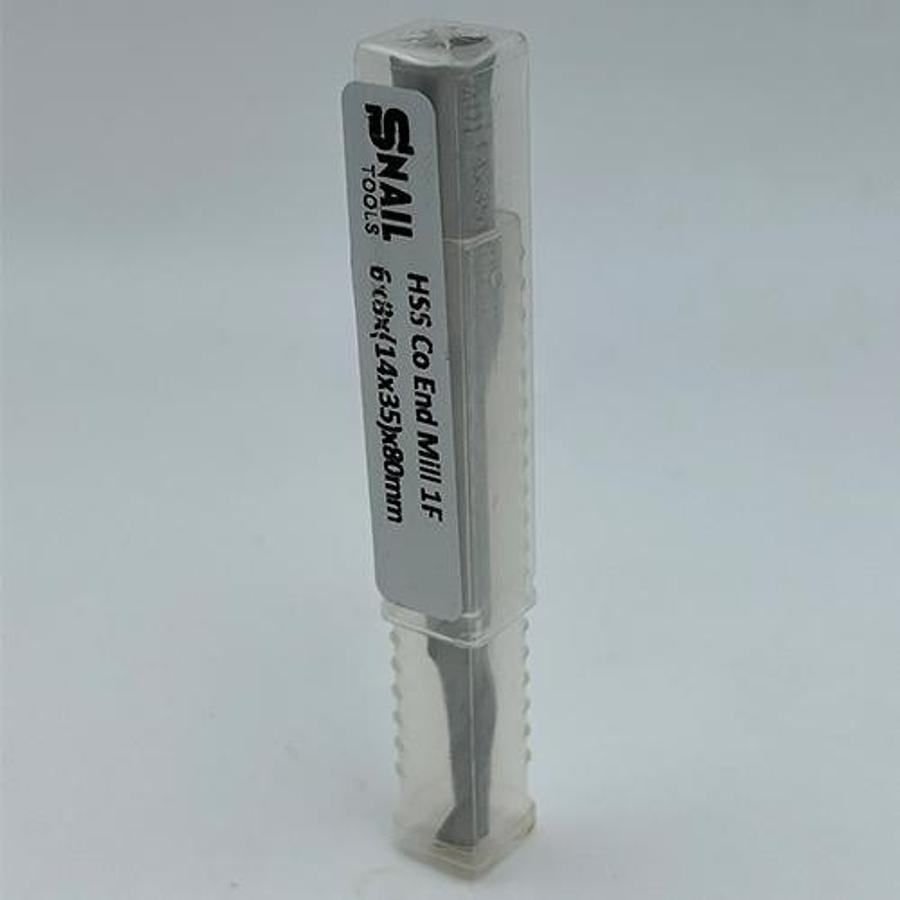

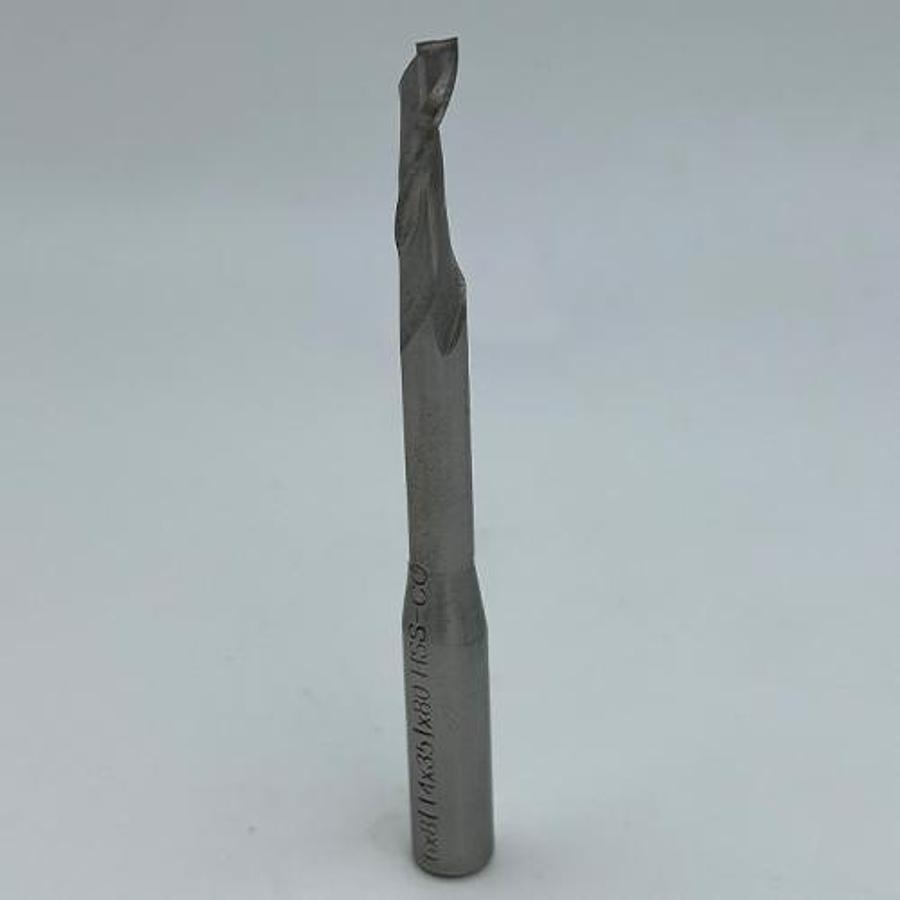

Snail Tools HSS Co Single Flute End Mill (6 x 8 x (14 x 35) x 80MM)

Description

Stepped Precision Cobalt End Mill (6mm Dia, 14mm to 35mm Cut) for High-Speed Machining of Aluminum and Non-Ferrous Metals in Canada.

The Snail Tools HSS Co Single Flute End Mill (6 x 8 x (14 x 35) x 80MM) is a specialized tool featuring a stepped or variable length of cut design, intended for highly efficient, high-speed material removal, particularly in aluminum, brass, and plastics. The single flute design allows for maximum chip clearance and evacuation, crucial for preventing material adhesion and ensuring a smooth finish. This cutter utilizes a stabilized, larger shank for improved rigidity during intricate CNC applications across Ontario and the GTA.

Key Features & Optimized Performance

Design: 1 Flute (Single Flute) – Provides the largest chip valley, essential for very high feed rates and fast evacuation of soft materials, minimizing material sticking and friction.

Material: HSS Co (High-Speed Steel with Cobalt) alloy construction ensures superior hardness, allowing the cutter to maintain its sharp edge and structural integrity during high-speed machining.1

Variable/Stepped Cut Length: The $(14 \times 35\text{MM})$ notation suggests a cutting length that extends from a minimum of $14\text{mm}$ up to a total of $35\text{mm}$ (Length of Cut, B), optimized for different depths or specific geometry requirements.

Stabilized Shank: Features a larger 8 mm Shank Diameter (d) than the cutting diameter, providing enhanced stability and rigidity for the 6 mm Cut Diameter (D), reducing vibration and improving cut quality.

Application: Ideal for profiling, intricate slotting, and routing in non-ferrous metals and plastics, delivering an exceptionally clean surface finish.

Technical Specifications

Trust Snail Tools to deliver the speed, precision, and rigidity required for superior fine-diameter machining of non-ferrous materials in your professional projects.

Specifications

Condition	New
Detail	Measurement Equivalent
Flutes	1 Single Flute
Shank Diameter (d)	8 mm 5/16 inch approx.
Cut Diameter (D)	6 mm 0.236 inches approx.
Length of Cut (B)	14 mm to 35 mm Variable Cut Length
Overall Length (L)	80 mm 3.15 inches approx.
Material Grade	HSS Co (Cobalt)
Code	(Please provide a product code if available, e.g., 090)
