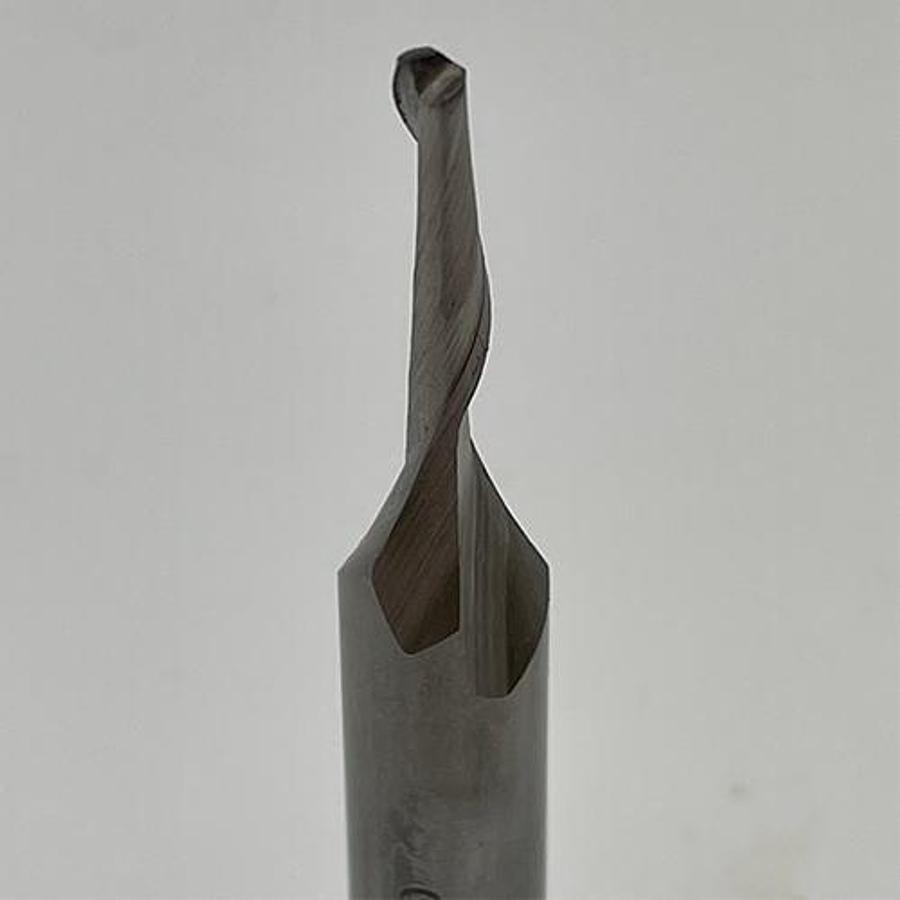

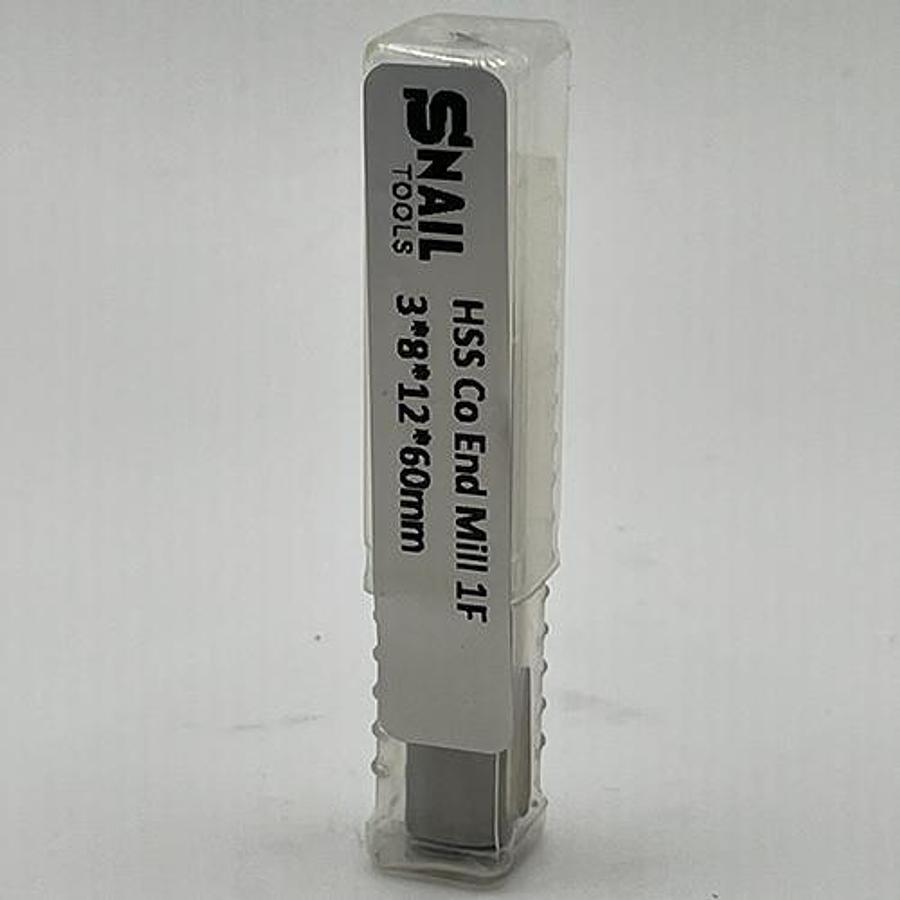

Snail Tools HSS Co Single Flute End Mill (3 x 8 x 12 x 60MM)

Description

Fine Precision Cobalt End Mill (3mm Dia, 12mm Cut Length) for High-Speed Machining of Aluminum and Non-Ferrous Metals in Canada.

The Snail Tools HSS Co Single Flute End Mill (3 x 8 x 12 x 60MM) is a specialized, fine-diameter tool designed for highly efficient, high-speed material removal, particularly in aluminum, brass, and plastics. The single flute design allows for maximum chip clearance and evacuation, crucial for preventing material adhesion and ensuring a smooth finish. This cutter features a stabilized, larger shank for improved rigidity during intricate CNC applications across Ontario and the GTA.

Key Features & Optimized Performance

Design: 1 Flute (Single Flute) – Provides the largest chip valley, essential for high feed rates and fast evacuation of soft materials, minimizing material sticking and friction.

Material: HSS Co (High-Speed Steel with Cobalt) alloy construction ensures superior hardness, allowing the cutter to maintain its sharp edge and structural integrity during high-speed machining.

Stabilized Shank: Features a larger 8 mm Shank Diameter (d) than the cutting diameter, providing enhanced stability and rigidity for the small 3 mm Cut Diameter (D).

Application: Ideal for fine profiling, intricate slotting, and routing in non-ferrous metals and plastics, delivering an exceptionally clean surface finish.

Technical Specifications

Trust Snail Tools to deliver the speed, precision, and rigidity required for superior fine-diameter machining of non-ferrous materials in your professional projects.

Specifications

Condition	New
Detail	Measurement Equivalent
Flutes	1 Single Flute
Shank Diameter (d)	8 mm 5/16 inch approx.
Cut Diameter (D)	3 mm 0.118 inches approx.
Length of Cut (B)	12 mm 0.47 inches approx.
Overall Length (L)	60 mm 2.36 inches approx.
Material Grade	HSS Co (Cobalt)
Code	(Please provide a product code if available, e.g., 079)
