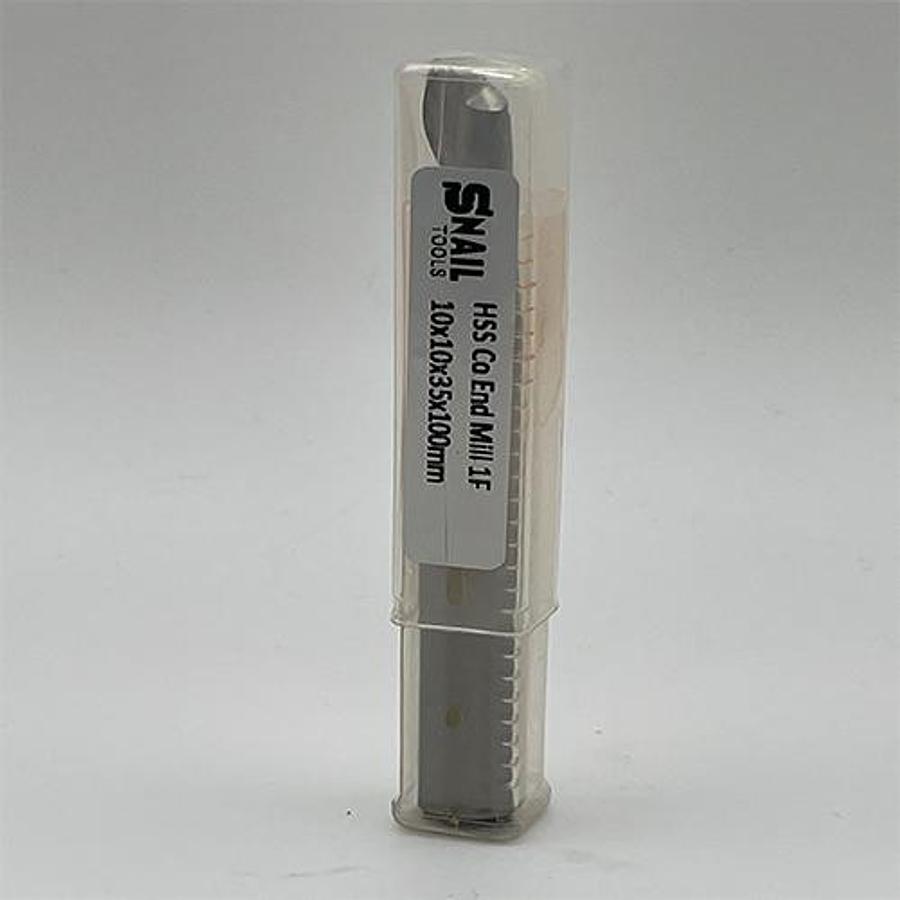

Snail Tools HSS Co Single Flute End Mill (10 x 10 x 35 x 100MM)

Description

Precision Cobalt End Mill (10mm Dia, 35mm Cut Length) for High-Speed Machining of Aluminum and Non-Ferrous Metals in Canada.

The Snail Tools HSS Co Single Flute End Mill (10 x 10 x 35 x 100MM) is a robust, specialized tool designed for efficient, high-speed material removal, particularly in aluminum, brass, and plastics. The single flute design allows for maximum chip clearance and evacuation, preventing re-cutting and heat buildup. This 10mm cutter provides smooth, professional results in demanding CNC and conventional milling applications across Ontario and the GTA.

Key Features & Optimized Performance

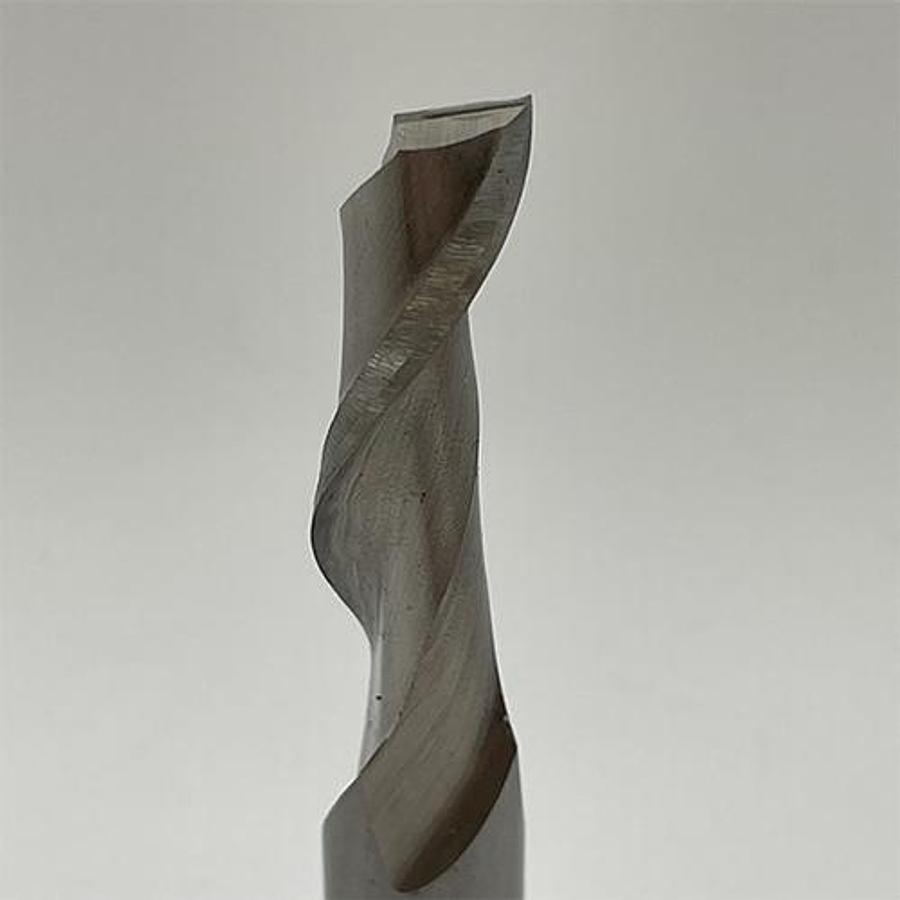

Design: 1 Flute (Single Flute) – Provides the largest chip valley, essential for high feed rates and fast evacuation of soft materials, minimizing material sticking and friction.

Material: HSS Co (High-Speed Steel with Cobalt) alloy construction ensures superior hardness, allowing the cutter to maintain its sharp edge and structural integrity during high-speed machining.

Balanced Dimensions: Features a substantial 35 mm Length of Cut (B) for deep slotting and profiling, combined with a stable $10\text{mm}$ shank.

Application: Ideal for profiling, slotting, and routing in non-ferrous metals and plastics, delivering an exceptionally clean surface finish and high material removal rates.

Technical Specifications

Trust Snail Tools to deliver the speed, precision, and chip evacuation efficiency required for superior machining of non-ferrous materials in your professional projects.

Specifications

Condition	New
Detail	Measurement Equivalent
Flutes	1 Single Flute
Shank Diameter (d)	10 mm 3/8 inch approx.
Cut Diameter (D)	10 mm 3/8 inch approx.
Length of Cut (B)	35 mm 1.38 inches approx.
Overall Length (L)	100 mm 4 inches approx.
Material Grade	HSS Co (Cobalt)
Code	(Please provide a product code if available, e.g., 076)
