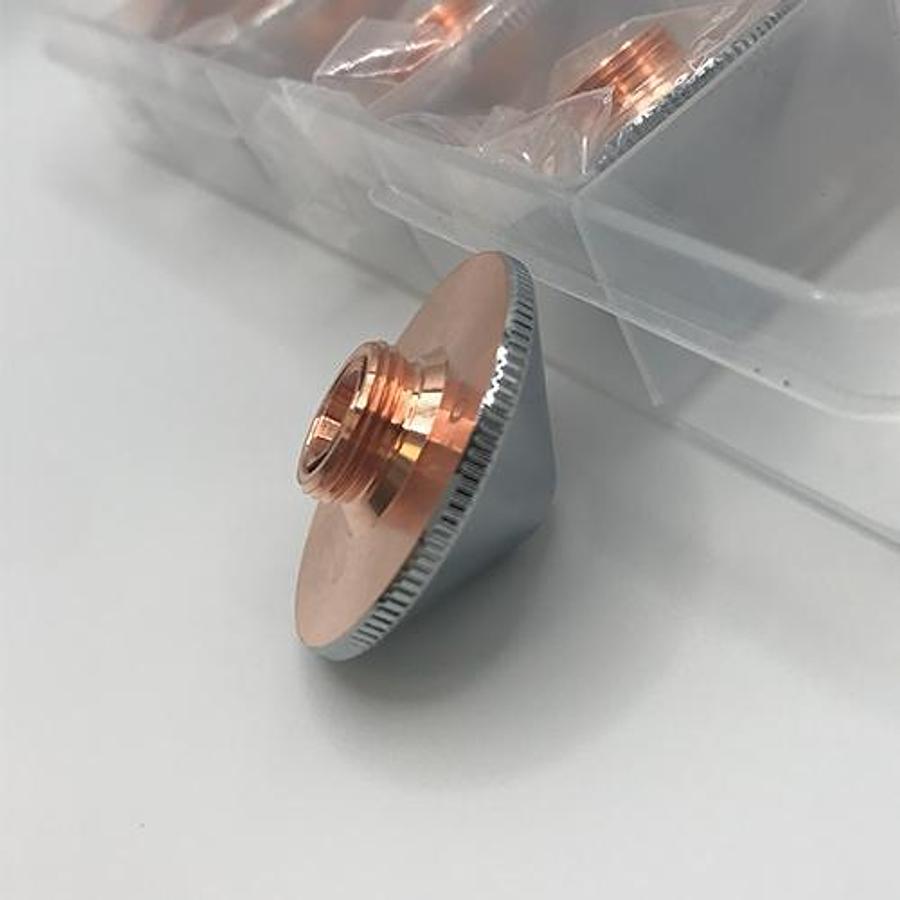

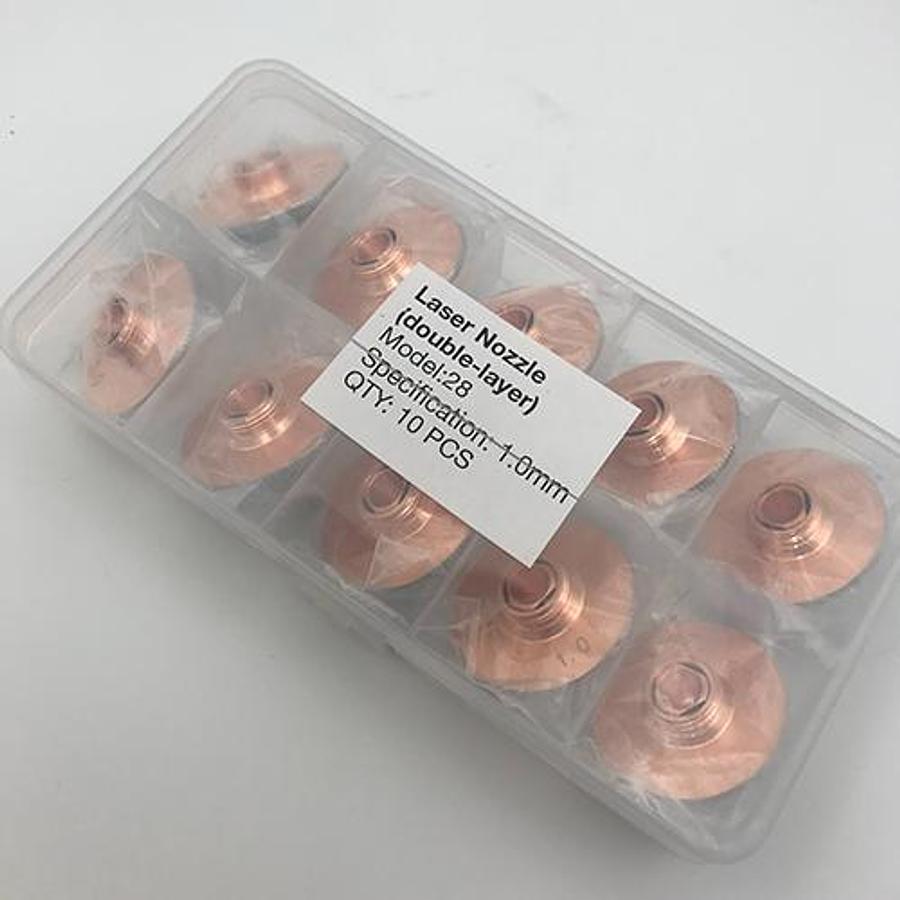

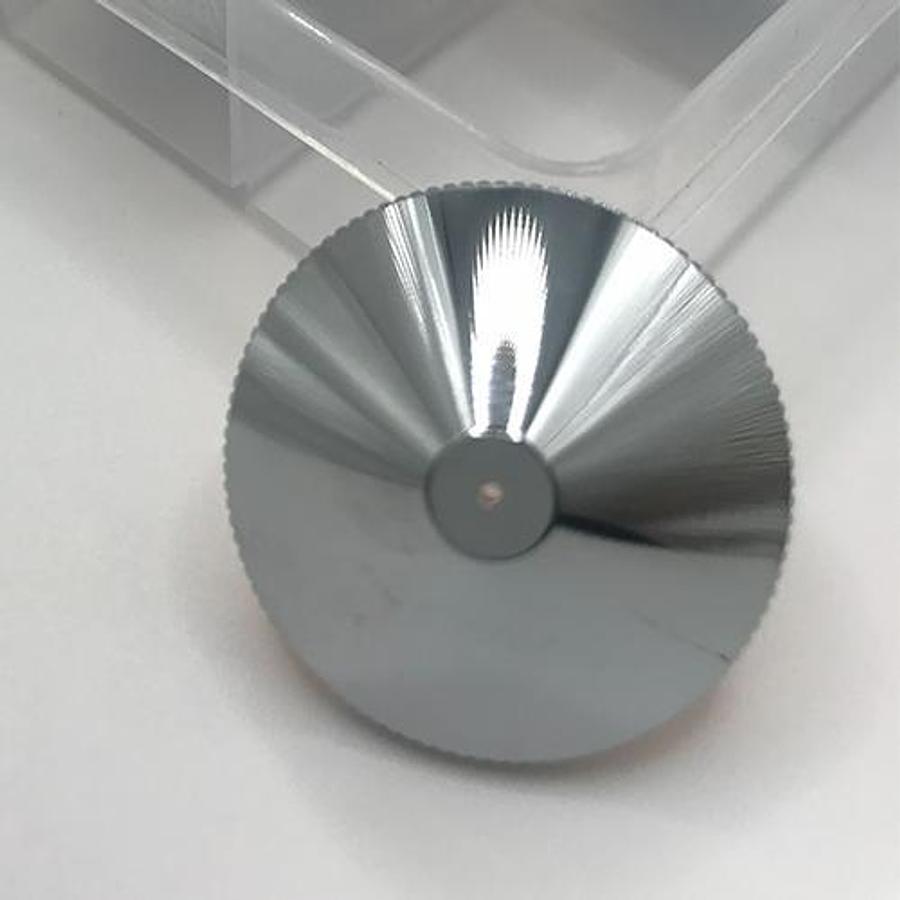

Snail Tools Ultimate-Precision Double Layer Laser Nozzle (M28 / 1.0mm)

Description

Snail Tools | MD104 Series 1.0mm Double Layer Nozzle for Micro-Cutting

The Snail Tools MD104 Double Layer Laser Nozzle is the premium choice for North American precision job shops engaged in micro-fabrication and high-value, complex components. The ultra-fine 1.0mm aperture provides unparalleled focus of the assist gas stream, crucial for achieving the smallest possible kerf width and ensuring a minimal heat-affected zone (HAZ) on the most delicate thin-gauge materials.

The essential Double Layer construction ensures operational stability during high-pressure cutting. This design accurately controls the highly focused gas stream (inner layer) while the outer layer provides superior thermal and spatter protection to the costly laser head optics, guaranteeing cut consistency and long equipment life.

Key Features for North American Manufacturing Success:

Maximum Kerf Reduction: The 1.0mm aperture is engineered for absolute minimum material removal, allowing for the most intricate and dense part nesting possible, maximizing material utilization.

Optimized for Thin Gauge: Ideal for cutting delicate materials where thermal input must be minimized. The precise gas focus ensures rapid melt expulsion and a clean, dross-free edge.

Reliable M28 Fit: Features the standard M28 thread connection for a stable, secure, and repeatable fit on compatible fiber laser heads, which is critical for maintaining the tight tolerances required by the 1.0mm aperture.

Superior Durability: Made from high-grade copper with an anti-spatter coating, this nozzle offers excellent resistance to wear, ensuring long operational life and minimizing downtime for US and Canadian businesses.

Specifications

Condition	New
Snail Tools Code	MD104 (Internal Reference) Used for precise inventory tracking.
Nozzle Type	Double Layer (Coated Copper) Provides gas focusing and critical head protection under high pressure.
Aperture (Orifice)	1.0mm Ideal for ultimate precision and achieving the absolute minimum kerf width.
Attachment Size	M28 Thread Standard metric threading for compatible laser head mounting.
Material	High-Grade Copper Alloy Ensures excellent thermal and electrical properties for stability.
Target Application	Thin Gauge Metals, Micro-Components, Highest-Tolerance Work Optimized for minimal material waste and heat-affected zone (HAZ).
