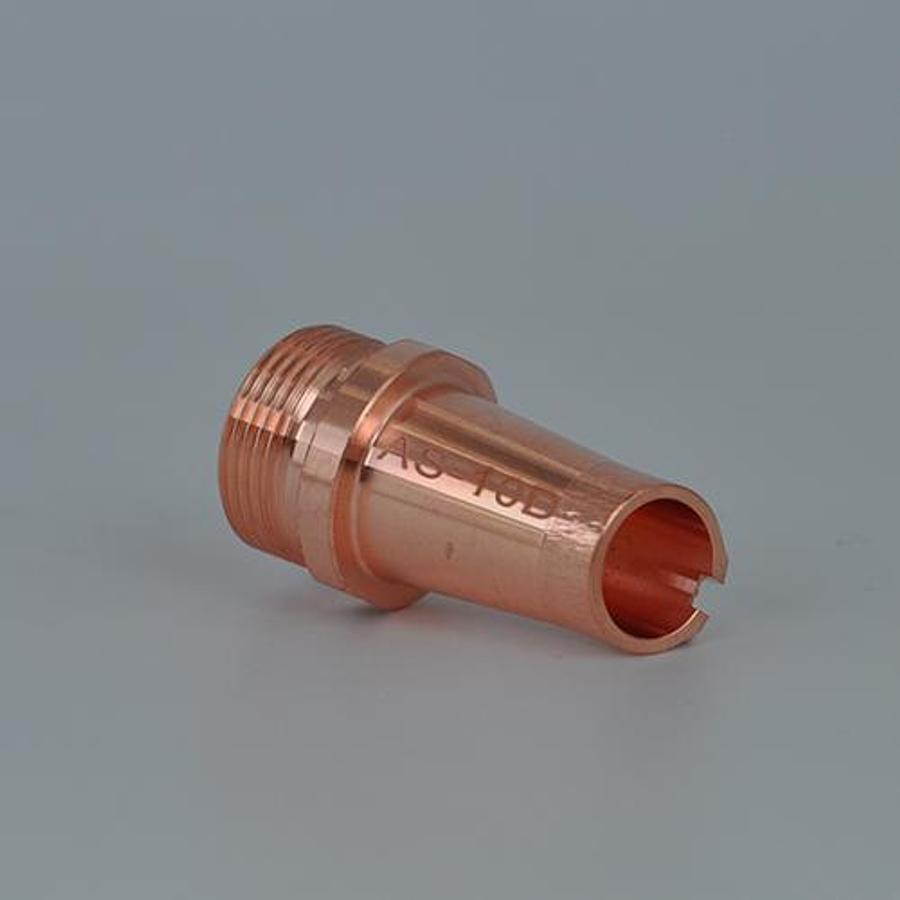

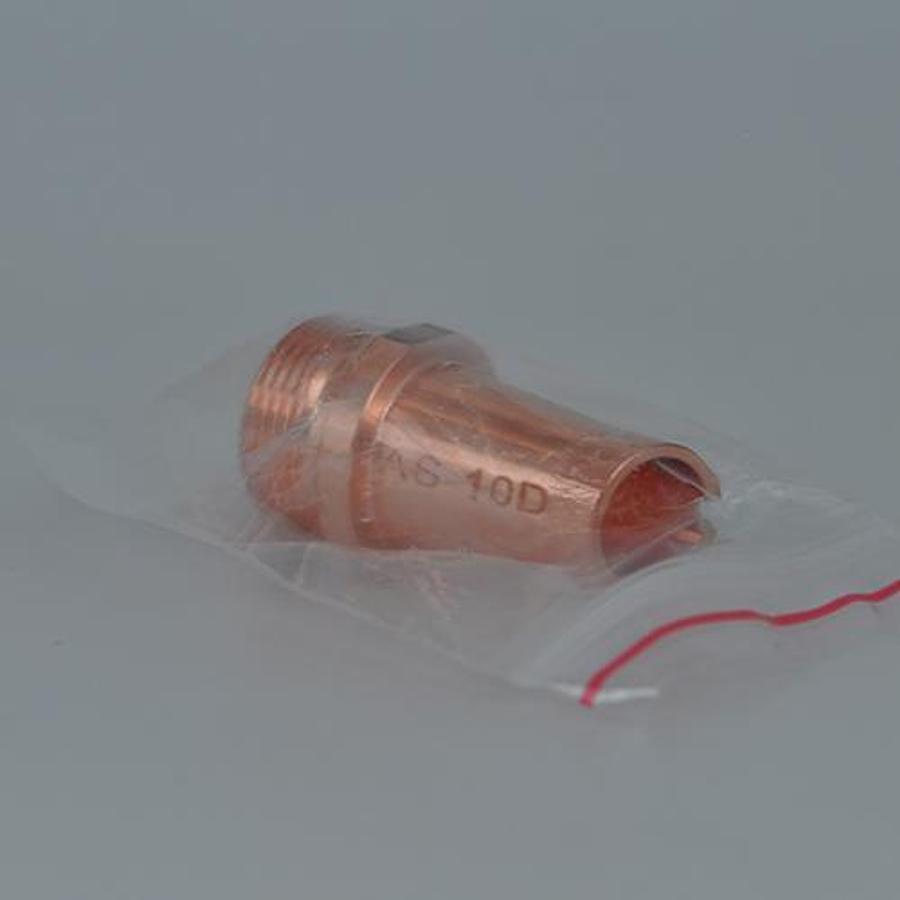

Ultra-Precision Copper Laser Welding Nozzle (AS10D / M16 Thread / 32mm)

Description

Snail Tools | AS10D Series M16 Laser Welder Nozzle for Micro Dual Wire Welding

The Snail Tools AS10D Laser Welding Nozzle is a cutting-edge consumable engineered for the most demanding automated and specialized fabrication that utilizes Dual Wire Feeding technology. This nozzle is characterized by the ‘D’ designation, indicating a specialized internal channel design optimized to manage two ultra-fine filler wires simultaneously, a process critical for achieving high deposition rates while strictly controlling the heat-affected zone (HAZ) on thin or sensitive materials.

The robust AS model geometry, combined with the 32mm length, provides the necessary stability and optimal distance for consistent dual-wire operation. The nozzle is specifically optimized for an approximate 1.0mm total wire capacity, enabling the use of two small-diameter wires (e.g., 2×0.5mm or 2×0.6mm) for high-speed, low-distortion welding, common in the electronics and precision assembly sectors. The high-grade Copper construction guarantees superior heat dissipation, minimizing thermal distortion and maximizing the lifespan of the precision tip.

Key Features for North American Manufacturing Success:

Dual Wire Feed Capability: The ‘D’ (Double) design is essential for specialized welding heads, significantly boosting deposition rates using micro-sized filler wire.

Ultra-Precision Focus: Optimized for 1.0mm total wire capacity, allowing for minimal heat input and high travel speeds on delicate materials.

Weld Clean Application: The nozzle’s design and copper material properties are highly suitable for use during the integrated Weld Cleaning function of advanced laser heads.

M16 Thread & 32mm Length: Standard dimensions ensure a secure, high-concentricity fit across compatible M16 laser welding systems.

Minimal Distortion: The use of ultra-fine dual wires allows for extremely low heat input, crucial for thin-gauge and heat-sensitive assemblies.

Specifications

Condition	New
Snail Tools Code	AS10D (Internal Reference) Used for precise inventory tracking.
Product Type	Laser Welding Nozzle Specialized for Dual Wire Feed (Micro Wire).
Attachment Thread	M16 Standard metric thread for compatible welding heads.
Length/Height	32mm Specific standoff distance for dual-feed stability.
Material	Copper Ensures high heat dissipation and electrical conductivity.
Aperture/Guidance	Optimized for 1.0mm total wire capacity Designed for ultra-fine wire use in dual-feed mode (e.g., 2 \0.5mm).
Key Application	Micro Welding, High-Speed Precision, Dual Wire Feed Essential for electronics, medical devices, and thin sheet metal.
