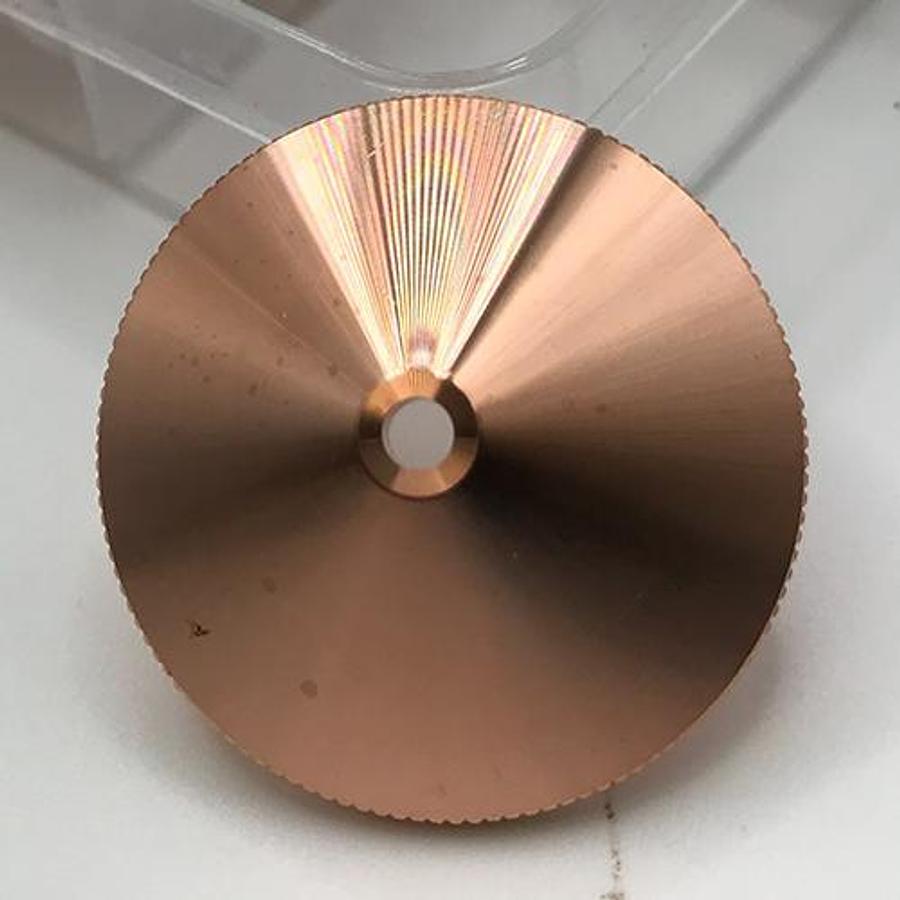

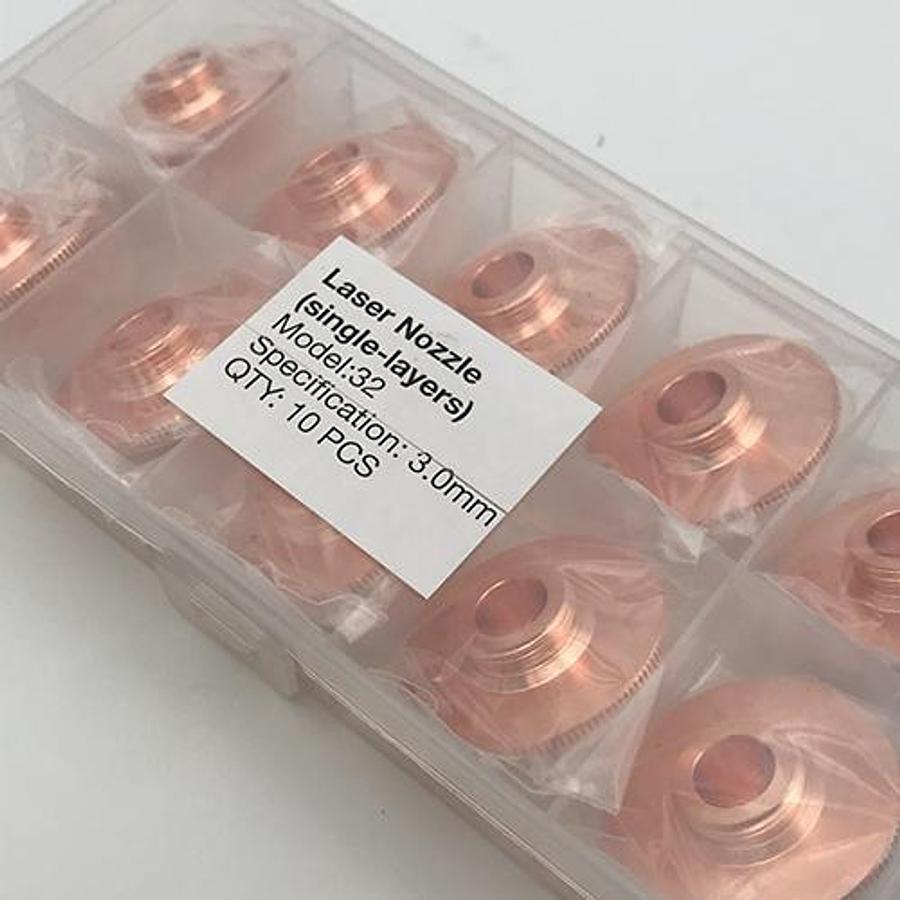

Snail Tools High-Flow Single Layer Laser Nozzle (M32 / 3.0mm Aperture / H15)

Description

Snail Tools | MS100 Series M32, 3.0mm Single Layer Nozzle for High Throughput

The Snail Tools MS100 Single Layer Laser Nozzle is engineered for high-volume, high-power fabrication across North America, specializing in maximizing throughput and cutting speeds. Featuring the robust M32 attachment thread and the largest 3.0mm aperture, this nozzle is designed to deliver maximum gas flow for highly efficient material expulsion.

The Single Layer design, combined with the large aperture, makes this nozzle ideal for high-speed cutting of thicker carbon steel with oxygen, or for high-speed cutting of thin materials where gas dynamics are less critical than maximizing flow rate. The H15 specification ensures perfect dimensional compatibility with specific high-wattage laser cutting heads.

Key Features for North American Manufacturing Success:

M32 High-Power Standard: Designed for M32-compatible laser heads (typically 6kW+ systems), providing the stability and secure fit necessary for continuous high-wattage operation.

Maximum Flow Rate: The large 3.0mm aperture delivers the highest volume of assist gas, accelerating the removal of molten material to achieve the fastest possible cutting speeds.

Single Layer Efficiency: The direct gas path is optimized for high-speed applications, delivering a robust, powerful stream essential for heavy cutting or maximizing speed on thin sheets.

H15 Specified Fitment: Guarantees precise height and alignment required for specific high-performance cutting heads, minimizing setup time and ensuring reliable machine performance.

Durability: Manufactured from high-grade copper alloy, ensuring exceptional thermal conductivity and resilience under the high-heat conditions of rapid processing.

Specifications

Condition	New
Snail Tools Code	MS100 (Internal Reference) Used for precise inventory tracking.
Nozzle Type	Single Layer (High Flow) Optimized for maximum gas volume and cutting speed.
Aperture (Orifice)	3.0mm Largest common aperture for maximum material expulsion.
Attachment Size	M32 Thread Designed for high-power laser heads requiring the larger M32 standard.
Height/Compatibility	H15 Specification Confirms necessary dimensional fit for specific cutting heads ($\sim 15\text{mm}$ height).
Material	High-Grade Copper Alloy Excellent thermal and electrical properties for stability.
Target Application	High-Speed Cutting, Thick Carbon Steel (with Oxygen), High Throughput Designed to maximize machine speed and volume.
