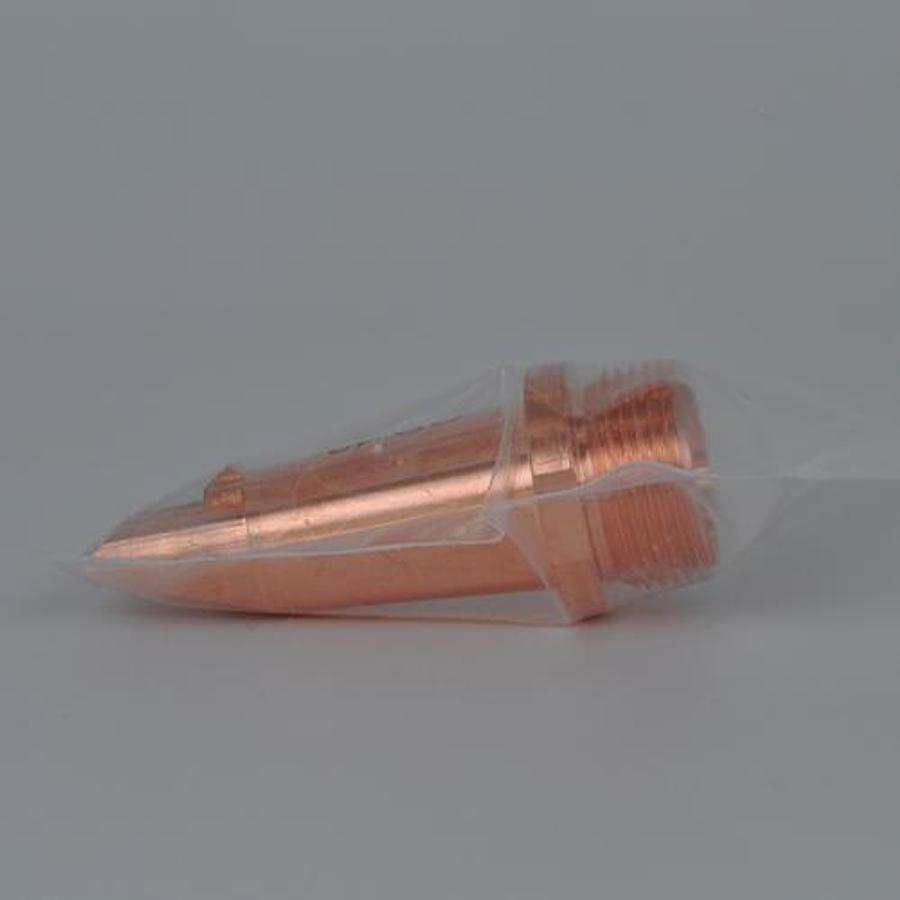

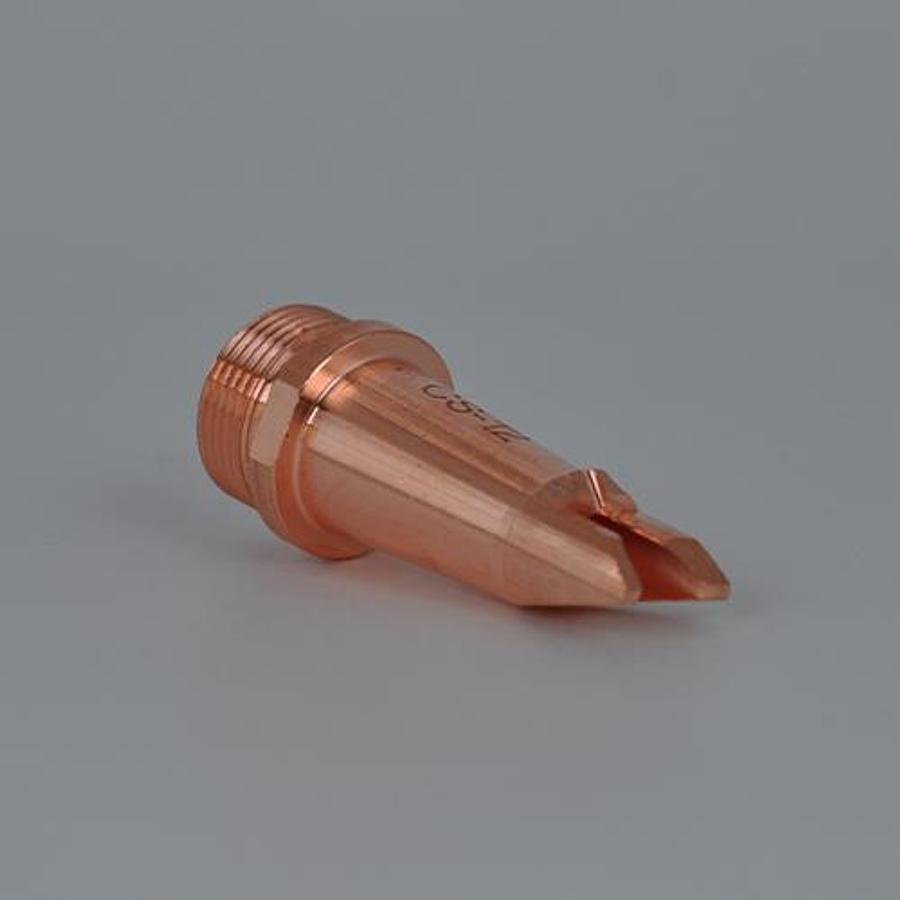

High-Efficiency Copper Laser Welding Nozzle (CS12 / M16 Thread) – Multi-Size Wire Guide

Description

Snail Tools | CS12 Series M16 Laser Welder Nozzle for Outer Angle and Fine Wire

The Snail Tools CS12 Laser Welding Nozzle is a premium consumable engineered for operational flexibility and high-quality results in North American laser welding applications. This nozzle is designed to reliably guide multiple thin filler wire sizes—0.8mm, 1.0mm, and 1.2mm—allowing fabricators to seamlessly switch between different material thicknesses without changing the nozzle tip.

Featuring the CS model geometry, the nozzle is optimized for excellent performance in Outer Angle welding and is also suitable for flat and straight-seam applications. Its 44mm length ensures the necessary standoff distance for stable gas shielding and precise beam focus. Constructed from high-quality Copper, the CS12 provides superior thermal conductivity, ensuring rapid heat dissipation, minimizing spatter adherence, and extending the nozzle’s lifespan.

Key Features for North American Manufacturing Success:

Multi-Gauge Compatibility: Engineered for stable, precise feeding of the three most common fine wire sizes (0.8mm, 1.0mm, and 1.2mm), reducing inventory complexity.

Outer Angle Optimization: The CS geometry provides superior gas shielding and wire access for clean, strong joints in exterior corner welds.

High Concentricity: Precision machining ensures perfect alignment between the laser beam, shielding gas, and filler wire, which is critical for smooth, defect-free welding.

Extended 44mm Length: Provides consistent focus distance and optimal gas coverage over the weld pool.

Premium Copper Material: Guarantees superior thermal and electrical conductivity, leading to high efficiency and long-term durability.

Specifications

Condition	New
Snail Tools Code	CS12 (Internal Reference) Used for precise inventory tracking.
Product Type	Laser Welding Nozzle Specialized for wire-feed welding applications.
Attachment Thread	M16 Standard metric thread for compatible welding heads.
Length	44mm Provides specific standoff distance for the CS model geometry.
Material	Copper Ensures high heat dissipation and electrical conductivity.
Wire Guiding Diameter	0.8mm/1.0mm/1.2mm Versatile internal diameter compatible with three fine wire thicknesses.
Key Application	Outer Angle Welding, Flat/Seam Welding General-purpose use with fine filler wire.
