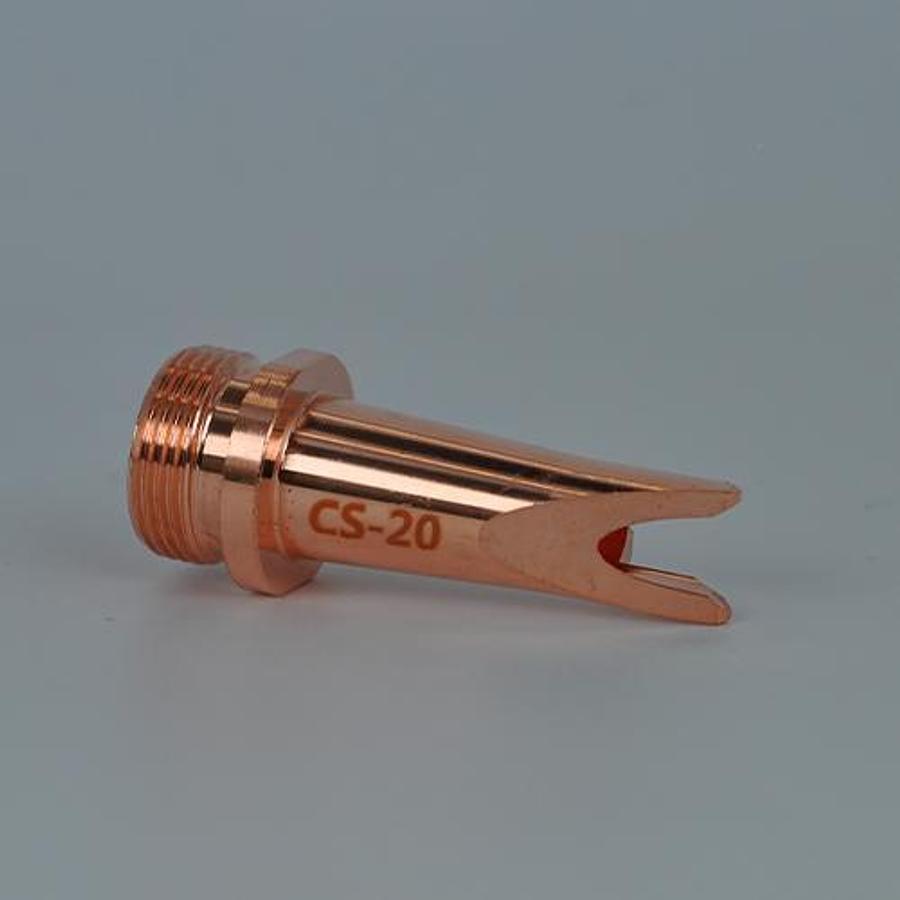

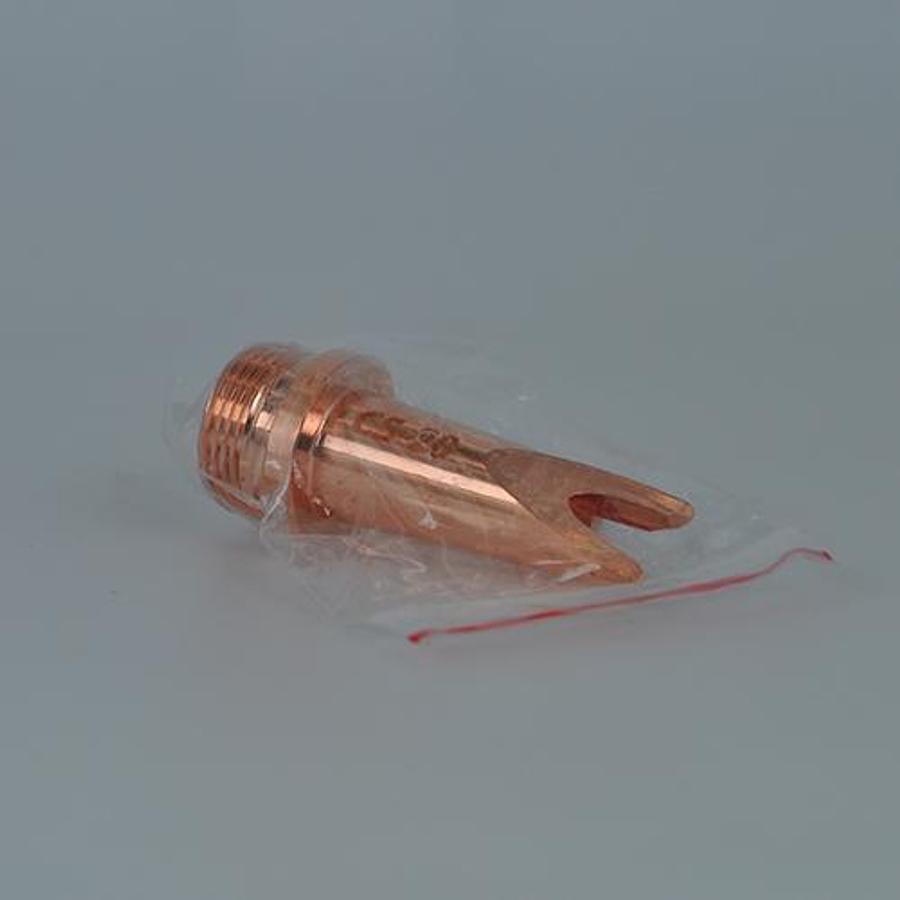

High-Flow Copper Laser Welding Nozzle (CS20 / M16 Thread / Large Aperture)

Description

Snail Tools | CS20 Series M16 Laser Welder Nozzle for High Gas Coverage

The Snail Tools CS20 Laser Welding Nozzle is a robust and highly efficient consumable designed for general-purpose and high-speed flat seam welding across North American fabrication sectors. Designed for laser welding heads that accept the standard M16 thread, this nozzle features a large internal aperture, indicated by the ’20’ in the code (likely 2.0mm or larger), ensuring maximum shielding gas flow over the weld pool.

The CS model geometry is optimized for straight-line welding and general applications, providing a stable gas curtain to protect the molten metal from atmospheric contamination during high-speed, no-wire, or light-wire applications. The use of high-grade Copper ensures rapid heat dissipation, maximizing the duty cycle and operational life of the nozzle.

Key Features for North American Manufacturing Success:

Maximum Gas Shielding: The large aperture size provides a high-volume, stable inert gas curtain, essential for achieving clean, non-oxidized welds, particularly in high-speed linear seam applications.

General-Purpose CS Design: Optimized for flat-seam welding and general applications where maximum coverage is prioritized over complex angle access.

M16 Thread & Copper Material: Guarantees a secure, repeatable fit and provides superior heat dissipation, critical for high-duty, continuous welding operations.

High Efficiency: The design promotes high concentricity, ensuring the laser beam and gas shield are perfectly aligned, which minimizes turbulence and weld defects.

Specifications

Condition	New
Snail Tools Code	CS20 (Internal Reference) Used for precise inventory tracking.
Product Type	Laser Welding Nozzle General-purpose, high-flow welding.
Attachment Thread	M16 (Assumed) Standard metric thread for compatible welding heads.
Material	Copper Ensures high heat dissipation and electrical conductivity.
Aperture/Guidance	2.0mm (Large Aperture) Optimized for high gas flow and general welding/cutting.
Design Feature	CS (Standard/Conical) Best for flat, general-purpose, high-speed seam welding.
