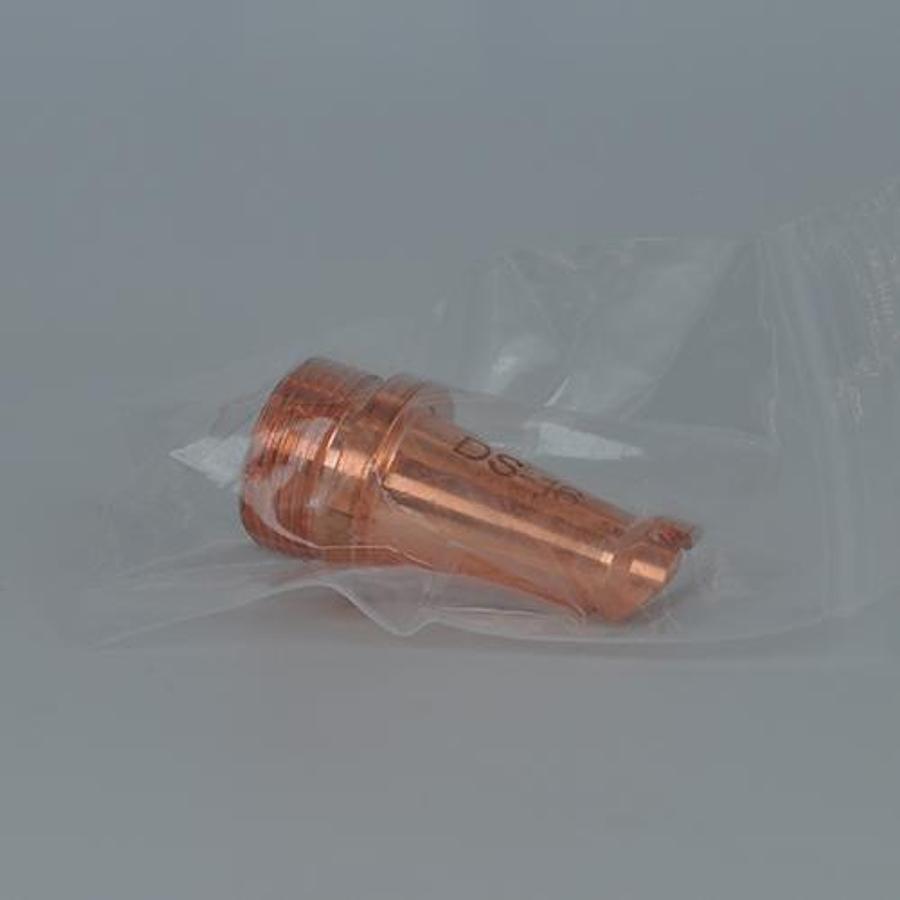

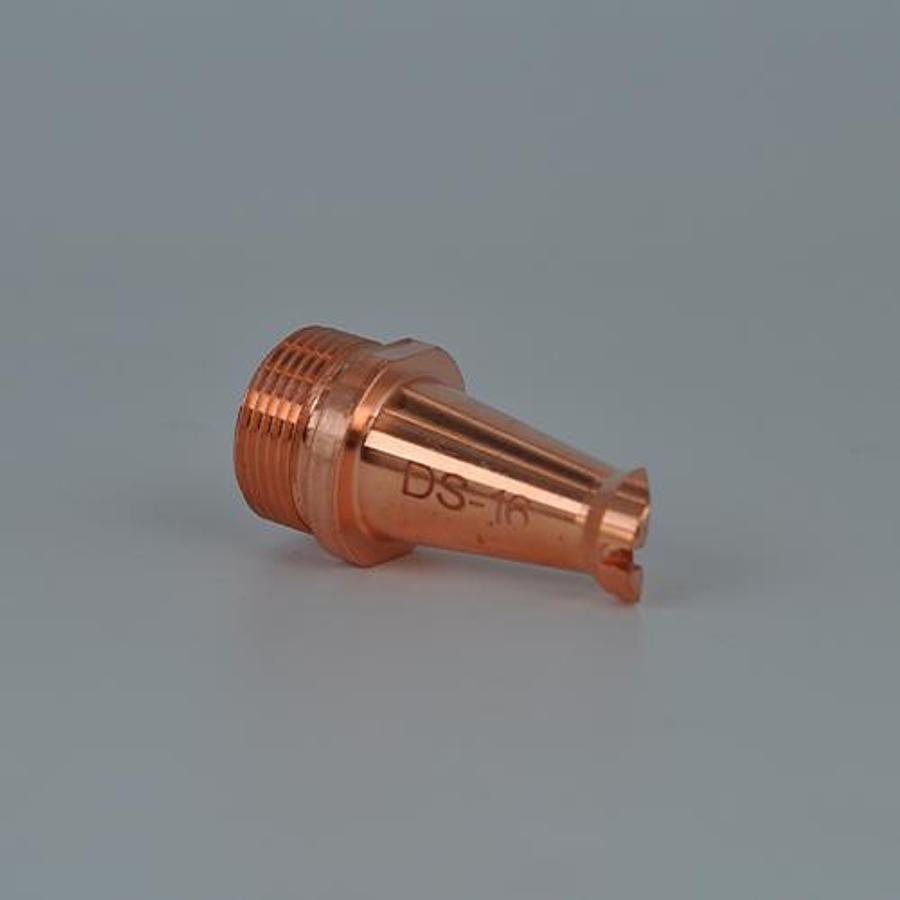

High-Concentricity Copper Laser Welding Nozzle (DS16 / M16 Thread / 1.6mm Wire Guide)

Description

Snail Tools | DS16 Series M16 Laser Welder Nozzle for Specialized Welding

The Snail Tools DS16 Laser Welding Nozzle is a premium consumable engineered for precision and durability in North American laser welding applications. Designed for use in laser welding heads that accept the standard M16 thread, this copper nozzle excels in achieving smooth, high-quality welds, particularly in complex joints and angles.

The DS16 model features a specific geometry (often a slightly recessed tip or angle) optimized for interior and exterior angle welding, providing the precise gas and wire guidance needed to control the molten pool in these challenging positions. The high-grade copper material ensures superior heat dissipation and electrical conductivity, leading to high efficiency and an extended lifespan compared to standard materials.

Key Features for North American Manufacturing Success:

Angle Welding Optimization: The DS16 design is ideal for precise manipulation of the laser and wire in interior and exterior corner welds, enhancing joint strength and aesthetics.

High Concentricity: Manufactured to tight tolerances to ensure the laser beam and wire feed are perfectly aligned, which is critical for smooth, consistent welding and preventing residue from blocking the nozzle.

M16 Thread Compatibility: Guarantees a secure, reliable fit across various compatible handheld and automated laser welding systems.

Wire Feed Ready: Typically compatible with a 1.6mm filler wire diameter, ensuring stable and consistent wire delivery to the weld pool.

Durable Copper Material: Constructed from high-quality copper for excellent thermal management and wear resistance, significantly reducing maintenance and replacement costs.

Specifications

Condition	New
Snail Tools Code	DS16 (Internal Reference) Used for precise inventory tracking.
Product Type	Laser Welding Nozzle Optimized for angle, flat, and wire feed welding.
Attachment Thread	M16 Standard metric thread for compatible welding heads.
Material	Copper Ensures high heat dissipation and electrical conductivity.
Common Wire Diameter	1.6mm Inner diameter for stable wire feed welding.
Key Application	Interior/Exterior Angle Welding, Wire Feed Used for specific joint geometries in fabrication.
