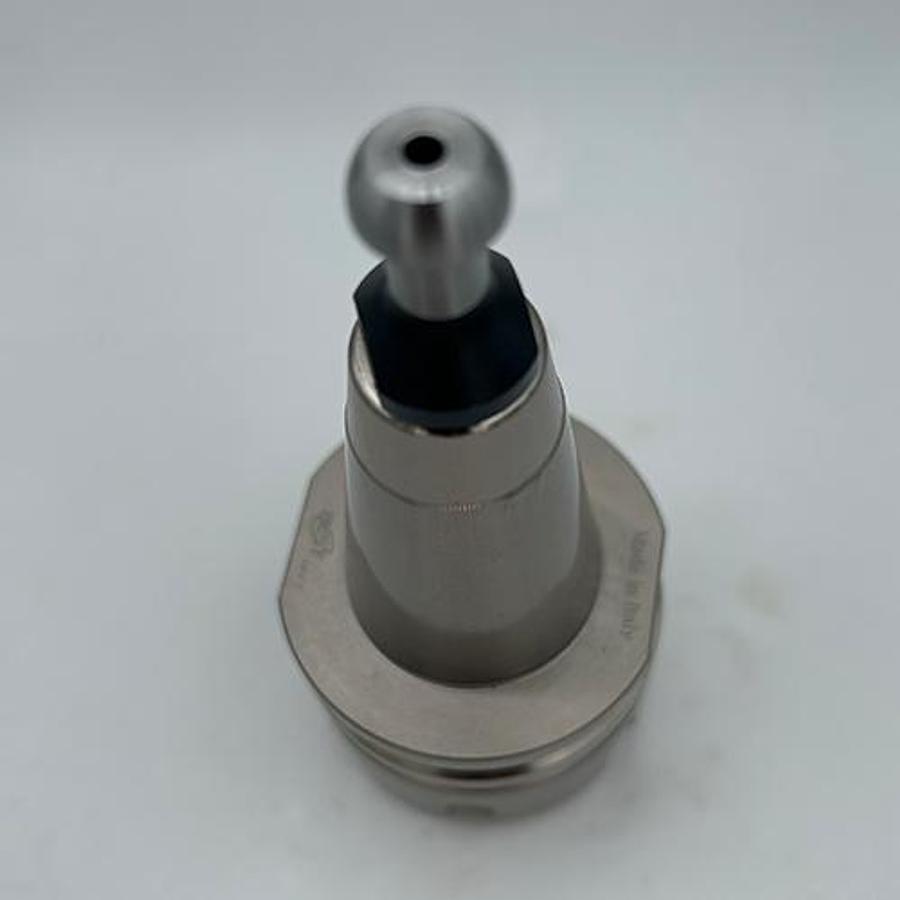

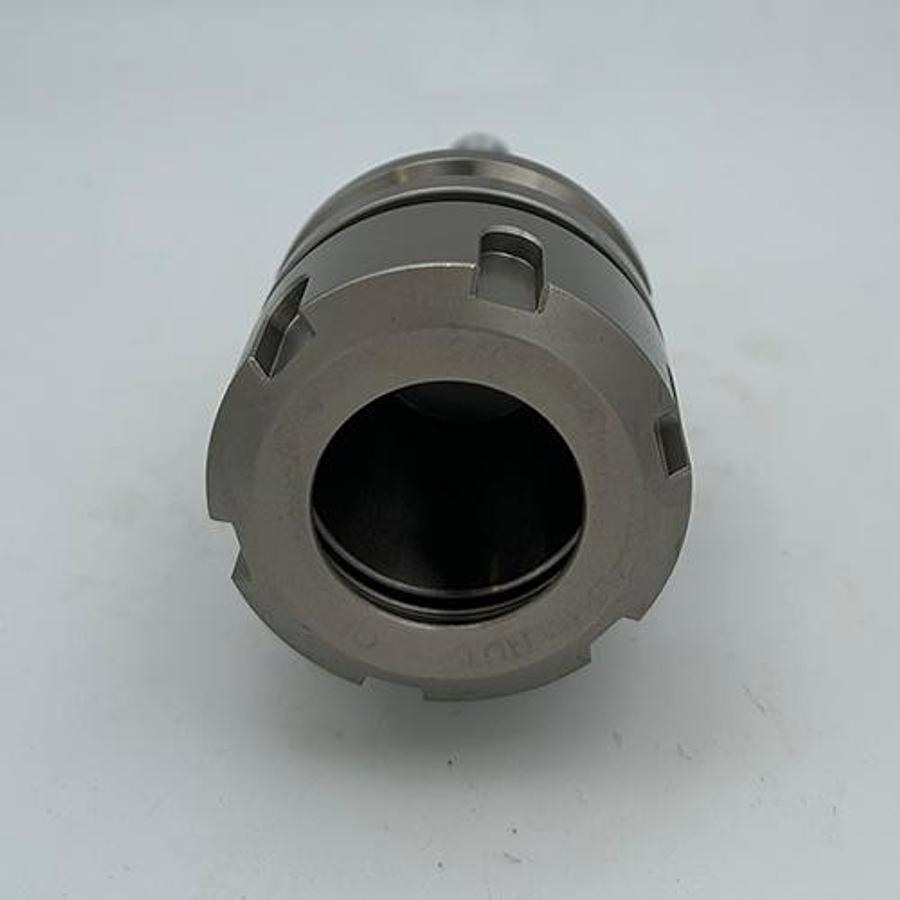

ISO30-ER32-50 HIGH-PRECISION COLLET CHUCK – 50MM GAGE LENGTH – 30,000 RPM BALANCED

Description

🚀 Unlock Extreme Spindle Performance ⚡

Achieve the highest standards of speed and precision on your CNC machine with the Snail Tools ISO30-ER32 Collet Chuck. This robust tool-holding system is engineered to eliminate vibration, ensuring your cutters perform flawlessly at maximum RPMs.

Balanced to a stellar 30,000 RPM, this chuck guarantees minimal runout (0.003 mm), translating directly into superior surface finishes and dramatically extended tool life. The robust ER32 Collet Series compatibility gives you versatility, while the Through Tool Coolant capability ensures efficient chip evacuation and thermal stability during aggressive machining.

Specifications

Condition	New
Specification	Detail (Metric – mm) Detail (Imperial – in/lbs)
Item	Collet Chuck -T-HC-104 Collet Chuck -T-HC-104
Brand Name	Snail Tools Snail Tools
System of Measurement	Metric – ISO Imperial
Taper	ISO30 ISO30
Collet Series	ER-32 ER-32
[GL] Gage Length	50.0 mm 1.97 in
[ØBD] Body Diameter	50.0 mm 1.97 in
[BL] Body Length	30.9 mm 1.22 in
Concentricity (Runout)	0.003 mm < 0.00012 in
Balanced to RPM	30,000 30,000
Retention Knob Thread	M12x1.75 M12x1.75
Through Tool Coolant	Yes Yes
Weight	0.6 kg 1.3 lbs
Country of Origin	China China
