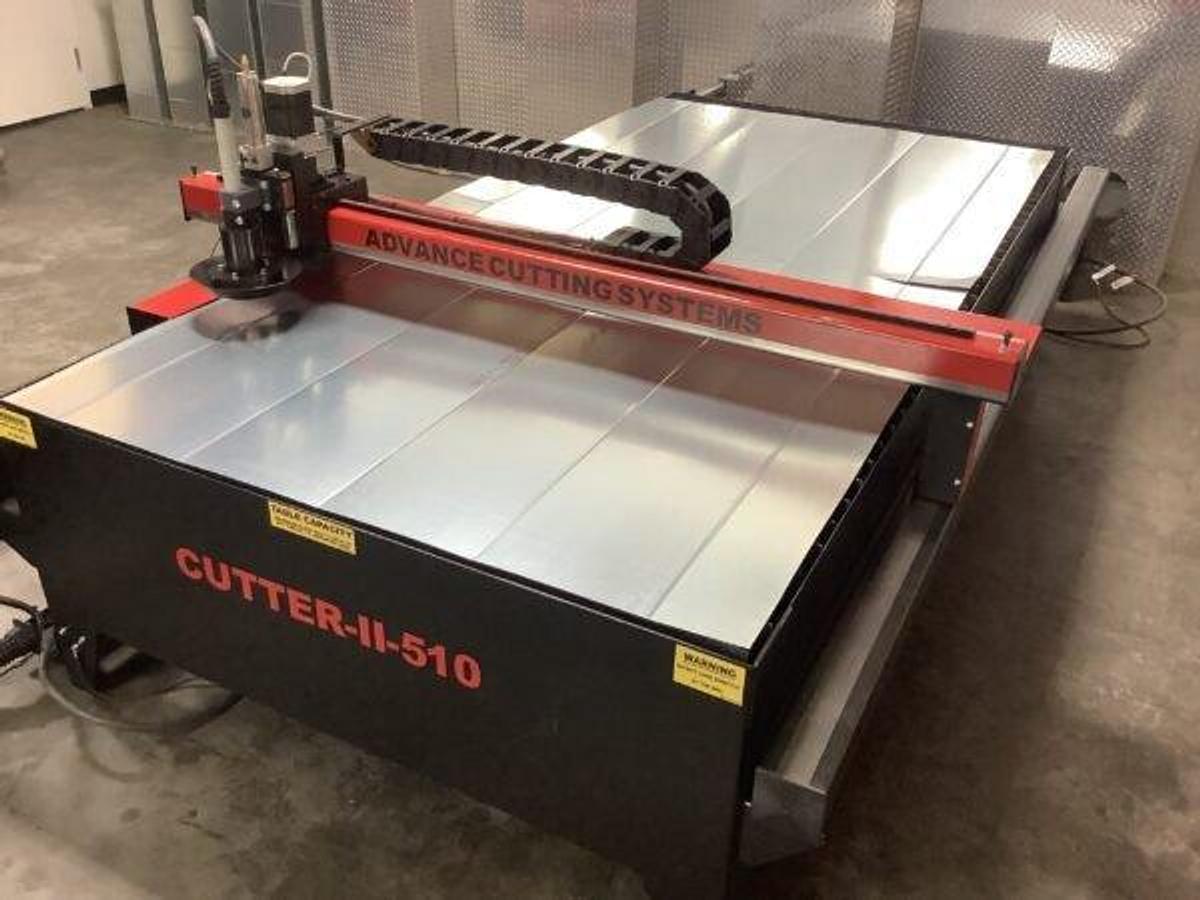

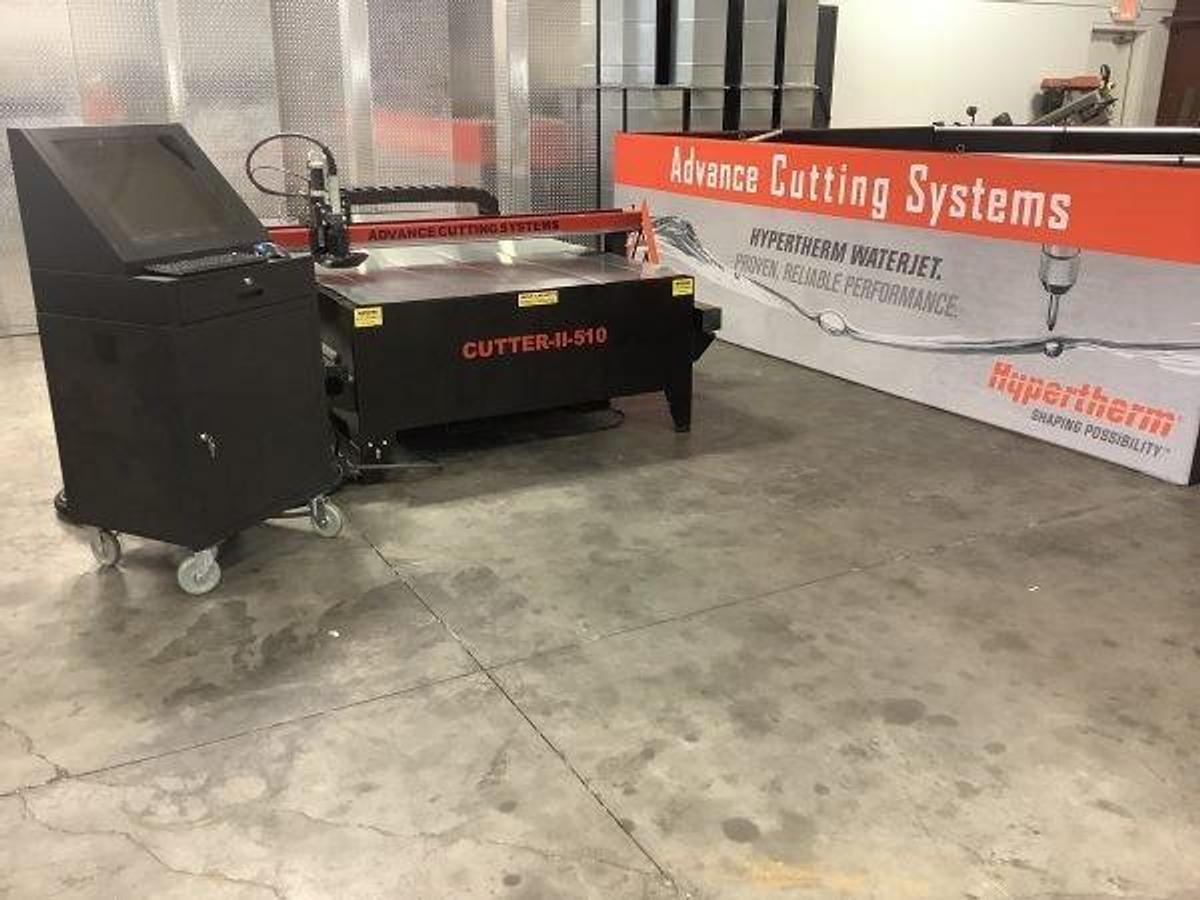

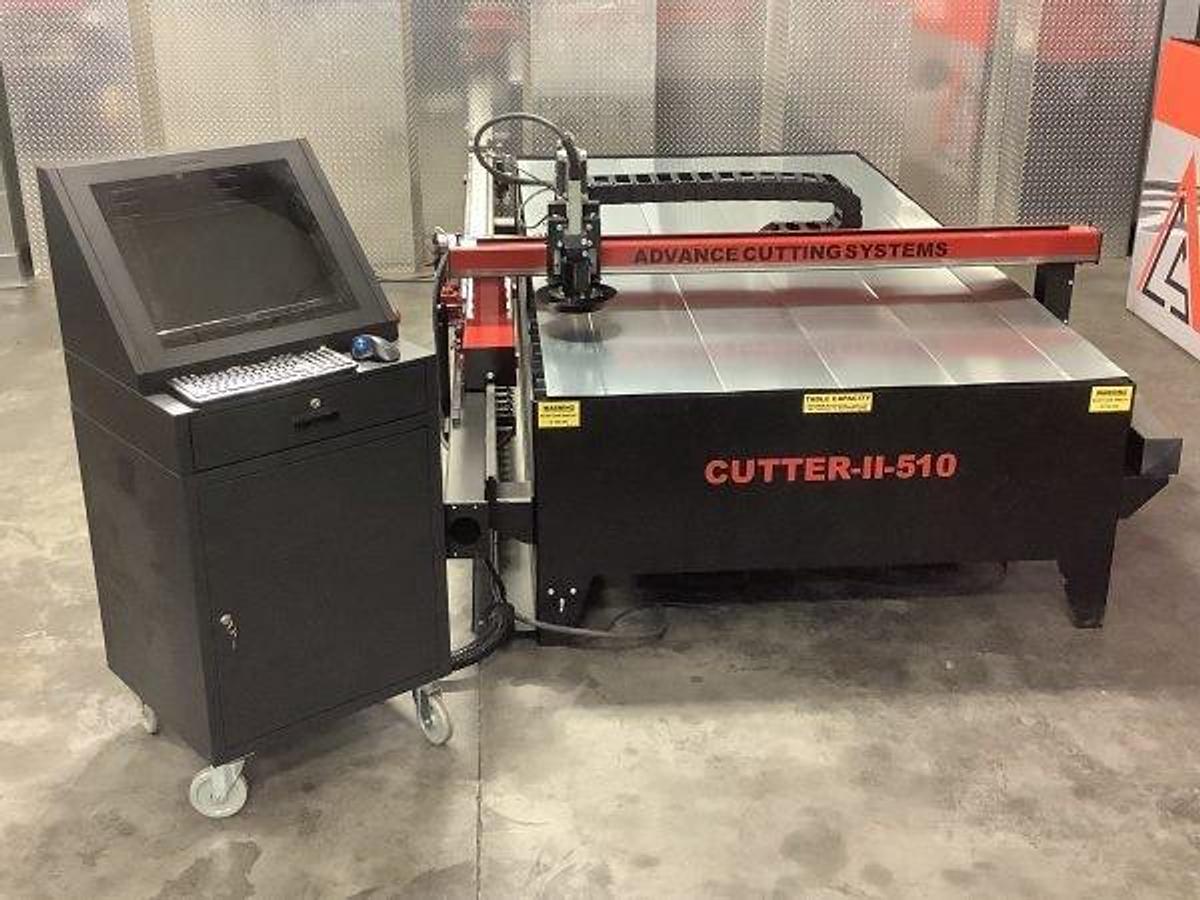

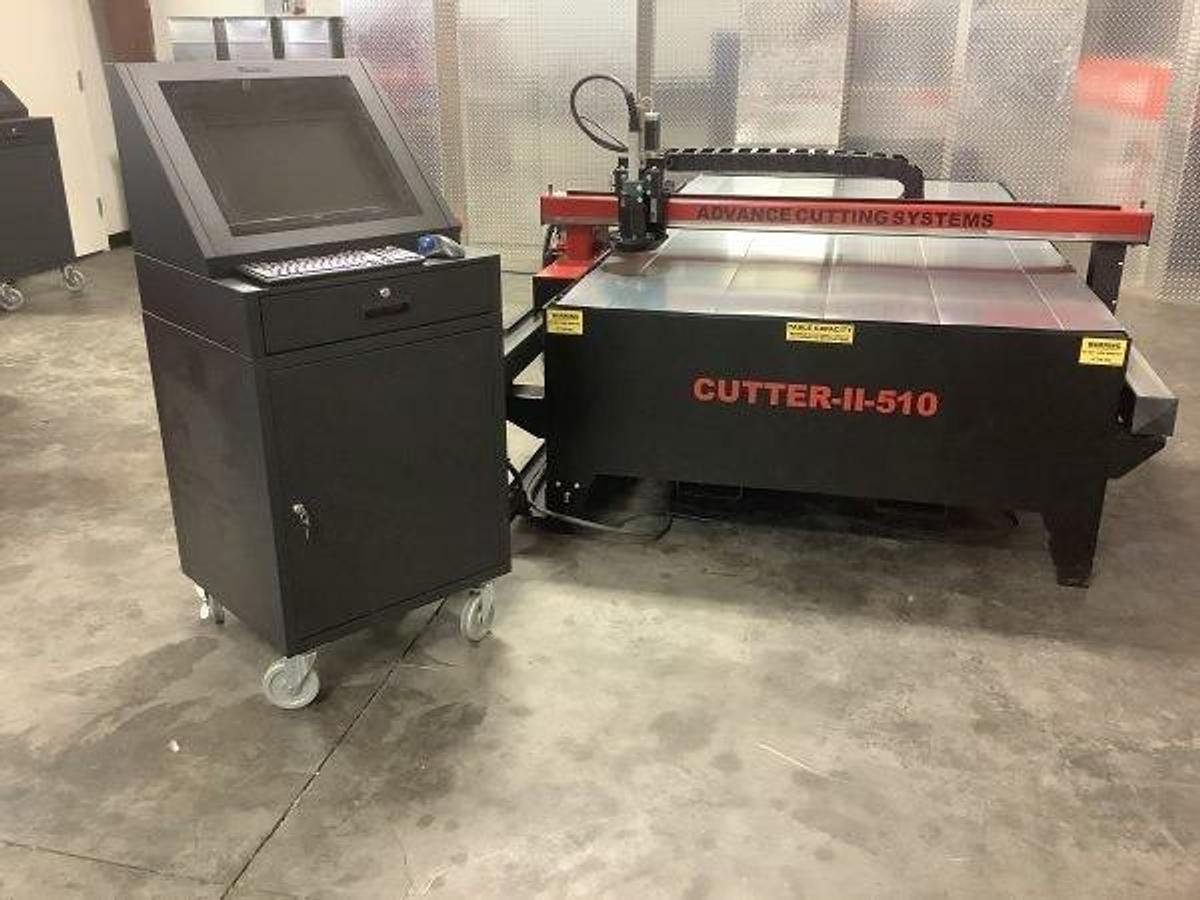

Cutter II 510

Description

The Cutter II 510 cutting system was introduced to the market in 2006 as the latest model in the Advance Cutting Systems product line. The Cutter II is a state of the art Computer Numerically Controlled (CNC) Cutting System designed to use a plasma-cutting torch to cut out geometrical shapes and parametrically programmed HVAC (Duct Work) fittings. The fittings are programmed in the office using Profile Master PM-2000 Duct-CAM (Computer Aided Manufacturing) software; the parts are then nested on a sheet of metal to minimize material waste and are then cut out at high speed with the plasma torch.

The Cutter II 510 cutting system was introduced to the market in 2006 as the latest model in the Advance Cutting Systems product line. The Cutter II 510 is a state of the art Computer Numerically Controlled (CNC) Cutting System designed to use a plasma-cutting torch to cut out geometrical shapes and parametrically programmed HVAC (Duct Work) fittings. The fittings are programmed in the office using Profile Master PM-2000 Duct-CAM (Computer Aided Manufacturing) software; the parts are then nested on a sheet of metal to minimize material waste and are then cut out at high speed with the plasma torch.

Cutting Table Features:

5′ x 10′ Cutting Area, Single Piece, Unitized Design

Direct Drive Rack & Pinion (NO BELTS)

Extra Wide Drive Side Saddle adding stability to long axis cutting

Planetary Gear Boxes

High Speed Traverse

ACS Color Graphic Controller with Motors and Drives

Hypertherm Plasma

Floating Head

AutoDesk Fabrication CAMduct Software with all fittings and nesting

Office Computer with Printer allowing for programming of Jobs in the office

Multiple copies of Remote Date Entry for field programming

Onsite Installation and Training including all travel and labor expenses

The Cutter II 510 is MADE IN THE USA!
Free Phone, Email & Remote Support to the original owner for the lifetime of the machine

Specifications

Condition

New
