Economic Stretch Wrapping Machine

Economic Stretch Wrapping Machine

or
Call +1 437 475 2301

Description

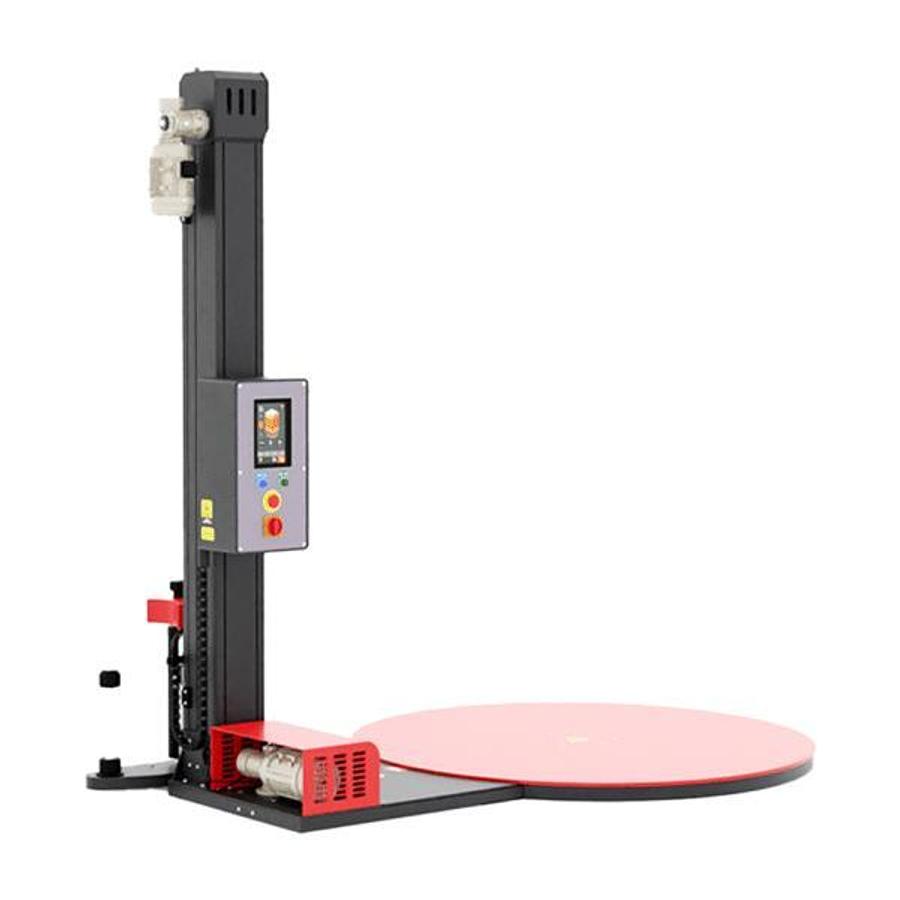

E-Wrap 1000A is the new ISG PACK machine with best value for money on the market. It is a semiautomatic stretch wrapper suitable for all the standard applications thanks to 6 working programs. This machine has an integrated pc board that gives alarm and error signals during the wrapping cycles (on a touch screen 7.2’’). Moreover, there is a luminous system at the top of the column that informs the operators if machine is working, in home position or in error/emergency.


Introducing the Economic Stretch Wrapping Machine

The Economic Stretch Wrapping Machine, also known as the E-Wrap 1000A, is the new ISG PACK machine with best value for money on the market. It is a semiautomatic stretch wrapper suitable for all the standard applications thanks to 6 working programs. This Economic Stretch Wrapping Machine has an integrated pc board that gives alarm and error signals during the wrapping cycles (on a touch screen 7.2’’). Moreover, there is a luminous system at the top of the column that informs the operators if the Economic Stretch Wrapping Machine is working, in home position or in error/emergency.

What is special about our Economic Stretch Wrapping Machine

The rotating turntable of the Economic Stretch Wrapping Machine has a diameter of 1500 mm and a maximum loading capacity of 1500Kg. The table rotation is activated by a driving chain and controlled by a magnetic sensor which verifies the number of rounds, the slowdown times and the home position of the table at the end of the working cycle. The standard column allows to wrap pallets up to a height of 2200mm.  The carriage is equipped with mechanical brake and a photoelectric sensor for detecting products.

Key Features

  • Touch Screen control panel
  • Photocell Sensor
  • Automatic film Cutting
  • Easy to change stretch roll
  • Pre-stretch system made it so easy for adjustments
  • Mobile structure allows for forklift lifting
  • Safety stop tools

    • Cycles actived by control panel

  • Ascending and discending carriage cycle
  • Only ascending carriage cycle

    • Technical Specifications

  • Machine structure in steel and aluminium
  • Aluminium extrusion column hinged at the base of the machine for a fast installation
  • Carriage activated by a double driving chain
  • Machine equipped with an integrated pc board controlled by touch screen 7.2’’
  • Emergency stop device in compliance with the CE regulations
  • 3 colors luminous alarm device at the top of the column
  • Error solutions by touch screen
  • Start, stop and reset activated by touch screen or button
  • Stretch film tension by mechanical brake carriage
  • Emergency stop in compliance with the CE regulations
  • Machine in operation reset button in compliance with the CE regulations
  • Soft start and indexed stop of the turntable
  • Statistics, times and number of wrapped pallets
  • Manual mode wrapping cycle
  • Wrapping cycle restart after error recovery or stretch film roll change

    • From the control panel, it is possible to manage the Economic Stretch Wrapping Machine digitally

  • Number of wrapping cycles
  • Turntable rotation speed from 0-12 rpm.
  • Adjustable photocell delay for the film overlap
  • Number of wrapping rounds at the top and at the bottom of the pallet
  • Carriage up and down speed (separated) 0- 5,9 mt/min
    • Show All

    Specifications

    ConditionNew
