Semi Automatic Strapping Machine Pallet Strap T45

Introducing the Semi Automatic Strapping Machine Pallet Strap T45:

A semi-automatic strapping machine meticulously crafted to fulfill all your pallet strapping requirements. The Semi Automatic Strapping Machine Pallet Strap T45 features the innovative easyfast® strap guide disassembly system (no tools required), it allows effortless adjustments such as welding cooling time (COOL TIME), sealing blade temperature, and strap length dispensation. Its user-friendly design ensures simplicity and practicality in every operation.

Semi Automatic Strapping Machine Pallet Strap T45 for pallets

The new generation Semi Automatic Strapping Machine Pallet Strap T45, is suitable for any pallet strapping. It works with DC motors that control each function of the machine and has an electronic strap tensioning adjustable by potentiometer placed on the control panel. Compared to a traditional strapping machine, more than 30% of mechanical parts have been eliminated. It is equipped with a folding lance to facilitate the strap insertion under the pallet and a quick and easy vertical strapping.

General characteristics of the Semi Automatic Strapping Machine Pallet Strap T45

The Semi Automatic Strapping Machine Pallet Strap T45 uses a 220 V power supply | 1 ph | 50/60 Hz and has a folding lance to facilitate the insertion of the strap under the pallet. It has a strapping speed ranging from 10 to 15 cycles per minute with a maximum adjustable tensioning force up to 45 Kg. The strapping machine is equipped with 3 wheels, 1 of which is pivoting at the rear, necessary to facilitate the maneuverability of the machine. There is also: an easyfast® strap guide disassembly system, welding cooling time adjustment (COOL TIME), welding blade temperature adjustment, strap length adjustment to be dispensed.

Technical characteristics of the Semi Automatic Strapping Machine Pallet Strap T45

Side working table in stainless steel

Robust strapping head

Electronic strapping tensioning

Strapping lance of length 1070mm

Minimum pallet height 350 mm

Motors only working during strapping cycle

Weight of the strapping machine 85 Kg

Strapping group with dc motors

Analog control panel

Maximum tensioning up to 45 kg

One back pivoting wheel

Parameters adjustable from the control panel

Adjustable cooling time

Adjustable strapping tensioning by potentiometer

Adjustable sealing blade temperature

Adjustable strap feeding length

Characteristics of the workable product

Min. Product dimensions: 350 mm

Product weight: No limit

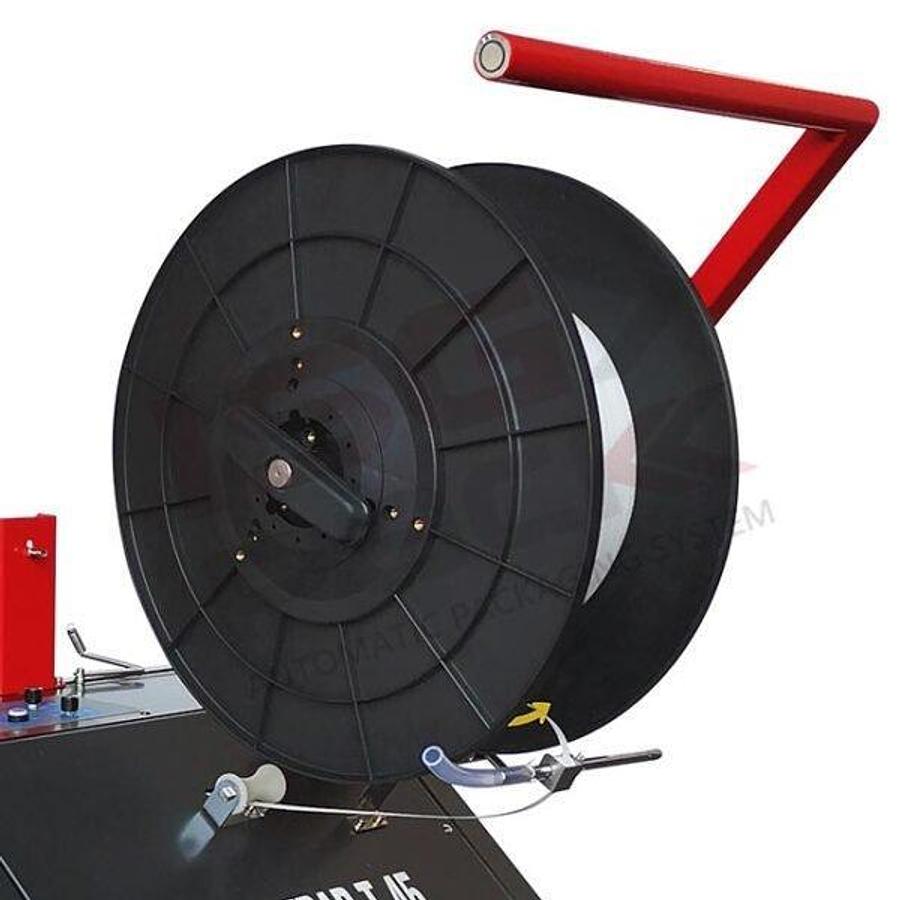

Features reel strap

Internal reel diameter: 200 mm.

External diameter reel: 400 – 500 mm.

Coil width: 190 mm.

Strap width: 6 – 9 – 12 – 15 mm.

Strap thickness: 0,6 – 0,8 mm.

Strap type: PP (Polypropylene)
