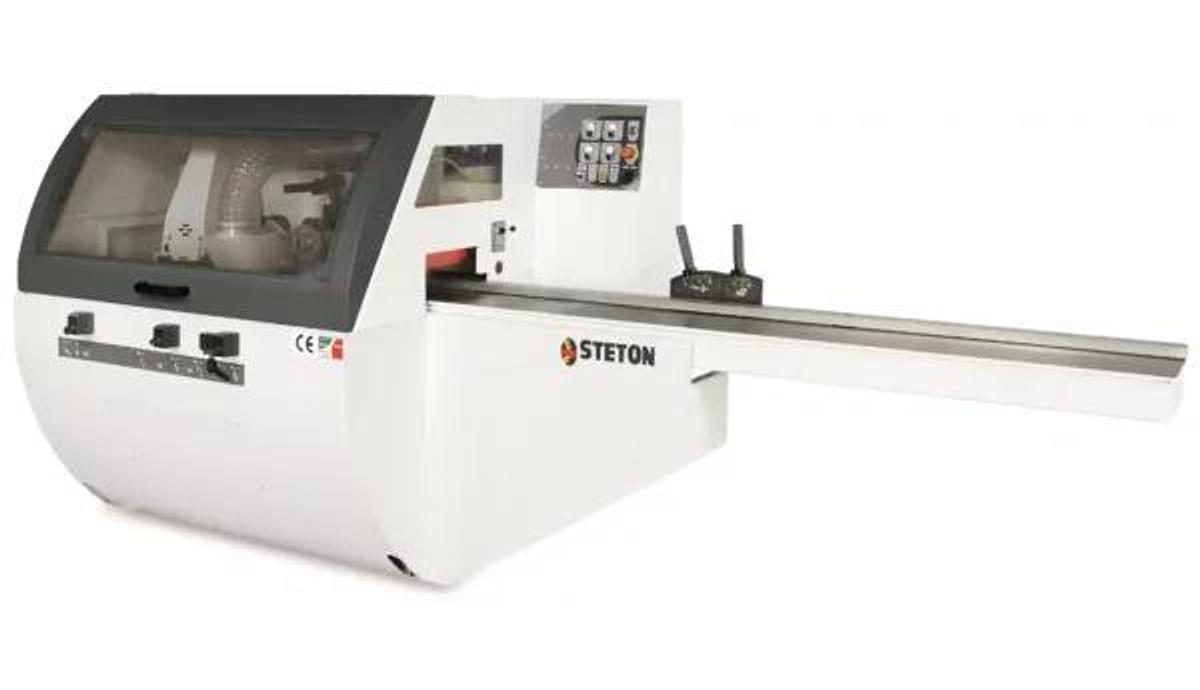

Four or Five Head Industrial Moulder

Four or Five Head Industrial Moulder

or
Call +1 437 475 2301

Description

Introducing the Steton Moulder Machine –

Introducing the Four or Five Head Industrial Moulder – the ultimate solution for all your wood moulding needs. Compact in design yet powerful in capability, this Four or Five Head Industrial Moulder offers precision and efficiency in shaping and smoothing rough lumber into uniform and high-quality pieces. Get ready to elevate your construction or woodworking projects with the best ever moulder machine from Steton

Reshape your wood

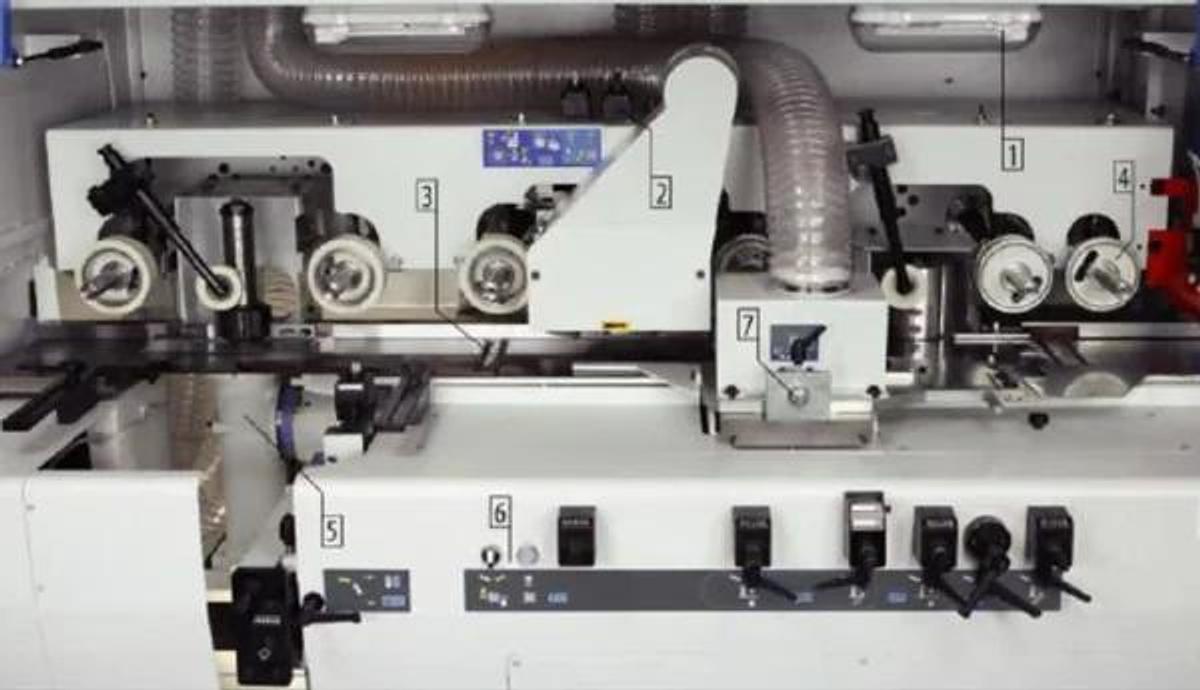

The Four or Five Head Industrial Moulder features automatic 4 and 5 spindles straightening, moulding machine. With its version with 4 or 5 spindles, DEDRA 4-5 FH offers the possibility to satisfy the requirements of the small and medium sized industries. The rich standard equipment includes 90.55″. worktable, pneumatic pressure on drive rollers, motor start by direct push-button, pneumatic pre-planer roller, motorized lifting, roller drive with universal joints.

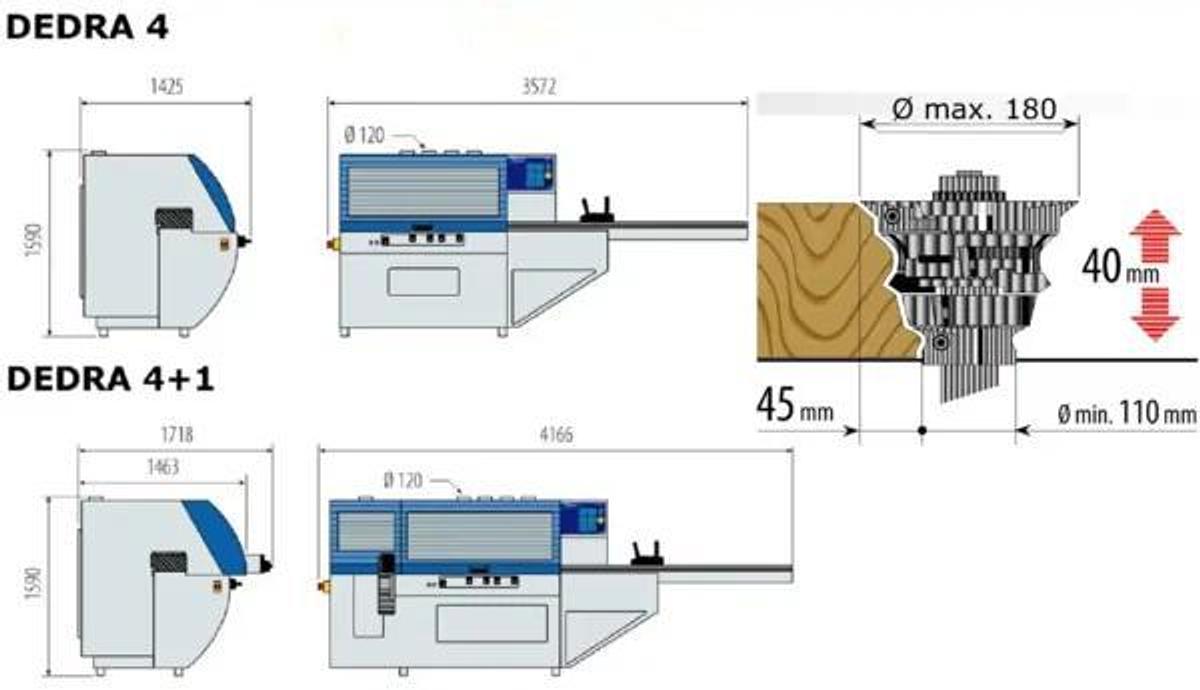

The technical features of the DEDRA Four or Five Head Industrial Moulder include the possibility to fit shaped tools with diameter min. 4.33″ and max. 7.08″  on the right and left vertical spindle moulders and on the 4th horizontal spindle. the whole allowing working capacity with a high finish level.

TECHNICAL DATA

  • Max working width: 9.05″
  • Planer spindle motor power: 5,5 HP (4 Kw).
  • Rh and Lh toupie motor power: 4 HP (3 Kw).
  • Upper horizontal motor power: 5,5 HP (4 Kw).
  • Min working width: 63/64″
  • Max working height: 4,72″
  • Min working height: .31″
  • Feeding rollers speed: 7/14 m/min.
  • Spindles rotation speed: 6000 rpm
  • Toolholder spindle diam.: 1.57″
  • Diam. and length of 1st horizontal spindle tool: 4.92″-9.05″ mm
  • Diam. and height of vertical spindles head: 4.92″-5.11″ mm.

    • OPTIONAL

  • Automatic height adjustment for upper spindle.

    • Four or Five Head Industrial Moulder usage:

  • Woodworking and furniture manufacturing: Five head moulders are commonly used to create decorative mouldings, chair railings, and other decorative elements for furniture and cabinetry.
  • Building construction: Five head moulders are used to create decorative trim and mouldings for doors, windows, and other architectural features in both residential and commercial construction.
  • Flooring: Five head moulders are used to create decorative borders and inlays for hardwood flooring.
  • Millwork: Five head moulders are used to create decorative trim, crown mouldings, and other millwork items for commercial and residential buildings.
  • Cabinetry: Five head moulders are used to create decorative trim, crown mouldings, and other millwork items for custom cabinetry and furniture.
  • Pallet and crate manufacturing
  • Musical instrument manufacturing

    • Contact your sales representative to get your price for the four or five head moulder.

    Show All

    Specifications

    ConditionNew
