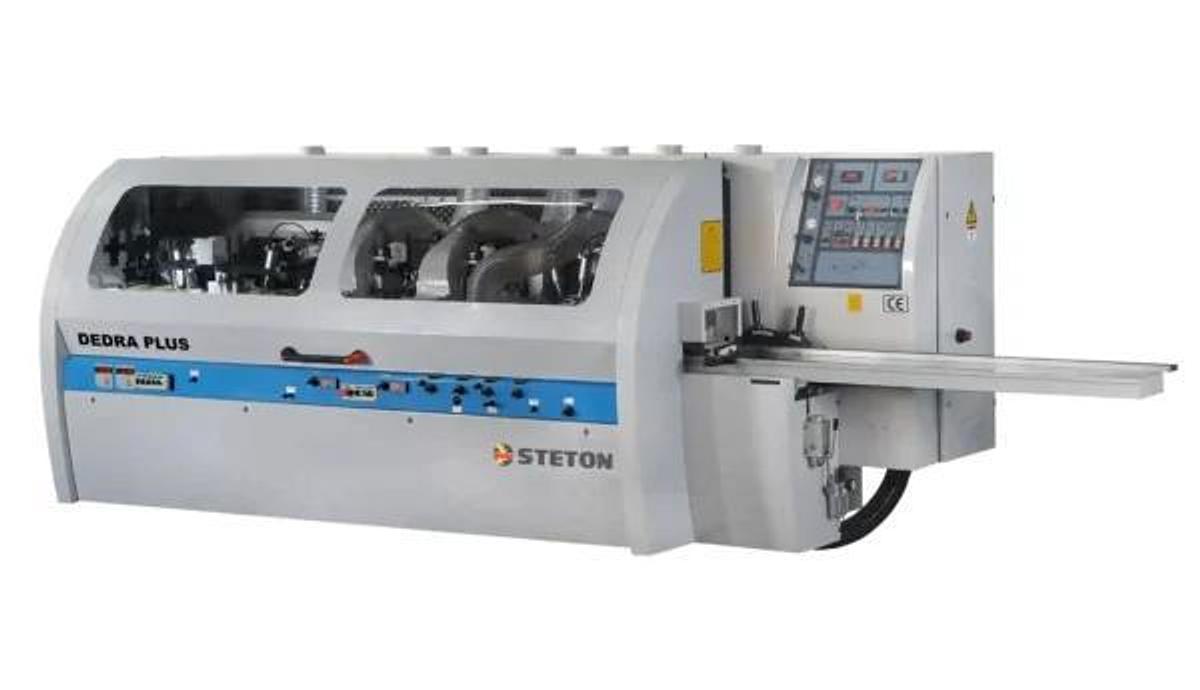

Four Plus Head Industrial Wood Moulder

Introducing the Steton Moulder Machine –

DEDRA PLUS, a line of heavy-duty moulding machines with flexible configurations, featuring a robust cast iron base and a wide range of standard equipment introduces the Four Plus Head Industrial Wood Moulder. Available with horizontal or universal 360° spindle bottom options. The range includes:

Reshape your wood

Automatic fiv, six or seven spindles straightening, moulding machine. With its version with up-to eight  spindles, the Four Plus Head Industrial Wood Moulder offers the possibility to satisfy the requirements of the small and medium sized industries. The rich standard equipment includes 90.55″. worktable, pneumatic pressure on drive rollers, motor start by direct push-button, pneumatic pre-planer roller, motorized lifting, roller drive with universal joints.

The technical features of the DEDRA Four Plus Head Industrial Wood Moulder include the possibility to fit shaped tools with diameter min. 4.33″ and max. 7.08″  on the right and left vertical spindle moulders and on the 4th horizontal spindle. the whole allowing working capacity with a high finish level.

Please call your sales consultant to learn more about special size moulding configurations up-to 13 3/4″ in width.

TECHNICAL DATA

OPTIONAL

Standard Equipment

• feed with cardans and gear boxes, pneumatic pressure, feeder before the 1st spindle

• powered and toothed bottom feeding roller before the 1st spindle,

• powered and smooth bottom feeding rollers
(no.1 on Dedra Plus 4, 5: no.2 on Dedra Plus 6, 7, 8)

• chromed infeed table; working beds chromed, replaceable and lubricated)

• centralized lubrication of the spindle
• selector switch for pulse feed and feed back

Contact your sales representative to get your price for the Four Plus Head Industrial Wood Moulder.
