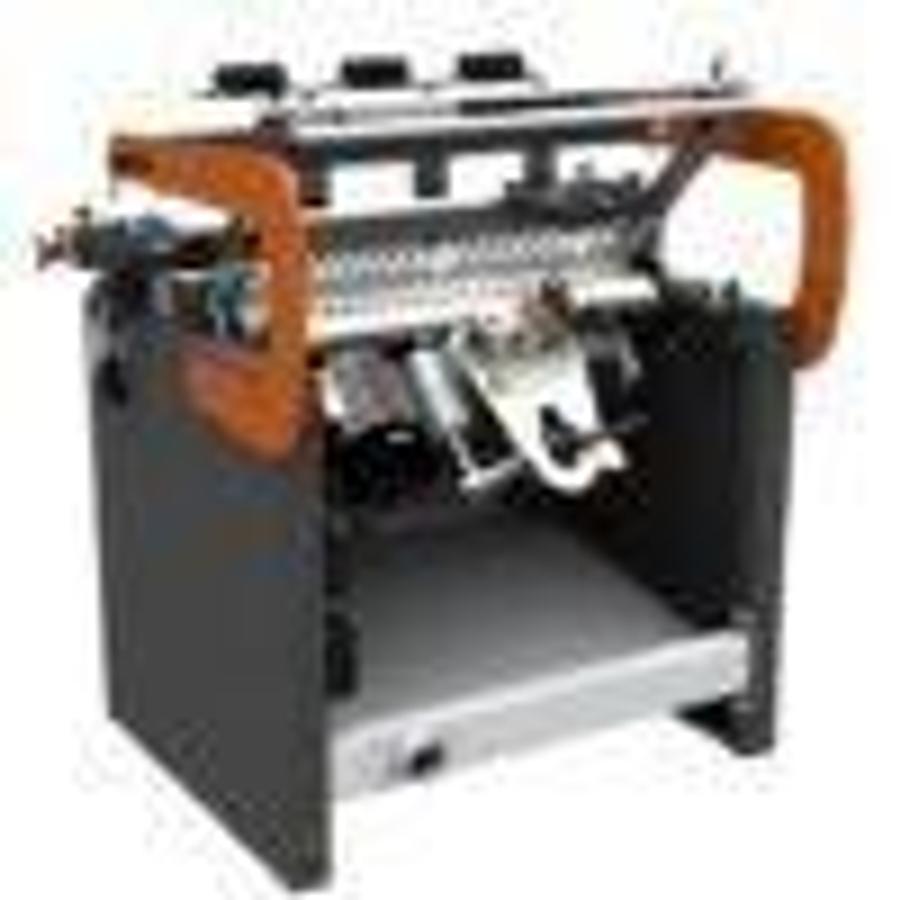

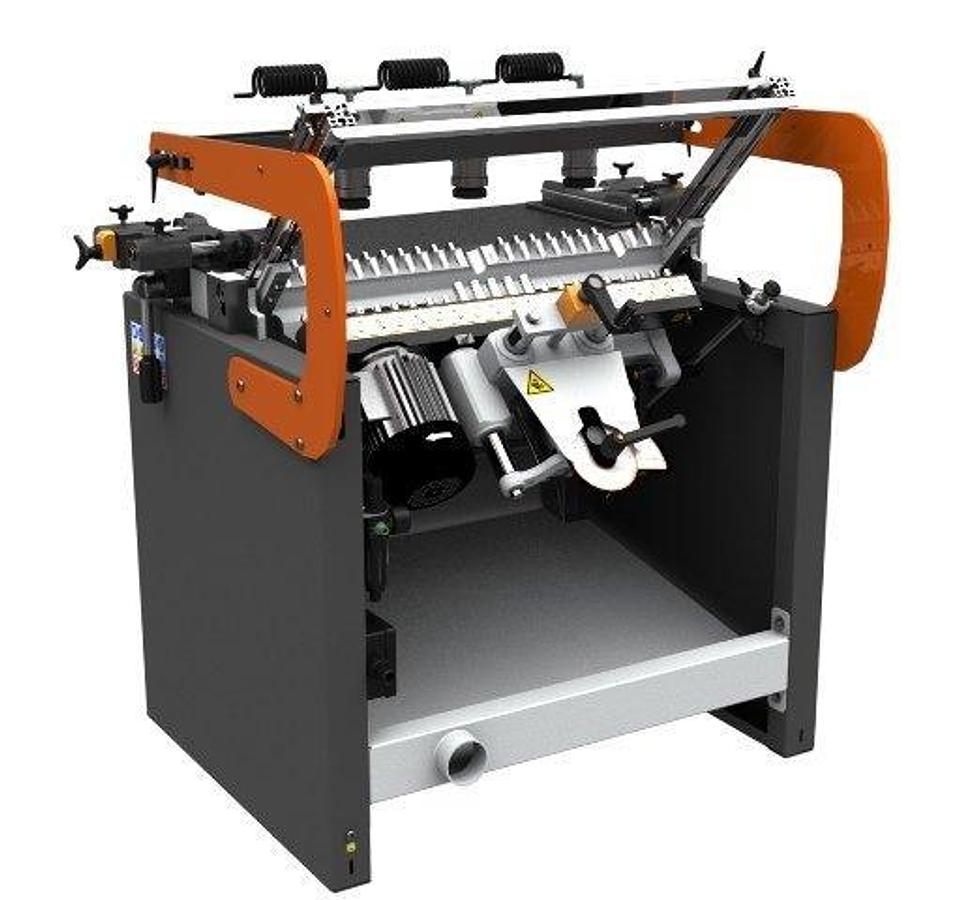

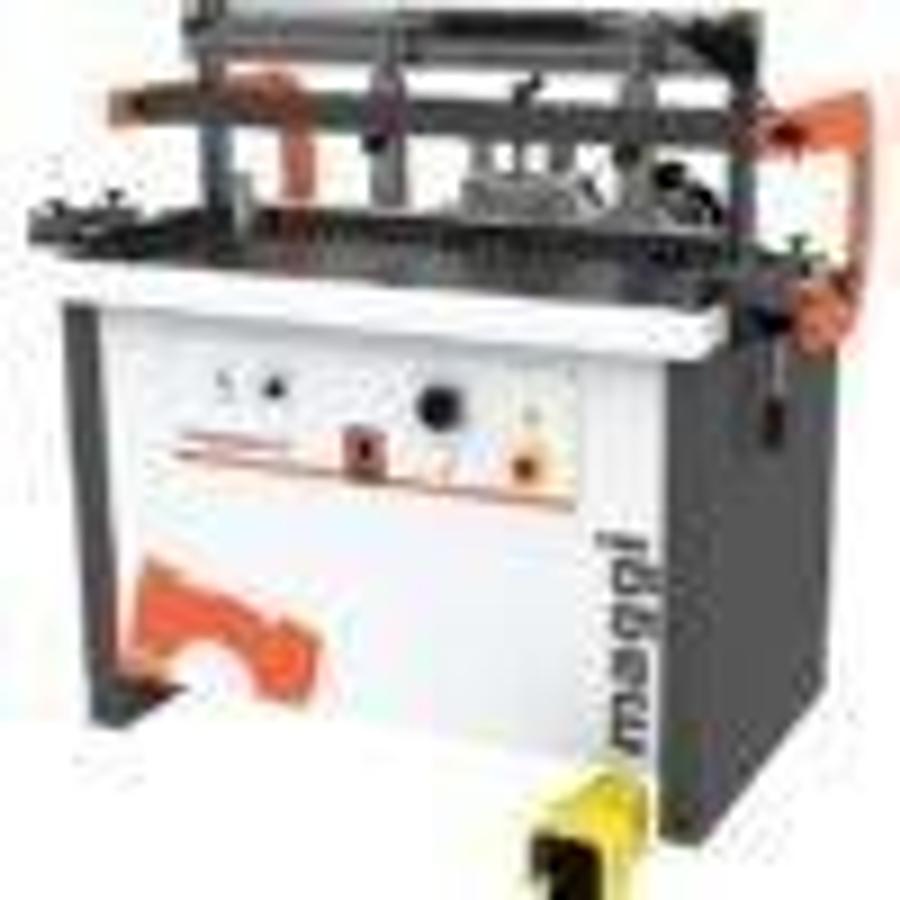

29 Spindle Boring Machine

Semi-automatic multiple drilling machine with alluminium fence 3000 mm. with Nr. 2 reference stops.

TECHNICAL DATA

Spindles: 29

Spindle Diameter: 32 mm (universal drilling solution)

Boring Capabilities: Horizontal and Vertical

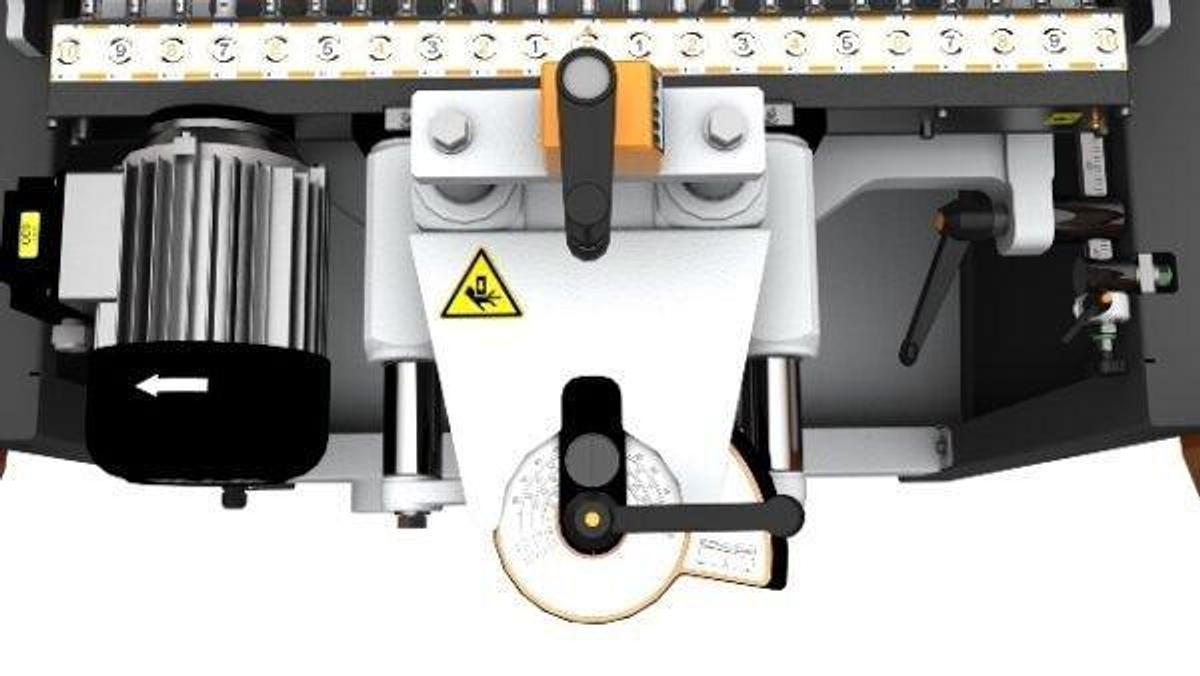

Boring Unit Tilting: Pneumatic, with locking points from 0 to 90 degrees

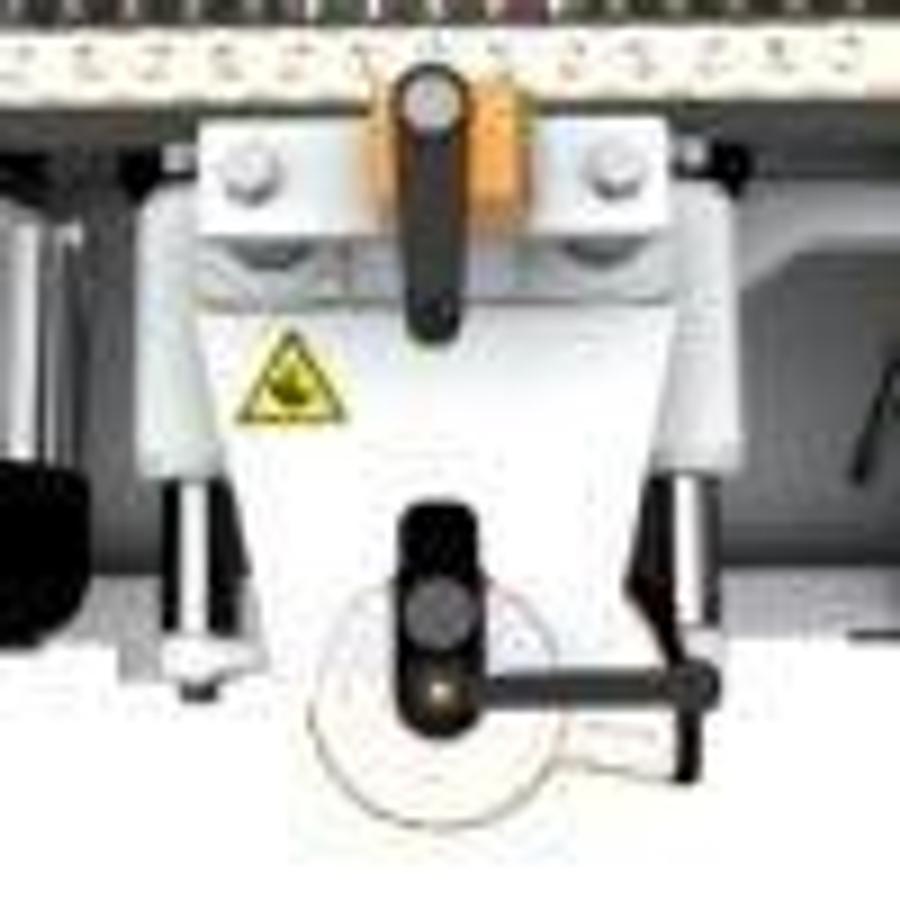

Drilling Depth Adjustment: 0 to 2.5″ with patented spiral setting device

Table: Cast iron, 47″ x 13″

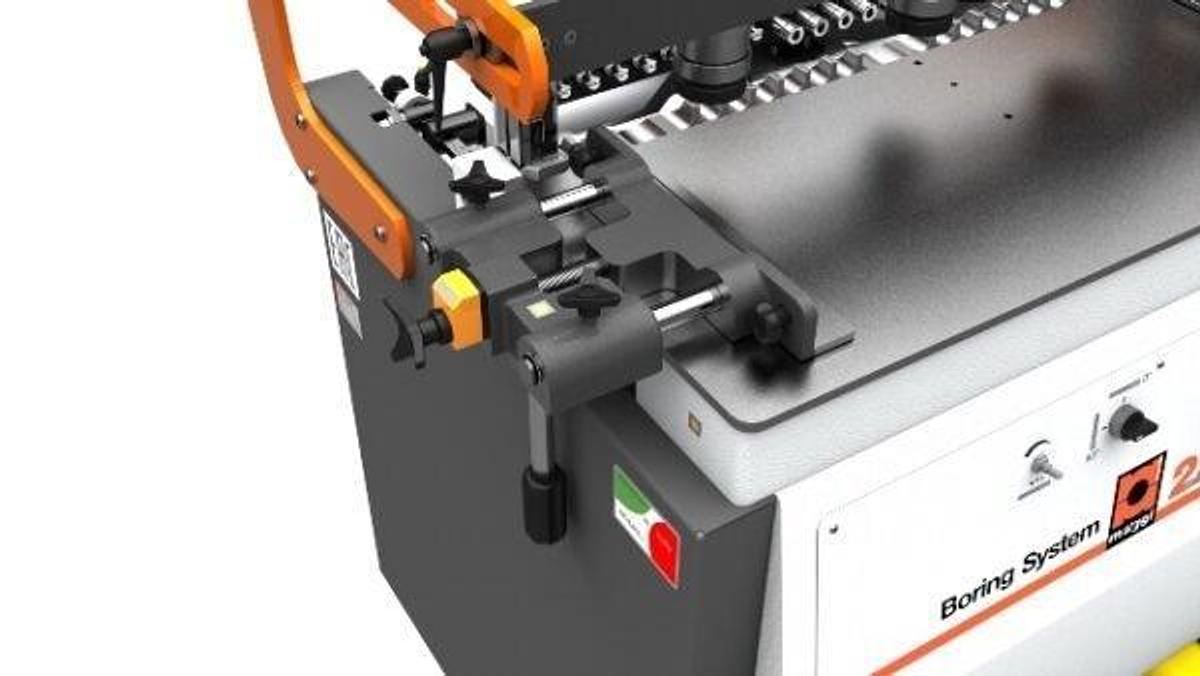

Side Fences: With mechanical digital readout for precise positioning

Line Boring Fence: 120″ with (4) stops

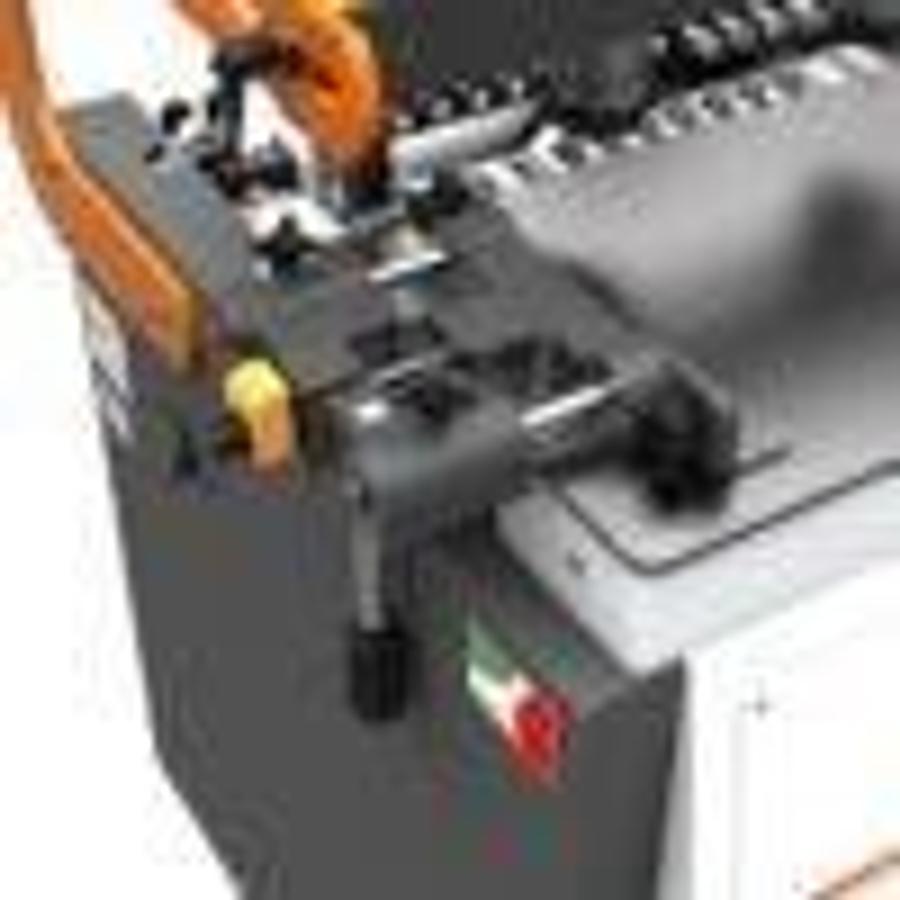

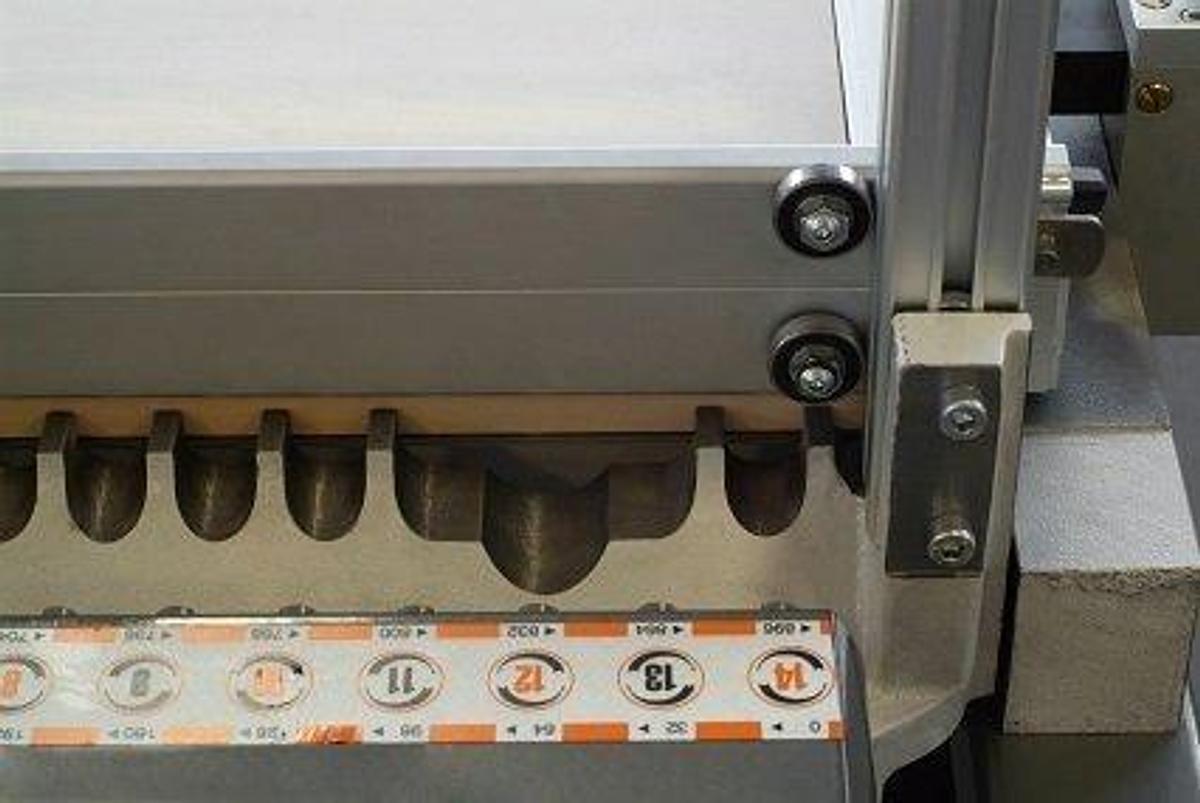

Clamping: (3) patented quick release material clamps with auto-setting for a secure hold

Motor: 2 HP

Foot Control: Pneumatic clamps and drill cycle

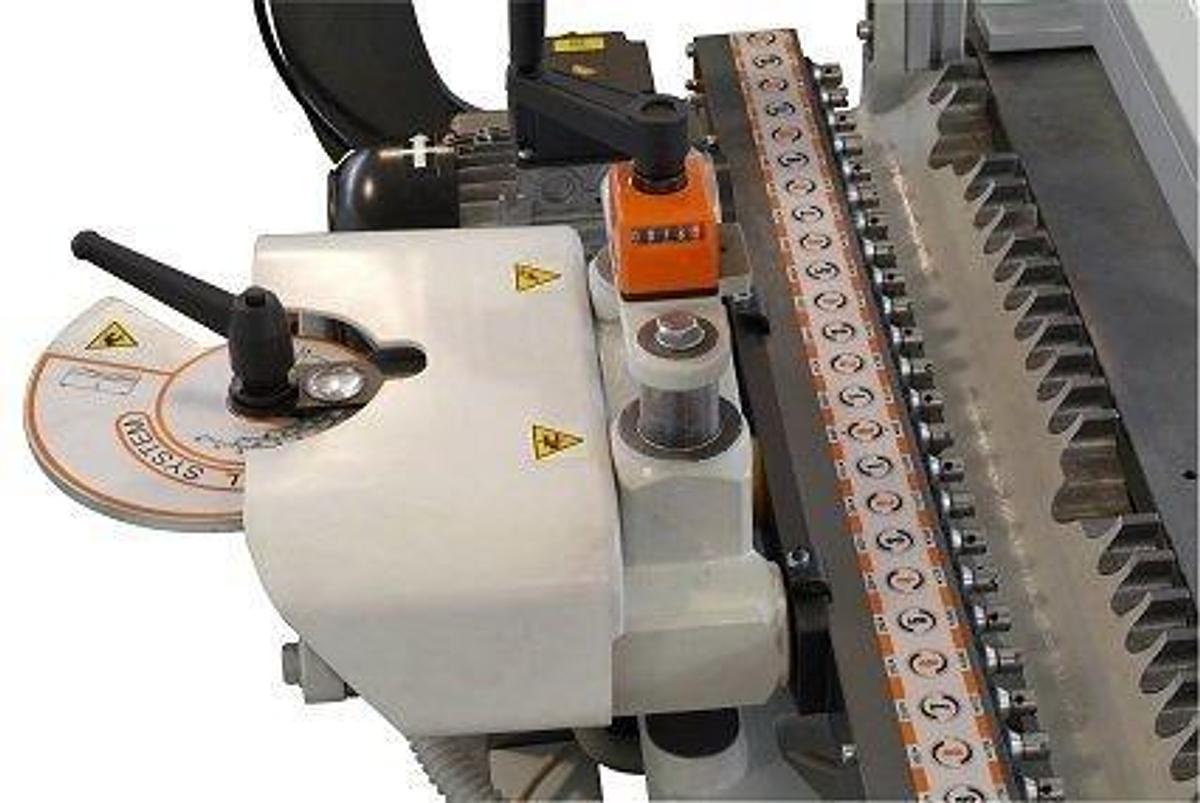

Bit Compatibility: 14 Left Hand (red/orange) and 15 Right Hand (black) boring bits

Electrical: 230V 3-Phase

Dust Outlet: 3″

Net Weight: 705 lbs.

Machine Dimensions: 59.3″ x 37.8″ x 50″ (Tall)

Crated Dimensions: 50″ x 38″ x 42″ (Tall)

Crated Weight: 759 lbs.

What do you get with your 29 Spindle Boring Machine?

The 29 Spindle Boring Machine is built for efficiency, accuracy, and ease of use in high-demand woodworking environments. It comes equipped with 29 quick-change chucks, allowing for fast bit replacement and minimal downtime. A magnetic starter with overload protection ensures reliable and safe operation. Additional features include a 3″ dust outlet for cleaner workspace maintenance, side fences with digital readout for precise alignment, and a 120″ line boring fence with four adjustable stops. A foot switch activates both the pneumatic clamps and the drilling cycle, streamlining operation and boosting productivity.
