35 Spindle Boring Machine

Maggi Boring machine give great advantage to cabinetry shops, learn more about one of the most use machine in the furniture industry.

35 Spindle Boring Machine

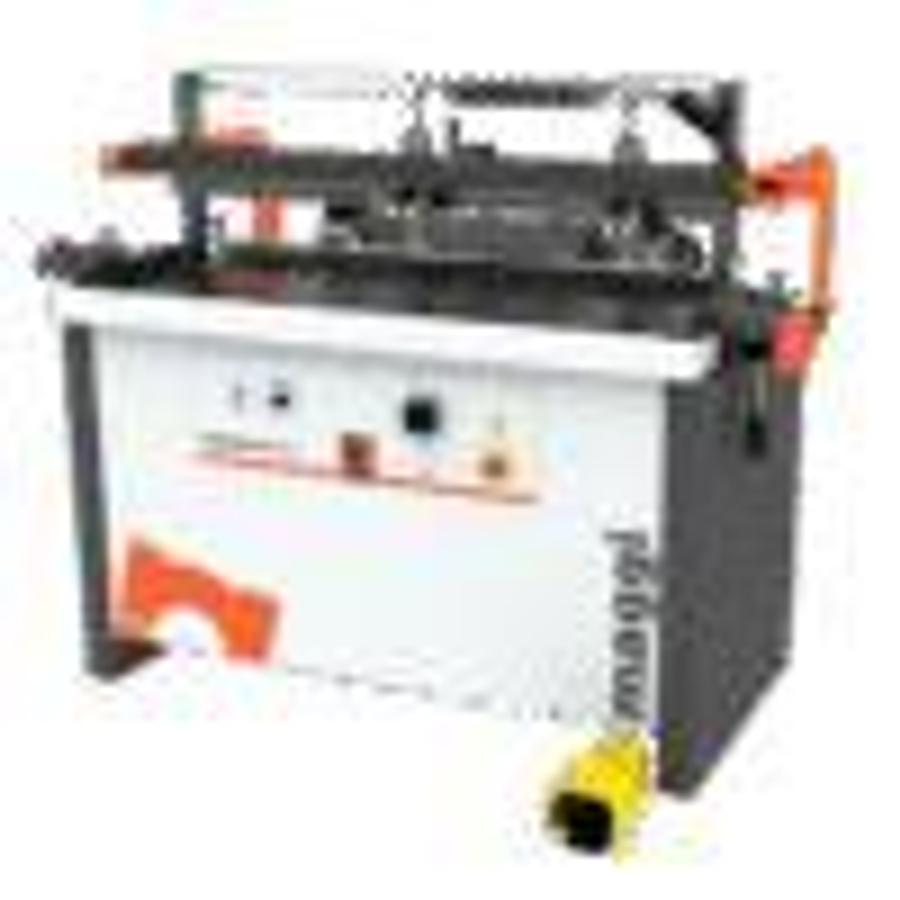

This is a single-head boring machine for furniture manufacturing, capable of both horizontal and vertical drilling into wood-based panels and solid wood. It is semiautomatic and multispindle, featuring two 2HP motors that provide a powerful and well-balanced drilling experience. The machine can drill up to 3.34″  in depth and has a small footprint of only 1.5 square meters. Compared to a manual boring machine, it is twice as fast. With over 30 years of experience and more than 20,000 machines manufactured, this 100% made-in-Italy machine is produced according to the highest quality standards, utilizing the “Lean” manufacturing process.

TECHNICAL DATA

Quick-change spindles

1.25″ interaxis

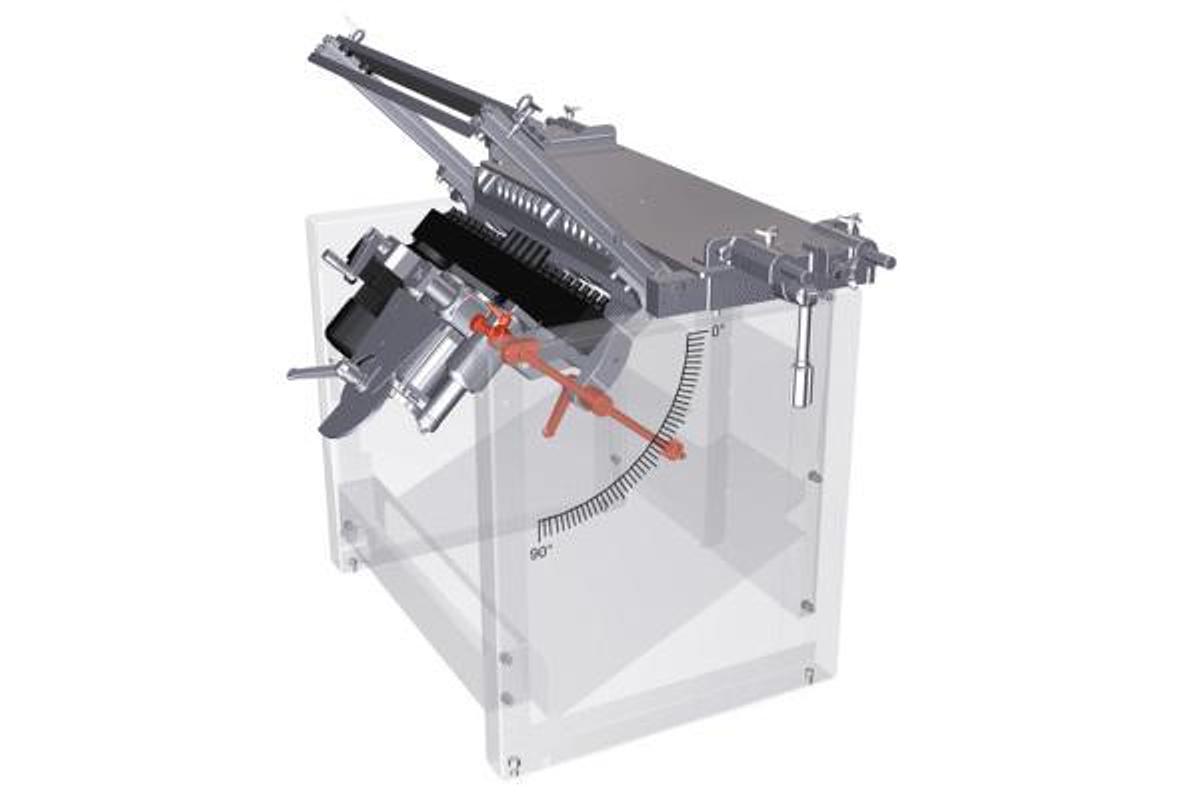

Pneumatig head rotation from 0° to 90°

Well-dimensioned working table made of steel

Boring-height adjustment on numeric counters

Ready to be connected to a  dust-collector

Manufactured according to CSA standards

What do you get with your 35 Spindle Boring Machine?

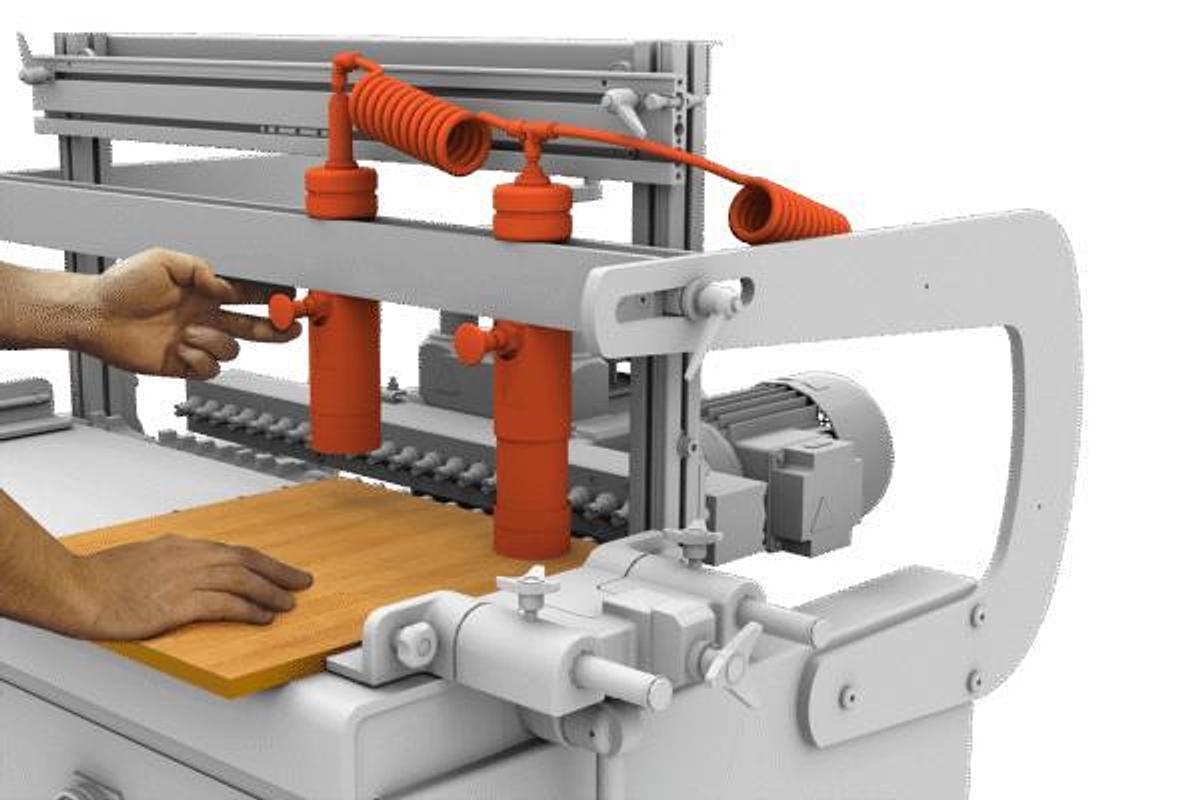

The 35 Spindle Boring Machine is a precision-engineered boring machine equipped with two powerful 2HP motors and two patented safety hold-down clamps for stable operation. It includes thirty five quick-change chucks, two 1500mm aluminum fences with four reference stops, and two removable side fences adjustable via high-precision numeric counters. Additional features include boring-height adjustment, fixed hinge stops at 1.46″, an 11.8″ stroke rear fence, dust collection readiness, and CSA-compliant construction. Packaged in a stackable carton box for convenience.
