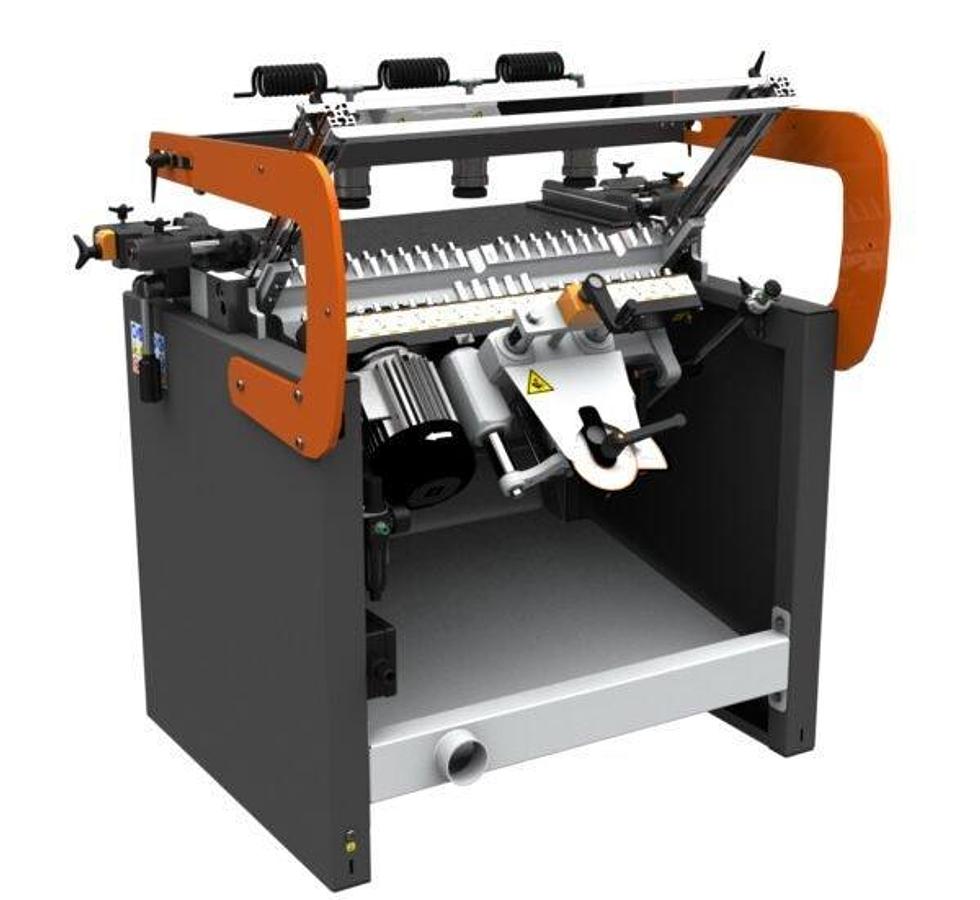

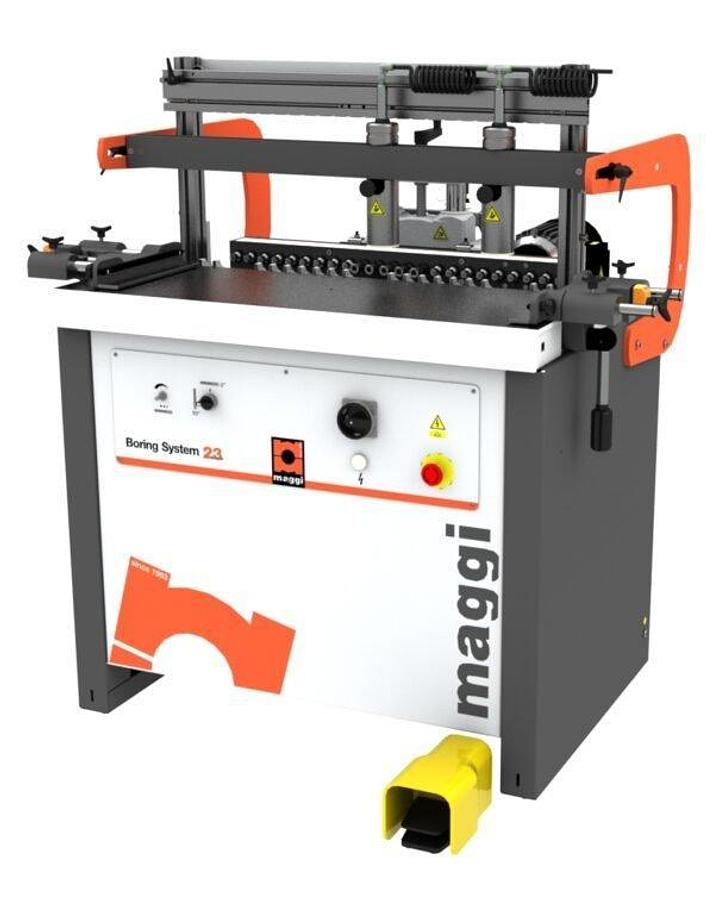

23 Spindle Boring Machine

Semi-automatic multiple drilling machine with alluminium fence 3000 mm. with Nr. 2 reference stops.

TECHNICAL DATA

Spindles: 23

Spindle Diameter: 32 mm (universal drilling solution)

Boring Capabilities: Horizontal and Vertical

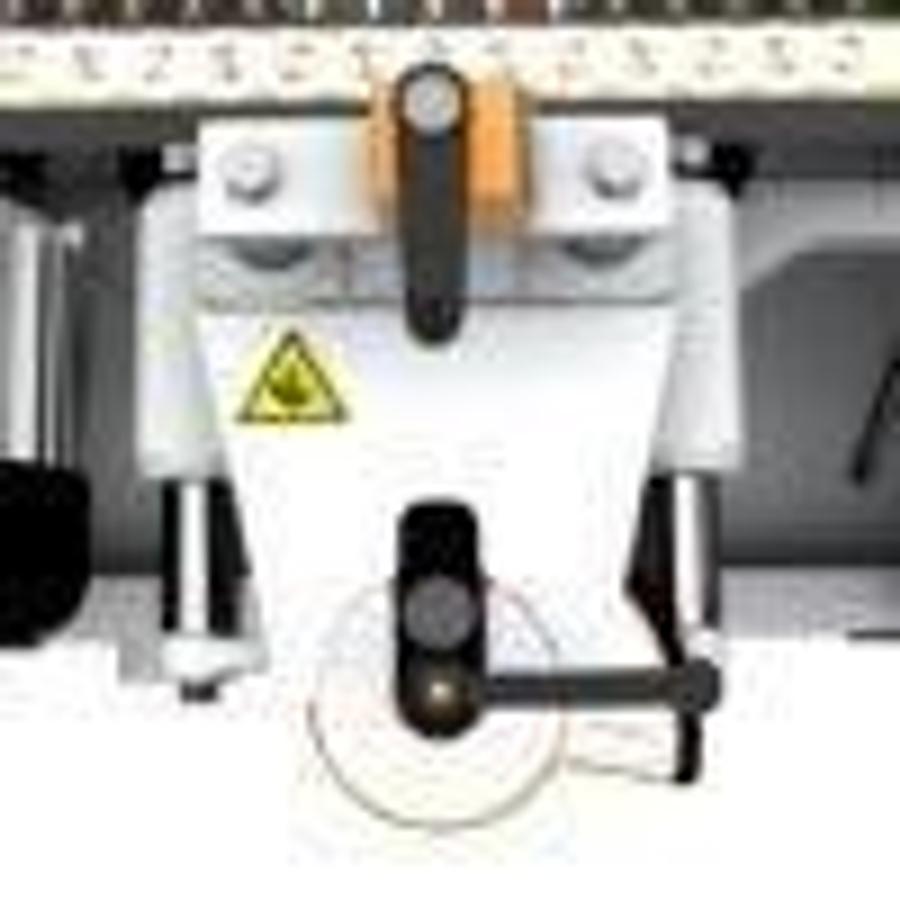

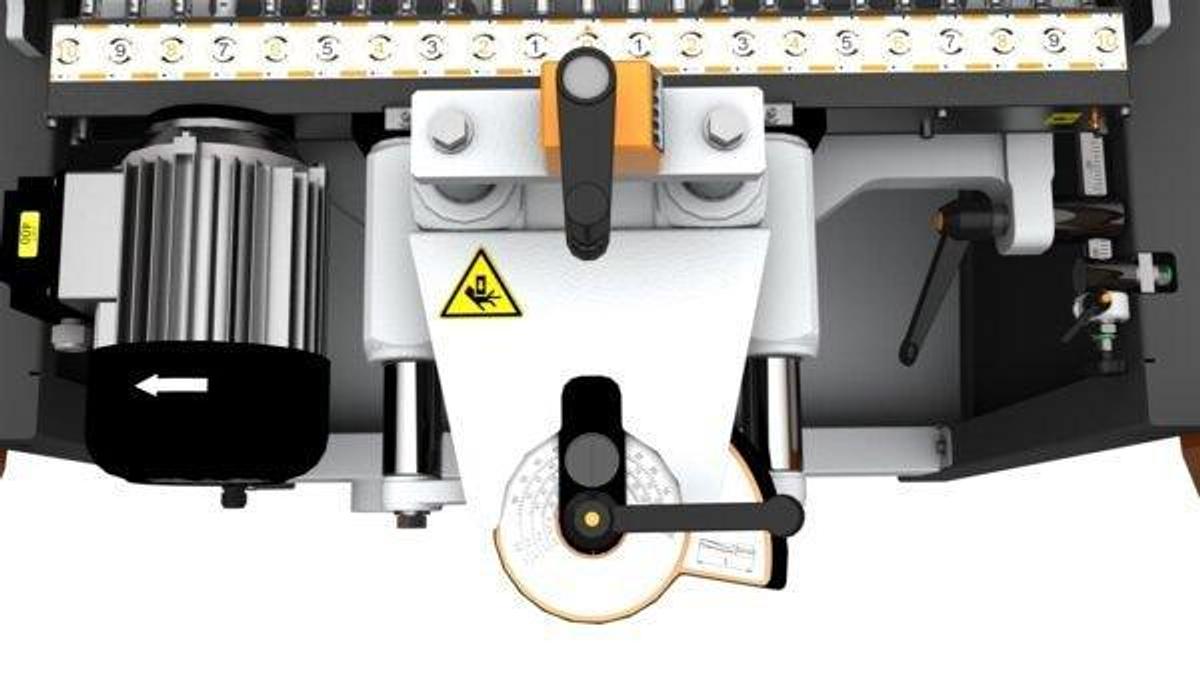

Boring Unit Tilt: Pneumatic, locking points from 0 to 90 degrees

Drilling Depth Adjustment: 0 to 2.5 inches (patented spiral setting device)

Table: Cast iron, 37″ x 13″

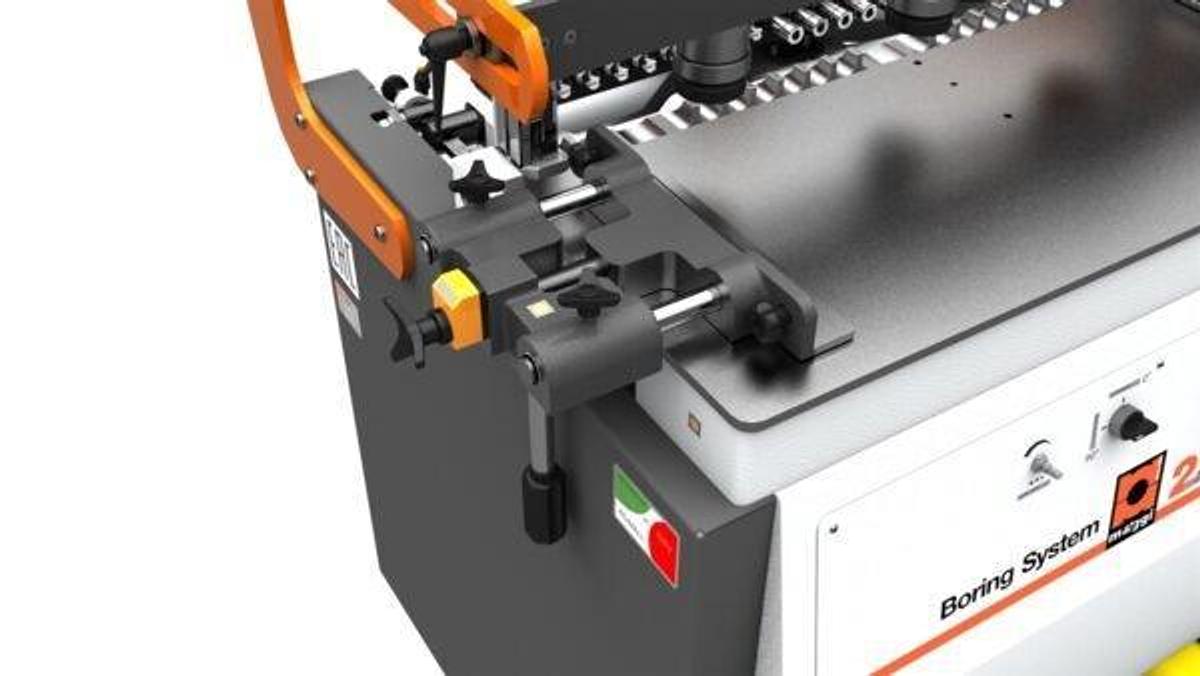

Side Fences: Mechanical digital readout for quick and accurate setting

Line Boring Fence: 120″ with (4) stops

Clamping: (2) patented quick release material clamps with auto-setting, Foot actuated pneumatic clamps

Motor: 2 HP

Dust Outlet: 3″

Voltage: 230V 3-Phase

Net Weight: 630 lbs.

Dimensions: 51.7″ x 37.8″ x 50″ Tall

Crated Dimensions: 44″ x 38″ x 42″ Tall

Crated Weight: 704 lbs.

Boring Bits: Uses 11 Left Hand (red/orange) and 12 Right Hand (black) (not included)

Other: Magnetic Starter with overload protection, (23) quick change chucks

What do you get with your 23 Spindle Boring Machine?

The 23 Spindle Boring Machine is a powerful and reliable solution for precision drilling and boring tasks. It comes equipped with 23 quick-change chucks for fast and easy tool changes, along with a magnetic starter featuring built-in overload protection for enhanced safety. A 3″ dust outlet helps maintain a clean work environment. The machine includes foot-actuated pneumatic clamps for secure material hold-down, a durable cast iron table (37″ x 13″), side fences with digital readout, and a 120″ line boring fence with four adjustable stops for consistent and accurate work.
