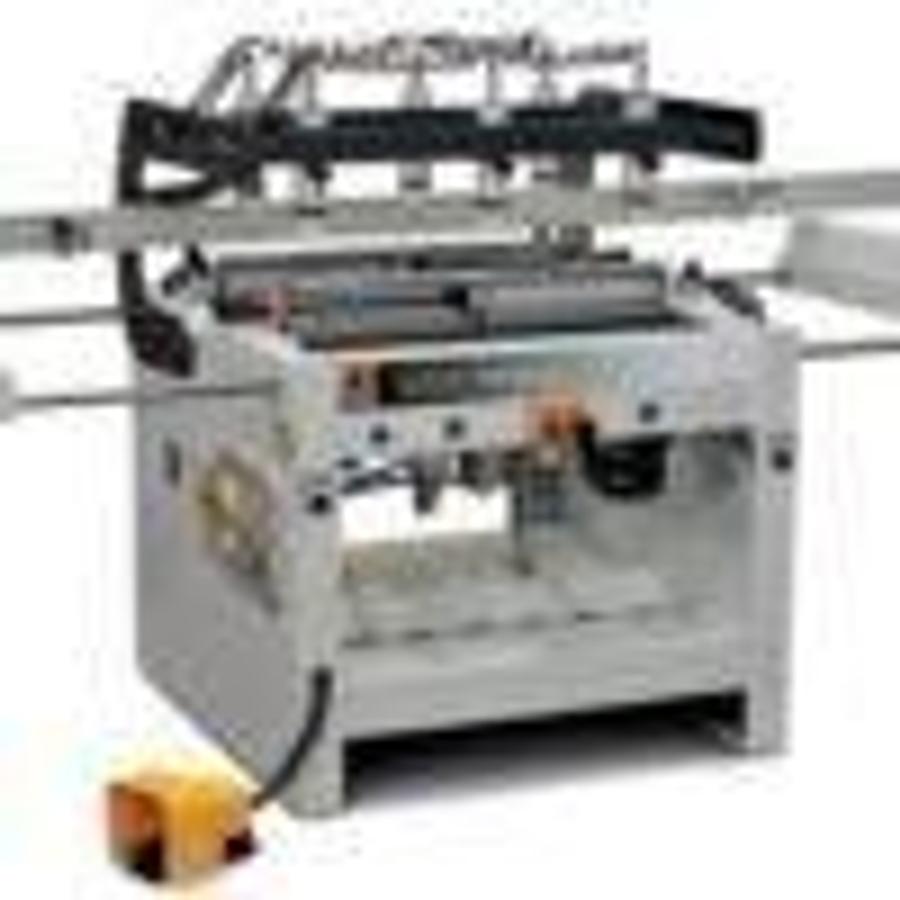

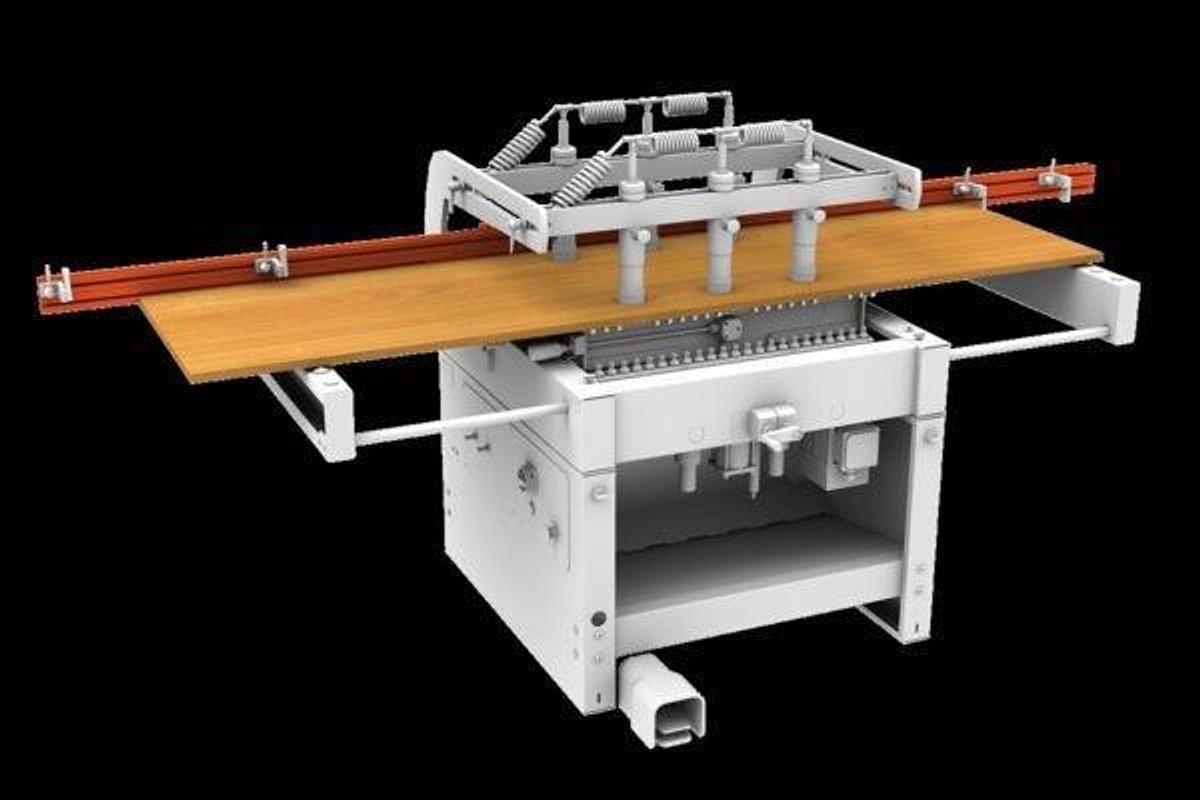

46 Spindle Double Raw Line Boring Machine

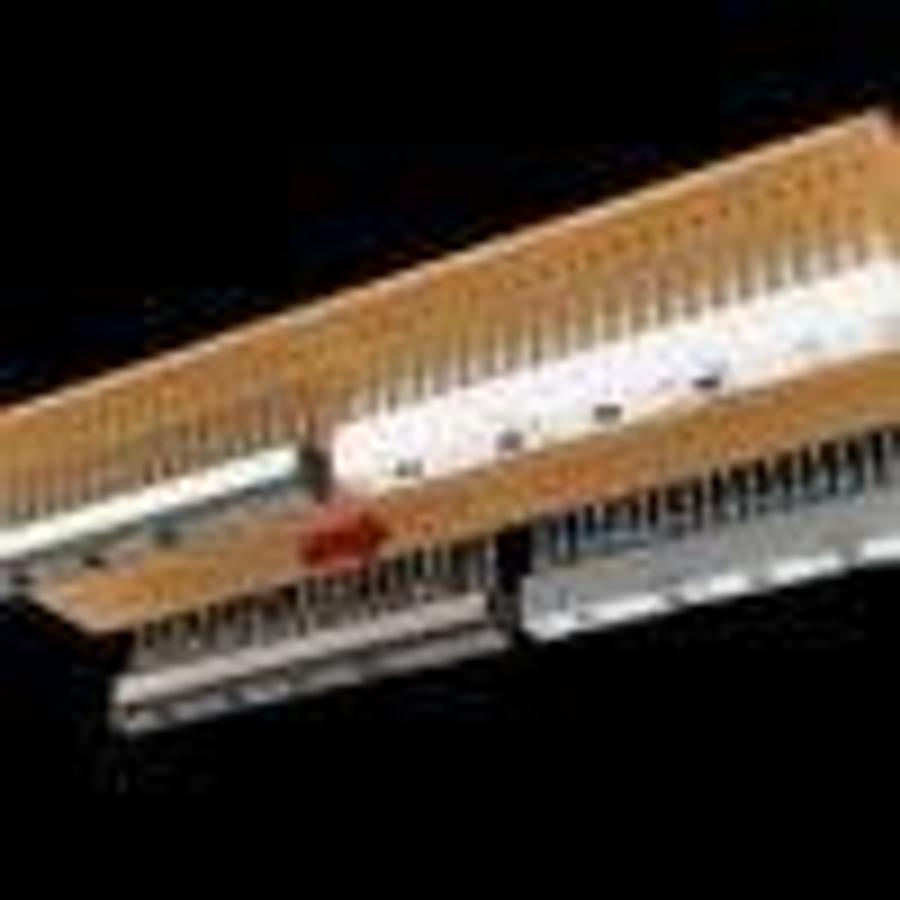

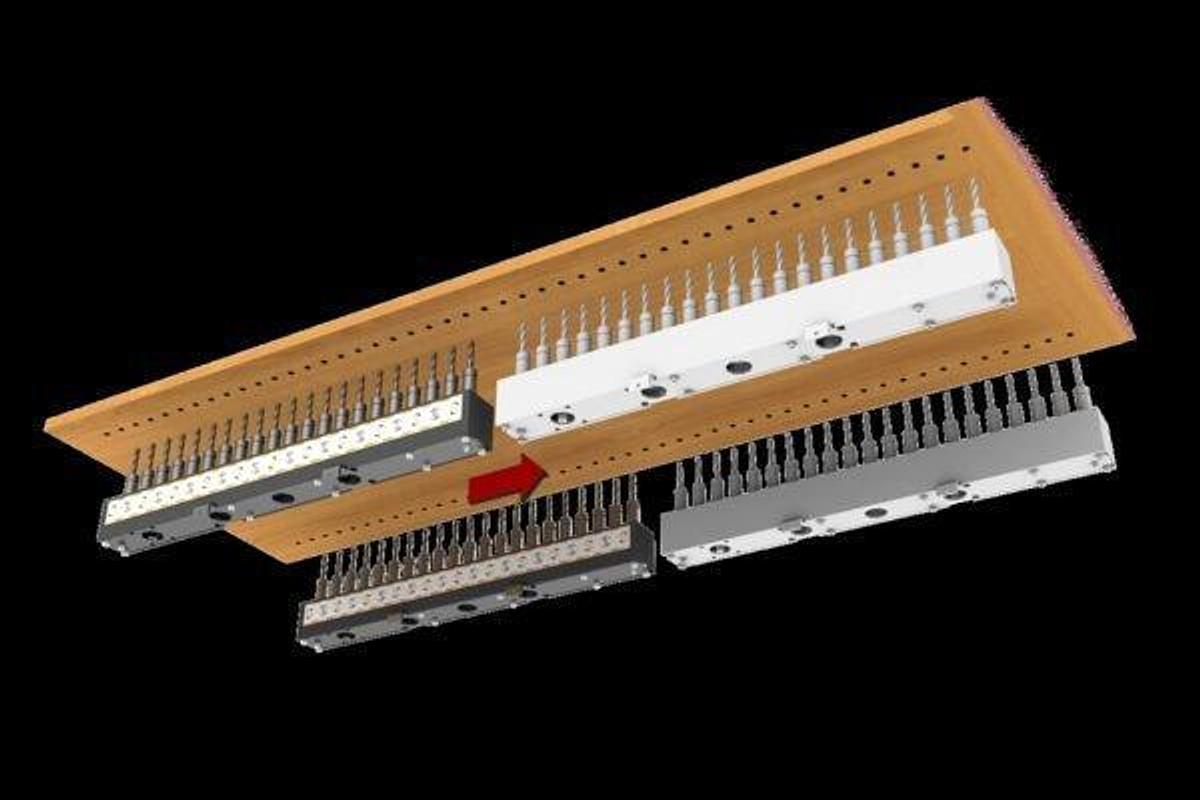

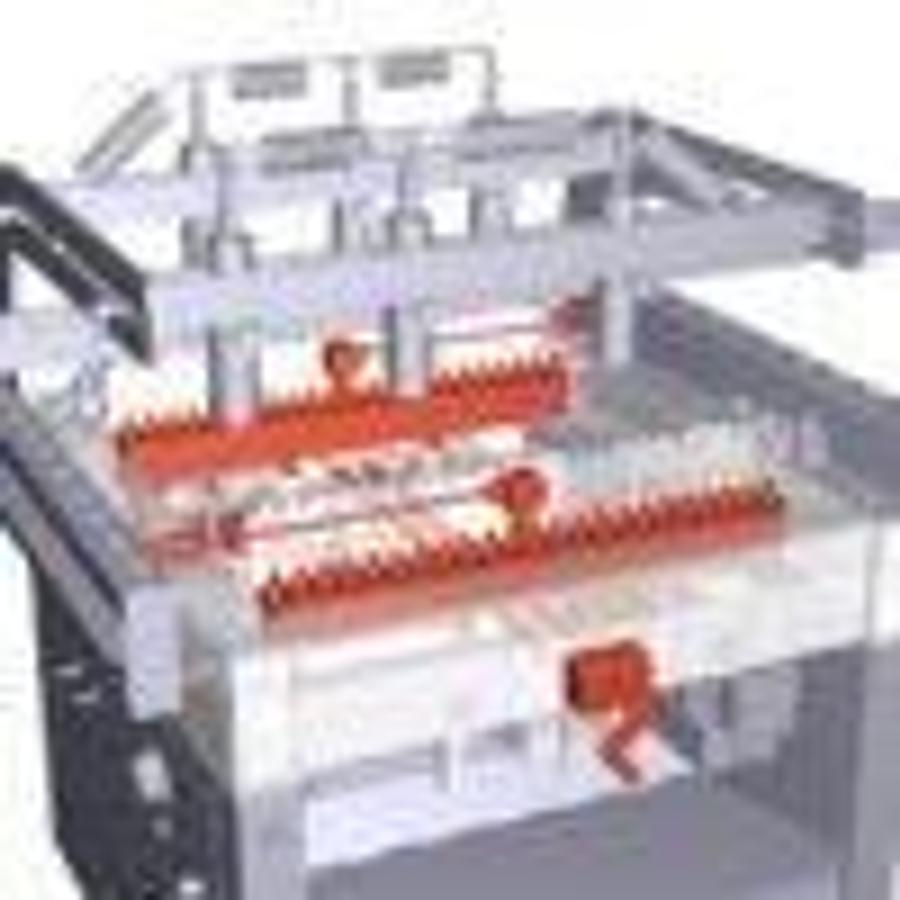

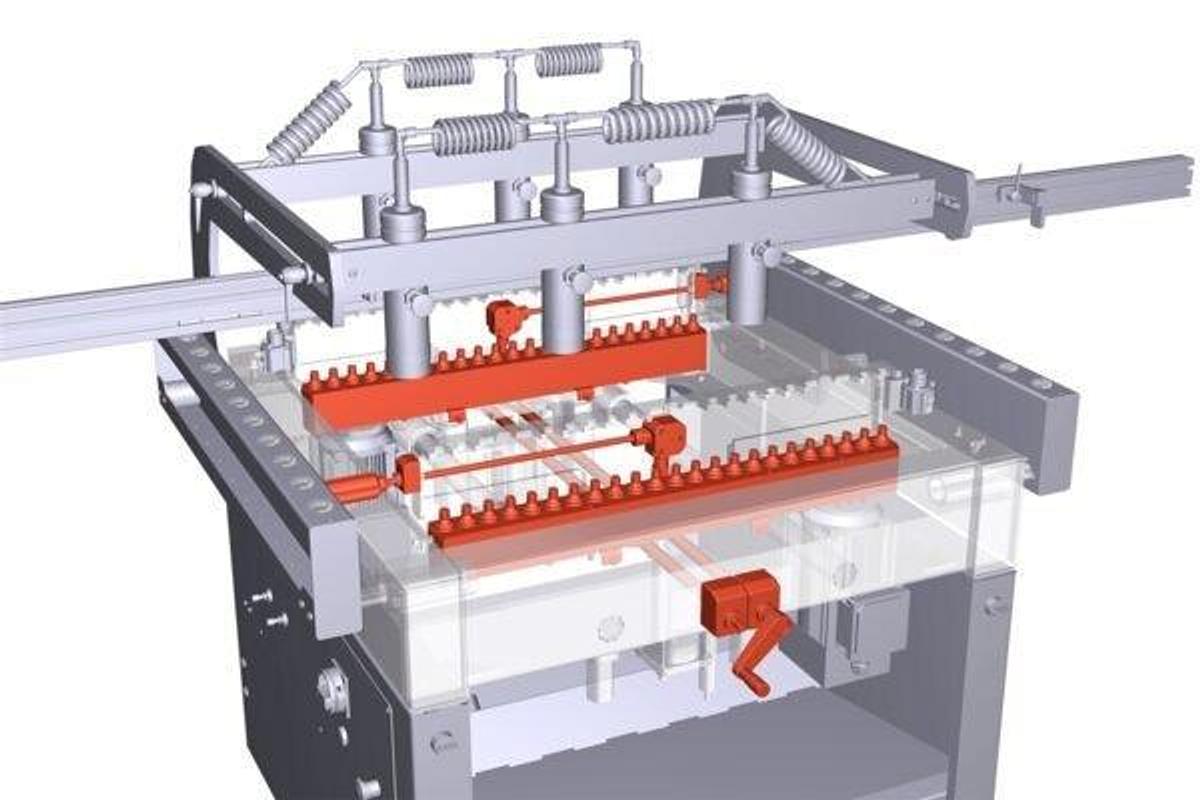

This 46 Spindle Double Raw Line Boring Machine provides (2) 23-spindle heads on 32 mm centers; distance between first and last spindle center of each head is 27-23/32″ (704 mm).

TECHNICAL DATA

Front end adjustment: For quick and easy setup

Motors: (2) 2 HP 3,500 RPM

Boring depth: 2-1/16″ (55 mm)

Side depth counter system: Ensures precise depth control

Support rollers: Extractable 400 mm rollers for long panels

Head travel: Maximum distance between heads: 25-19/32″ (650 mm), Minimum width: 5-1/8″ (130 mm)

Air pressure: Working air pressure 94 psi

Voltage: 230V 3-Phase

Dimensions: Net weight: 820 lbs.; Crated weight: 940 lbs.

What do you get with your 46 Spindle Double Raw Line Boring Machine?

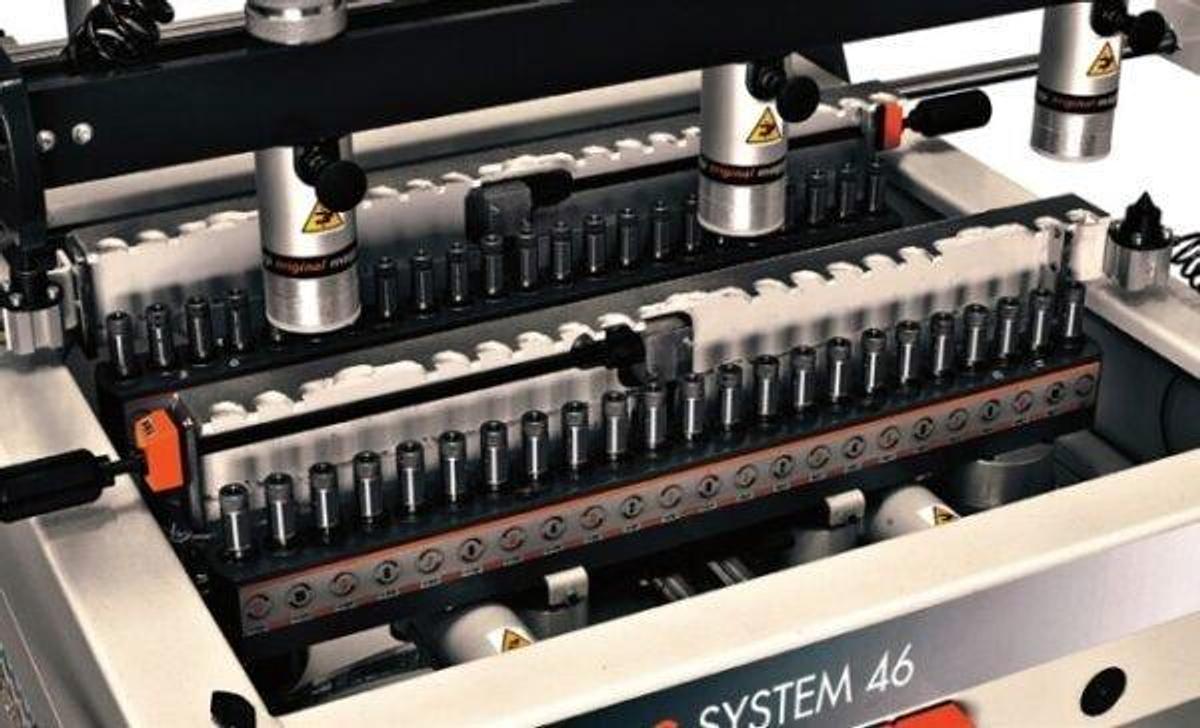

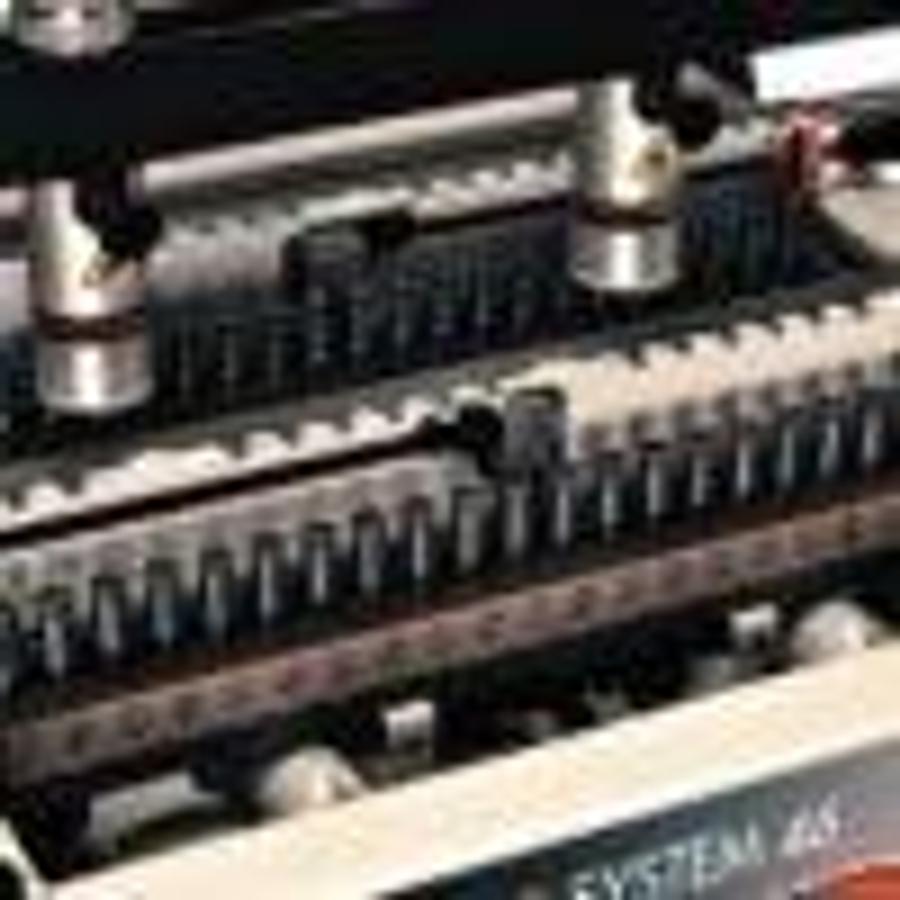

The 46 Spindle Double Raw Line Boring Machine has front-end adjustment and is engineered for precise and efficient line drilling, ideal for both single and double row applications. It features two powerful 2HP motors running at 3,500RPM for consistent performance across demanding tasks. This machine includes a complete boring system with 46 quick-change chucks to minimize downtime. A 10-foot extension fence provides ample workspace and comes equipped with four flip stops and two pneumatic reference pins for accurate, repeatable positioning. For safety and stability, it includes six patented safety clamps. Designed to use 24 left-hand (red) and 22 right-hand (black) boring bits (bits not included). Dust collector ready and CSA certified for safety and compliance.
