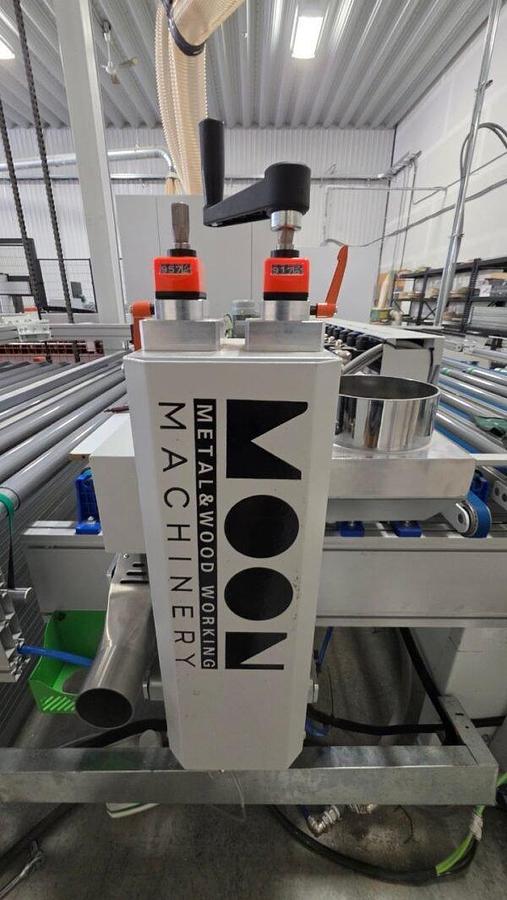

Xblower 2L Board Cleaner

Xblower 2L Board Cleaner

or
Call +1 437 475 2301

Description

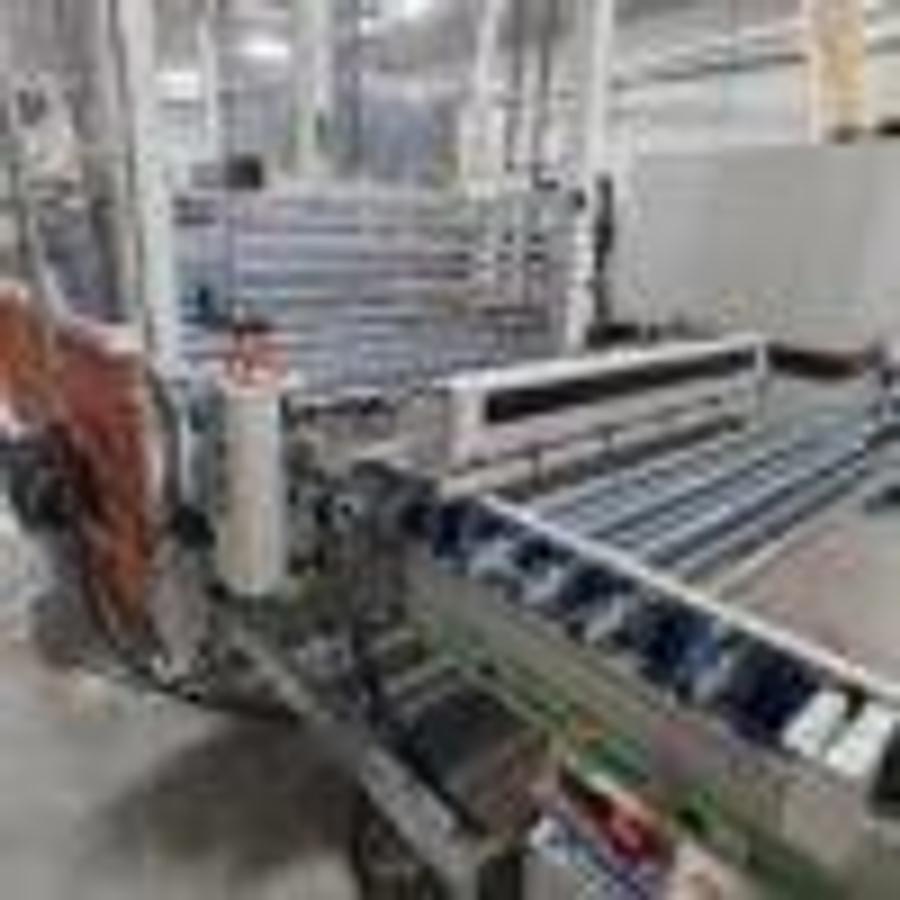

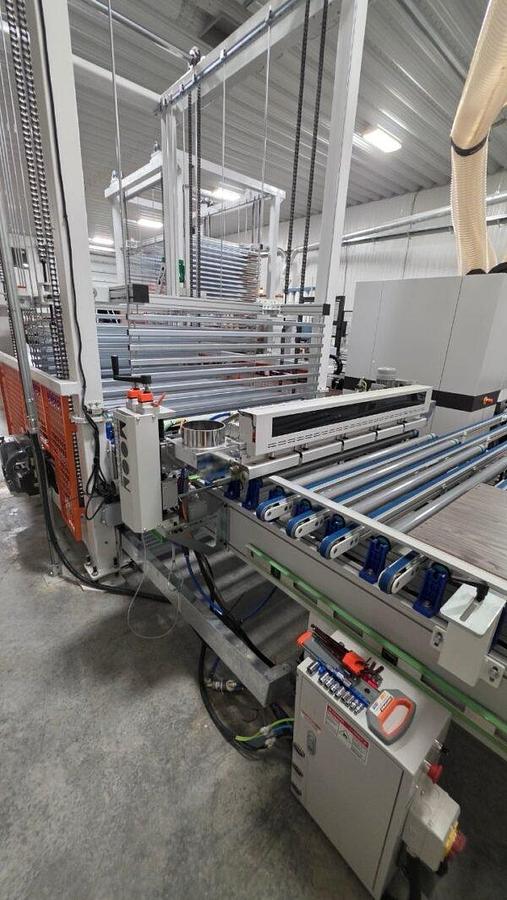

The Xblower 2L Board Cleaner is designed for cleaning boards and panels using polyamide brushes, air blowing, and dust extraction.

The Xblower 2L Board Cleaner can process materials from 60mm to 1350mm wide, with a minimum length of 280mm and no specified maximum length. It supports material thicknesses from 1mm to 100mm and operates at a working height of 900 ± 50mm.

The machine features a horizontal brush speed of 90m/min, dual Ø100mm dust extraction connections, and an air blowing speed of 28m/s.

Key Features:

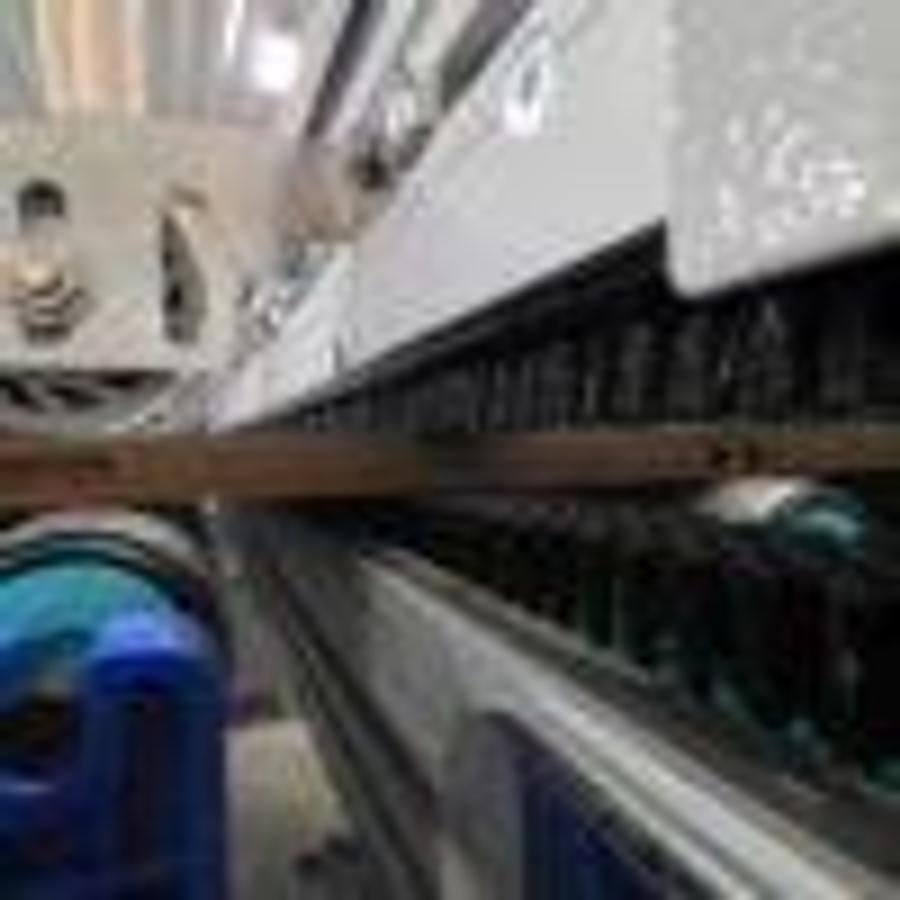

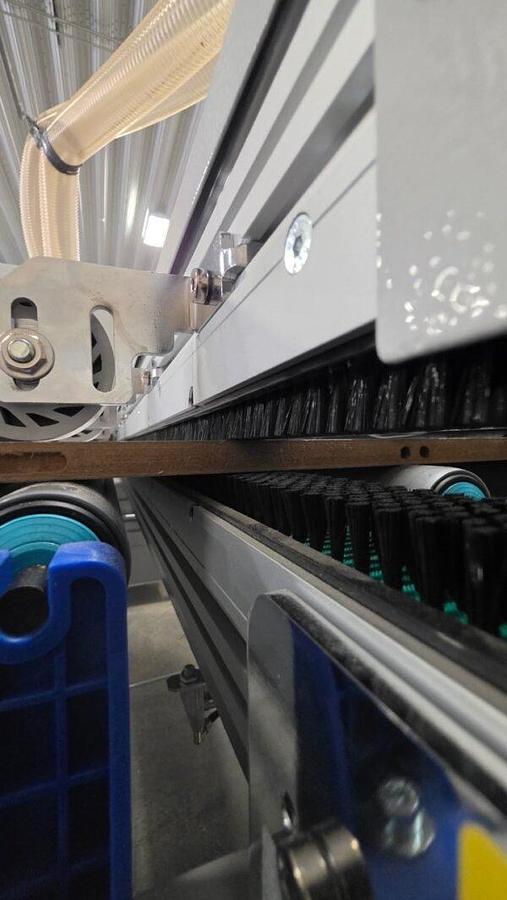

  • Polyamide brush system
  • Maximum processing width of 1350mm
  • Minimum processing width of 60mm
  • Minimum material length of 280mm
  • Unlimited maximum material length
  • Material thickness range of 1-100mm
  • Horizontal brush speed of 90m/min
  • Dual Ø100mm dust extraction connections
  • Air blowing speed of 28m/s
  • Maximum surface temperature of 50°C

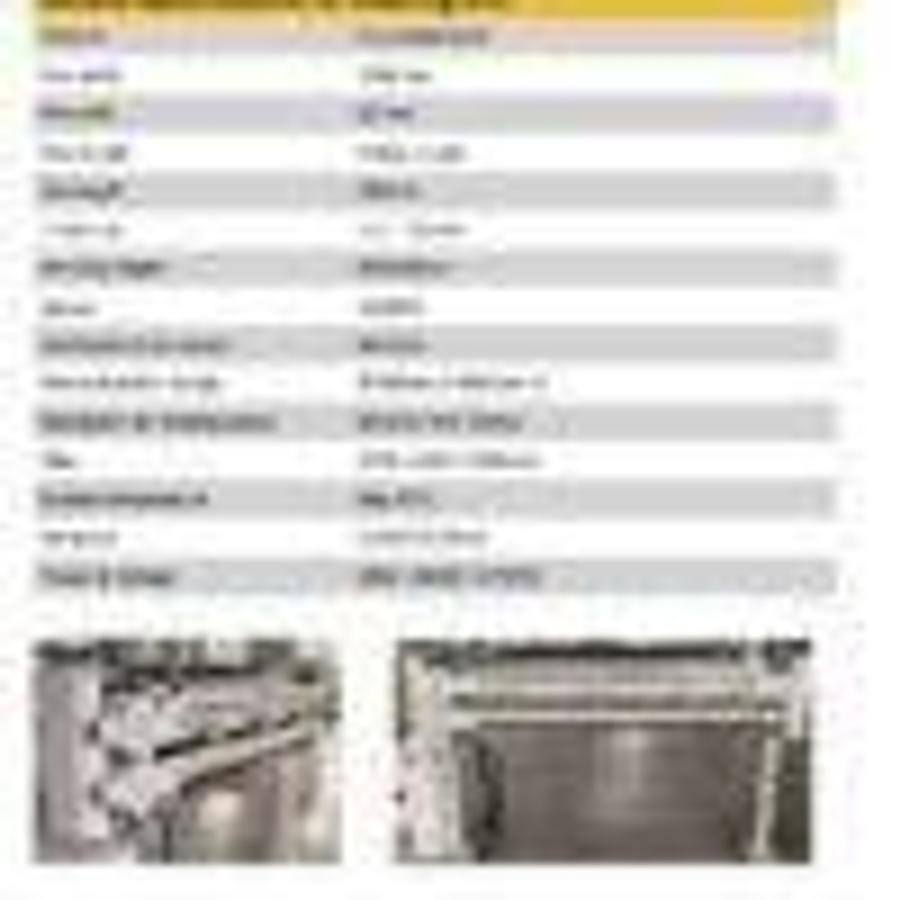

    • Technical Specifications:

  • Maximum Width: 1350mm
  • Minimum Width: 60mm
  • Maximum Length: Unlimited
  • Minimum Length: 280mm
  • Material Thickness: 1-100mm
  • Working Height: 900 ± 50mm
  • Speed: ≤25m/s
  • Horizontal Brush Speed: 90m/min
  • Dust Extraction Diameter / Quantity: Ø100mm x 2
  • Air Volume: 68.82m³/min
  • Air Blowing Speed: 28m/s
  • Surface Temperature: Max. 50°C
  • Machine Size: 2200 x 400 x 1360mm
  • Power Supply: 230V / 60Hz
  • Power: 10.75kW

    • The Xblower 2L Board Cleaner combines brushing, air blowing, and dust extraction in a compact system for board cleaning applications.
