Spear 6RME ATC Six-Side Drilling and Milling Center
Spear 6RME ATC Six-Side Drilling and Milling Center
Description
Discover the Spear 6RME ATC Six-Side Drilling and Milling Center. A high-speed 6-sided CNC with 8-slot ATC for precision drilling, milling, and Lamello processing.
The Spear 6RME ATC Six-Side Drilling and Milling Center is a high-performance, six-sided CNC solution designed to revolutionize panel furniture production. Engineered for precision and versatility, this machining center integrates advanced drilling capabilities with complex milling functions in a single, streamlined workflow.
At the heart of the “Spear” model is its sophisticated Automatic Tool Change (ATC) system, which allows for seamless transitions between different routing and milling tools without operator intervention. Whether processing invisible connections (like Lamello), routing detailed grooves, or performing high-speed 6-sided drilling, this machine ensures maximum throughput and exceptional finish quality. It is the ideal choice for manufacturers seeking to upgrade from standard drilling to full-scale, automated machining.
Spear 6RME ATC Six-Side Drilling and Milling Center Key Features & Benefits

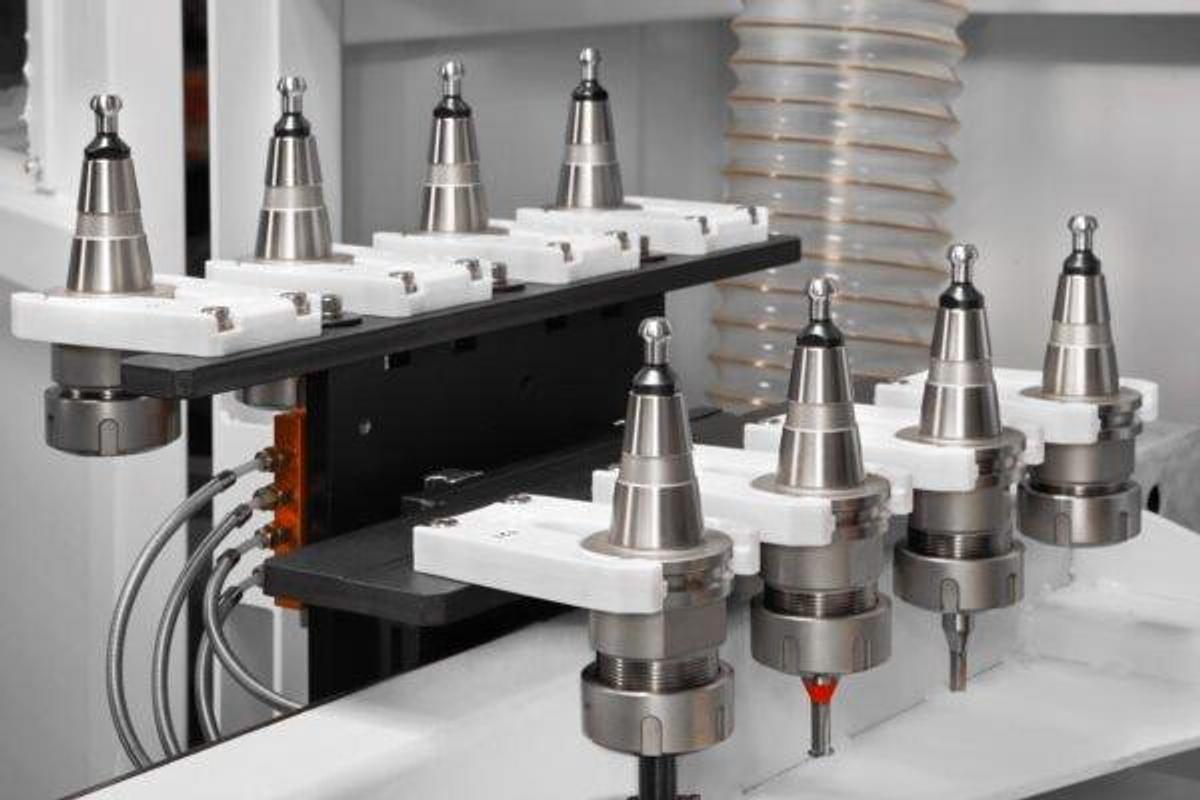

Advanced Automatic Tool Change (ATC): Equipped with an 8-position tool magazine, the Taranto allows for instant tool swapping. This enables complex milling operations—such as shape cutting, handle routing, and Lamello pocketing—in a continuous cycle.
Six-Sided Processing: The machine features dual drilling banks (top and bottom) to process all six faces of a panel in a single pass. This eliminates the need for manual flipping, significantly reducing labor costs and handling errors.

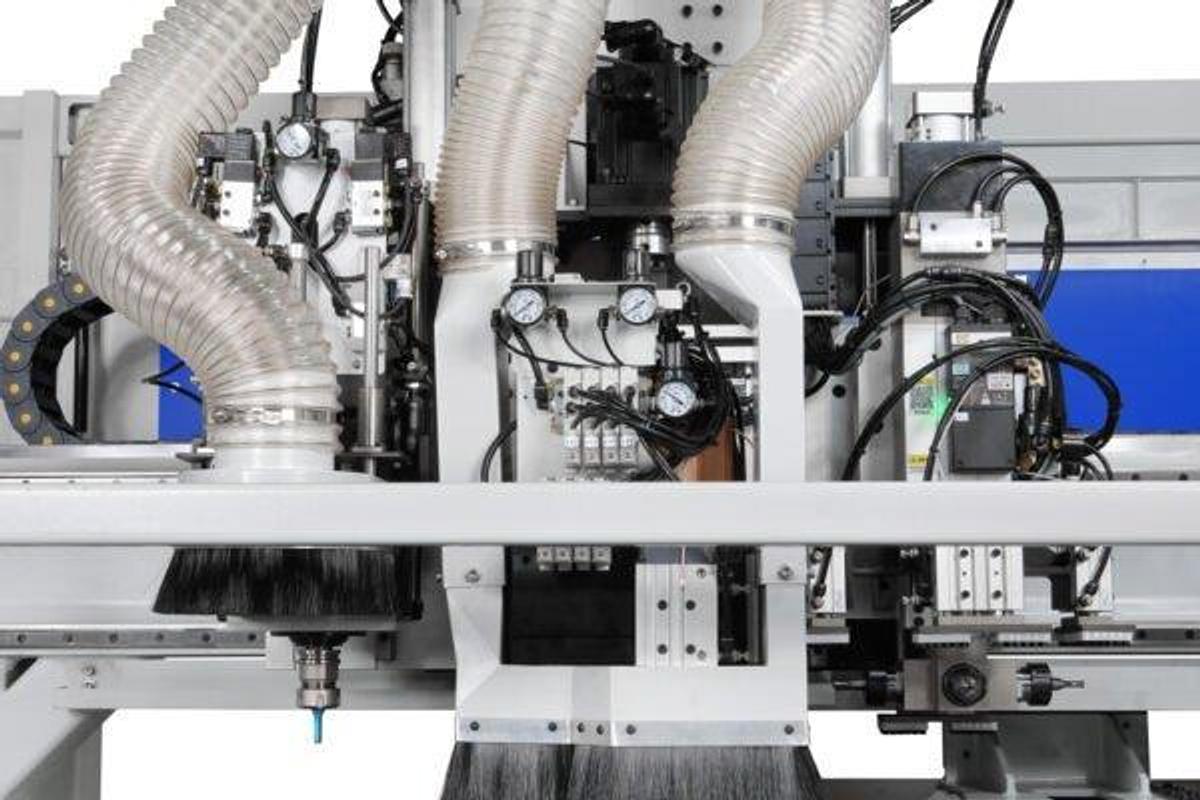

Dual Spindle Design: High-speed milling spindles work in tandem with the drilling blocks to execute precise grooving and routing, ensuring clean edges and perfect joinery.

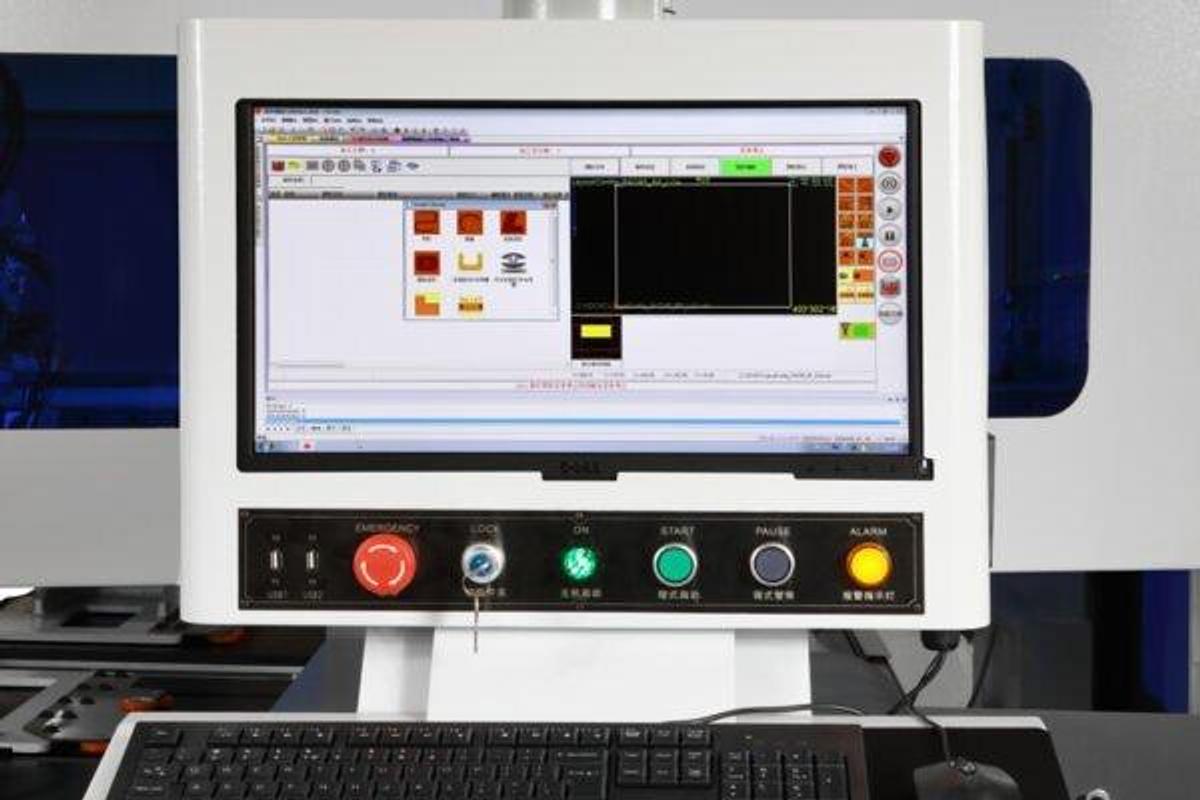

Intelligent Control System: The CNC interface supports standard furniture design formats (XML, MPR, DXF), allowing for easy integration with popular CAD/CAM software for “scan-to-machine” automation.
High-Precision Clamping: An air-floating worktable and intelligent grippers protect delicate surfaces while ensuring rigid stability during high-speed machining.
Technical Specifications
| Feature | Specification |
| Model Name | Spear (Base: SKD-6RME) |
| Machining Type | 6-Sided Drilling & Milling with ATC |
| Tool Magazine | 8-Position Automatic Tool Changer |
| Min/Max Panel Width | 35mm – 1200mm |
| Min/Max Panel Length | 250mm – Unlimited (Feed-through) |
| Panel Thickness | 9mm – 60mm |
| Drilling Banks | Top & Bottom Dual Drill Banks |
| Spindle Speed | Up to 24,000 RPM |
| Control System | PC-Based CNC (Scanner Integration Ready) |
| Total Power | ~35.5 KW |
Applications
The Spear 6RME ATC Six-Side Drilling and Milling Center is optimized for:
Custom Cabinetry and Wardrobes.
Office Furniture Manufacturing.
Invisible Connection Processing (Lamello, P-System).
Complex Panel Grooving and Shaping.
Specifications
| Condition | New |
