Description

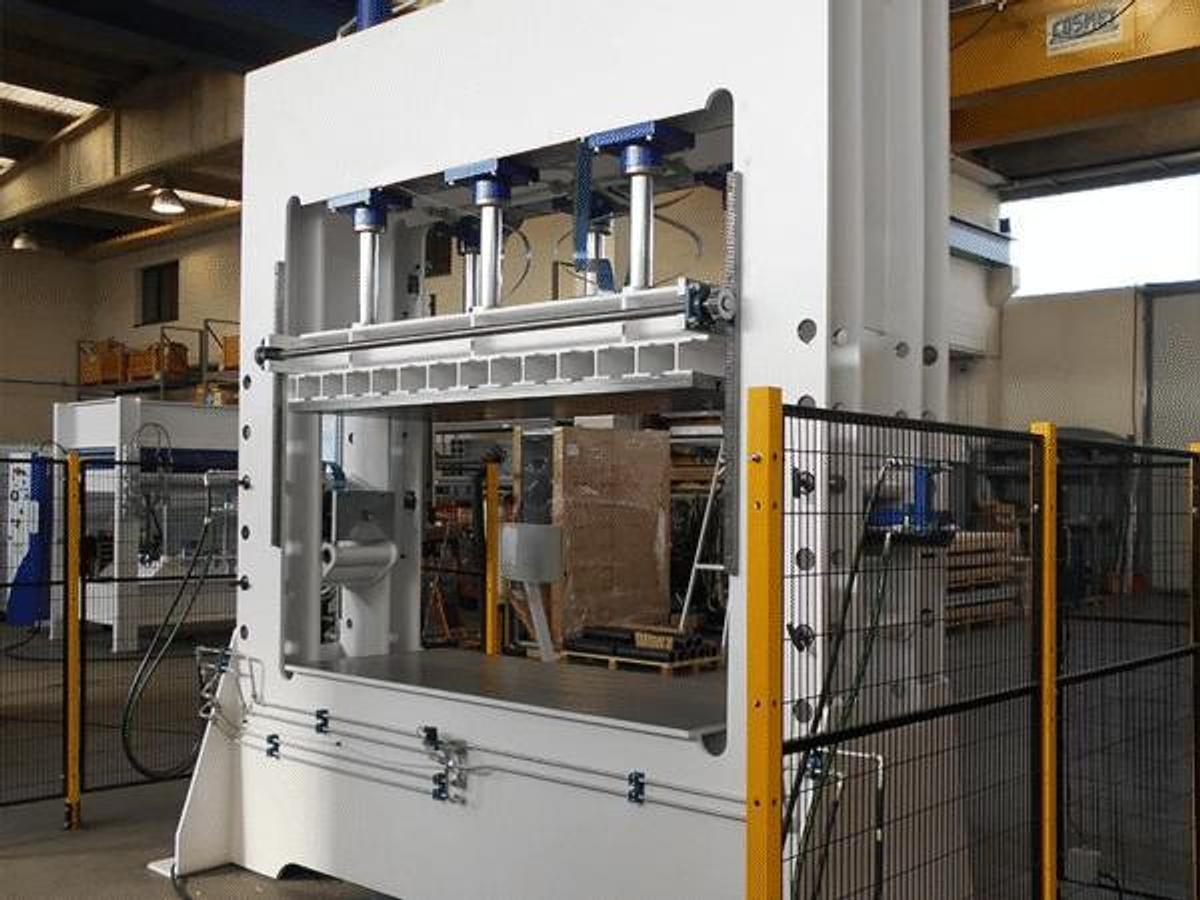

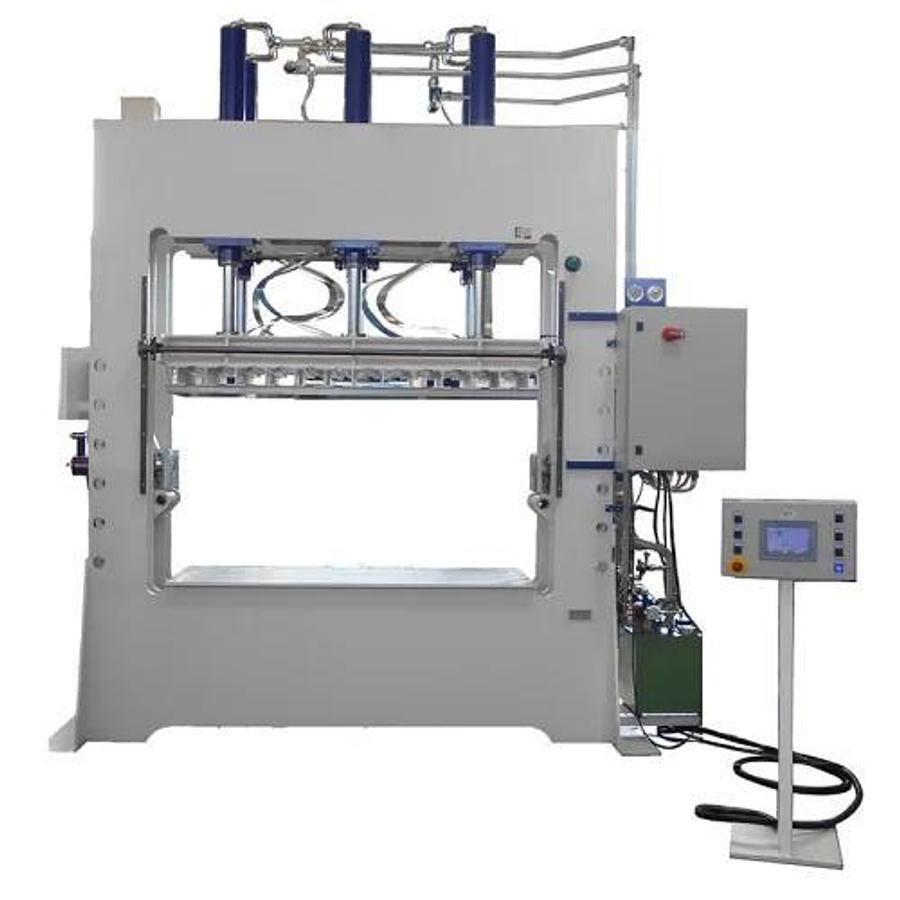

The PPC Series Press is designed for bending a wide range of materials, including plywood, solid wood, MDF, and various composite materials. The press uses molds to create curved elements for a variety of applications.

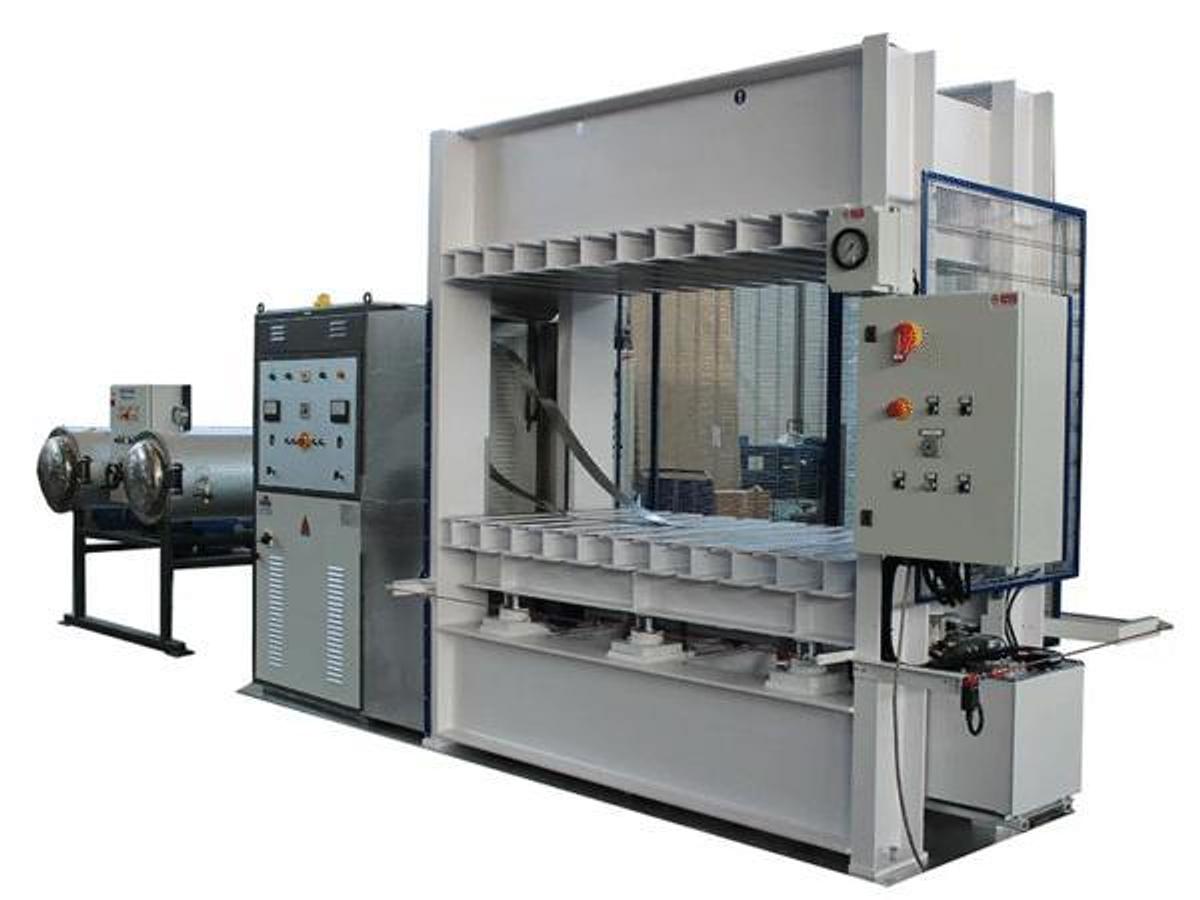

The PPC Series Press can operate as a cold press or can be equipped with a High Frequency Generator to promote gluing and increase production volumes. Different PPC models are available with either a lower or upper movable work surface.

Functions:

  • Cold pressing for the creation of curved elements using molds
  • Bending of solid wood, plywood, MDF, and composite materials
  • High Frequency operation available for increased production volumes

    • Final Products:

  • Chairs
  • Shoulders
  • Curved panels for interior design
  • Beds
  • Curved doors

    • Standard Equipment:

  • Structure composed of assembled and welded S275JR beams
  • Hydraulic system with double-stage power plant or pre-filled system, depending on configuration
  • Milled beam surfaces for fixing molds
  • Control panel
  • 1000mm opening, customizable
  • Automatic opening with timer

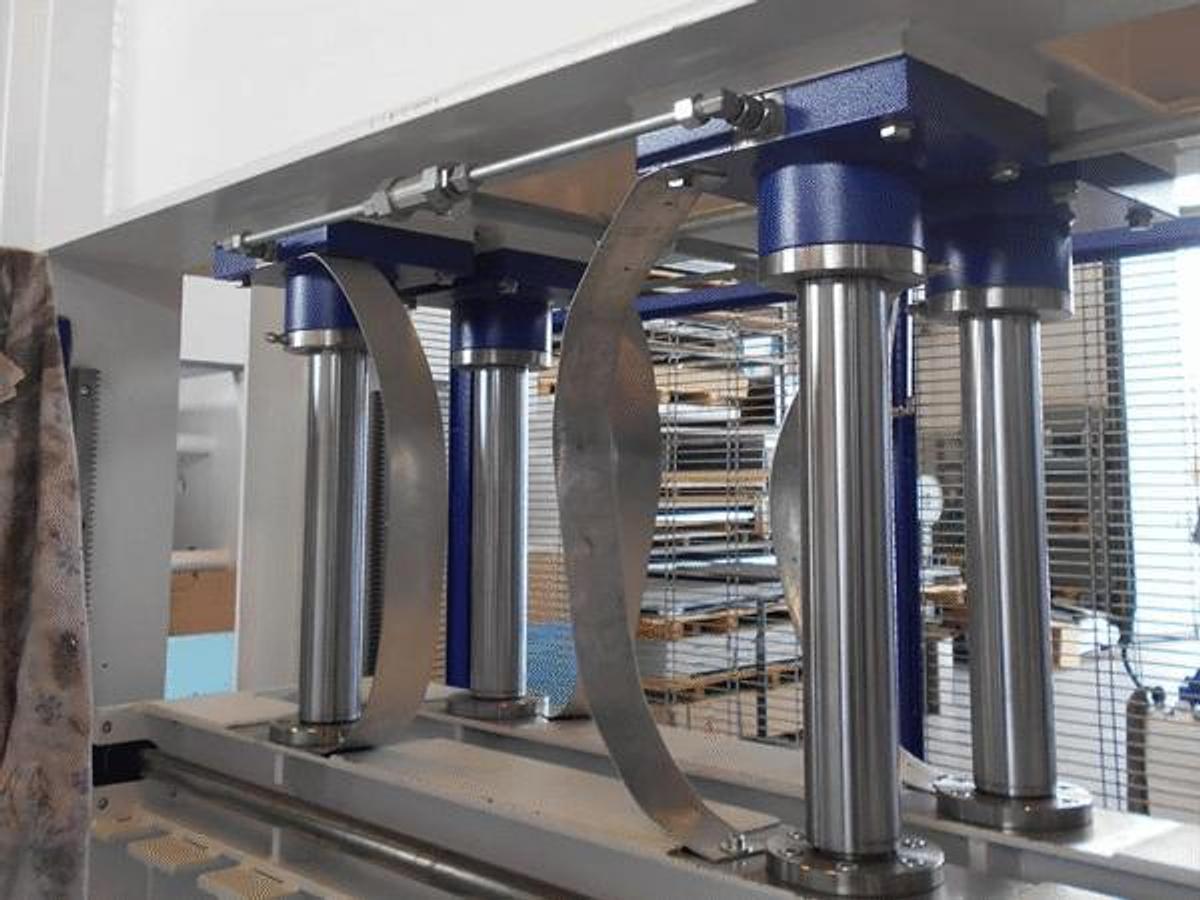

  • Vertical pressure cylinders

    • PPCe Models:

    The standard PPC Series Press PPCe configuration features a lower movable work surface.

  • 13/80: 1300 x 800mm, 60 tons
  • 16/80: 1600 x 800mm, 60 tons
  • 20/10: 2000 x 800mm, 60 tons
  • 16/80: 1300 x 800 mm, 100 tons
  • 18/80: 1800 x 800mm, 100 tons
  • 10/20: 2000 x 800mm, 100 tons

    • PPC Special Models:

    The special PPC Series Press configuration features an upper movable work surface.

  • 18/80: 1800 x 800mm, 90 tons
  • 20/10: 2000 x 1000mm, 120 tons
  • 10/22: 2000 x 1000mm, 120 tons

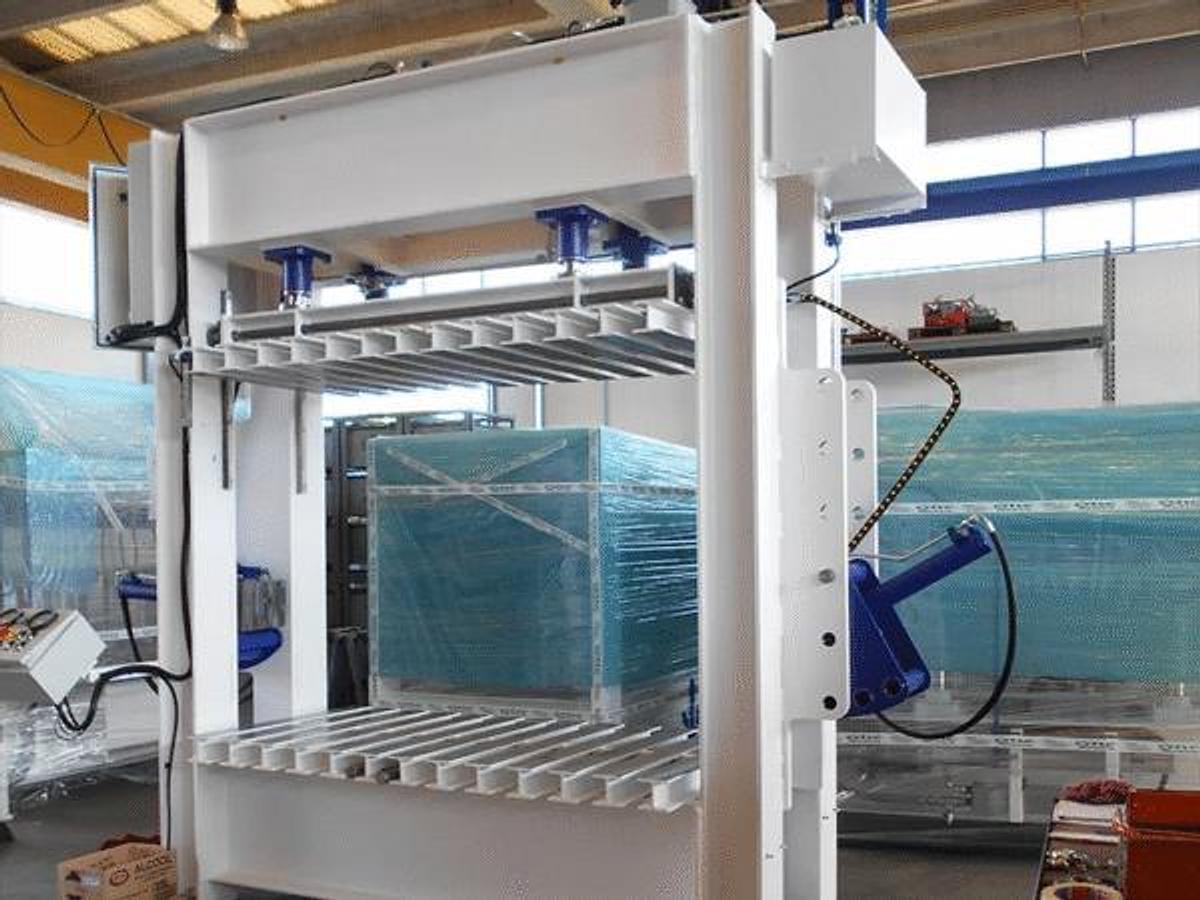

    • PPC Special model presses can also be equipped with side cylinders.

    Optional Equipment:

  • Customized opening
  • Fixed side cylinders
  • Oscillating side cylinders

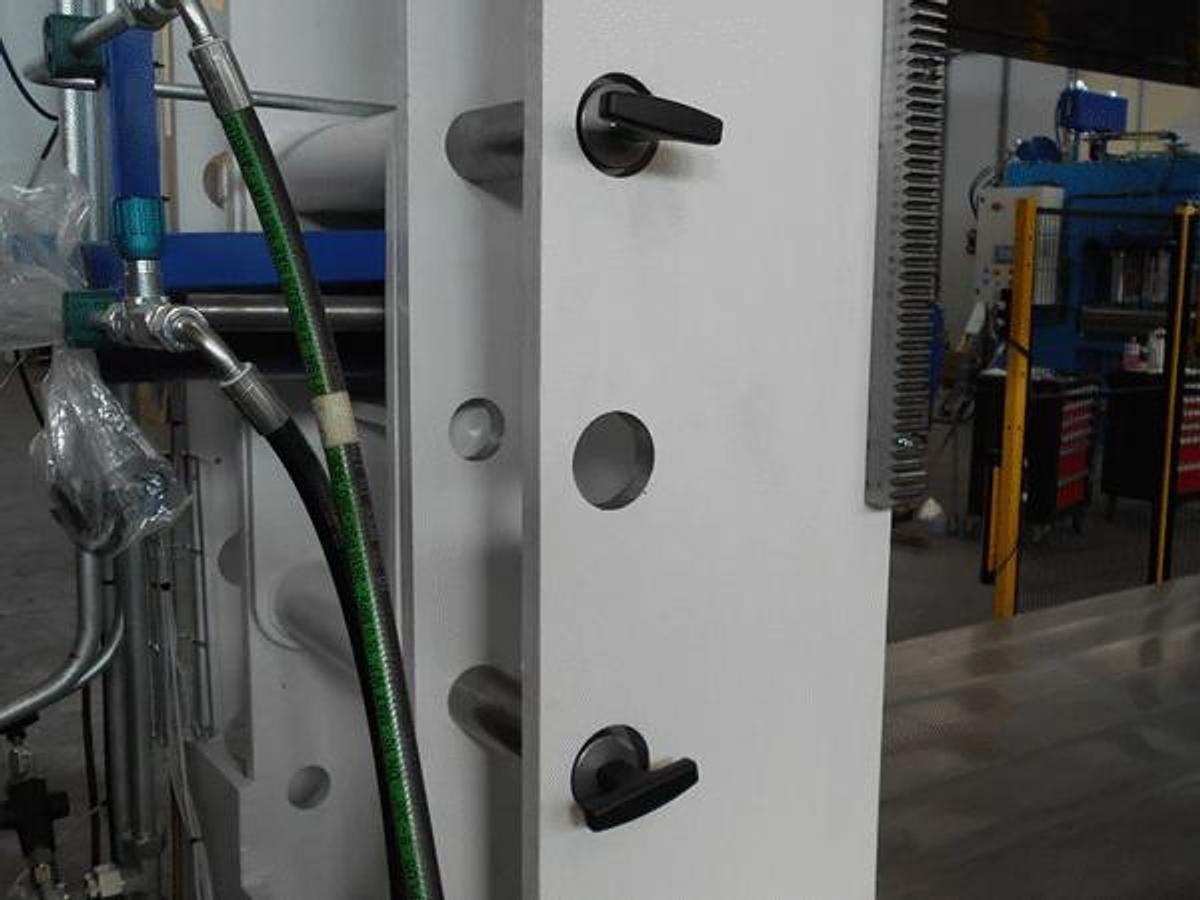

  • Side cylinder height adjustment
  • Logic Control digital panel
  • Oxy-cut structure without welds for applications requiring strong hydraulic thrust
  • Mold fixing and grooves
  • Preparation for use with High Frequency

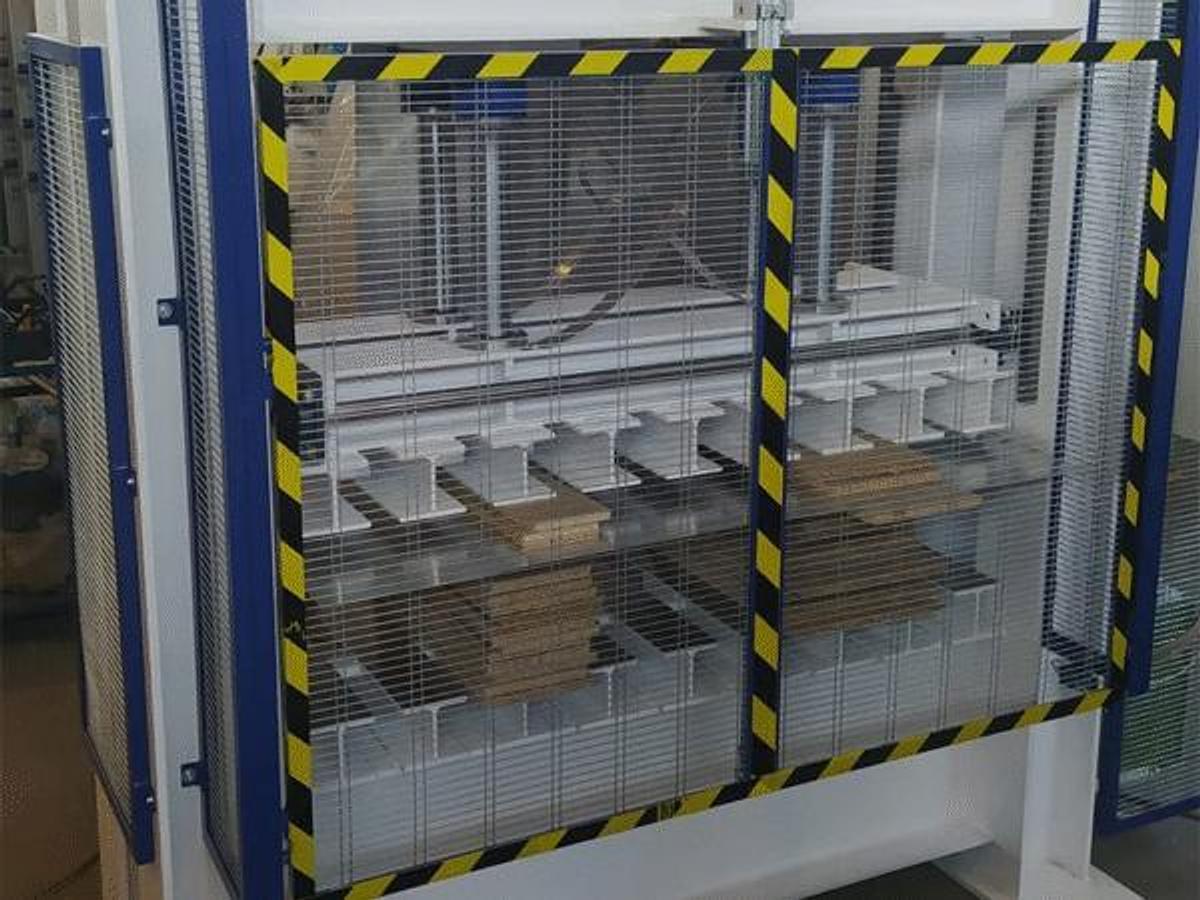

  • Manual or pneumatic protections for High Frequency operation
  • Pre-curving press
  • Humidification chambers for preliminary wood treatment
  • Industrial 4.0 system for interconnection between the press and company computer system
    • Show All

    Specifications

    ConditionNew
