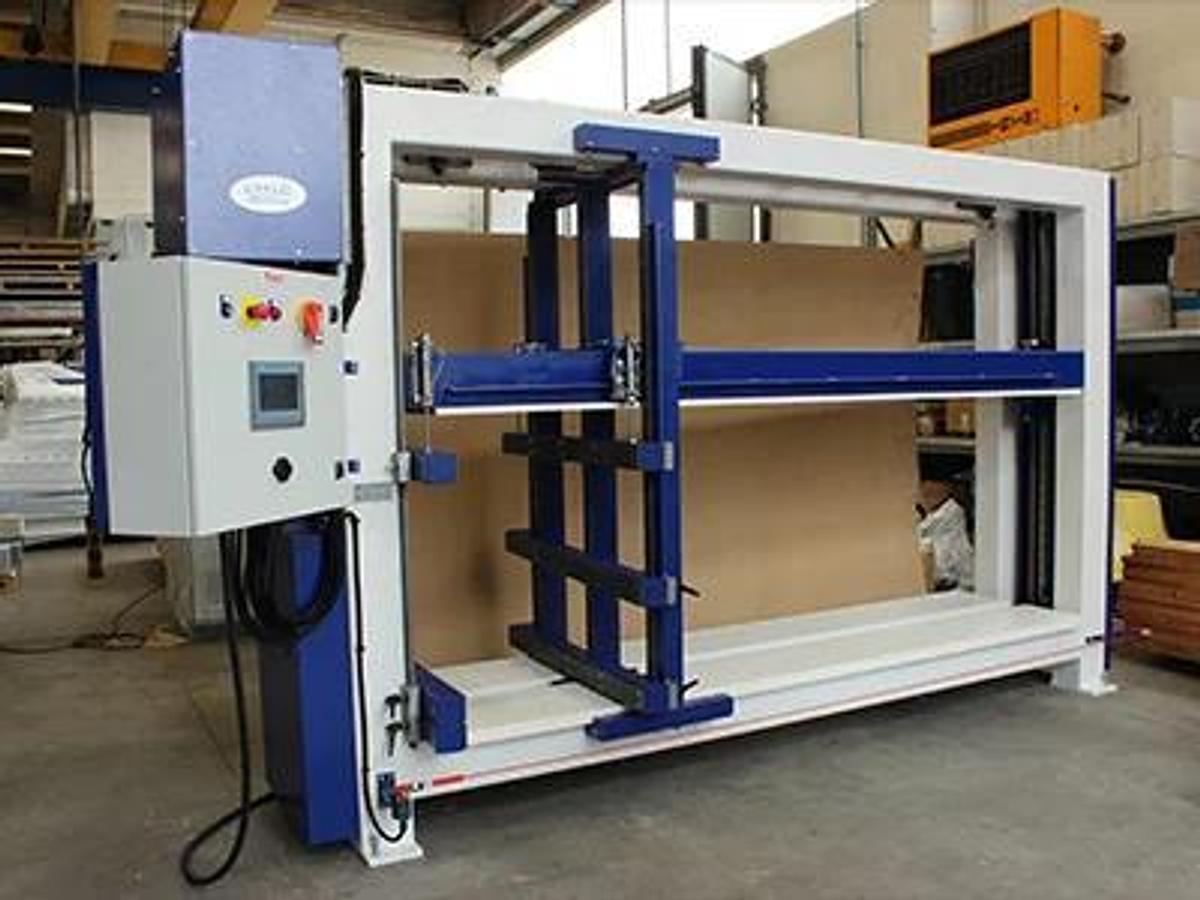

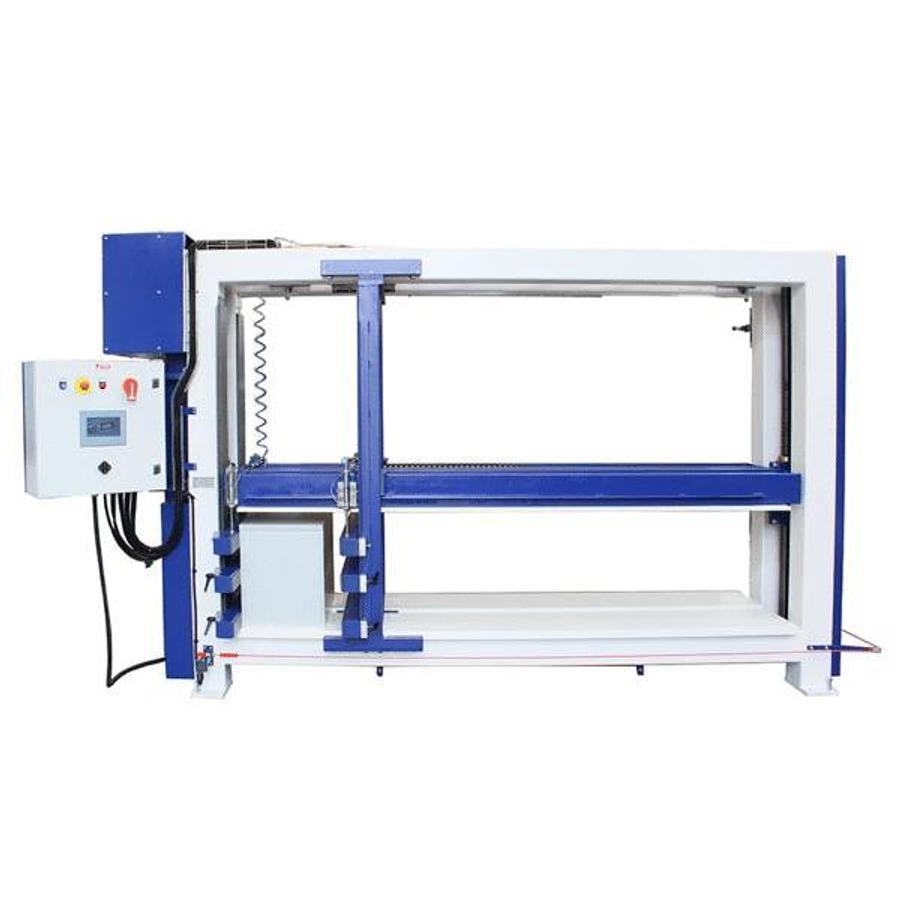

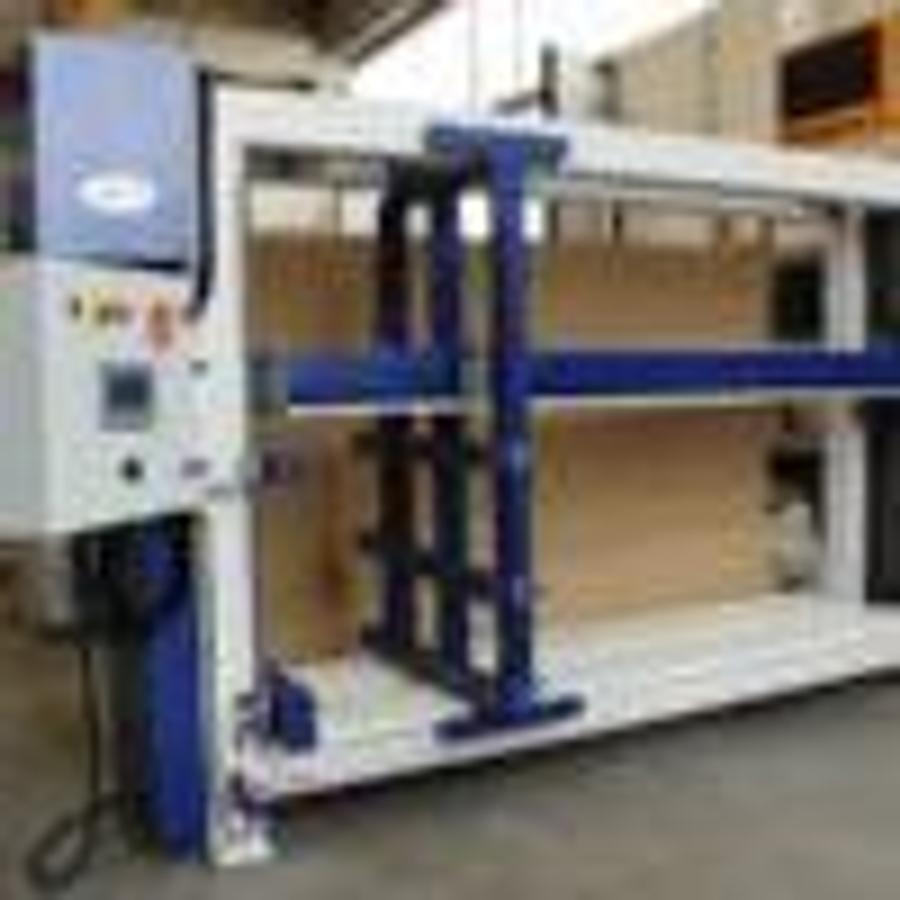

CPB Model Mobile Cabinet Body Clamp

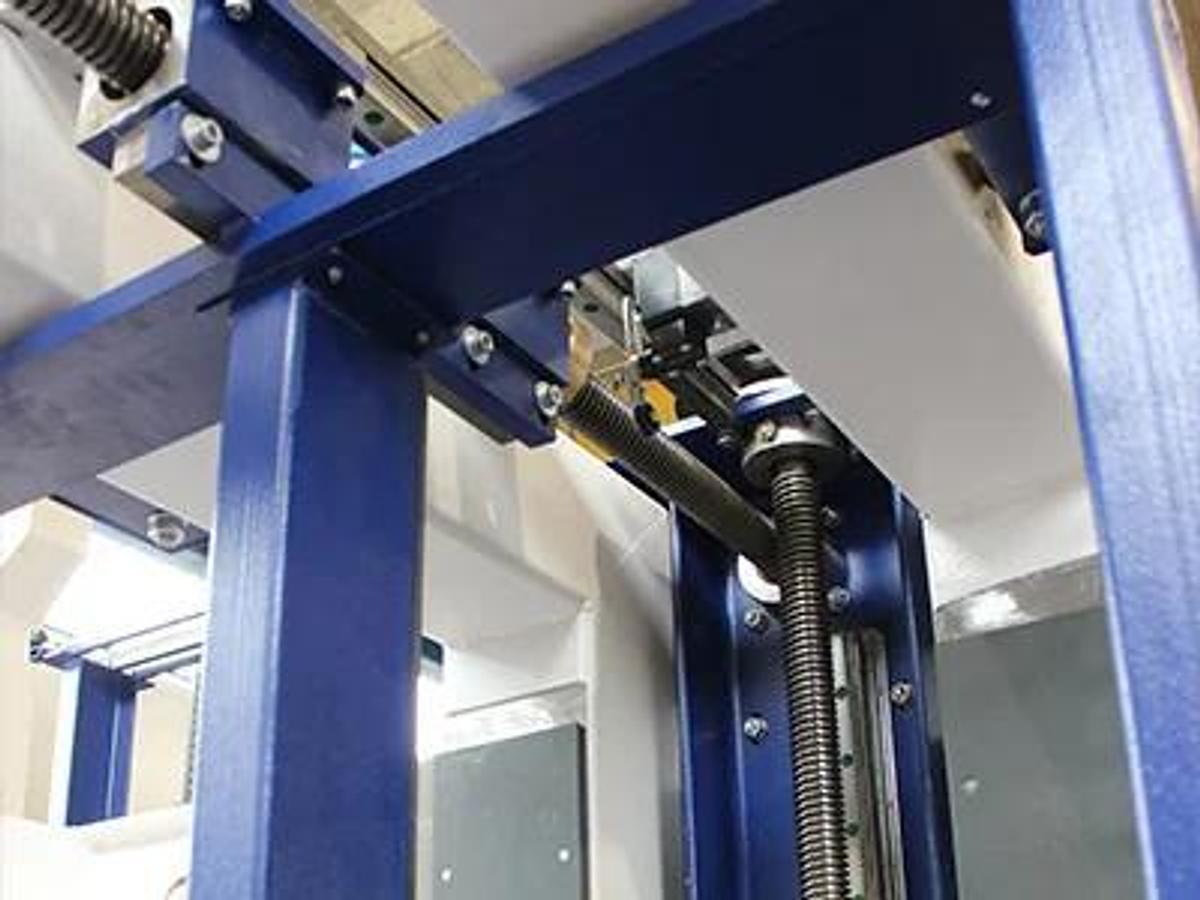

The CPB Model Mobile Cabinet Body Clamp is designed for clamping cabinet bodies using electrically driven horizontal and vertical push bars. Its structure is constructed from closed-section steel tubing to provide the rigidity required during the clamping process.

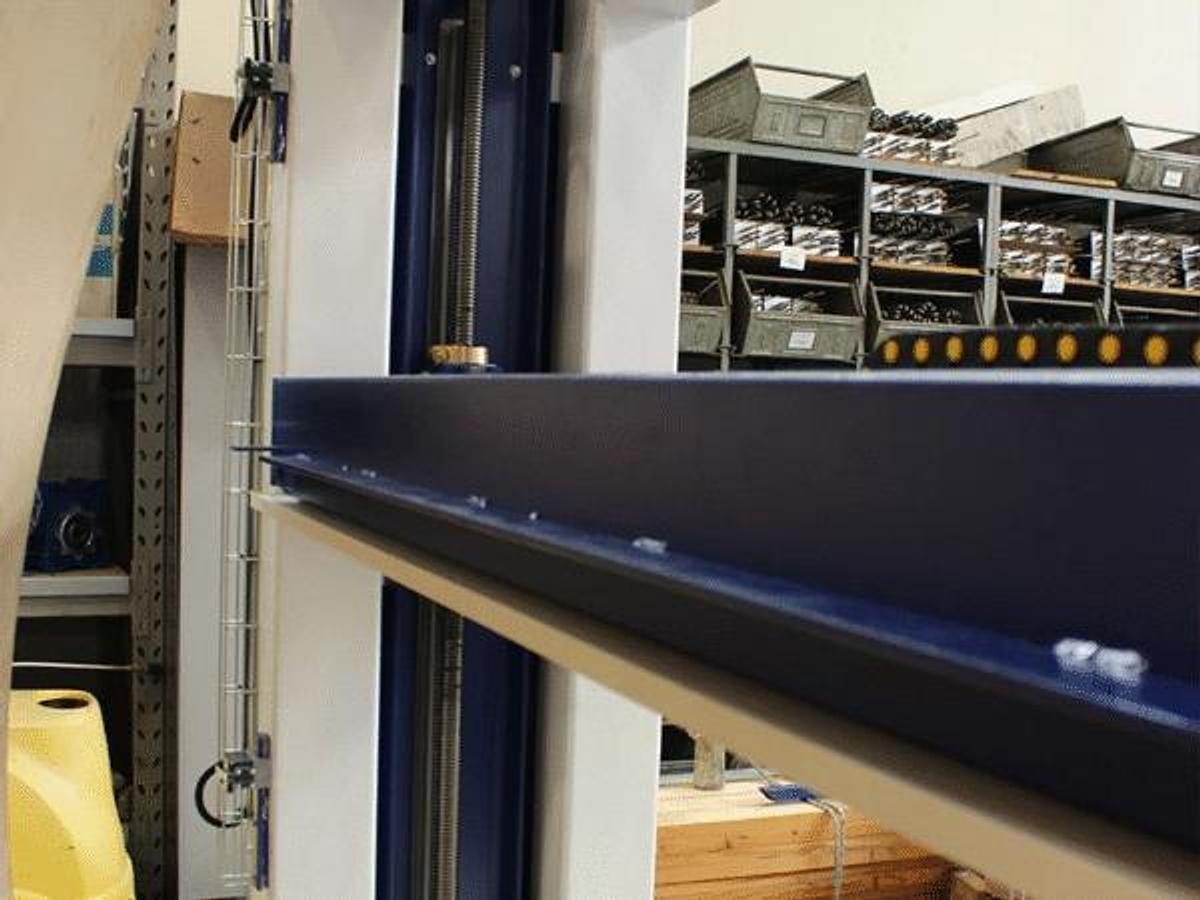

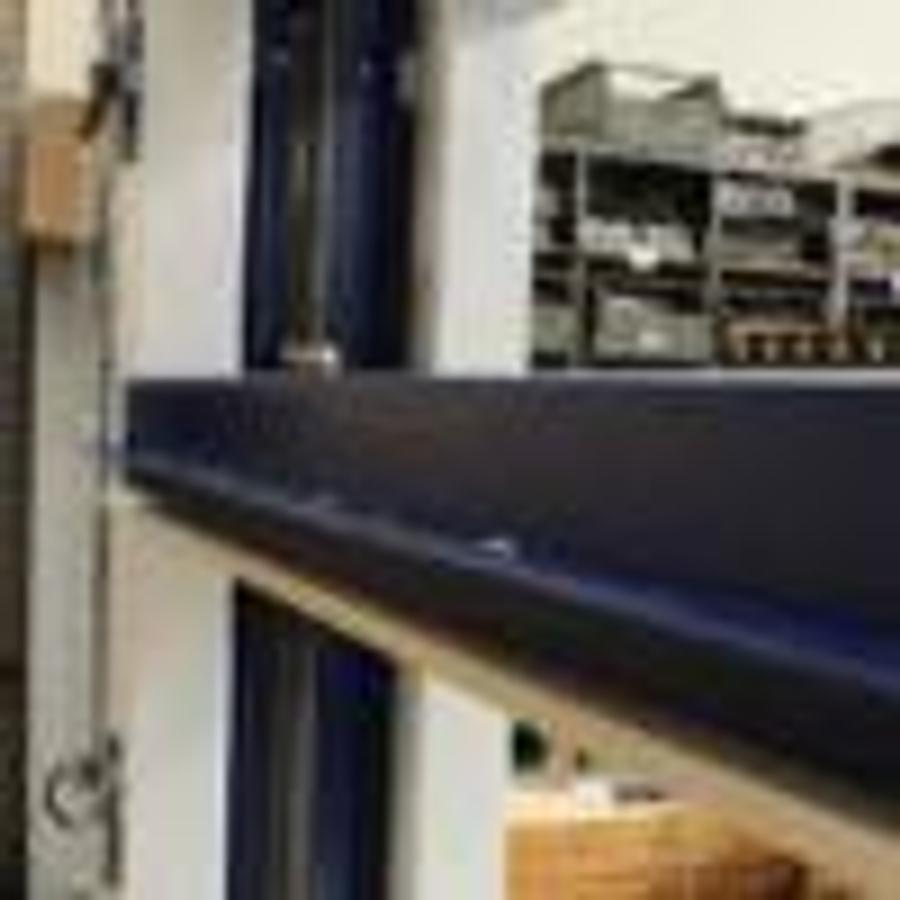

The CPB Model Mobile Cabinet Body Clamp provides 2200kg of horizontal thrust and 2200kg of vertical thrust. The tubular steel push bars feature anti-stripe surfaces, while the lower and lateral contrast surfaces are manufactured from high-strength anti-stripe material.

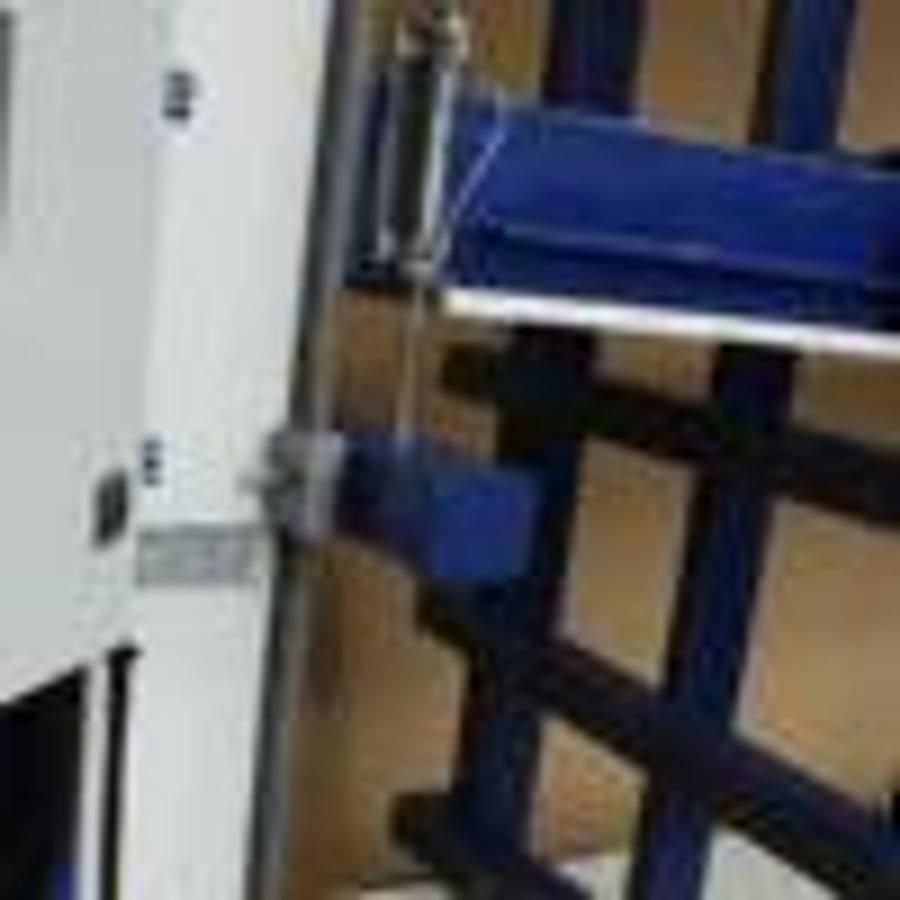

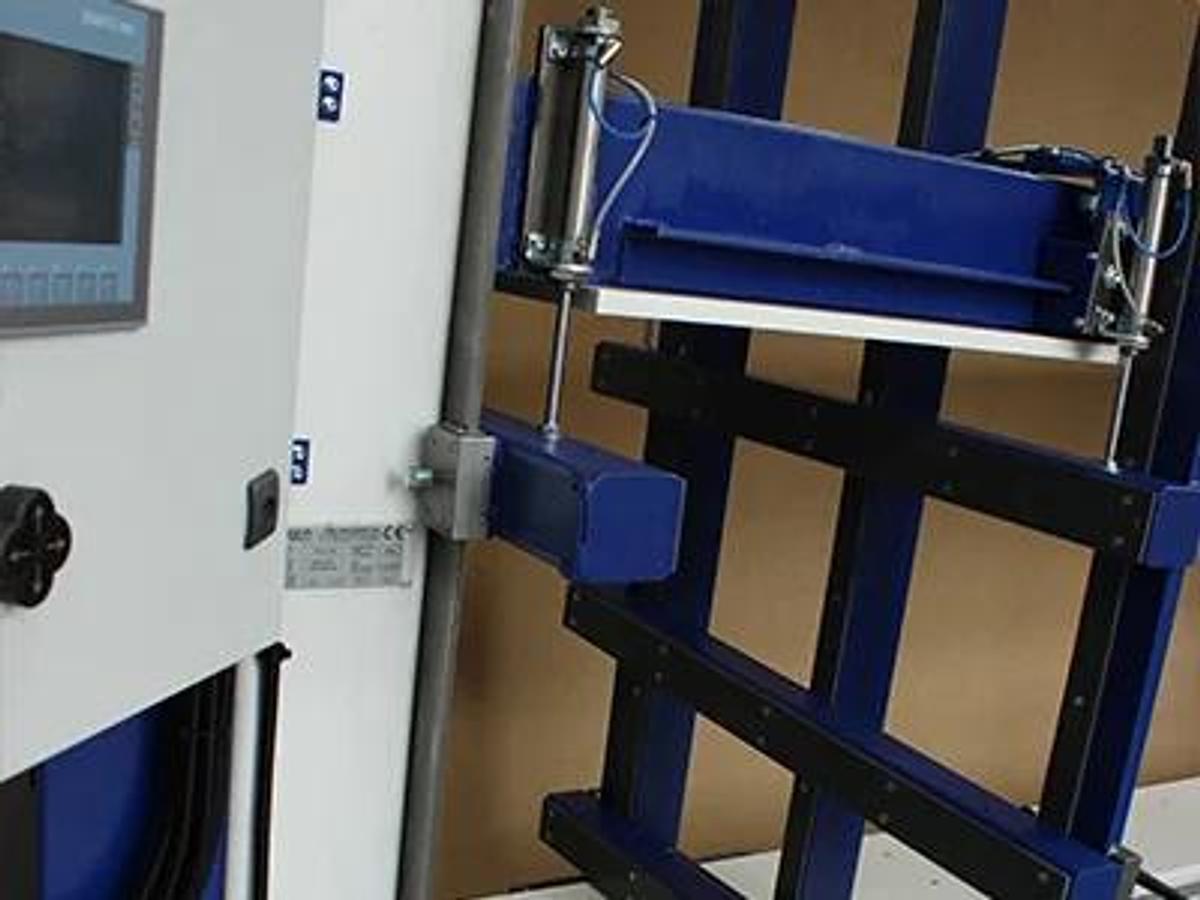

The horizontal and vertical push bars of the CPB Model Mobile Cabinet Body Clamp can be operated independently or simultaneously during both closing and opening. Manual operation is controlled through an 8-position control lever, with the operating cycle controlled by an inverter.

With a maximum useful length of 2650mm, maximum useful height of 1450mm, and maximum mobile width of 770mm, the CPB Model Mobile Cabinet Body Clamp accommodates a range of cabinet body dimensions while maintaining a working height of 350mm.

Key Features:

Working Capacity:

Technical Specifications:

Standard Equipment:

Optional Equipment:

The CPB Model Mobile Cabinet Body Clamp combines electrically driven horizontal and vertical clamping with independent or simultaneous push bar control. With 2200kg of thrust in both directions, an inverter-controlled cycle, and an optional touchscreen and PLC controls, the CPB Model Mobile Cabinet Body Clamp provides a configurable solution for cabinet body clamping.
