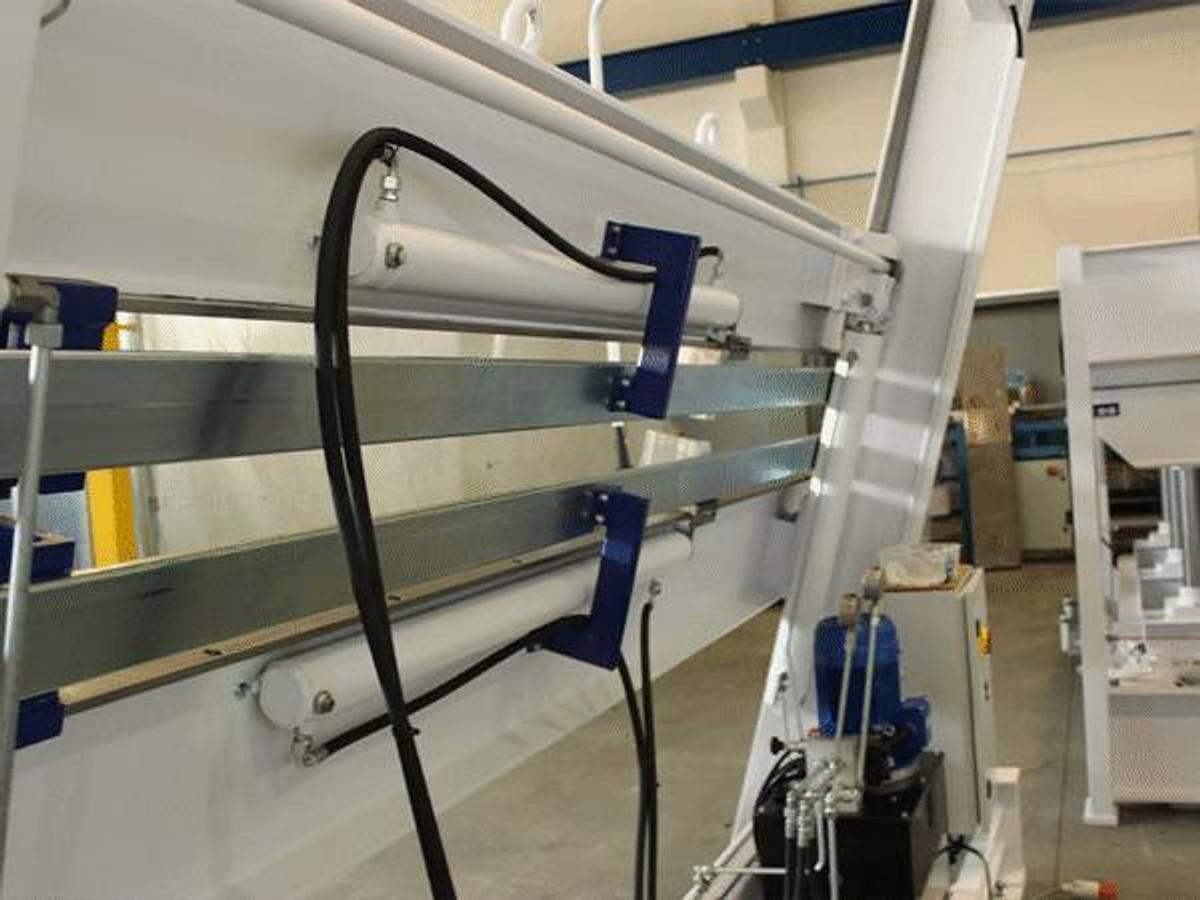

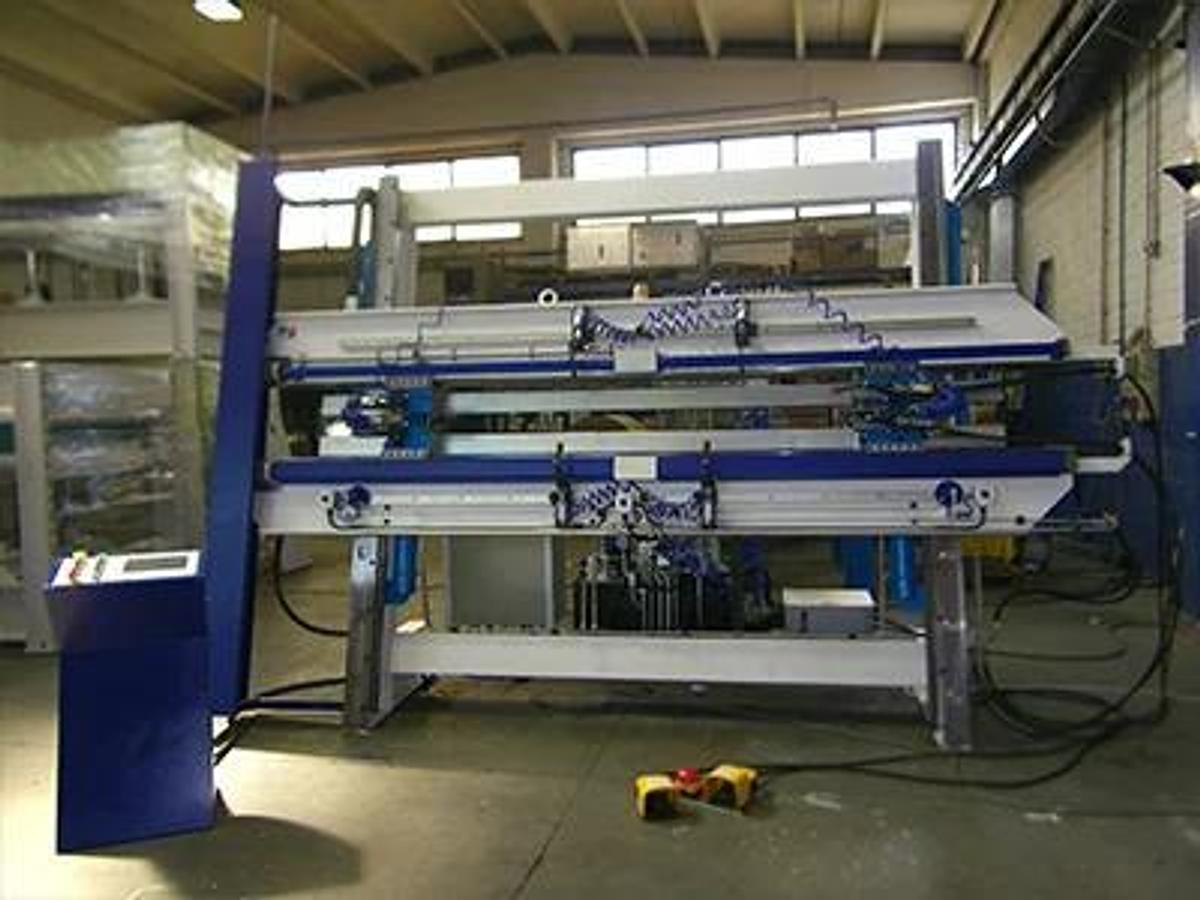

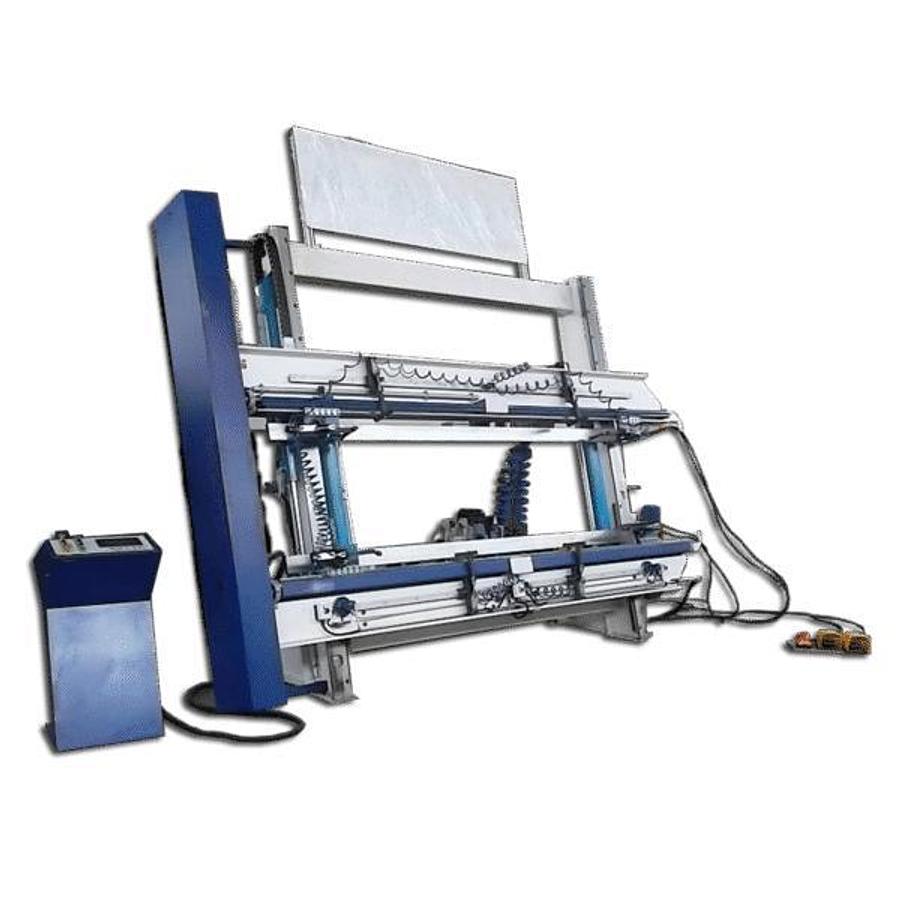

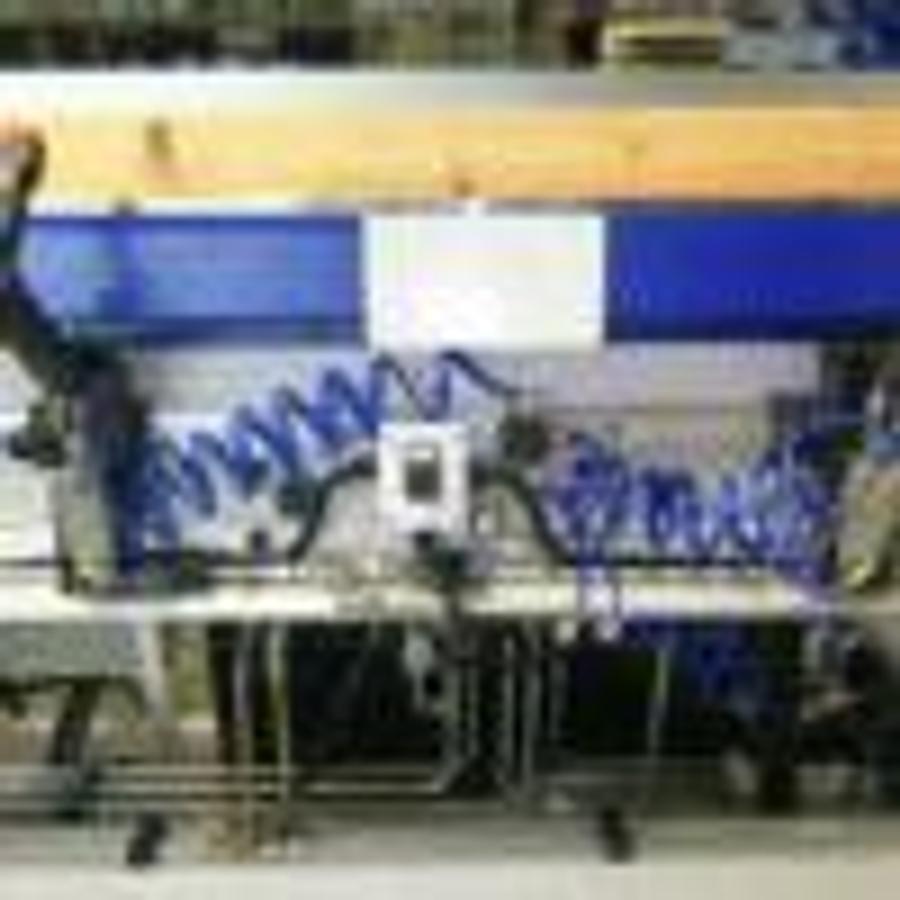

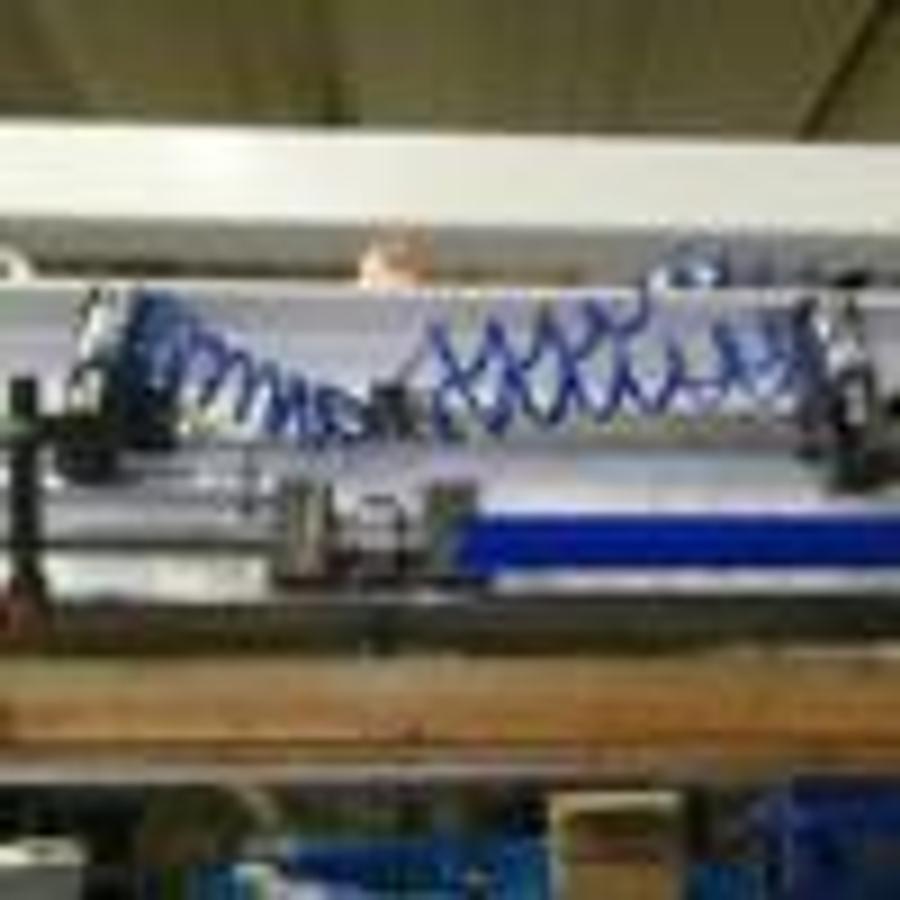

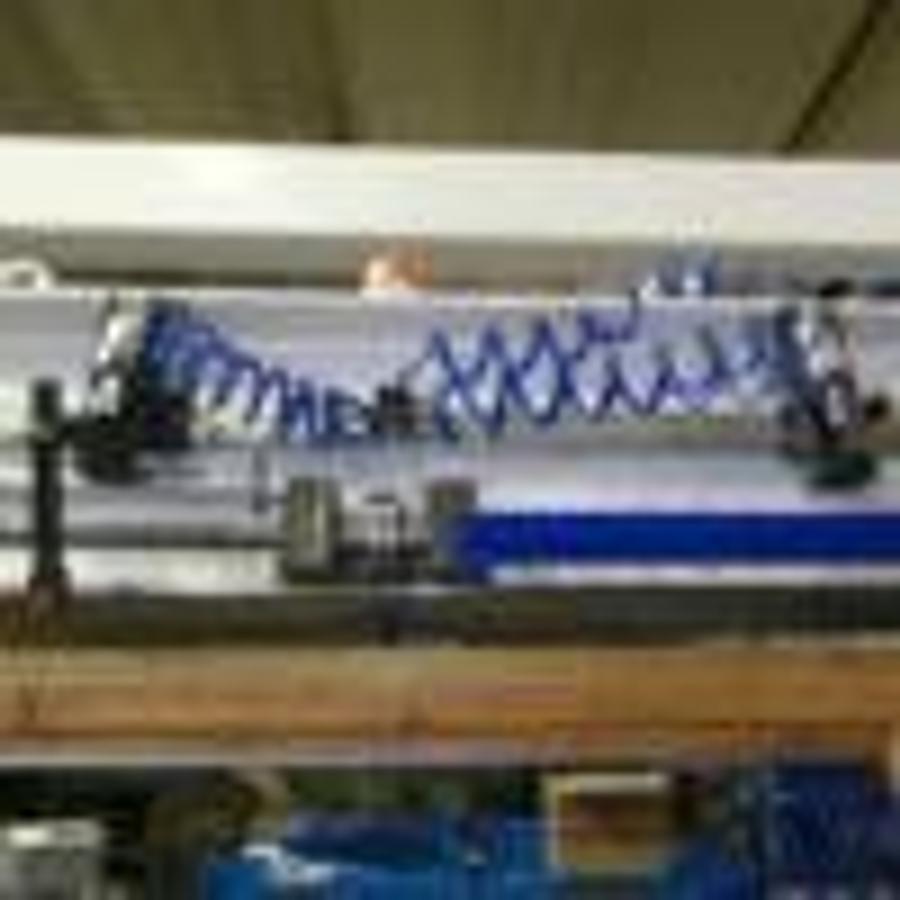

SBU CNC

Description

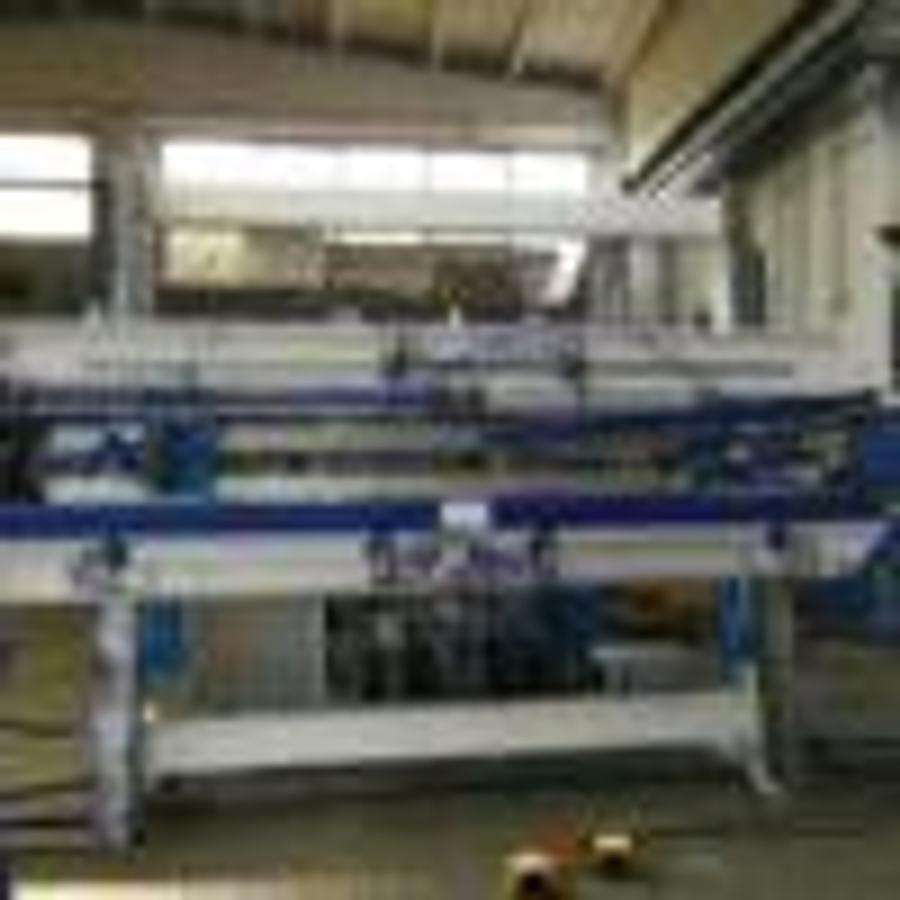

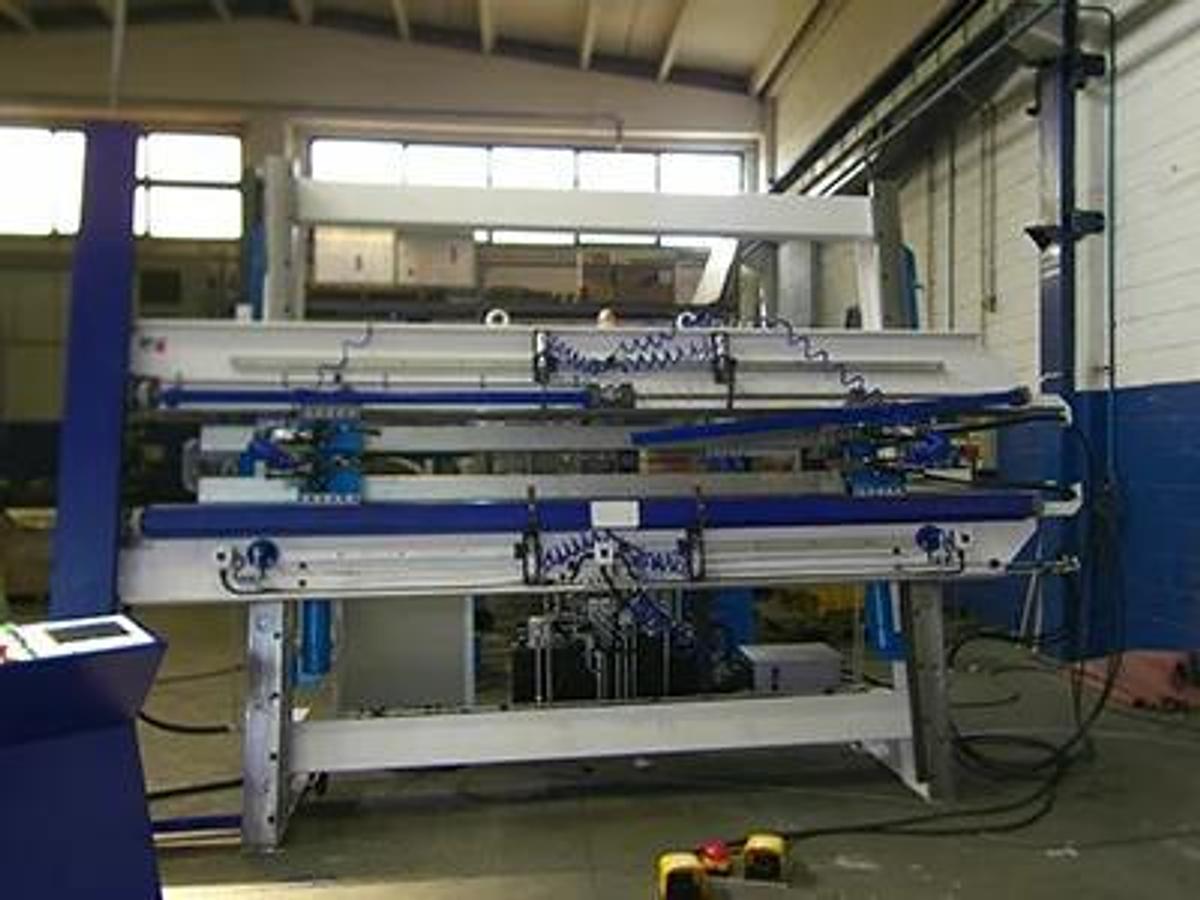

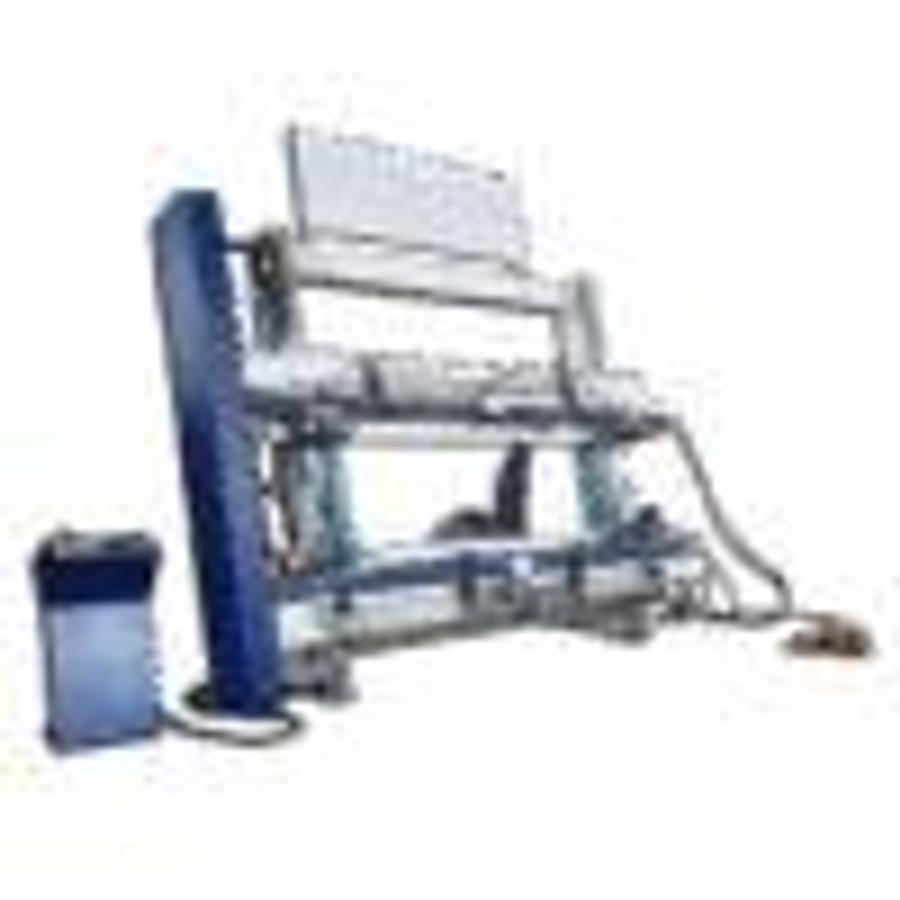

The SBU CNC is designed for gluing traditional and pre-finished windows and fixtures. The machine can be used for the production of various types of windows, doors, and frames, including trapezoidal and triangular frame shapes.

The SBU CNC is available in four useful working dimensions, ranging from 3000 x 1700mm to 3500 x 2500mm. Its standard configuration includes vertical and horizontal pistons, positionable fixed contrast squares, hydraulic thrusting squares, handling cylinders, electronic linear transducers, and a digital touchscreen control panel.

The SBU CNC can also be equipped with a range of optional equipment for different window, door, and frame production requirements.

Functions:

Gluing of traditional windows

Gluing of pre-finished windows

Gluing of fixtures

Final Products:

Various types of windows

Various types of doors

Various types of frames

Trapezoidal frames

Triangular frames

Useful Dimensions:

30/17: 3000 x 1700mm

30/20: 3000 x 2000mm

35/20: 3500 x 2000mm

35/25″ 3500 x 2500mm

Standard Equipment:

The SBU CNC includes:

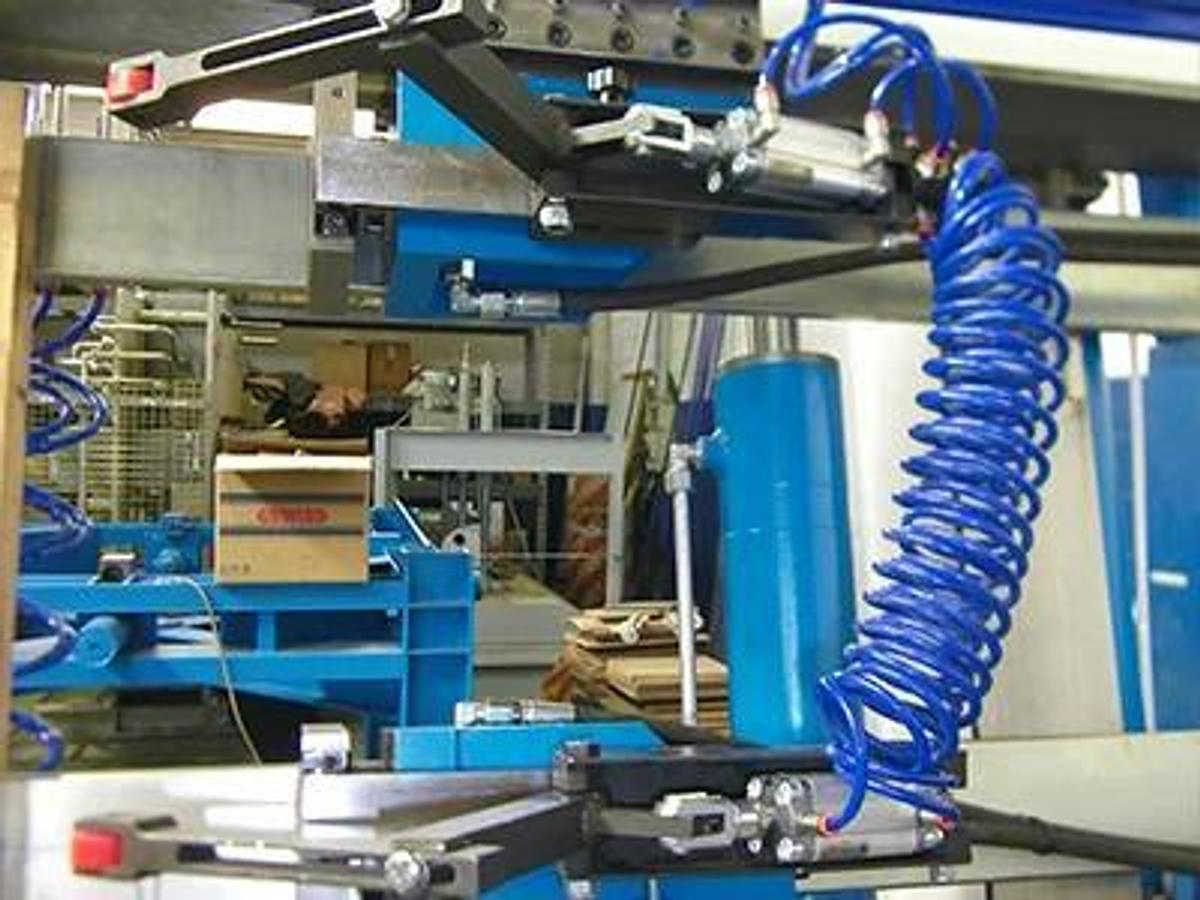

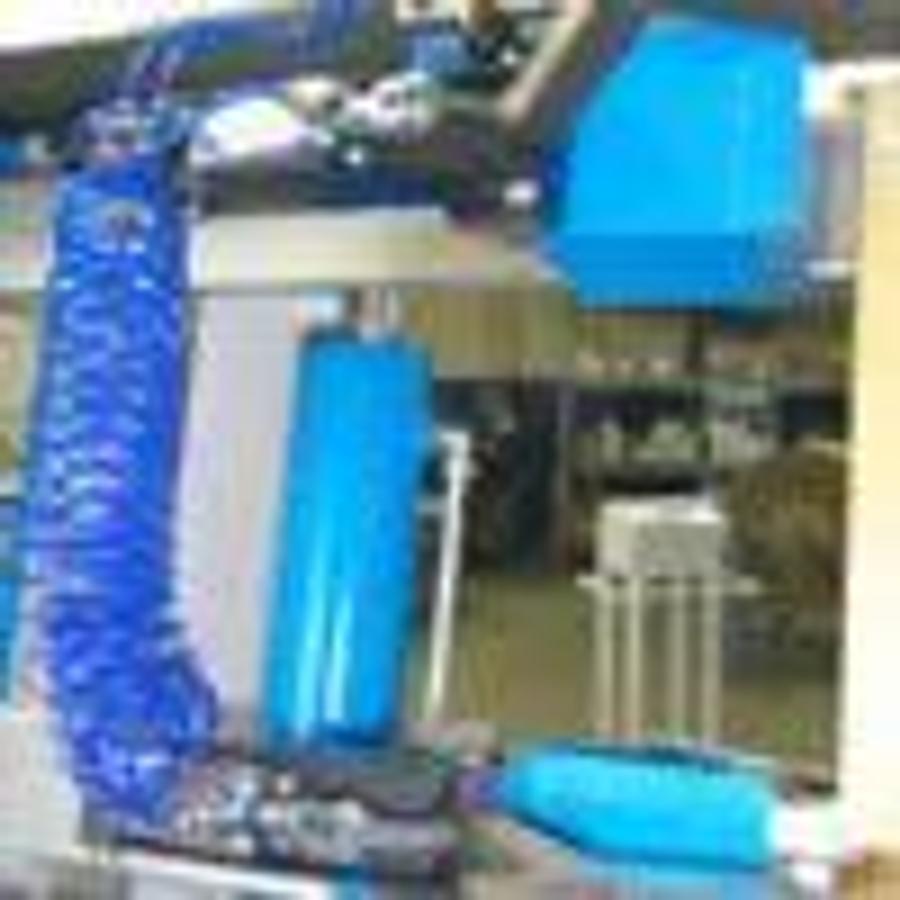

2 vertical pistons

2 horizontal pistons

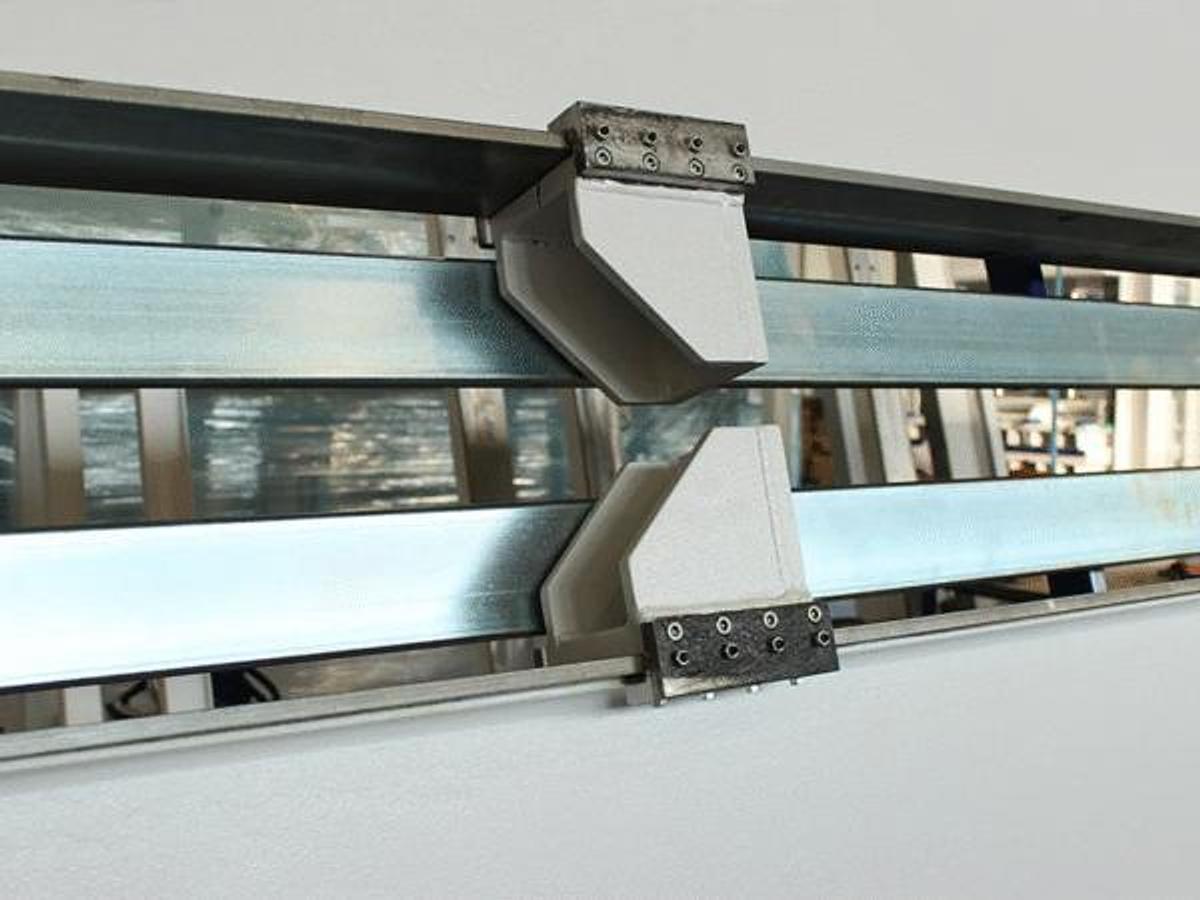

2 positionable thrusting squares

2 handling cylinders

Pre-assembly

Electronic linear transducers

Digital touchscreen control panel

Optional Equipment:

Equipment for jealousy with a fixed, non-removable step

Pneumatic fixed-pitch strainer equipment

Work surface beams covered with PVC

Pedalboard for pulsed, step-by-step operation for the vertical cylinders

Pre-assembly of the frame that can be flipped by means of a sensor

Additional horizontal bar with piston and counter-basted

Hydraulic system for low pressures

Magnetic squares for pre-finished products

Oscillating squares for trapezoidal frames

The SBU CNC combines horizontal and vertical pressing with electronic linear transducers and touchscreen controls for the gluing of traditional and pre-finished windows and fixtures.

Specifications

Condition

New
