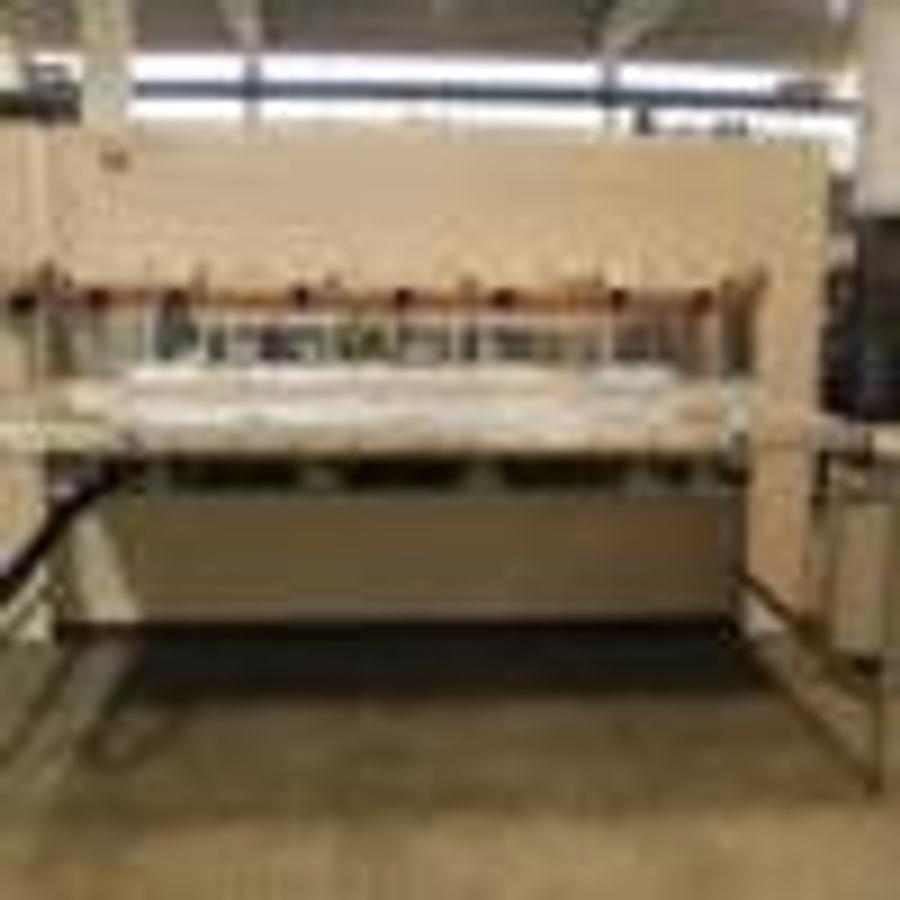

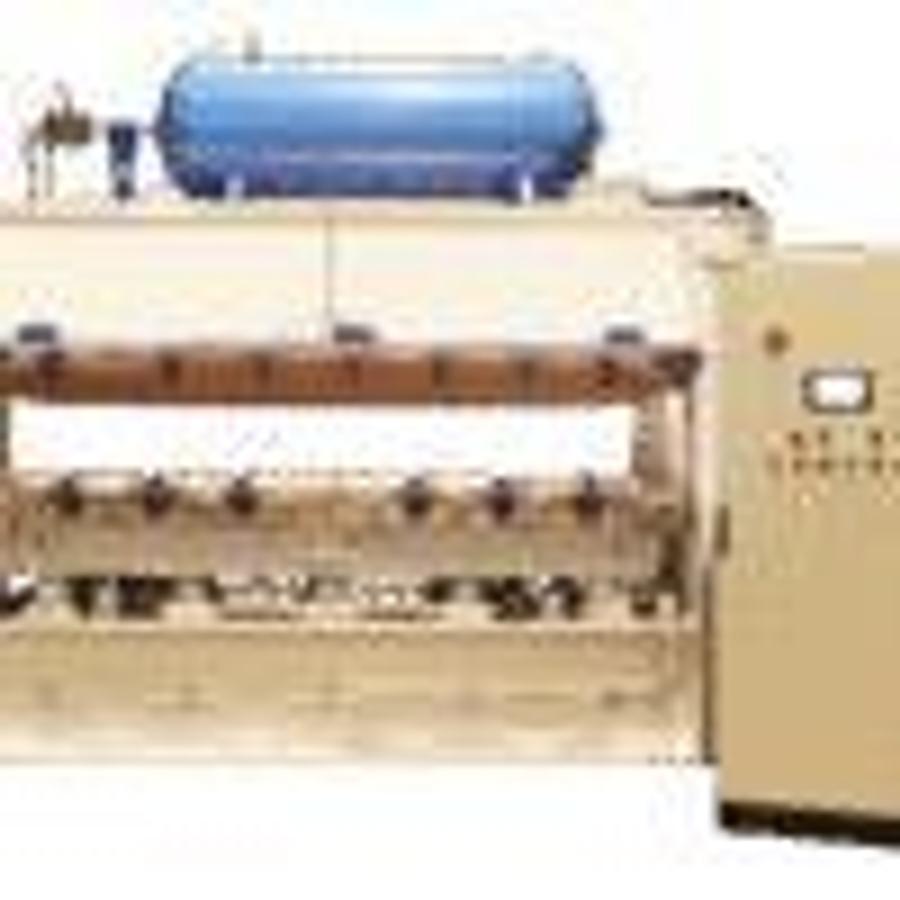

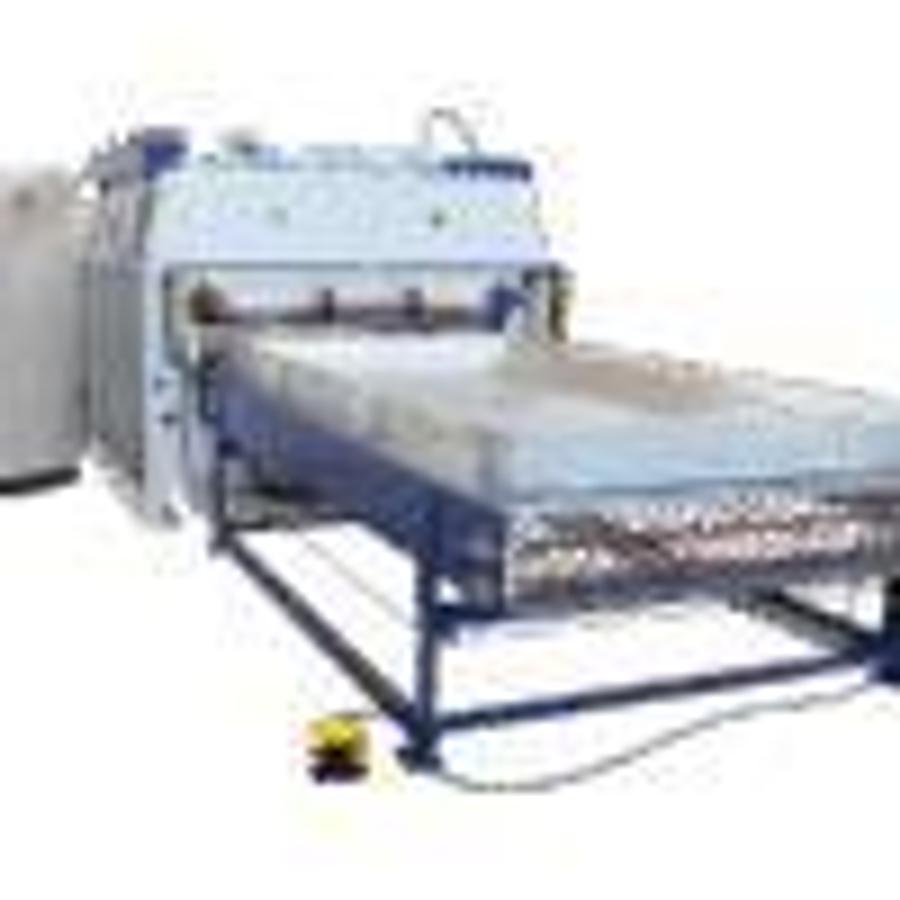

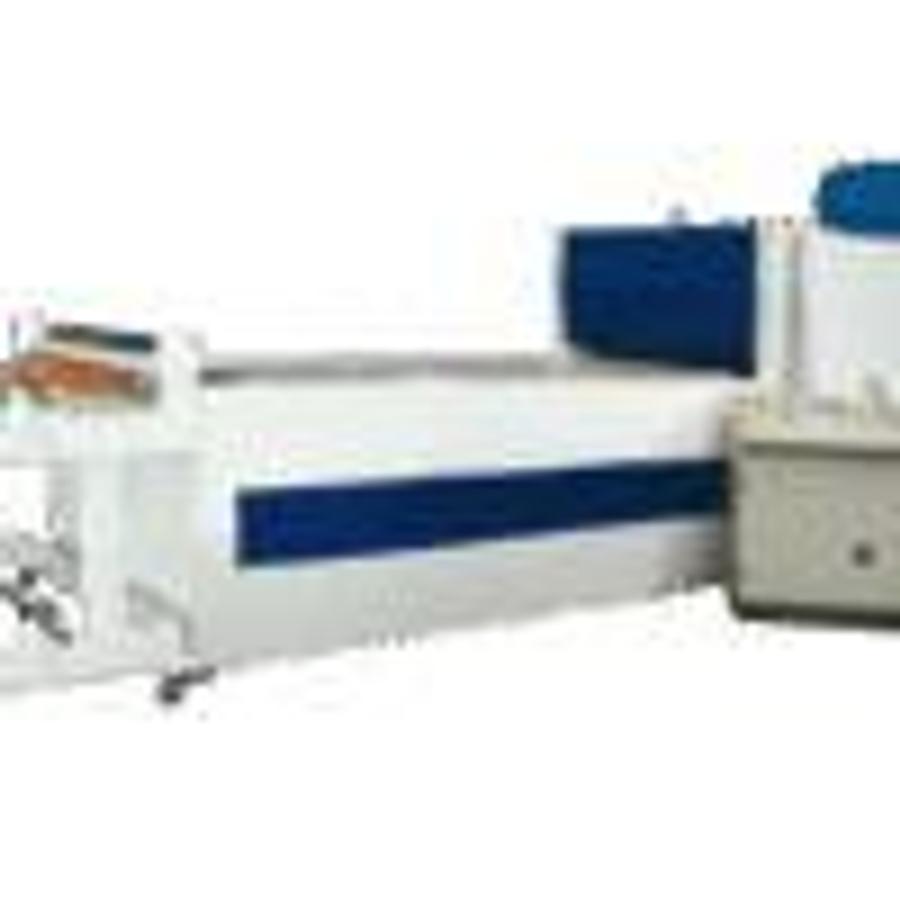

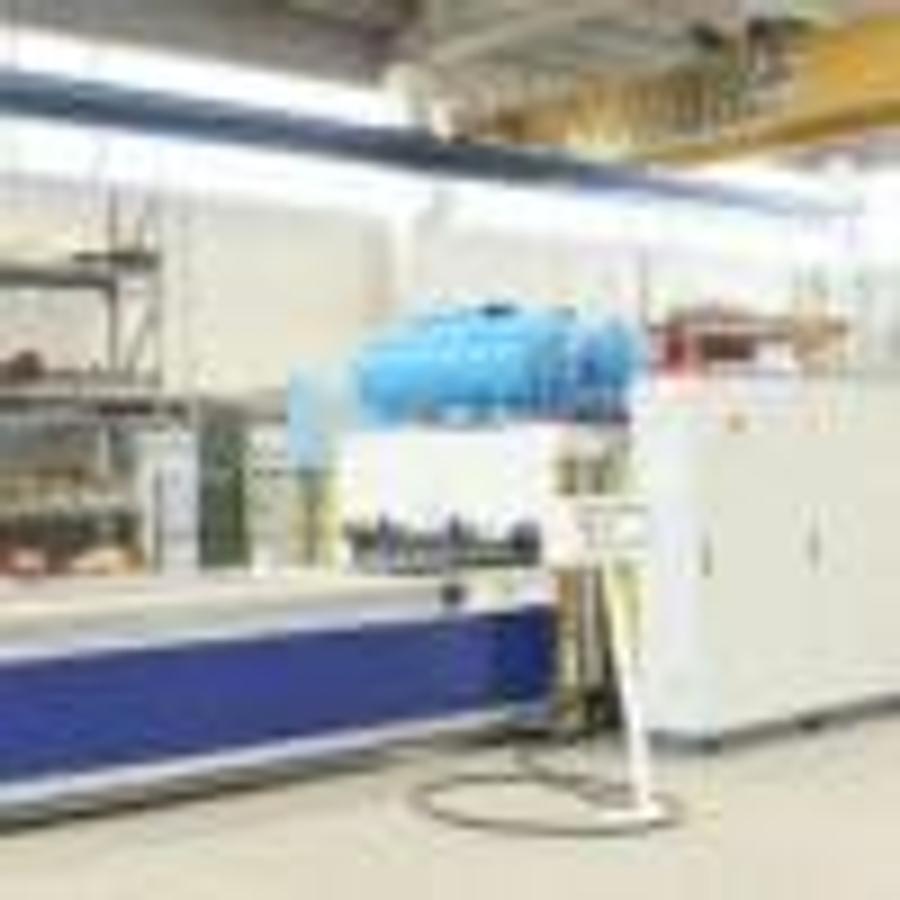

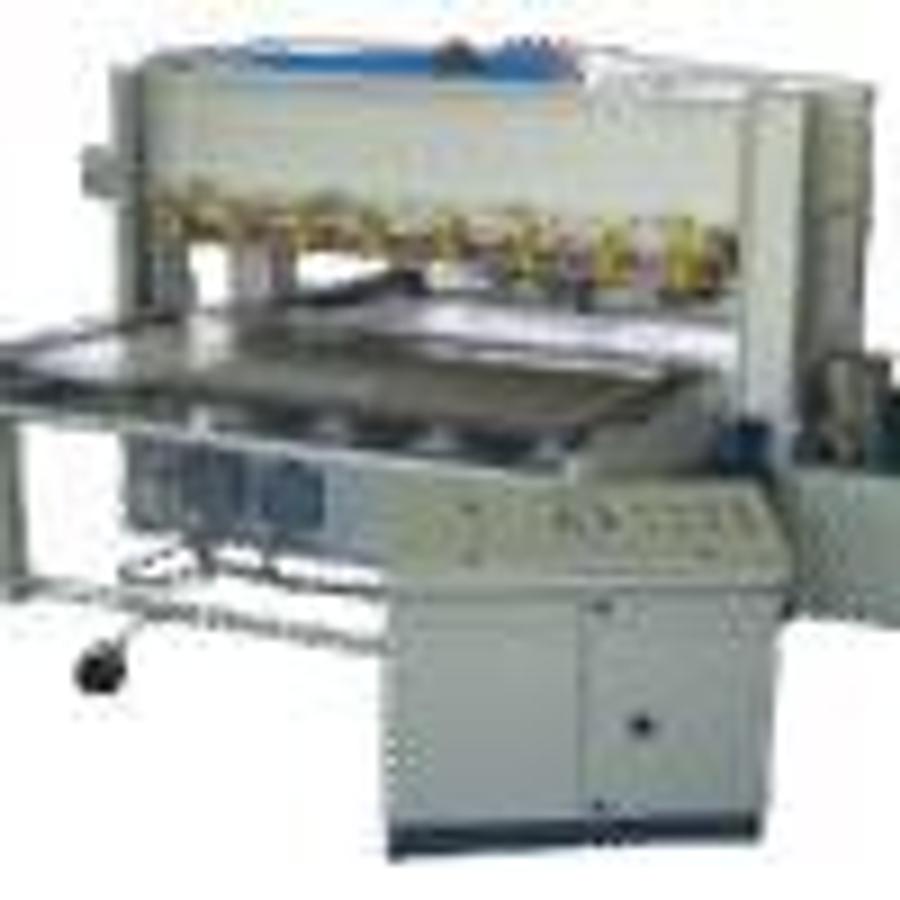

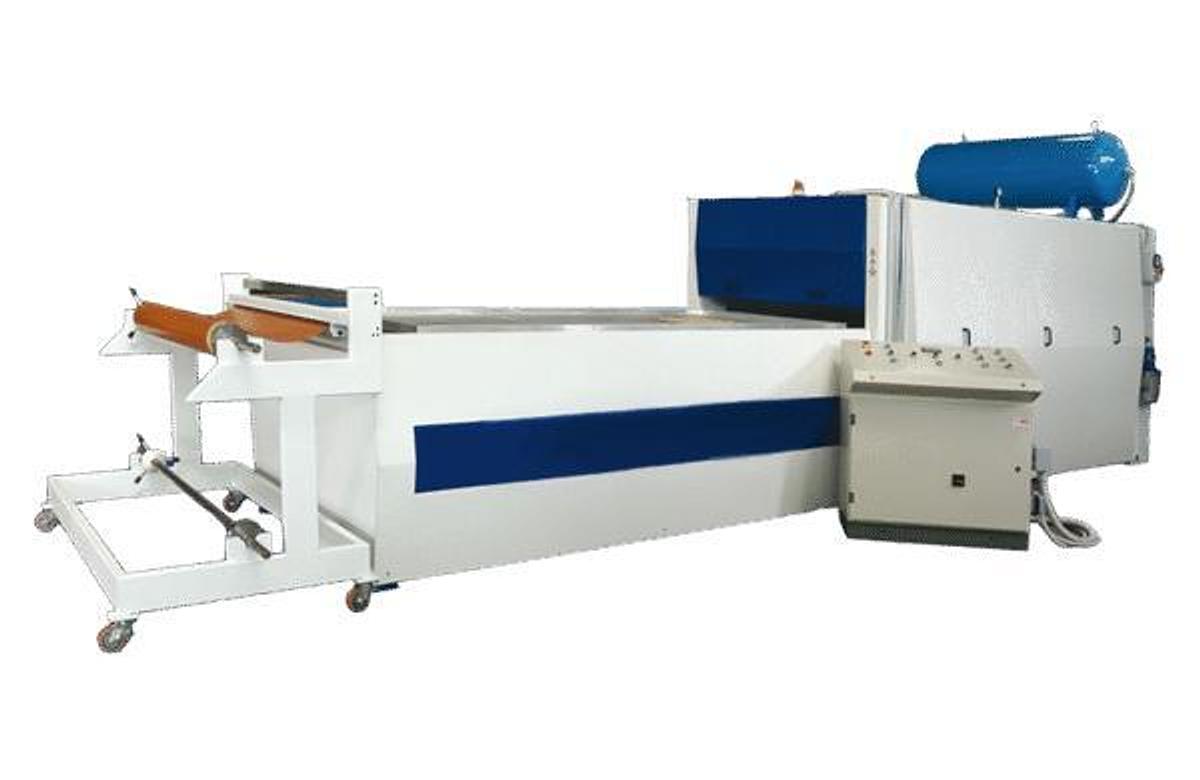

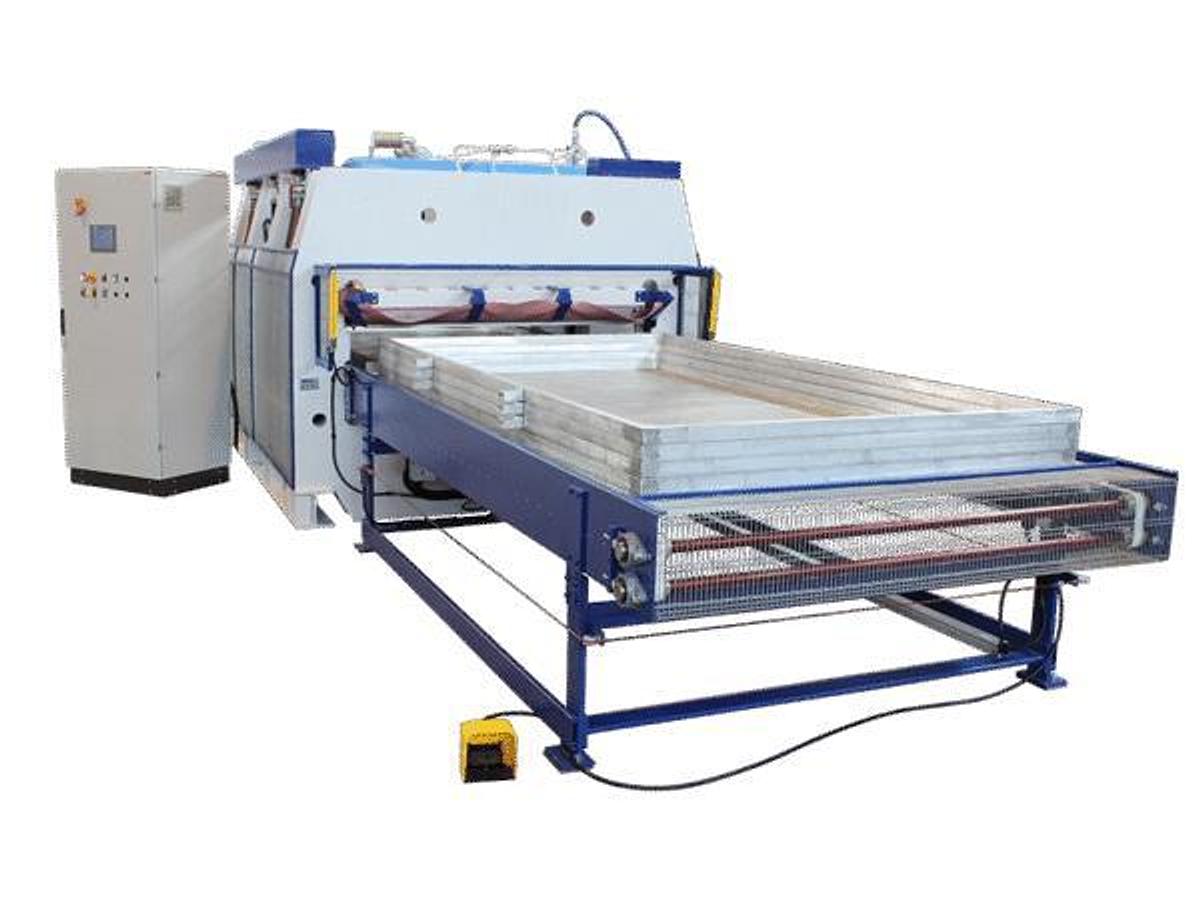

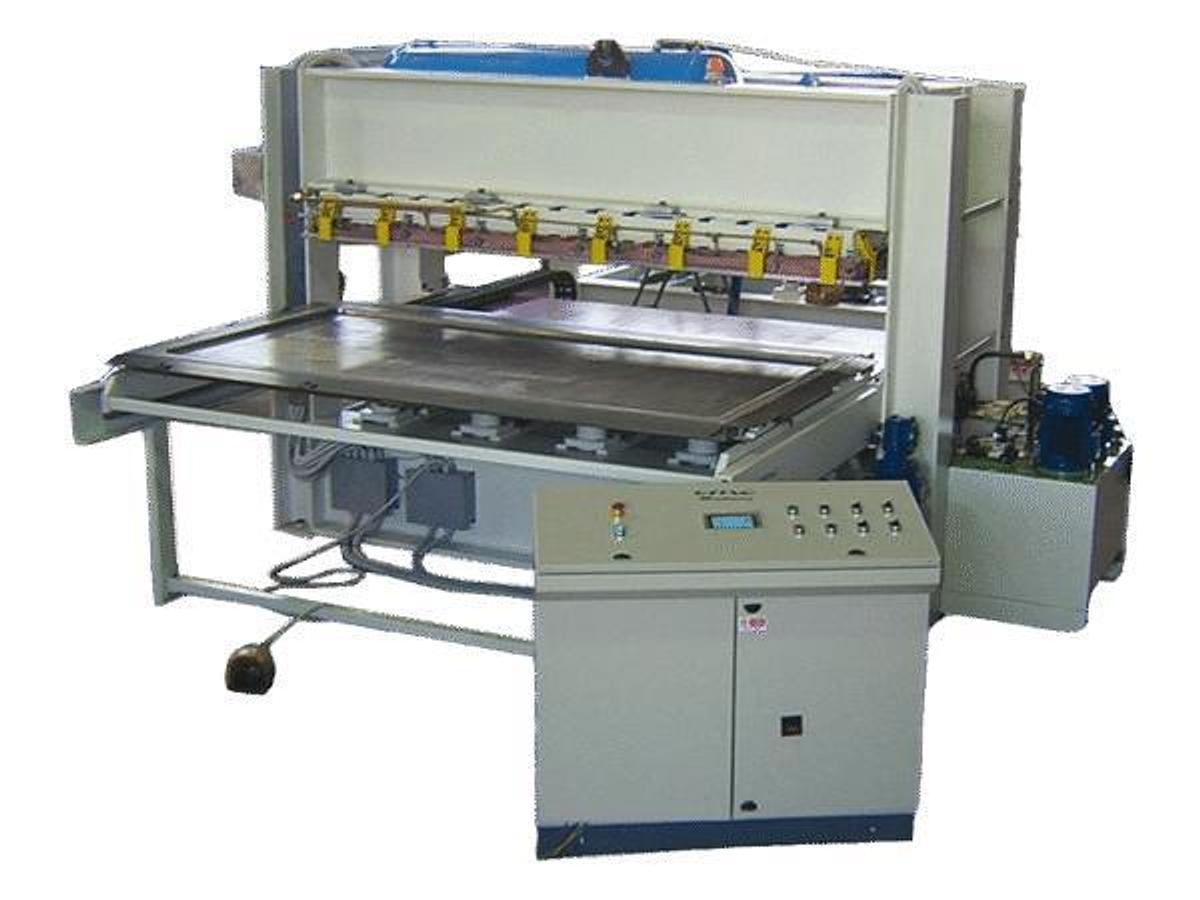

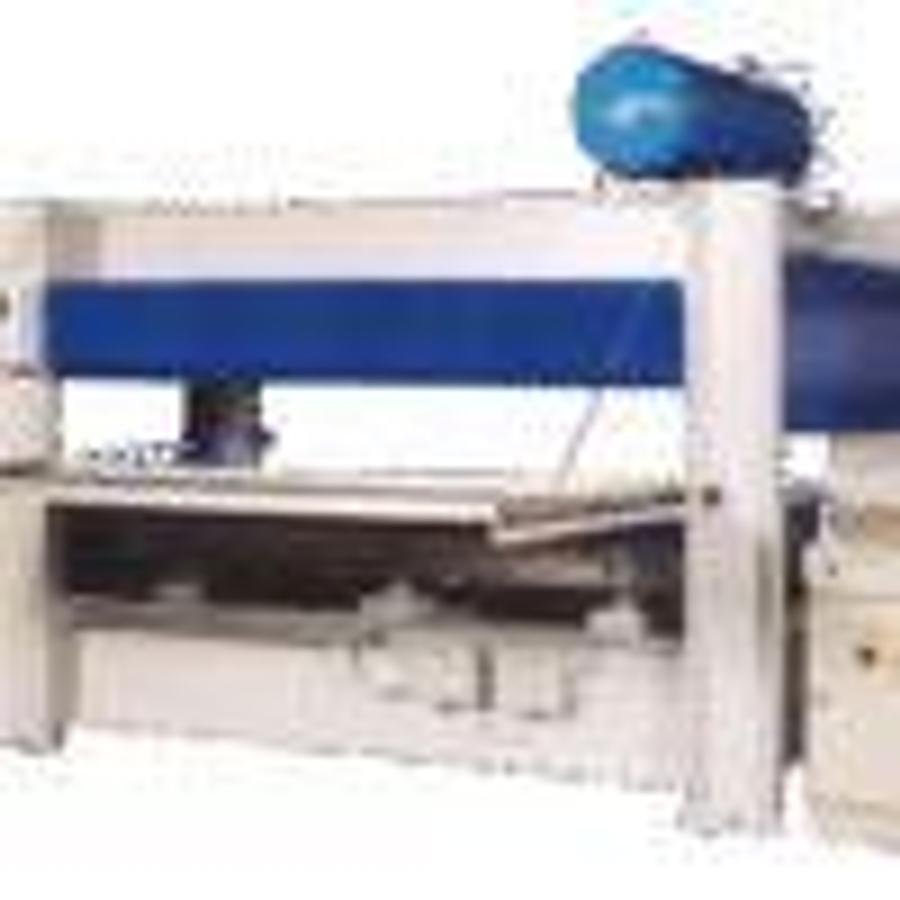

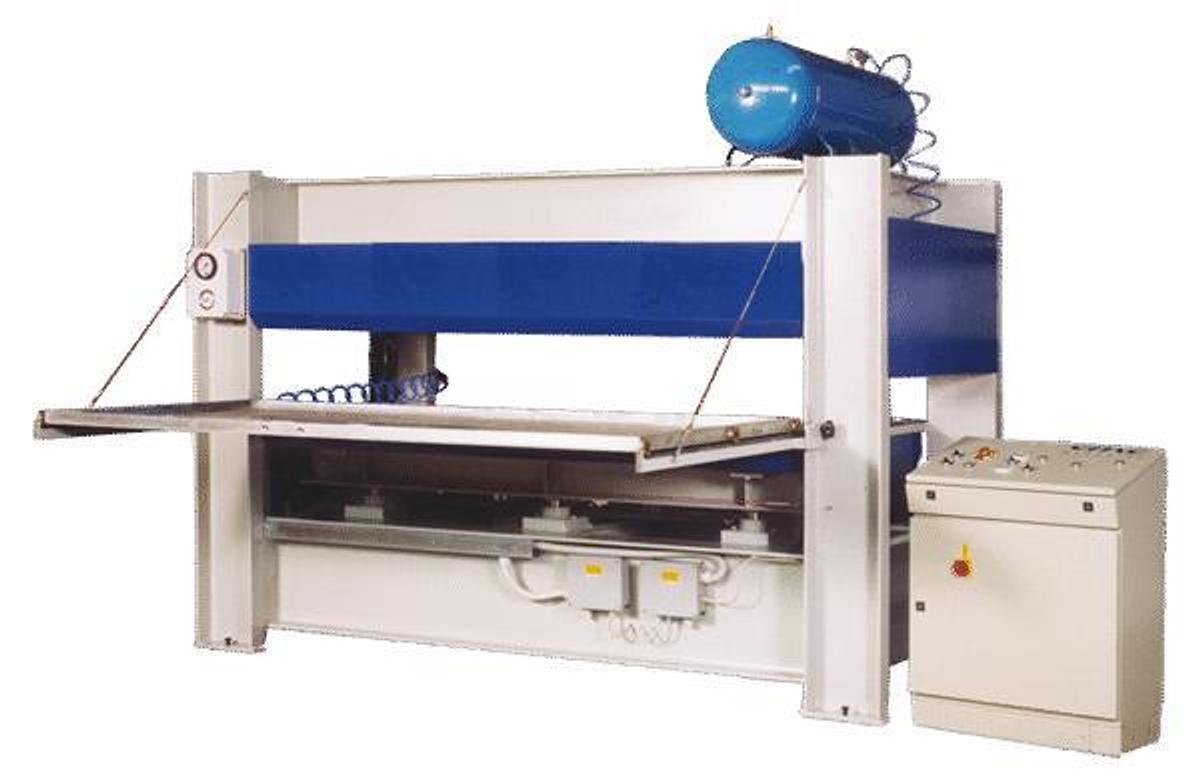

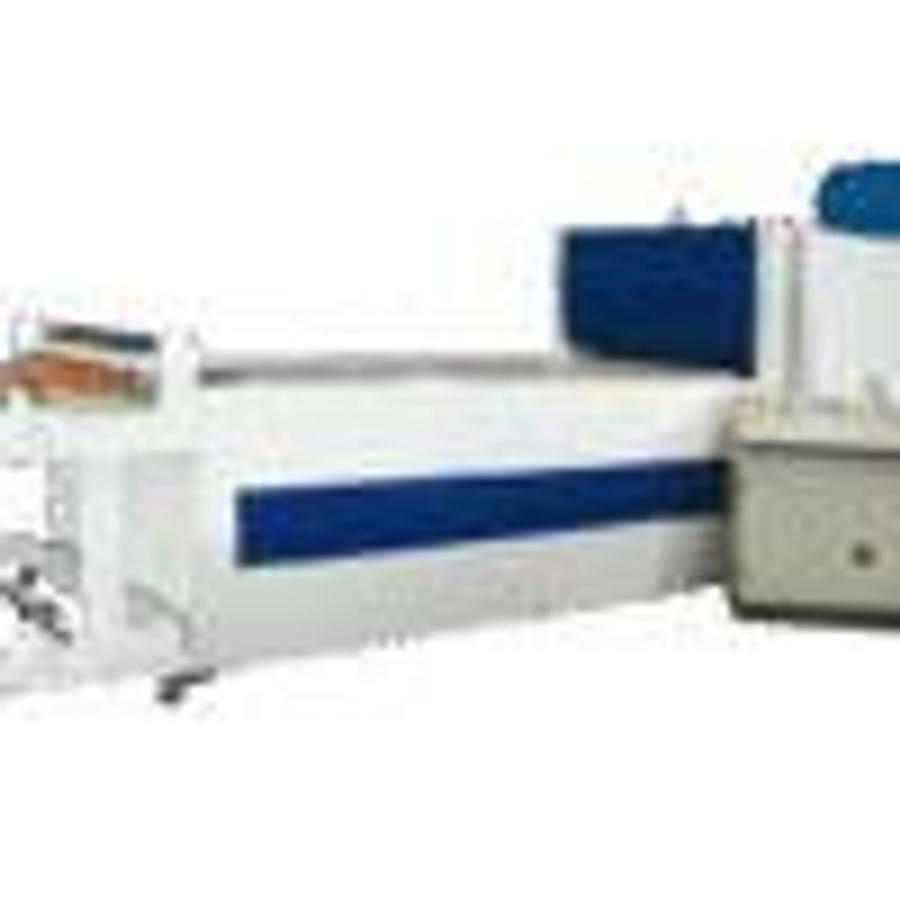

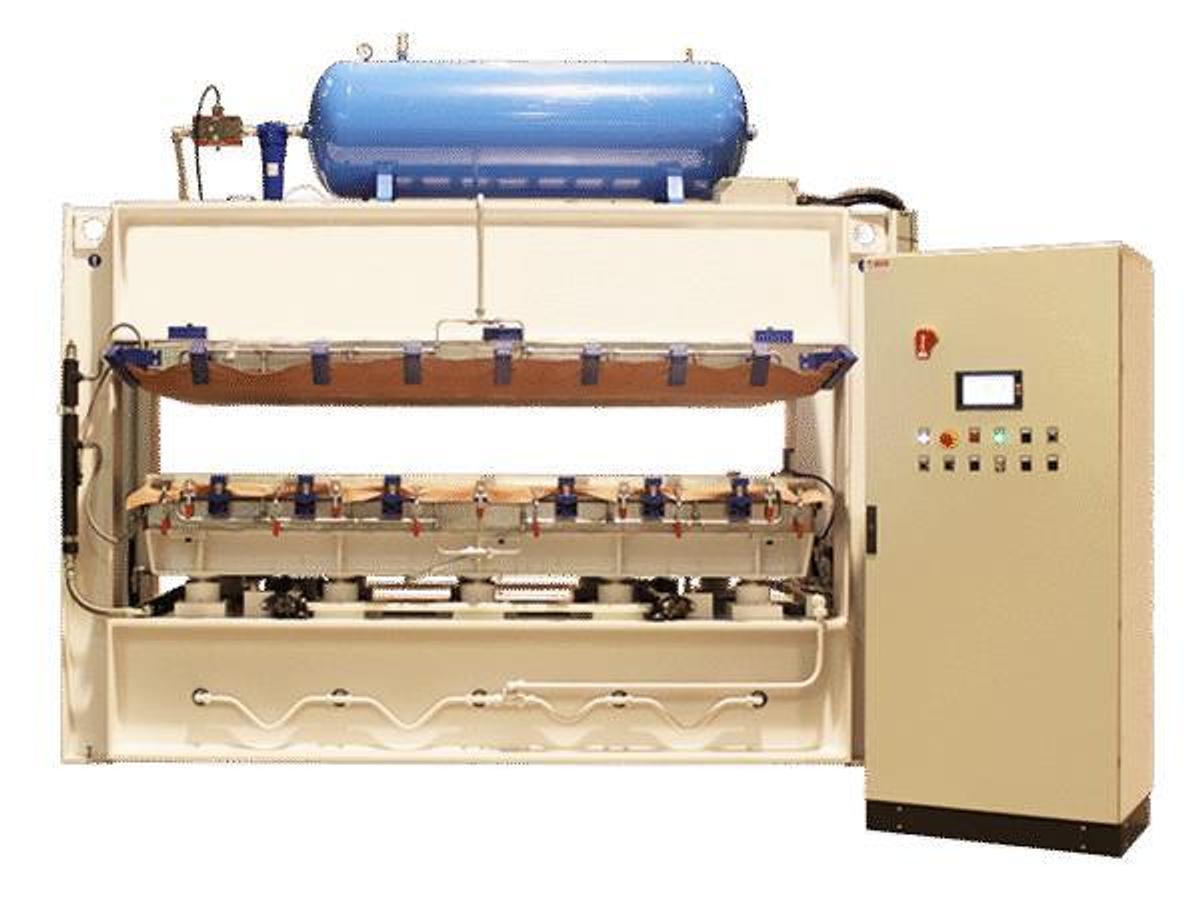

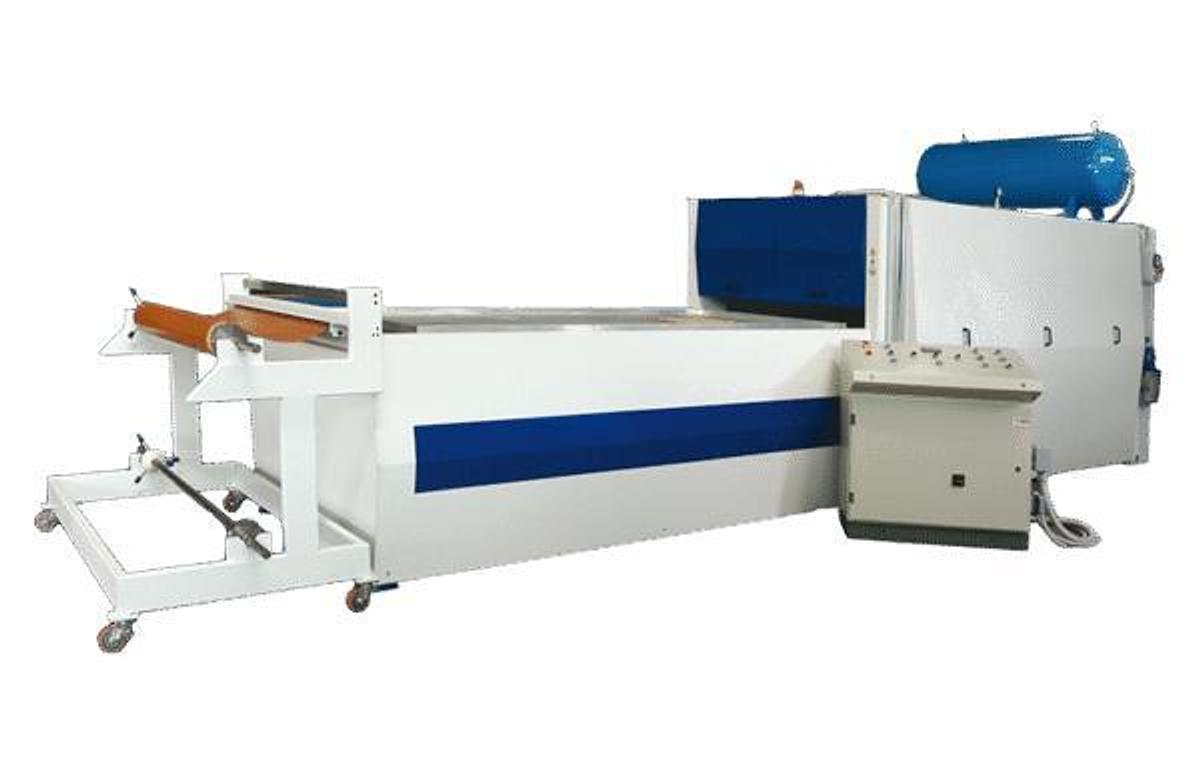

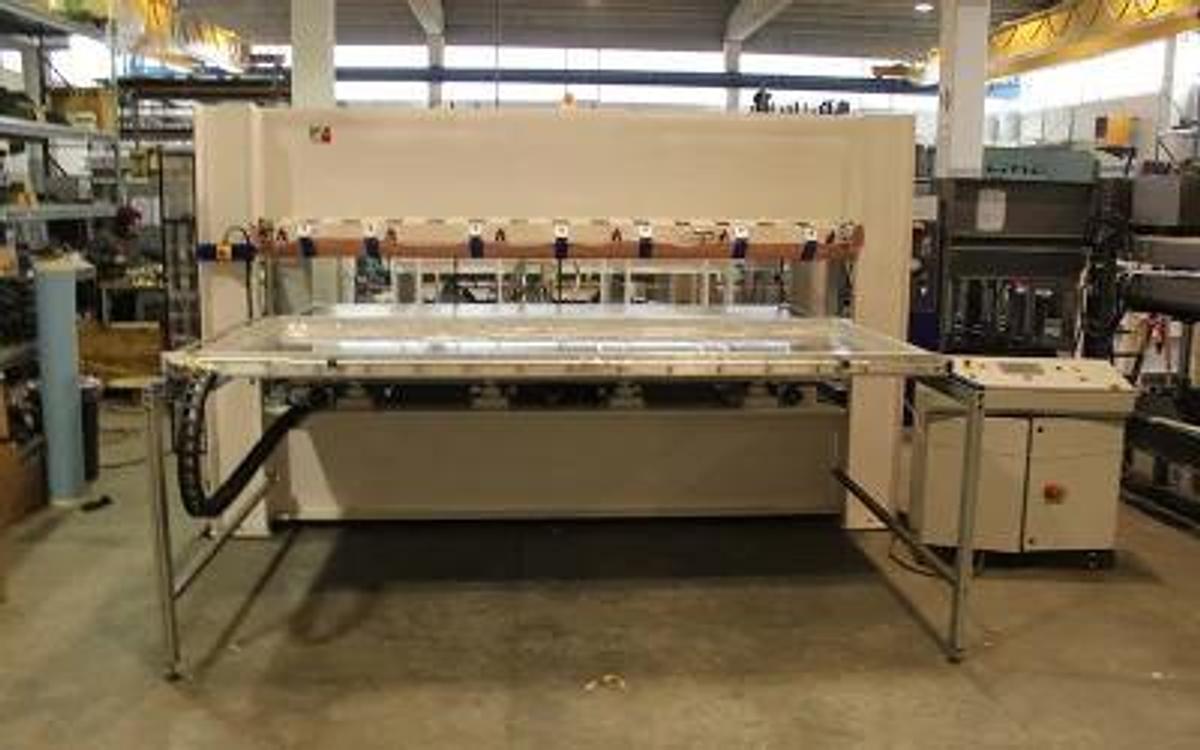

The PL Conversion M is a membrane press designed for the application of 3D thermoforming films and veneer on one side of shaped surfaces. Part of the PL Conversion series, it uses heat, air, and vacuum and is designed to achieve production volumes suitable for small and medium-sized enterprises.
The PL Conversion M can apply PVC, PPE, ABS, and other 3D thermoforming films with or without a membrane, depending on the application. For veneer application on shaped surfaces, the use of the membrane is always required. The press is equipped with a system that allows the membrane to be quickly attached and removed.
The PL Conversion M is also a standard hot/cold press for veneer and laminate application. Material is manual loaded from the long side, with two available working sizes and pressure configurations.
Functions:
Application of 3D thermoforming films including PVC, PPE, and ABS on shaped surfacesThermoforming with or without membrane depending on the applicationApplication of veneer on shaped surfacesHot/cold pressing for veneer and laminate applicationFinal Products:
Various types of shaped panelsShaped componentsFurniture doorsBathroom furniture doorsKitchen furniture doorsLoading:
Manual loading from the long sideWorking Sizes:
PL Conversion M 25/13
Working Area: 2350 x 1180mmThrust: 3.5 + 1 kg/cm²PL Conversion M 30/13
Working Area: 2800 x 1180mmThrust: 4 + 1 kg/cm²Common Features:
Solid drilled steel work surfacesMaximum working temperature: 250°CMaximum specific working pressure: 30 kg/cm²Steel plate work surfaces with holes for the circuitOil boiler with maximum oil temperature of 120°C, customizable for higher temperaturesDiathermal oil heating fluidDigital touchscreen control panelStandard Equipment:
1 rubber membraneDiathermal oil heating1 vacuum pumpOptional Equipment:
The PL Conversion M can be equipped with accessories available for the PL Conversion series, including:

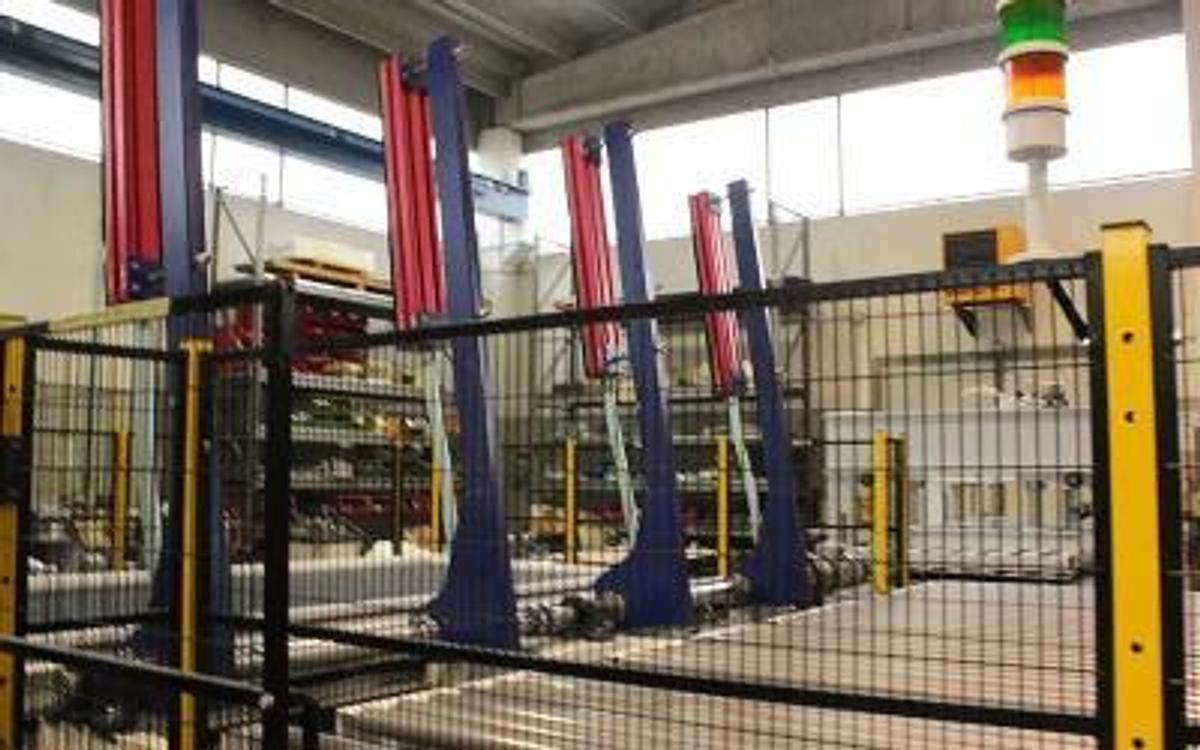

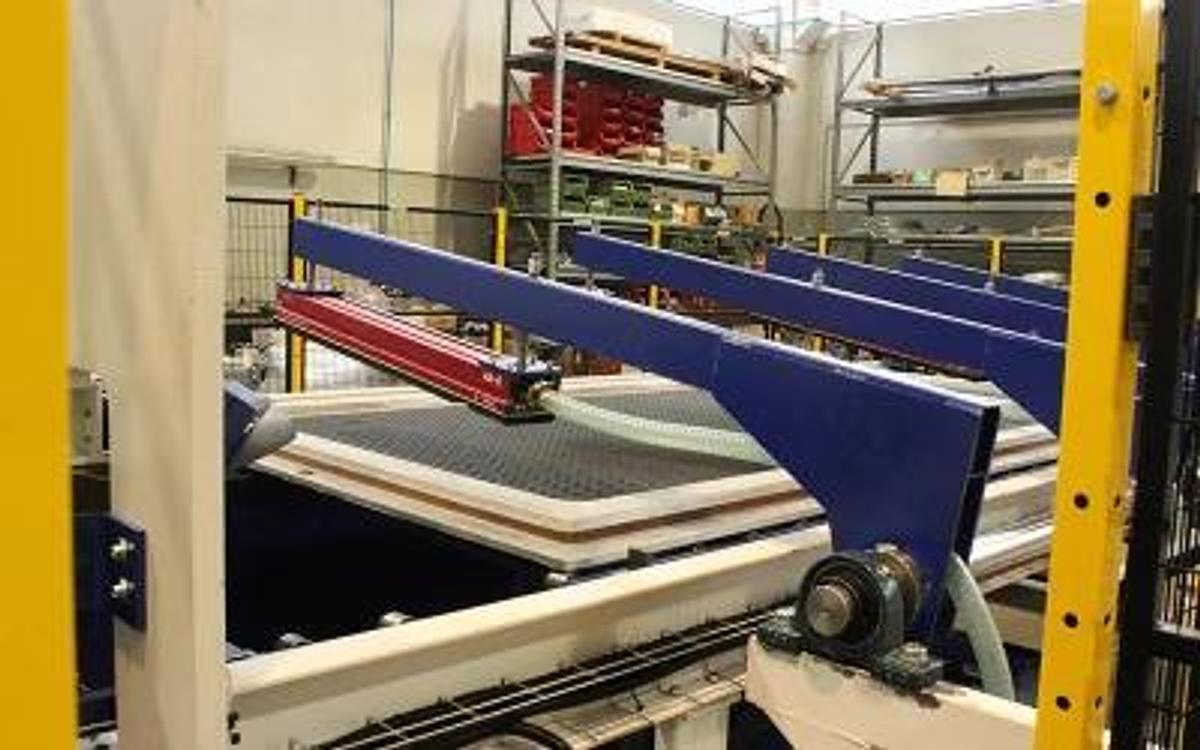

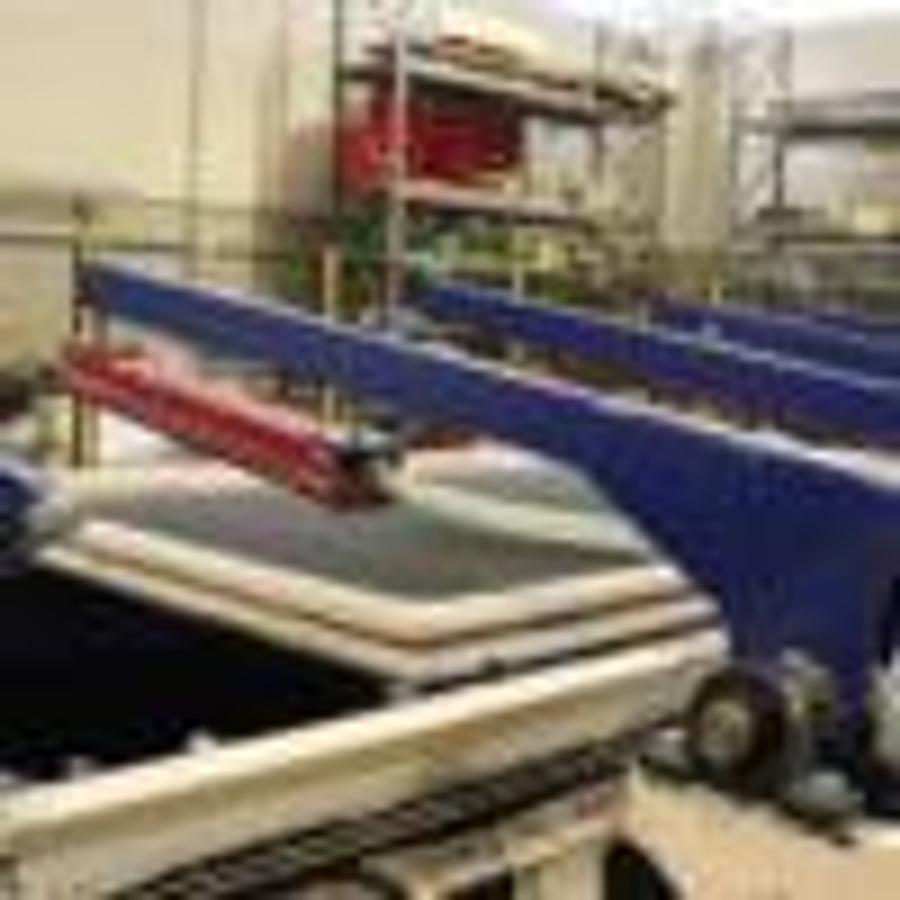

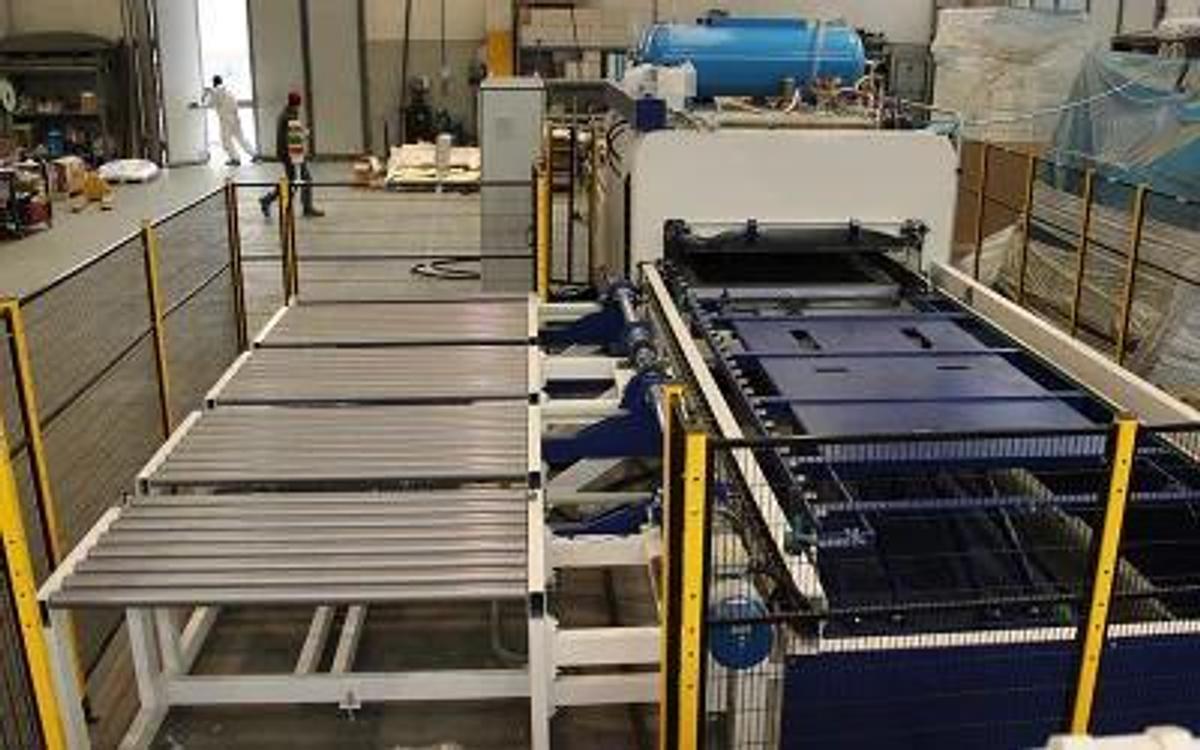

PVC unwinding cart with manual cuttingPVC unwinding trolley with pneumatic cuttingLoad group partializing barJIG System 25/14, magneticJIG System 30/14, magneticJIG System 25/14, electronicJIG System 30/14, electronic1400mm antistatic brushShiny PVC system with intermediate flange, software, and silicone membraneModular chamber, 90mm or 180mmSurface cleaning system for glossy PVCHigh Gloss PVC systemPVC granulatorPVC tensioning deviceTray scanning with distension and PVC cuttingRotation multi-station PVC warehouse with 10 coilsSuction cup tipper unloader with motorized roller conveyorThe PL Conversion M complies with the EC 2006/42/EC Machinery Directive.
