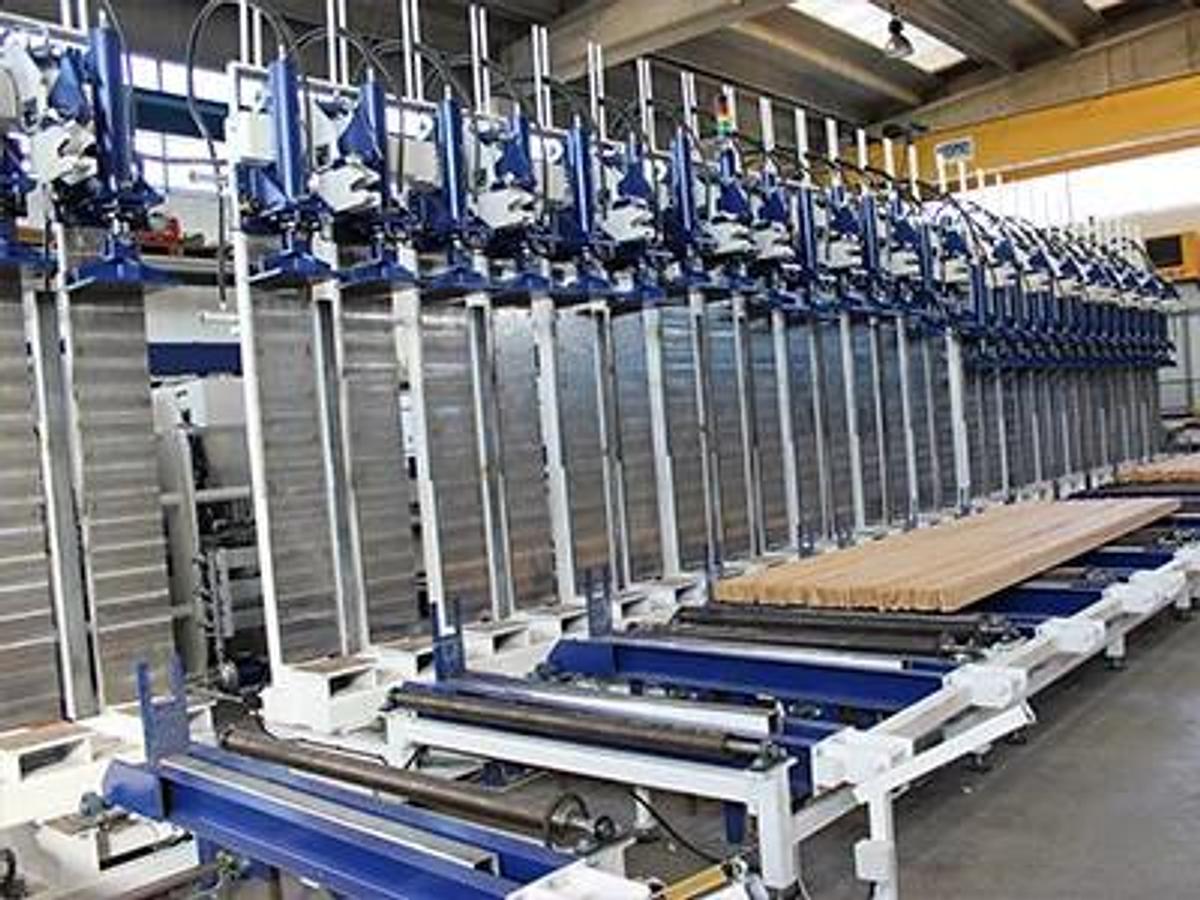

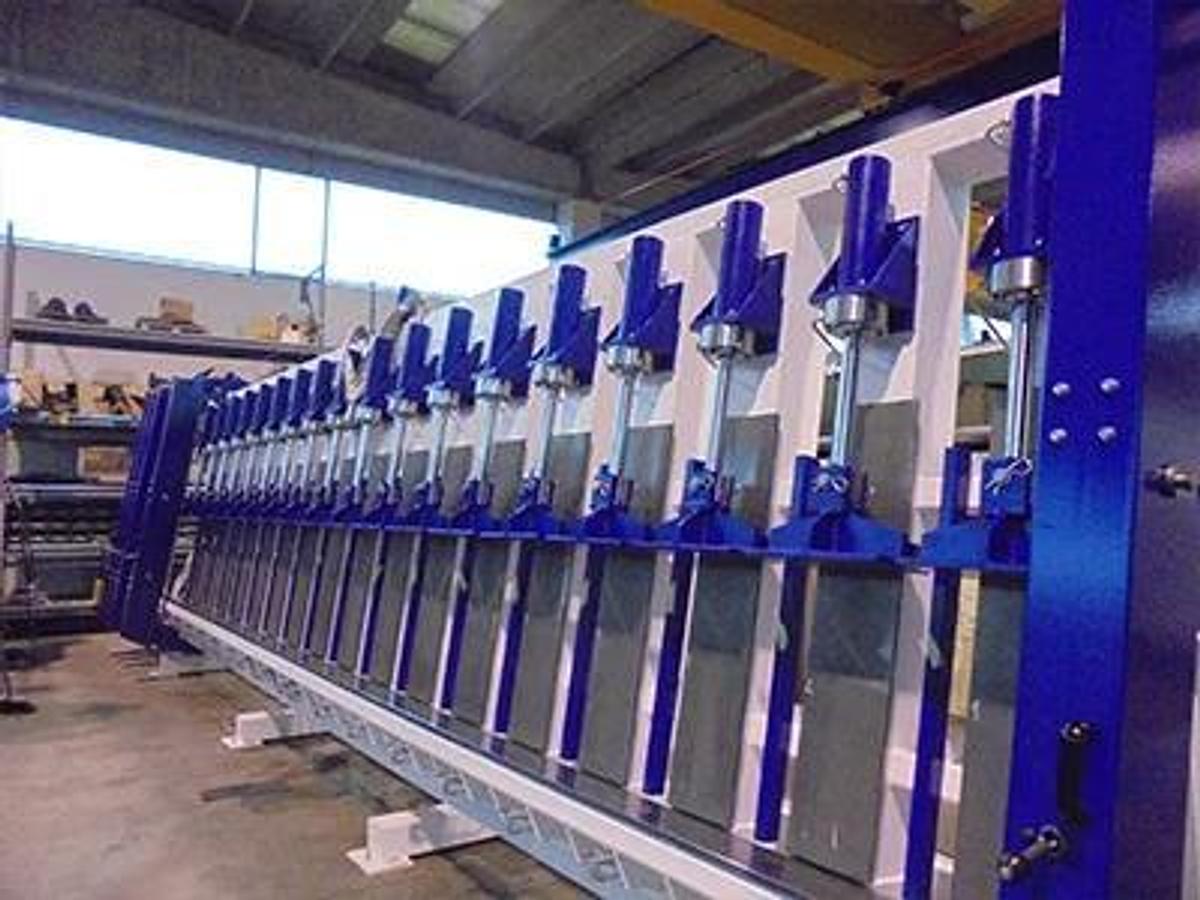

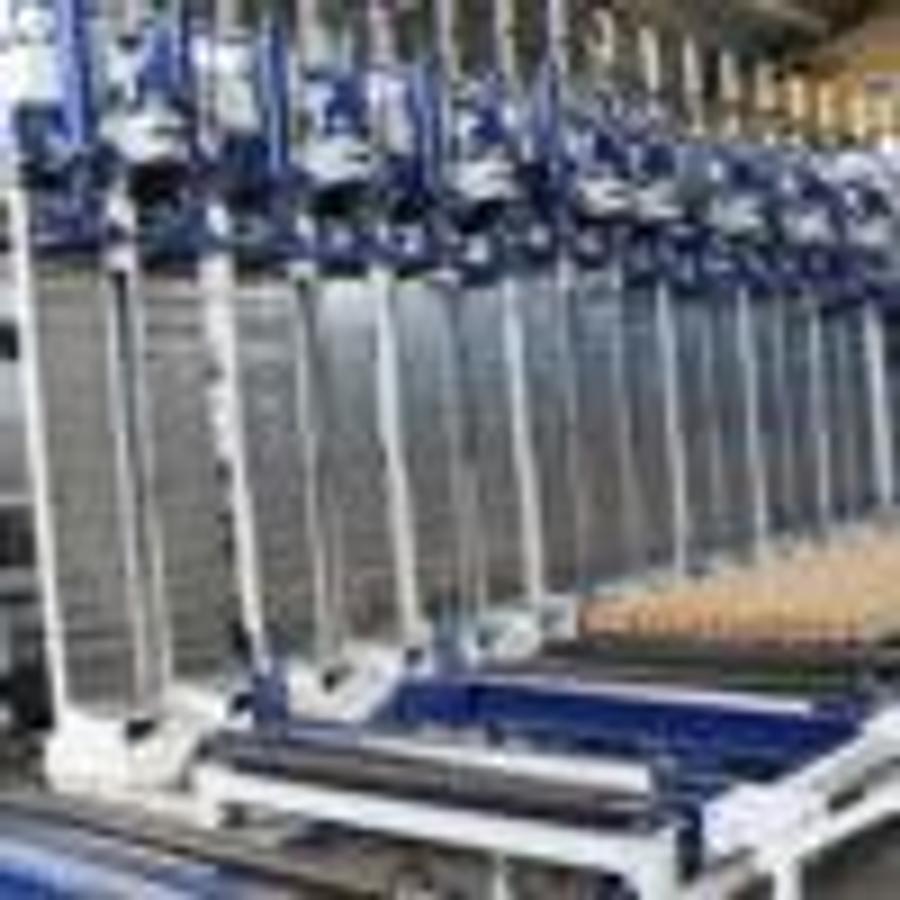

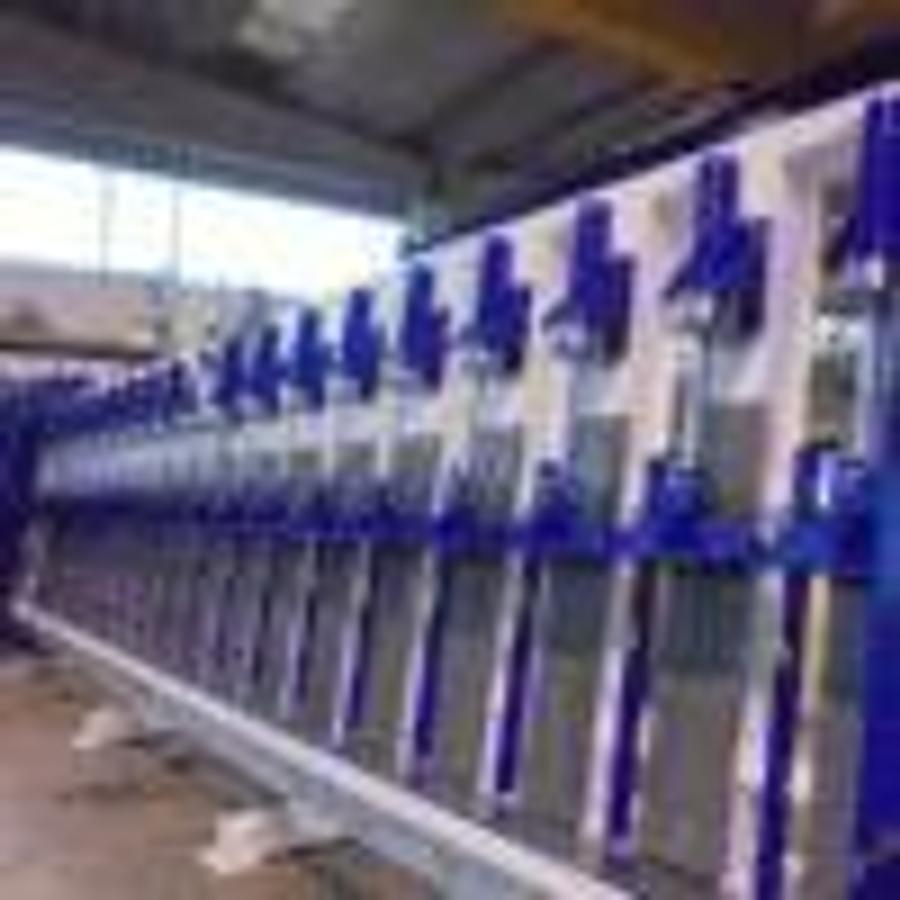

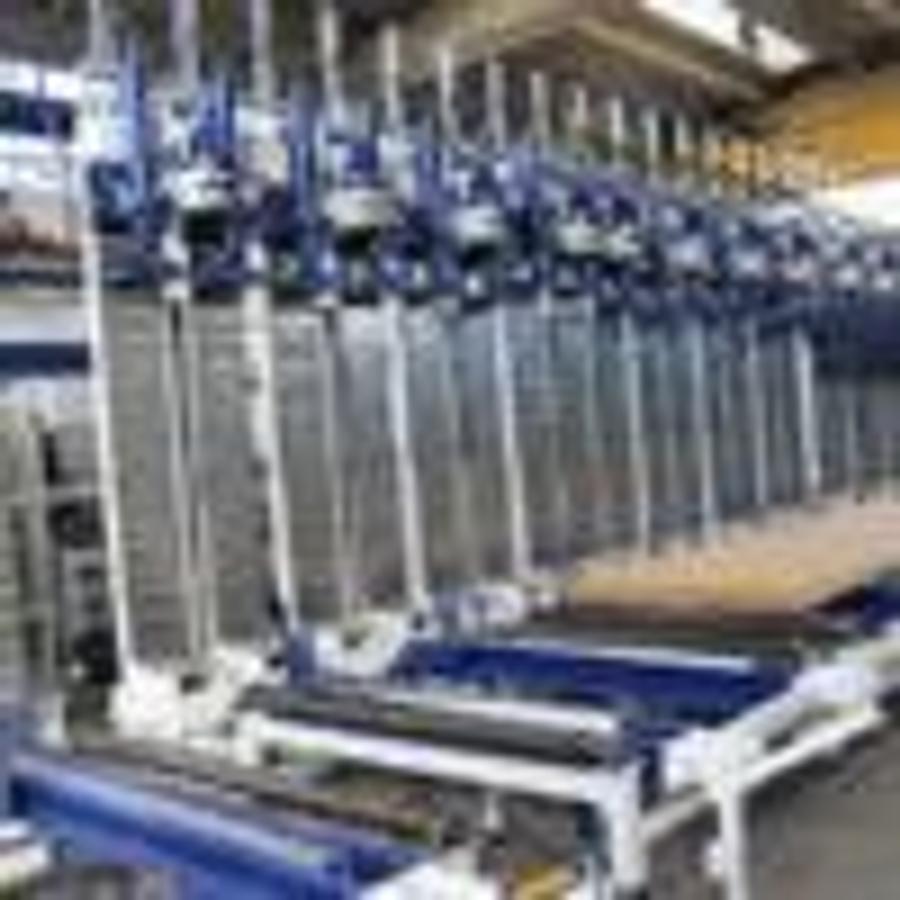

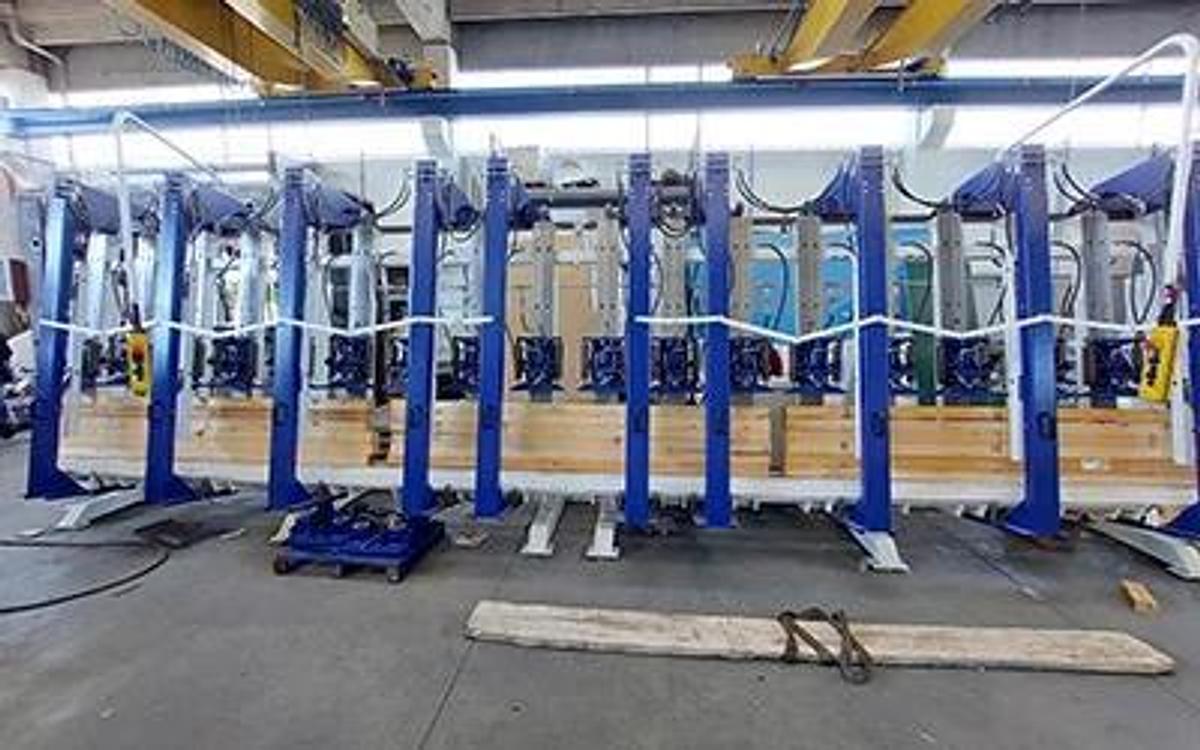

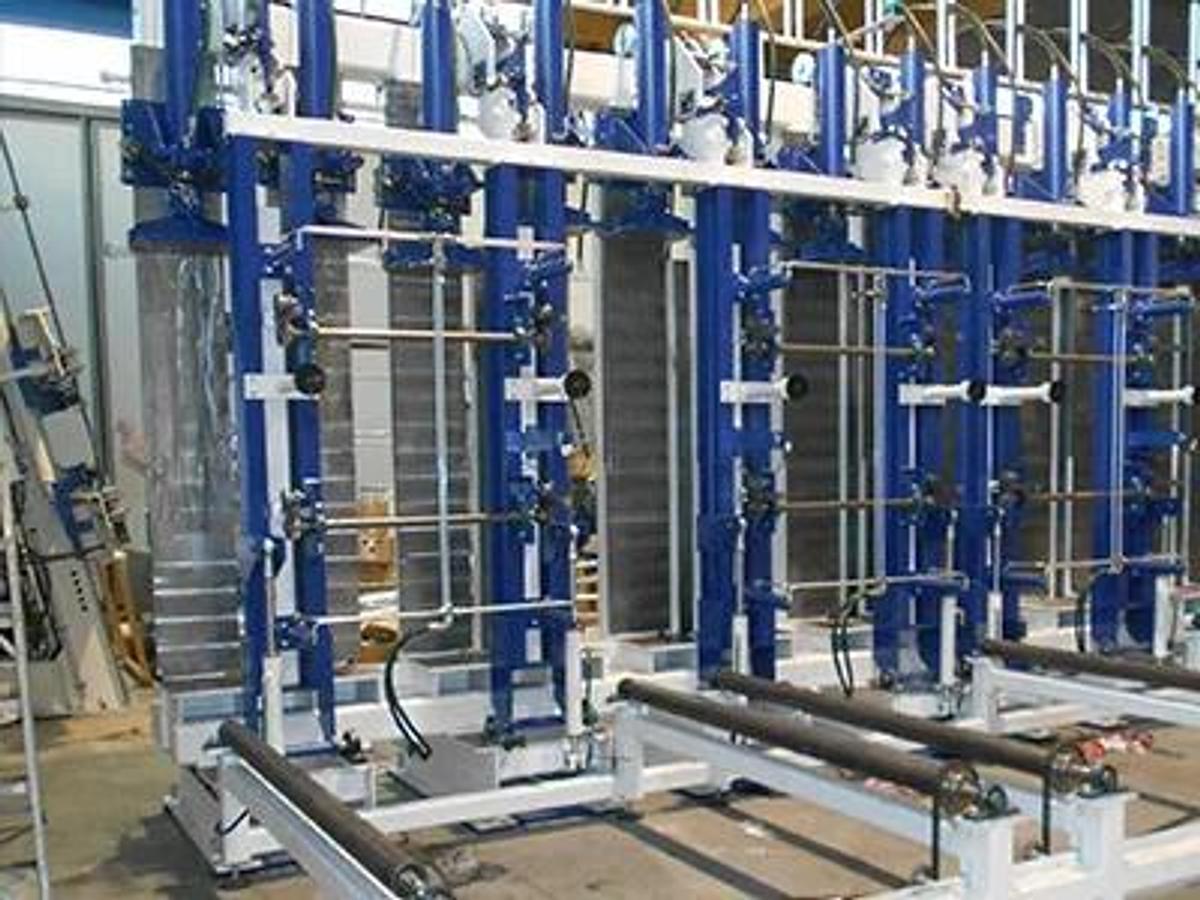

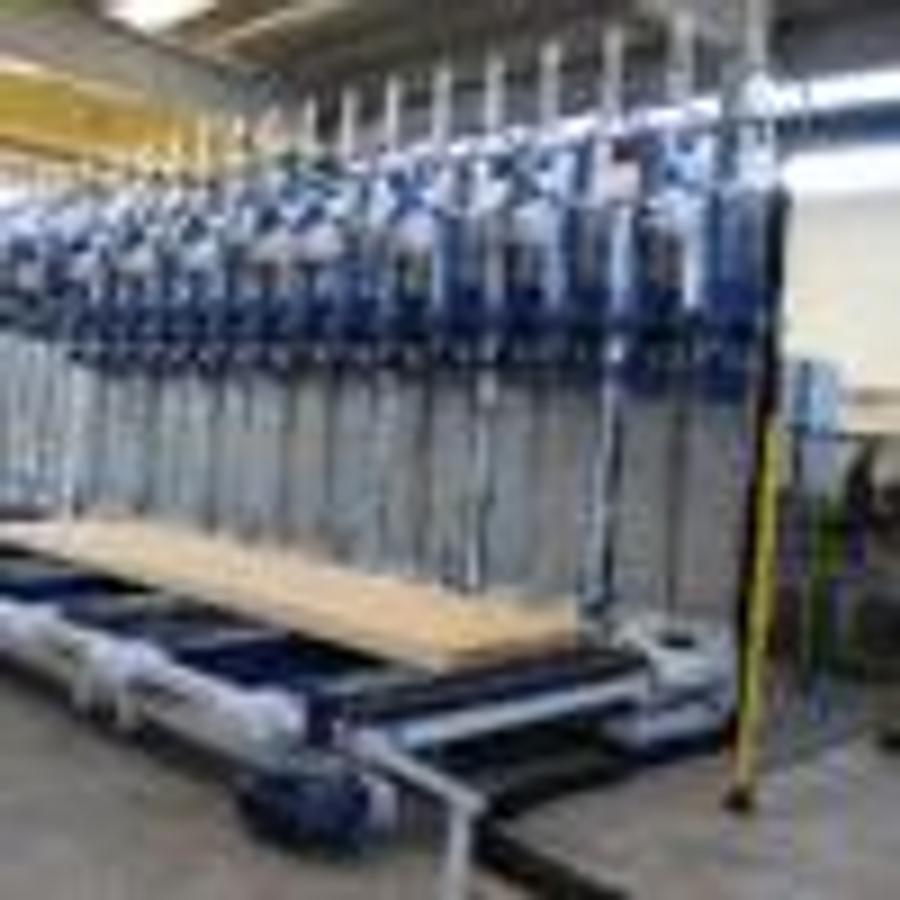

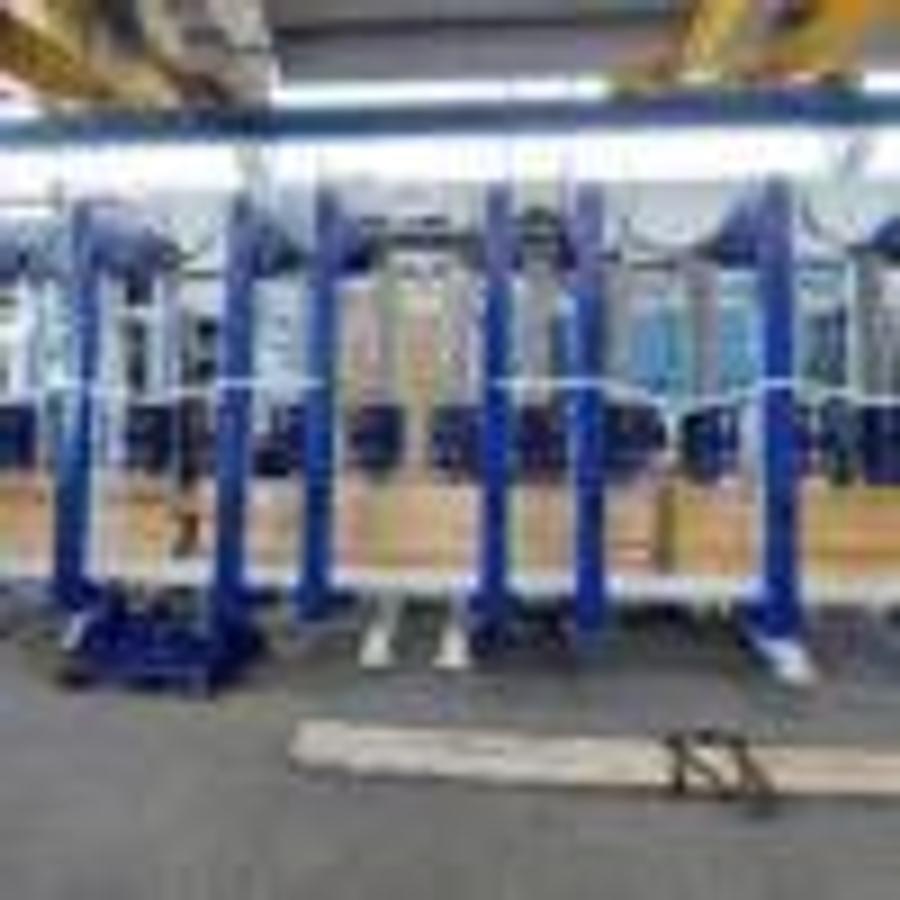

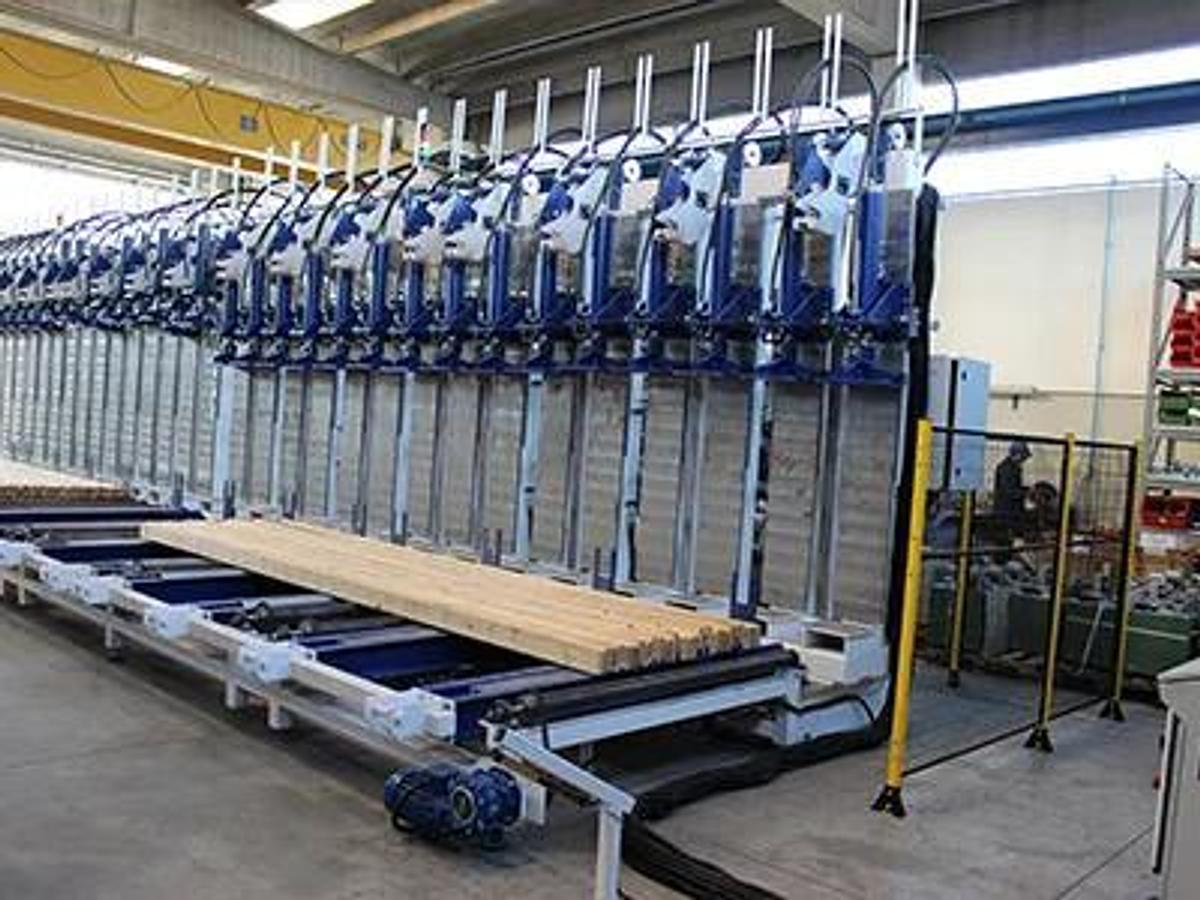

The Automatic SPTL Model is a vertical beam tightener with pistons, designed for small-scale production of lamellar beams and cold windows. It is used for gluing beams and boards for lamellar beam production.
The Automatic SPTL Model is controlled through an electric keypad and includes pressure recovery. Depending on the selected configuration, the machine accommodates a maximum beam thickness of either 150mm or 200mm, with available working lengths from 3000mm to 9000mm.
The Automatic SPTL Model is available in multiple dimensions and thrust capacities, ranging from 20 tons to 190 tons. Pneumatic counter-pressure bars are included according to the working length of the selected configuration.
Functions:
Gluing of beamsGluing of boards for lamellar beamsApplications:
Small production of lamellar beamsCold windowsModels for Maximum Beam Thickness of 150mm:
3000 x 1000mm: 20 tons, 3 pneumatic counter-pressure bars3000 x 1500mm: 20 tons, 3 pneumatic counter-pressure bars4000 x 1000mm: 40 tons, 4 pneumatic counter-pressure bars4000 x 1500mm: 40 tons, 4 pneumatic counter-pressure bars6000 x 1000mm: 55 tons, 7 pneumatic counter-pressure bars6000 x 1500mm: 55 tons, 7 pneumatic counter-pressure bars9000 x 1000mm: 80 tons, 10 pneumatic counter-pressure bars9000 x 1500mm: 80 tons, 10 pneumatic counter-pressure barsModels for Maximum Beam Thickness of 200mm:
3000 x 1000mm: 60 tons, 3 pneumatic counter-pressure bars3000 x 1500mm: 60 tons, 3 pneumatic counter-pressure bars4000 x 1000mm: 80 tons, 4 pneumatic counter-pressure bars4000 x 1500mm: 80 tons, 4 pneumatic counter-pressure bars4500 x 1000mm: 95 tons, 4 pneumatic counter-pressure bars6000 x 1000mm: 115 tons, 7 pneumatic counter-pressure bars6000 x 1500mm: 115 tons, 7 pneumatic counter-pressure bars9000 x 1000mm: 190 tons, 10 pneumatic counter-pressure bars9000 x 1500mm: 190 tons, 10 pneumatic counter-pressure barsStandard Equipment:

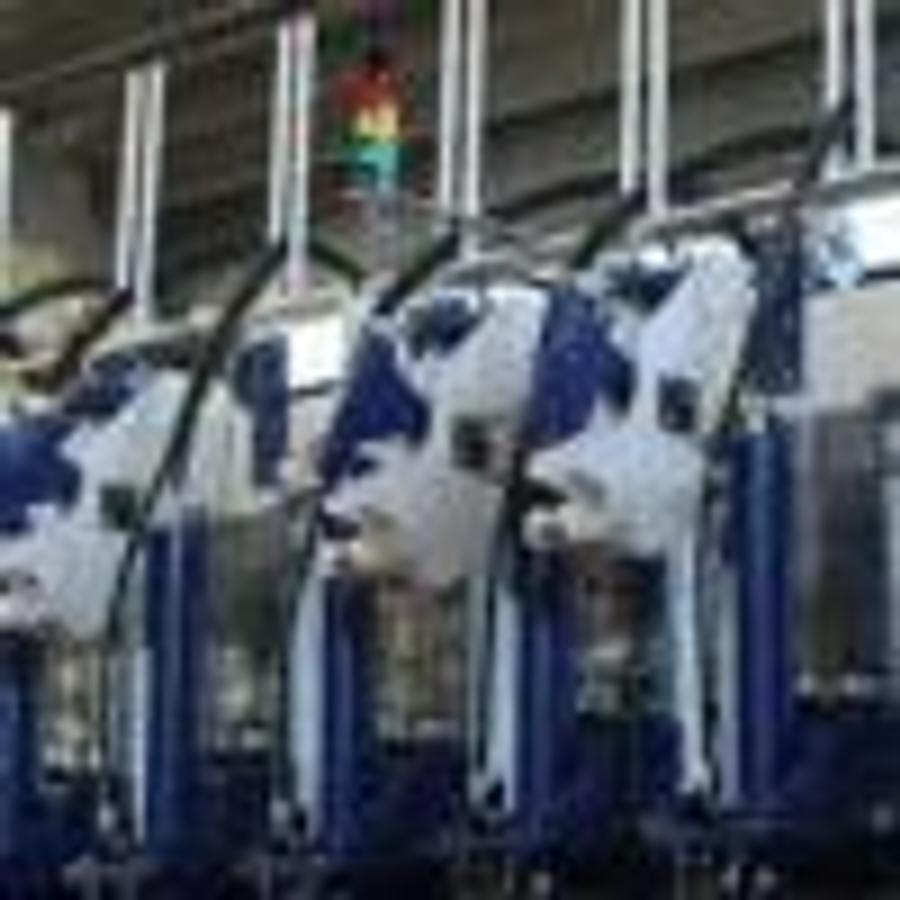

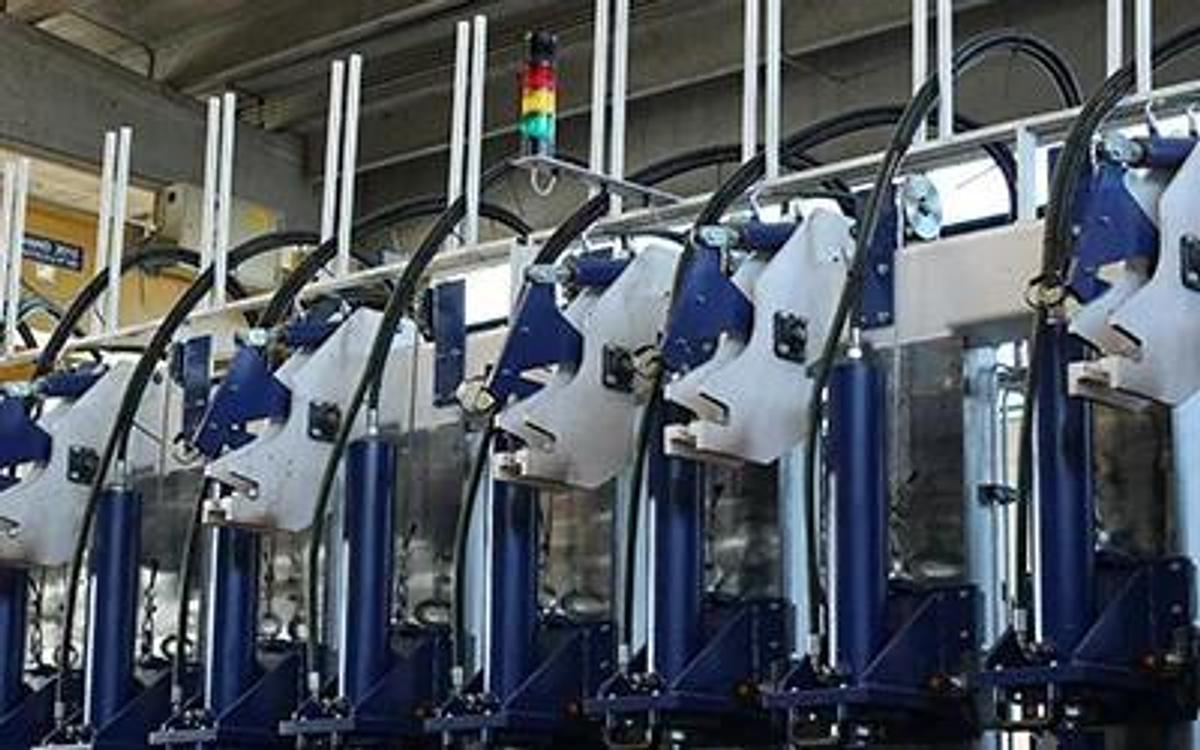

2 vertical pistons per meterPneumatic counter-pressure barsElectric keypad controlsPressure recoveryOptional Equipment:
The Automatic SPTL Model can be equipped with:
Counterweights for lower supportsAdditional vertical uprightPneumatic front pressuresMulti-lever control panel for independent sector processing
